Ford F150 Pickup. Instruction - part 1241

Courtesy of FORD MOTOR CO.

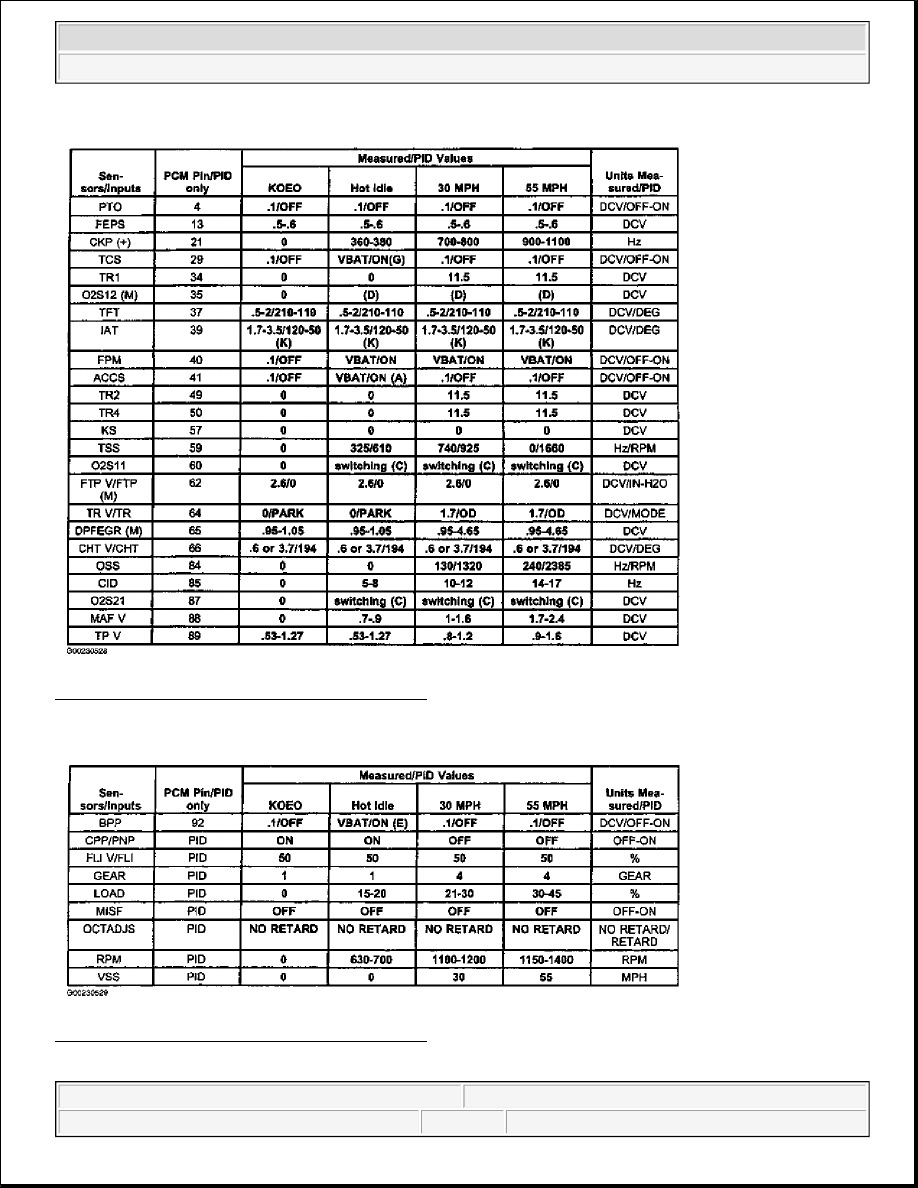

Fig. 42: 5.4L Pickup (4R70W) - Outputs (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

Fig. 43: 5.4L Pickup (4R70W) - Output (2 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 44: 5.4L Pickup (4R70W) - Other
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

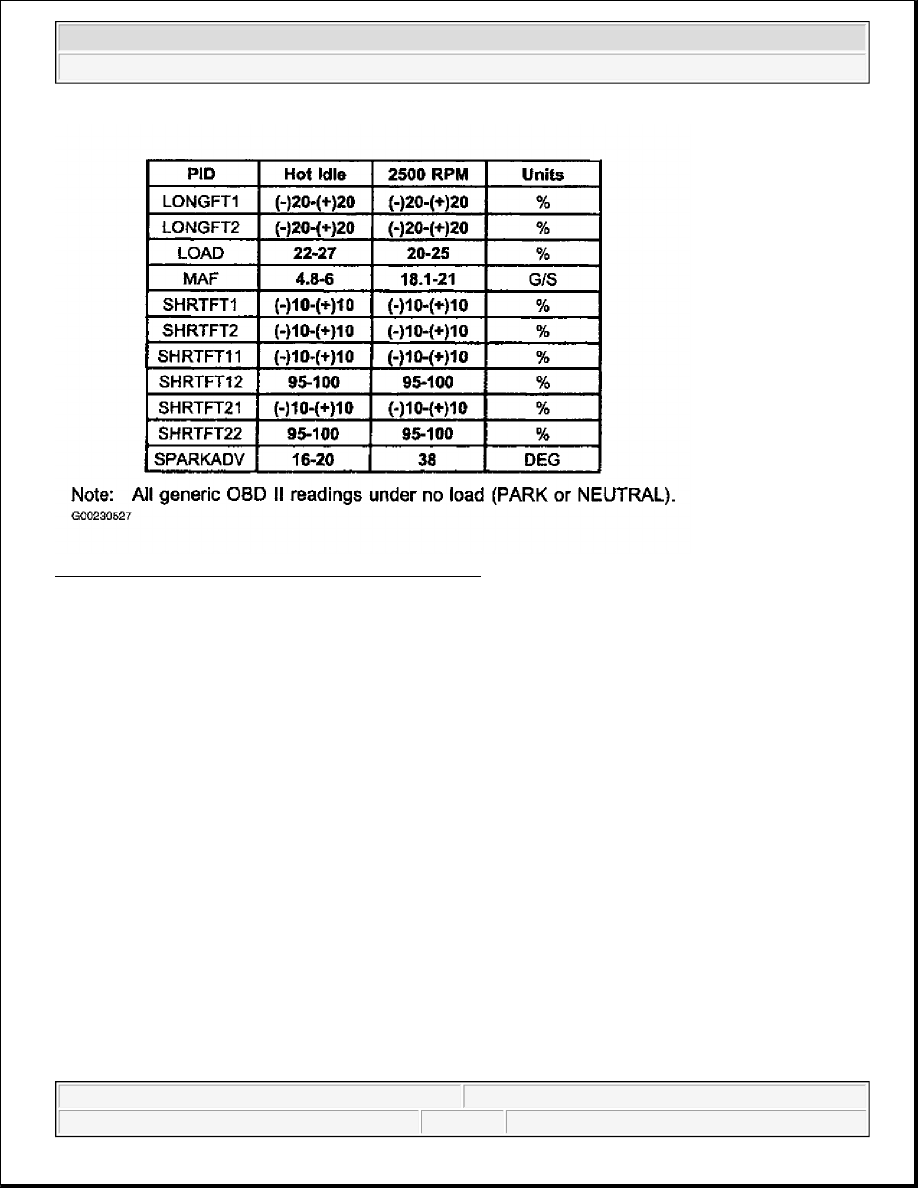

Fig. 45: 5.4L Pickup (4R70W) - Generic OBD-II Values
Courtesy of FORD MOTOR CO.

Typical Diagnostic Reference Value Charts - 5.4L Econoline (With 4R100 Transmission)

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

Fig. 46: 5.4L Econoline (4R100) - Inputs (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 47: 5.4L Econoline (4R100) - Inputs (2 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG
