Ford F150 Pickup. Instruction - part 1239

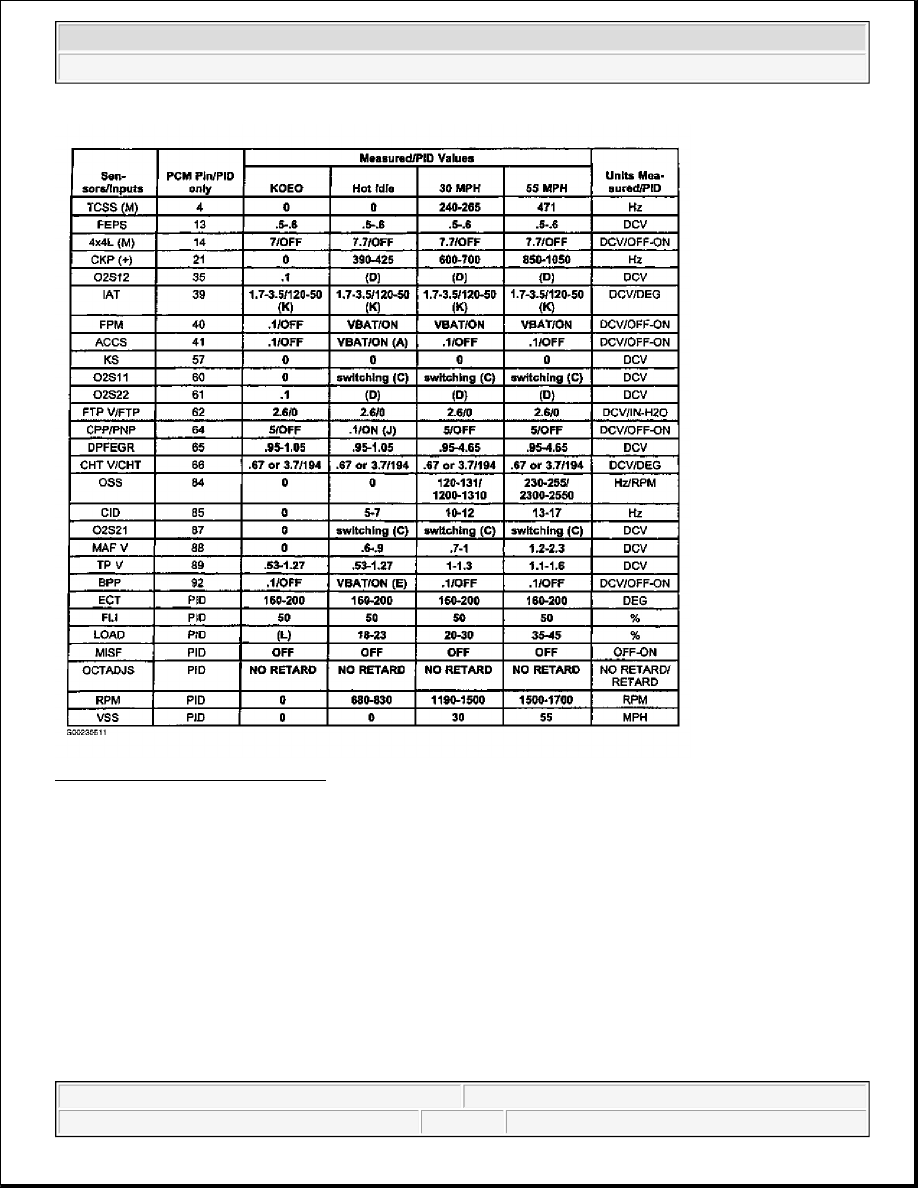

Fig. 29: 4.6L Pickup (M/T) - Inputs
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG



Fig. 30: 4.6L Pickup (M/T) - Outputs (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG



Fig. 31: 4.6L Pickup (M/T) - Outputs (2 Of 2)
Courtesy of FORD MOTOR CO.

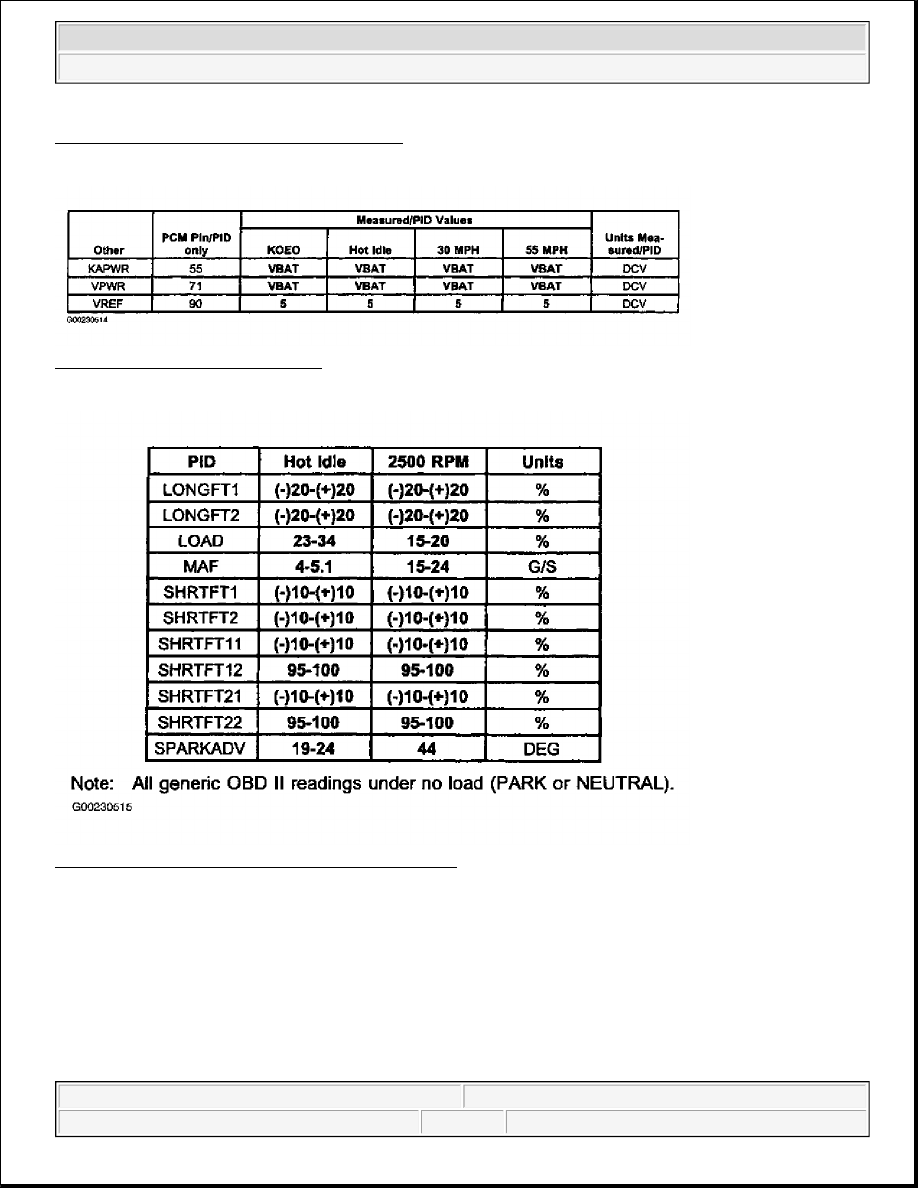

Fig. 32: 4.6L Pickup (M/T) - Other
Courtesy of FORD MOTOR CO.

Fig. 33: 4.6L Pickup (M/T) - Generic OBD-II Values
Courtesy of FORD MOTOR CO.

Typical Diagnostic Reference Value Charts - 5.4L Econoline (With R470W Transmission)



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG



Fig. 34: 5.4L Econoline (4R70W) - Inputs (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 35: 5.4L Econoline (4R70W) - Inputs (2 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG
