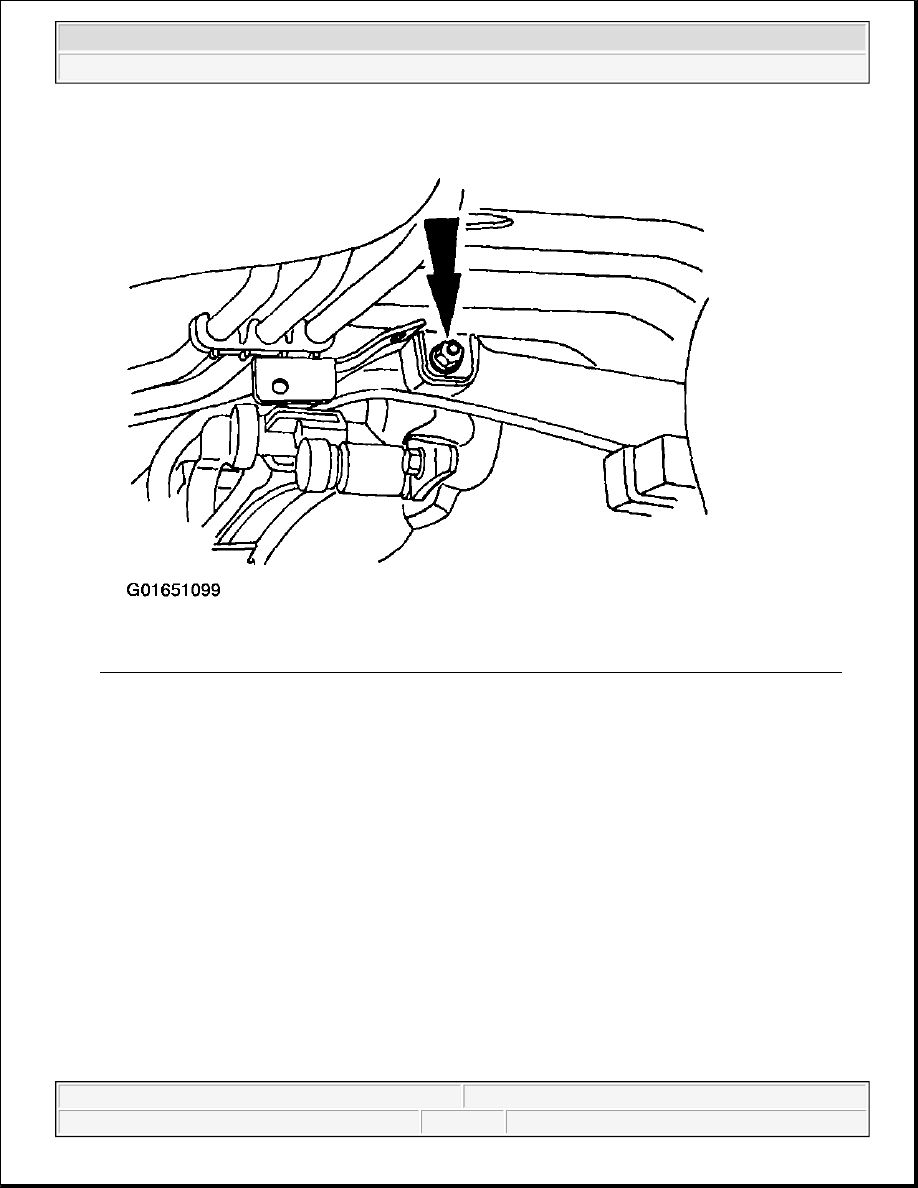

Fig. 89: Removing Nuts From Low-Pressure Fuel And Fuel Pressure Regulator Coolant Line
Assembly Retaining Bracket
Courtesy of FORD MOTOR CO.

5. Remove the nut from the low-pressure fuel and fuel pressure regulator coolant line assembly retaining

bracket at the transmission tailhousing.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



Fig. 90: Removing Nut From Fuel Pressure Regulator Coolant Line Assembly Retaining Bracket
Courtesy of FORD MOTOR CO.

6. Remove the nut from the low-pressure fuel and fuel pressure regulator coolant line assembly retaining

bracket at the transmission bellhousing.

7. Remove the fuel line tether clamp.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



Fig. 91: Removing Fuel Line Tether Clamp
Courtesy of FORD MOTOR CO.

8. Using the Spring Lock Coupling Disconnect Tool, disconnect the fuel supply line from the fuel injection

supply manifold; Refer to SPRING LOCK COUPLINGS for detailed use of the Spring Lock Coupling
Disconnect Tool.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

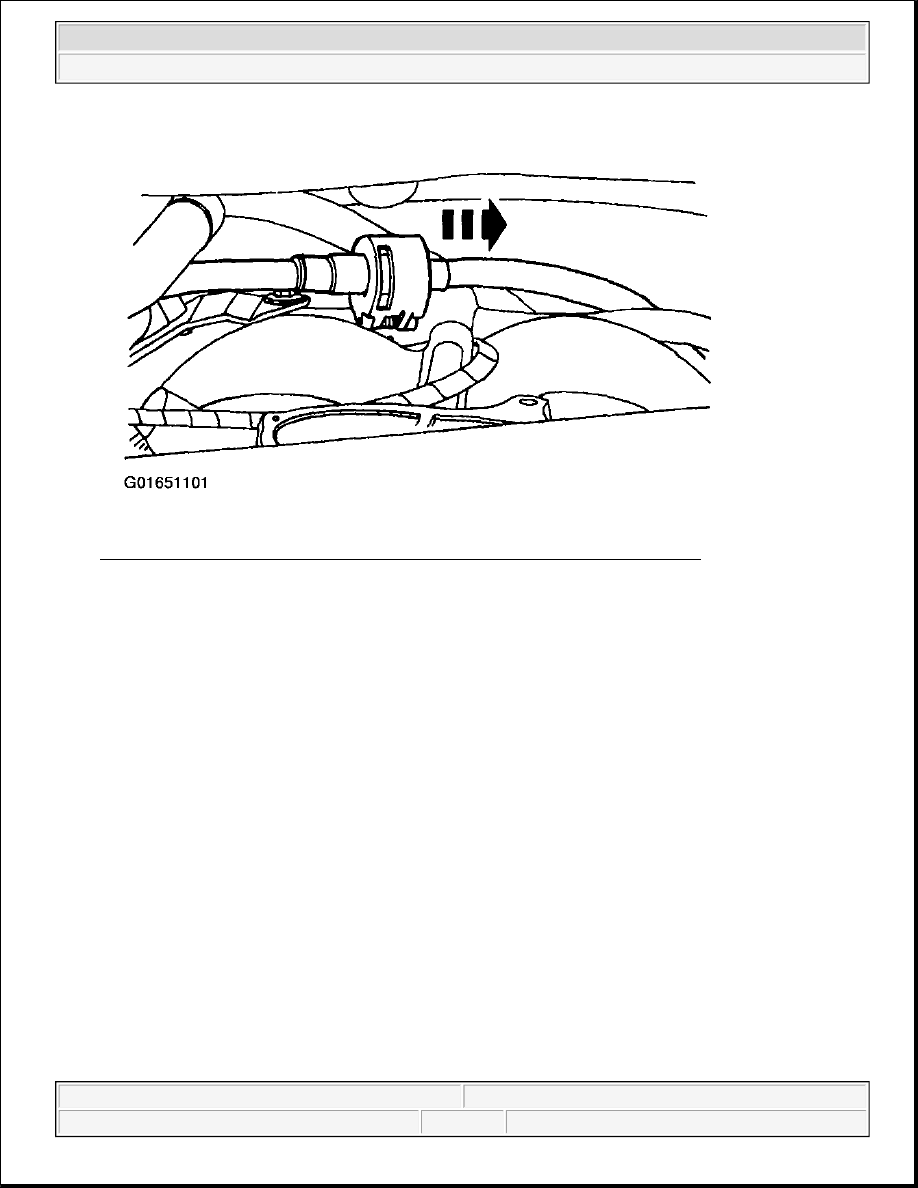

Fig. 92: Disconnecting Fuel Supply Line From Fuel Injection Supply Manifold
Courtesy of FORD MOTOR CO.

9. Remove and discard the two fuel line O-rings.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup
