Fig. 77: Installing P-Clip Retaining Bolt
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



Fig. 78: Connecting Rear High-Pressure Fuel Line From Front High-Pressure Fuel Line
Courtesy of FORD MOTOR CO.

1. Follow the removal procedure in reverse order.

LINES - FRONT HIGH-PRESSURE FUEL

Removal

1. Remove the mid-ship fuel tank; refer to FUEL TANK - MID-SHIP .

2. Disconnect the front high-pressure fuel line from the coalescer/filter.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

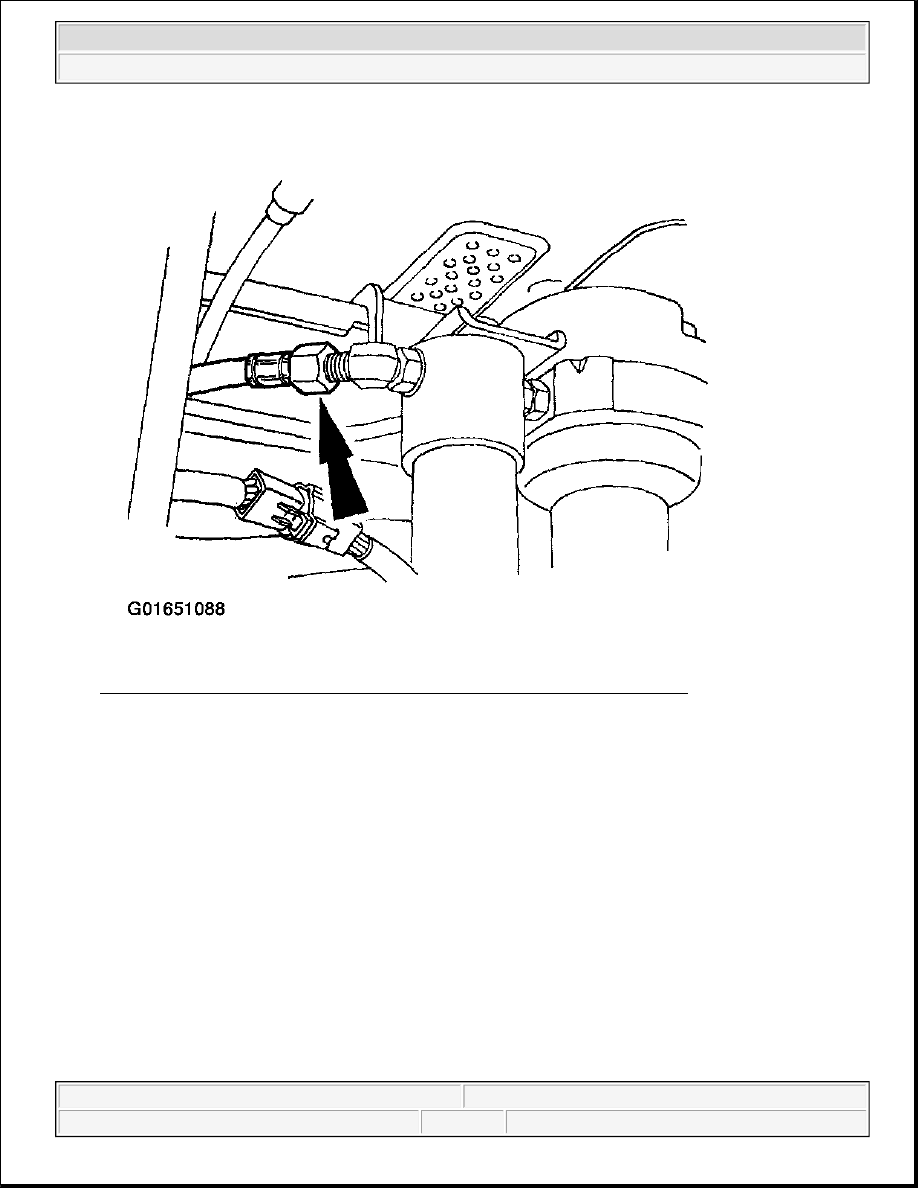

Fig. 79: Disconnecting Front High-Pressure Fuel Line From Coalescer/Filter
Courtesy of FORD MOTOR CO.

3. Disconnect the front high-pressure fuel line from the in-bed fuel tank high-pressure fuel line, if so

equipped.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

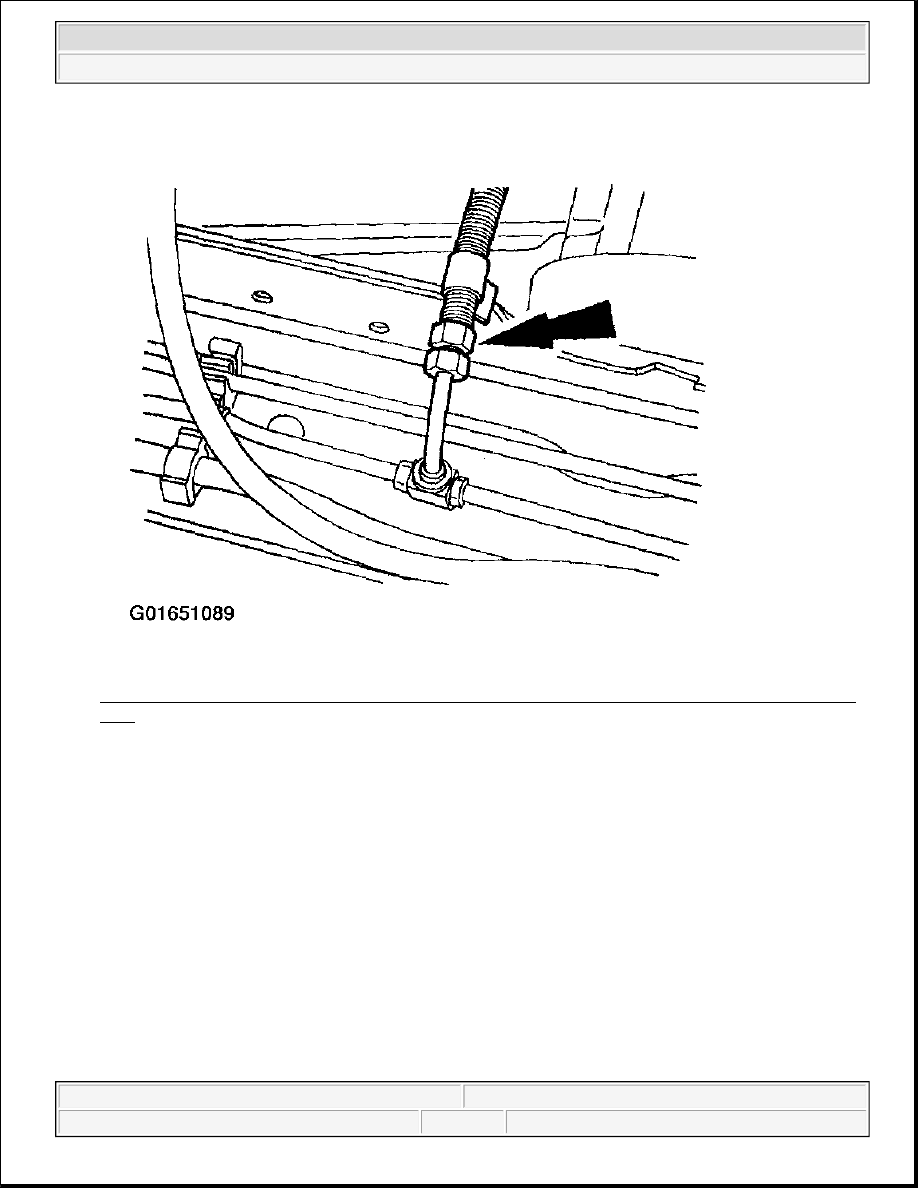

Fig. 80: Disconnecting Front High-Pressure Fuel Line From In-Bed Fuel Tank High-Pressure Fuel
Line
Courtesy of FORD MOTOR CO.

4. Disconnect the front high-pressure fuel line from the rear high-pressure fuel line.
