Ford F150 Pickup. Instruction - part 1178

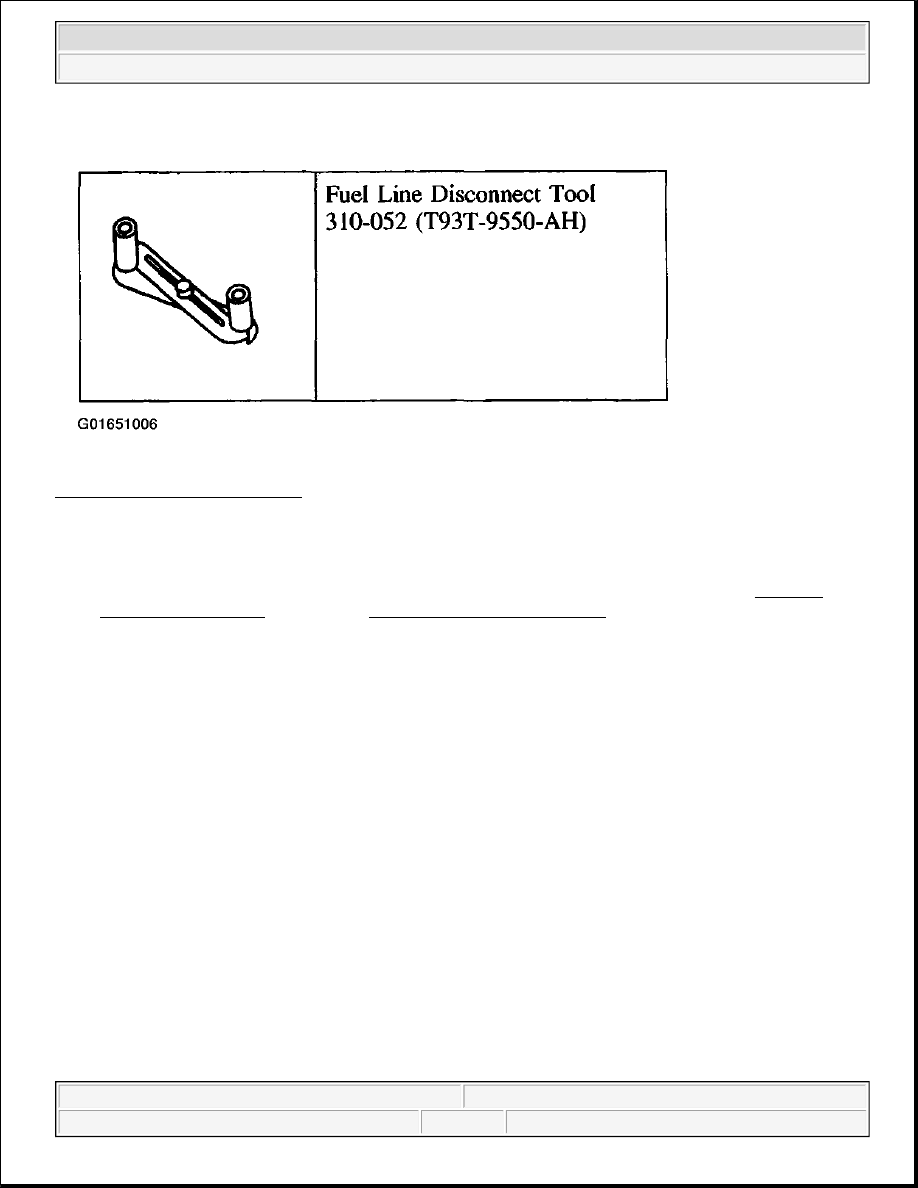

Fig. 41: Identifying Special Tool
Courtesy of FORD MOTOR CO.

Removal

1. Use the Fuel Line Disconnect Tool to disconnect the fuel lines from the fuel filter; refer to SPRING

LOCK COUPLINGS (Gasoline) or SPRING LOCK COUPLINGS (NGV).



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



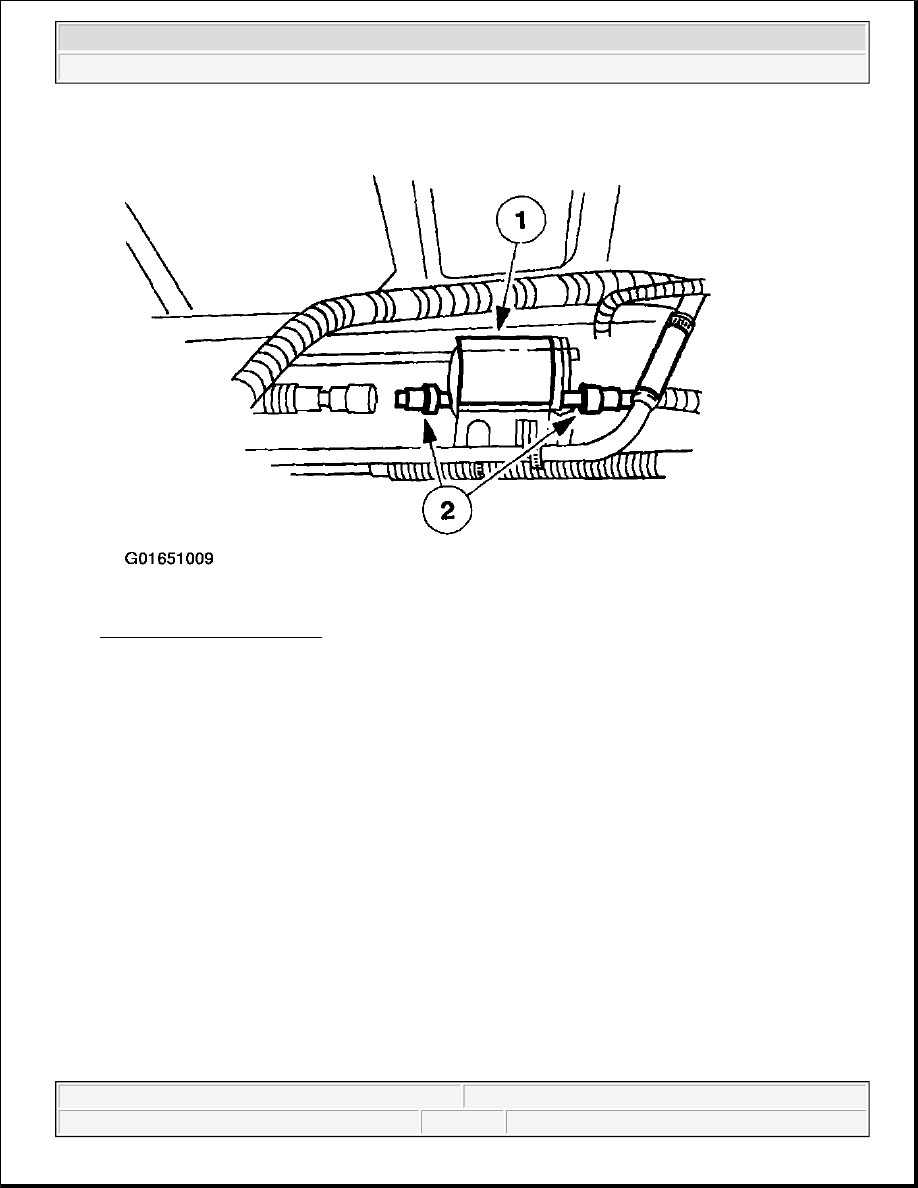

Fig. 42: Identifying Fuel Lines At Fuel Filter
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



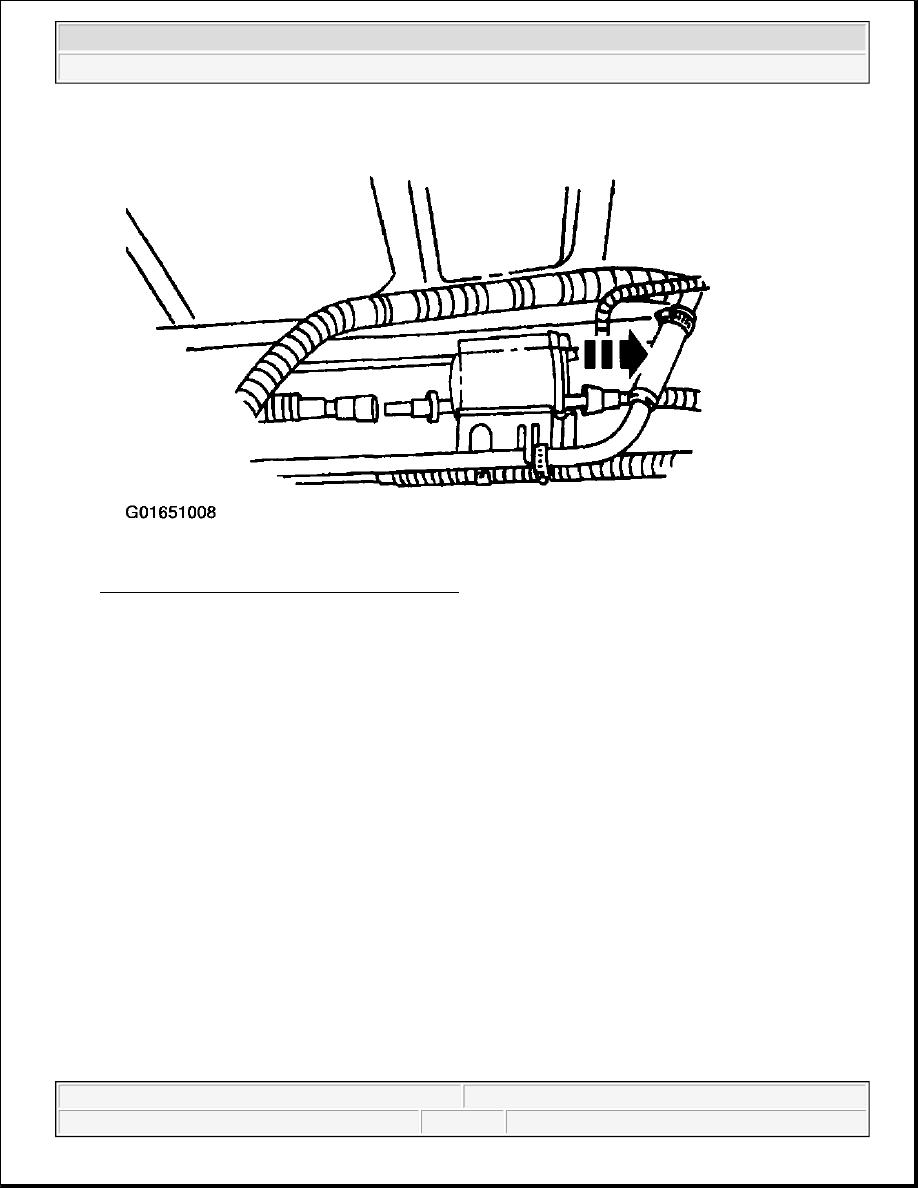

Fig. 43: Removing Fuel Lines From Fuel Filter
Courtesy of FORD MOTOR CO.

Installation

NOTE:

When installing fuel lines to the fuel filter, push the lines onto the ports
until a definite "click" is heard, then pull on the fittings to ensure they are
engaged.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



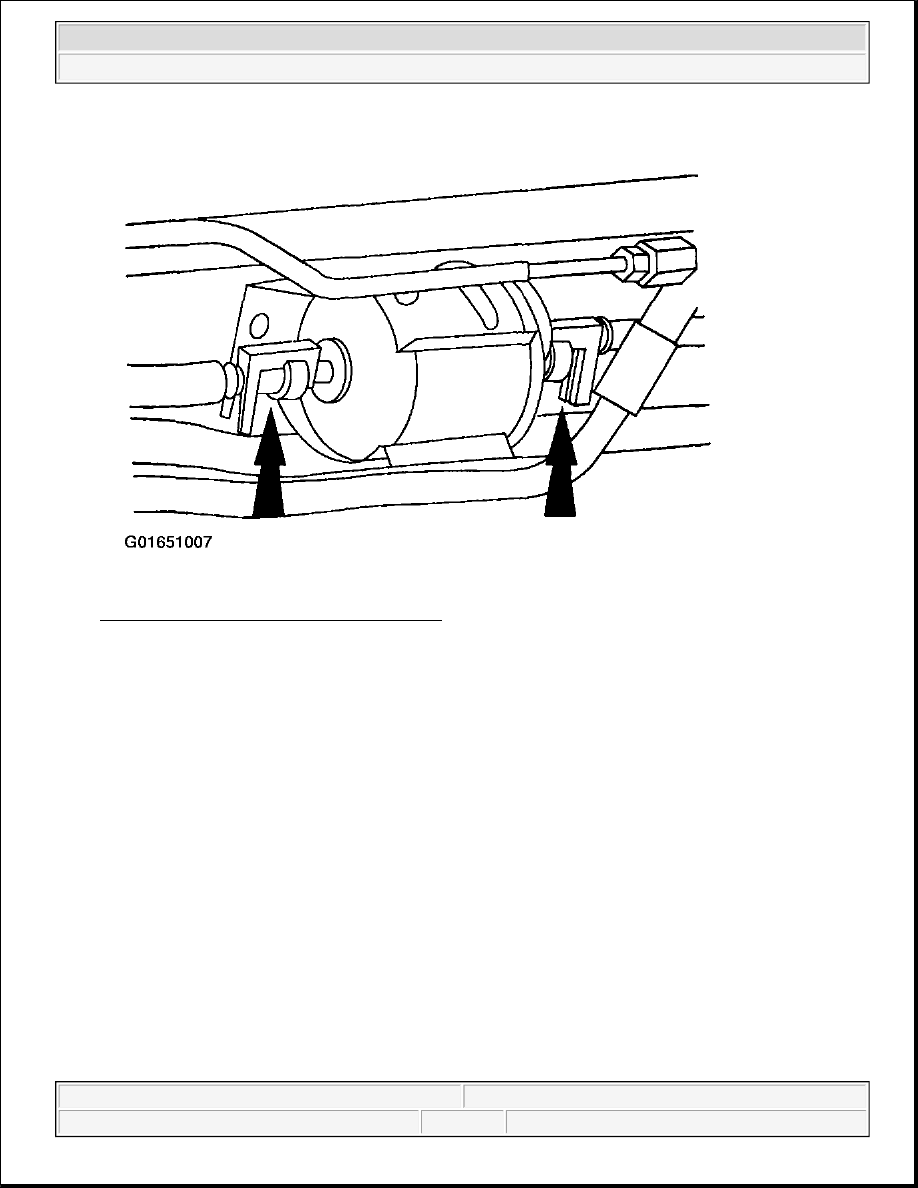

Fig. 44: Installing Fuel Filter
Courtesy of FORD MOTOR CO.

1. Install the fuel filter.

2. Connect the fuel lines.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup
