Fig. 29: Removing Fuel Tank Support Straps
Courtesy of FORD MOTOR CO.

Installation

1. Follow the removal procedure in reverse order.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



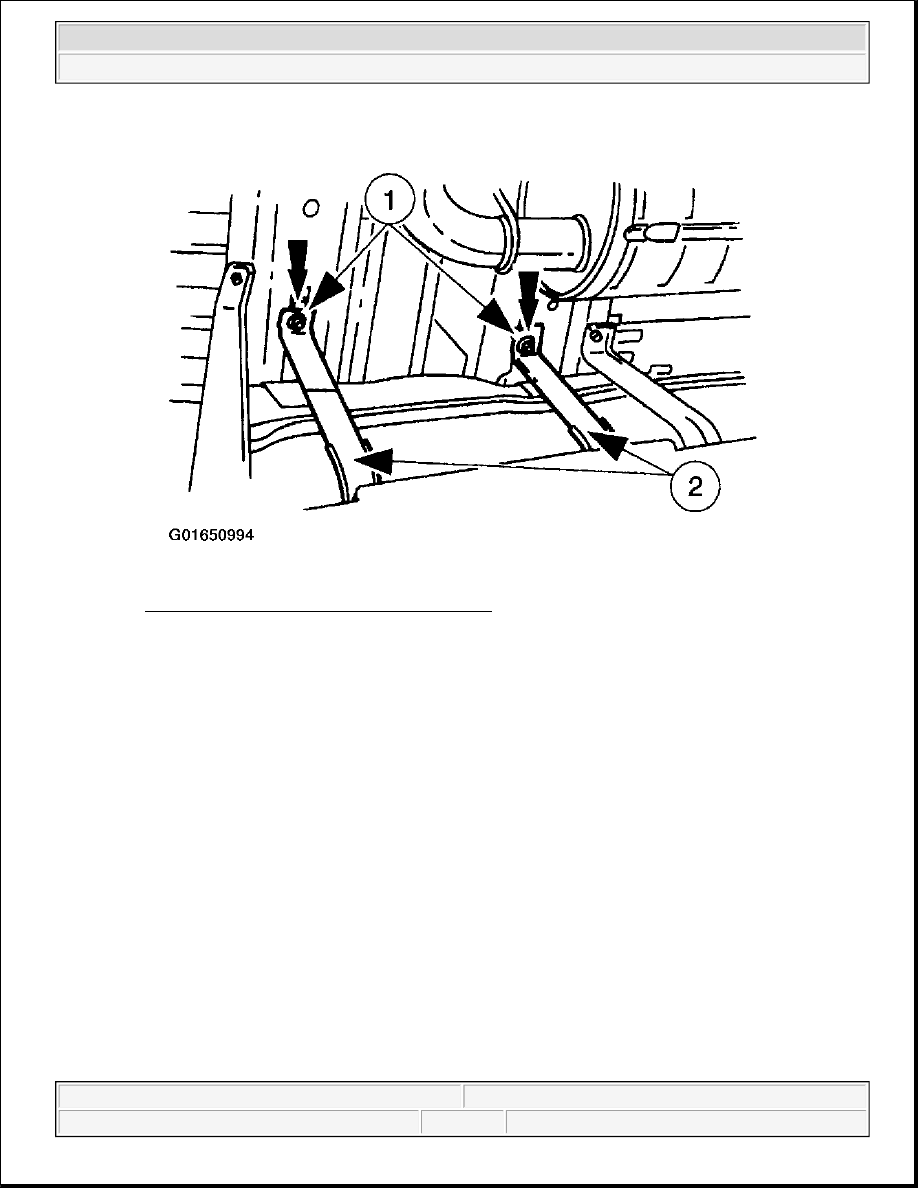

Fig. 30: Installing Fuel Tank Support Straps
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



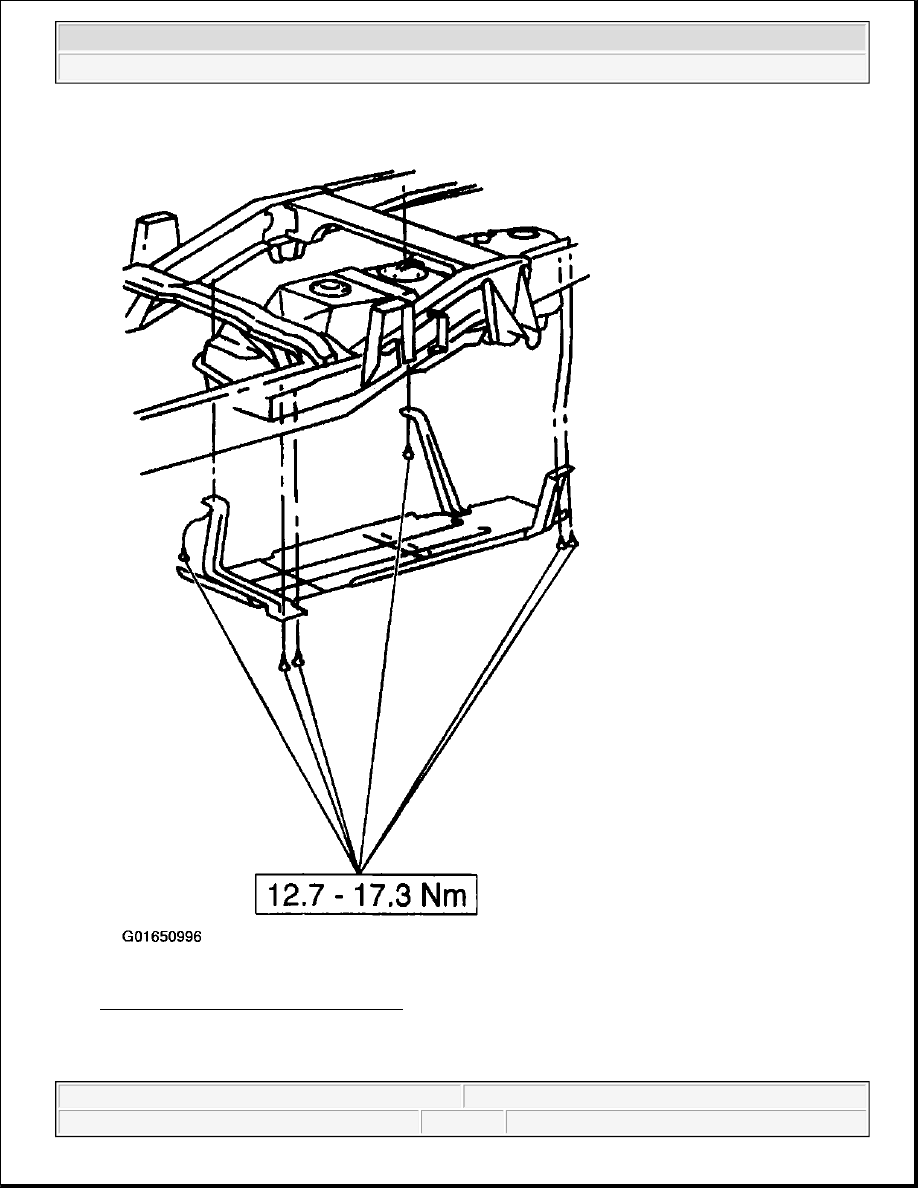

Fig. 31: Installing Fuel Tank Skid Plate
Courtesy of FORD MOTOR CO.

PUMP



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



Removal

1. Remove the fuel tank (9002); refer to FUEL TANK .

2. Clean the area around the fuel pump mounting flange.

Fig. 32: Removing Fuel Pump Bolts
Courtesy of FORD MOTOR CO.

3. Remove the bolts and remove the fuel pump.

4. Remove and discard the fuel pump mounting gasket (9417).

Installation

1. Clean the fuel pump mounting flange and the fuel tank mounting surface.

2. Install the fuel pump mounting gasket on the mounting flange.

3. Install the fuel pump.

1. Position the fuel pump in the fuel tank.

2. Install the bolts.

NOTE:

The fuel pump must be handled carefully to avoid damage to the float arm
and the filter.
