Ford F150 Pickup. Instruction - part 1171

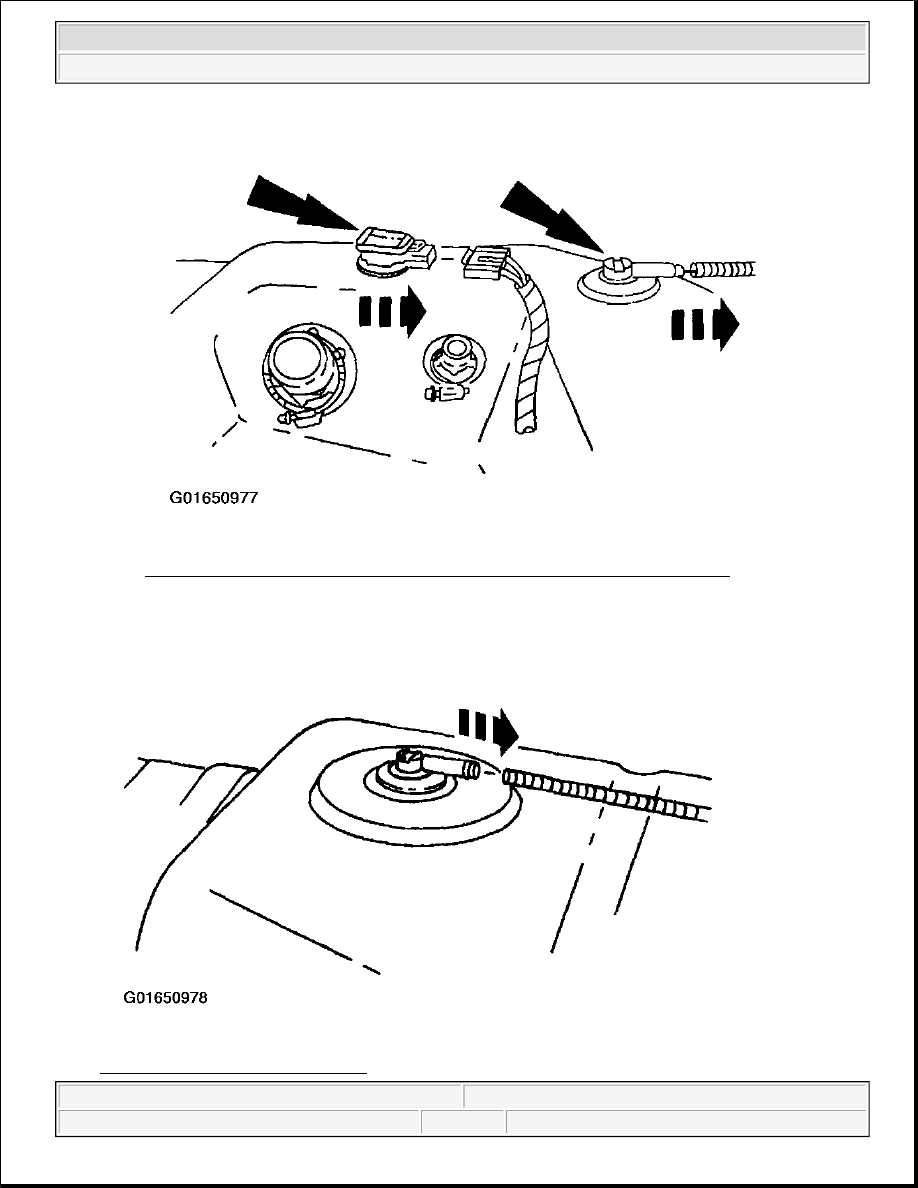

Fig. 12: Disconnecting Fuel Tank Pressure Transducer Electrical Connector
Courtesy of FORD MOTOR CO.

13. Release the rear EVAP hose clamp and disconnect the hose.

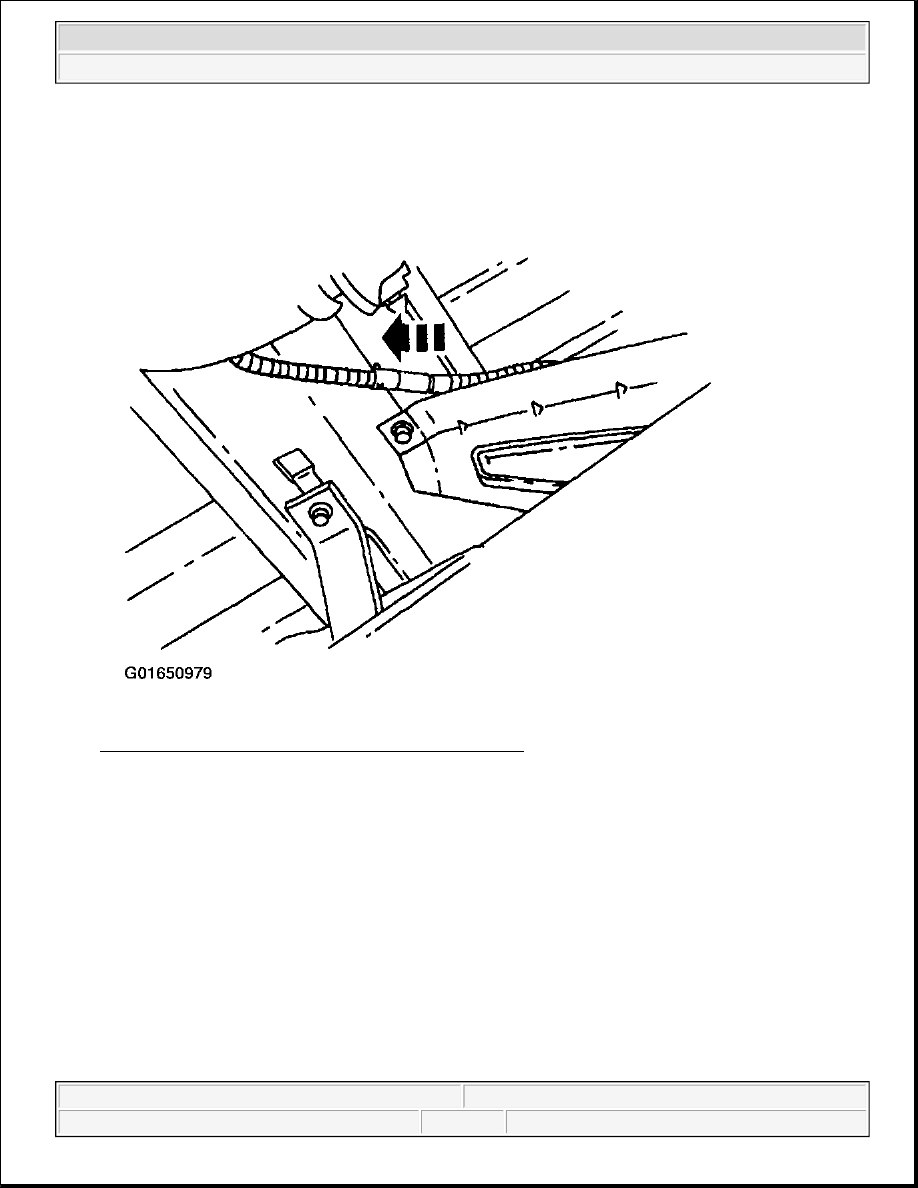

Fig. 13: Disconnecting EVAP Hose



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



Courtesy of FORD MOTOR CO.

14. Disconnect the fuel pump electrical connector.

Fig. 14: Disconnecting Fuel Pump Electrical Connector
Courtesy of FORD MOTOR CO.

15. Lower and remove the fuel tank.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



Fig. 15: Positioning Special Tool Under Fuel Tank
Courtesy of FORD MOTOR CO.

16. To install, reverse the removal procedure.

FUEL TANK - SUPERCHARGED ENGINE

Special Tool(s)



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



Fig. 16: Identifying Fuel Line Disconnect Tool
Courtesy of FORD MOTOR CO.

Removal

1. Relieve the fuel pressure. Refer to PRESSURE RELIEF .

2. Disconnect the battery (14301).

3. Raise and support the vehicle.

4. Drain the fuel from the fuel tank (9002). Refer to FUEL TANK DRAINING .

5. Remove one hose clamp on the fuel tank filler pipe support.

WARNING:

Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel-related components. Highly flammable
mixtures are always present and may be ignited, resulting in possible
injury.

WARNING:

Fuel in the fuel system remains under high pressure even when the
engine is not running.
