Ford F150 Pickup. Instruction - part 1170

Fig. 8: Disconnecting Fuel Tank Filler Pipe Vent Hose From Fuel Tank
Courtesy of FORD MOTOR CO.

9. Position special tool under the fuel tank.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup

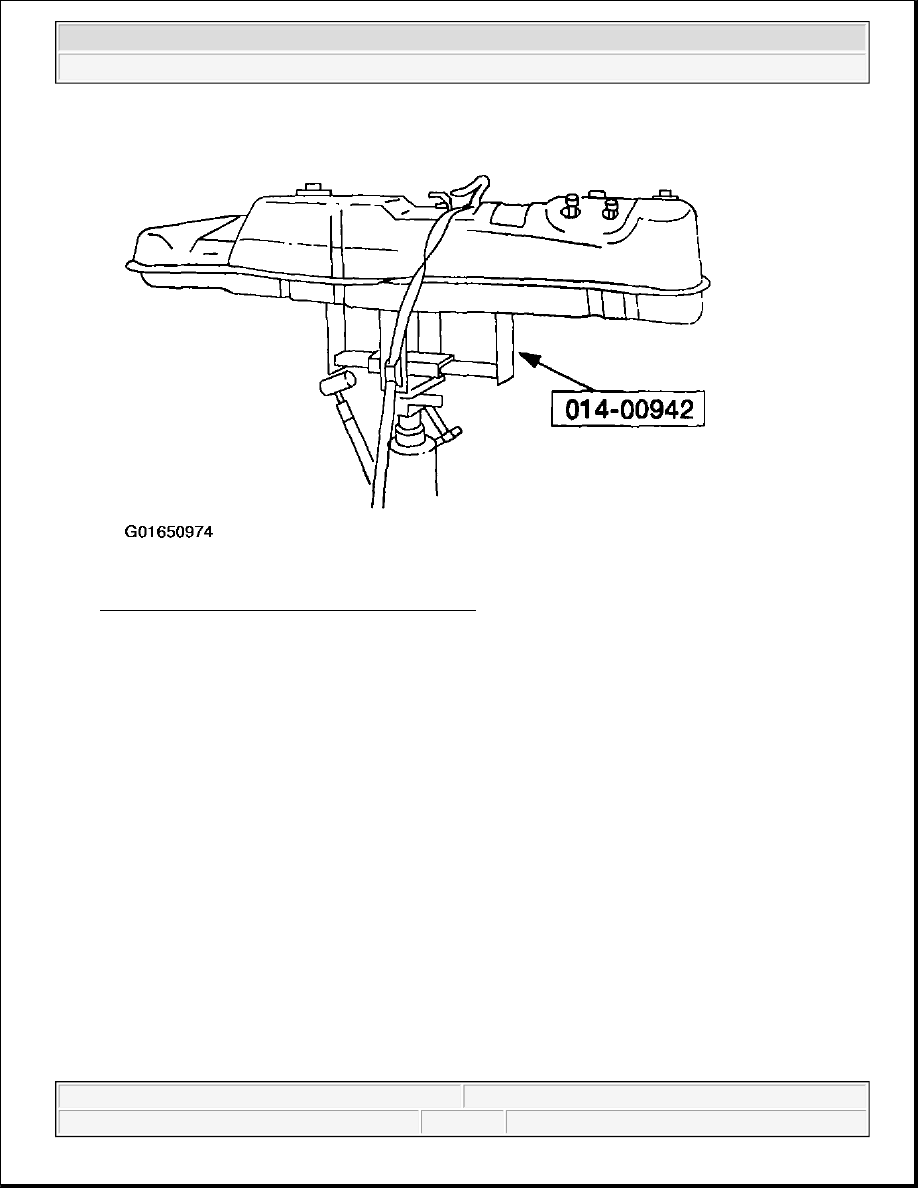

Fig. 9: Positioning Special Tool Under Fuel Tank
Courtesy of FORD MOTOR CO.

10. Remove the fuel tank support straps and partially lower the fuel tank.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup

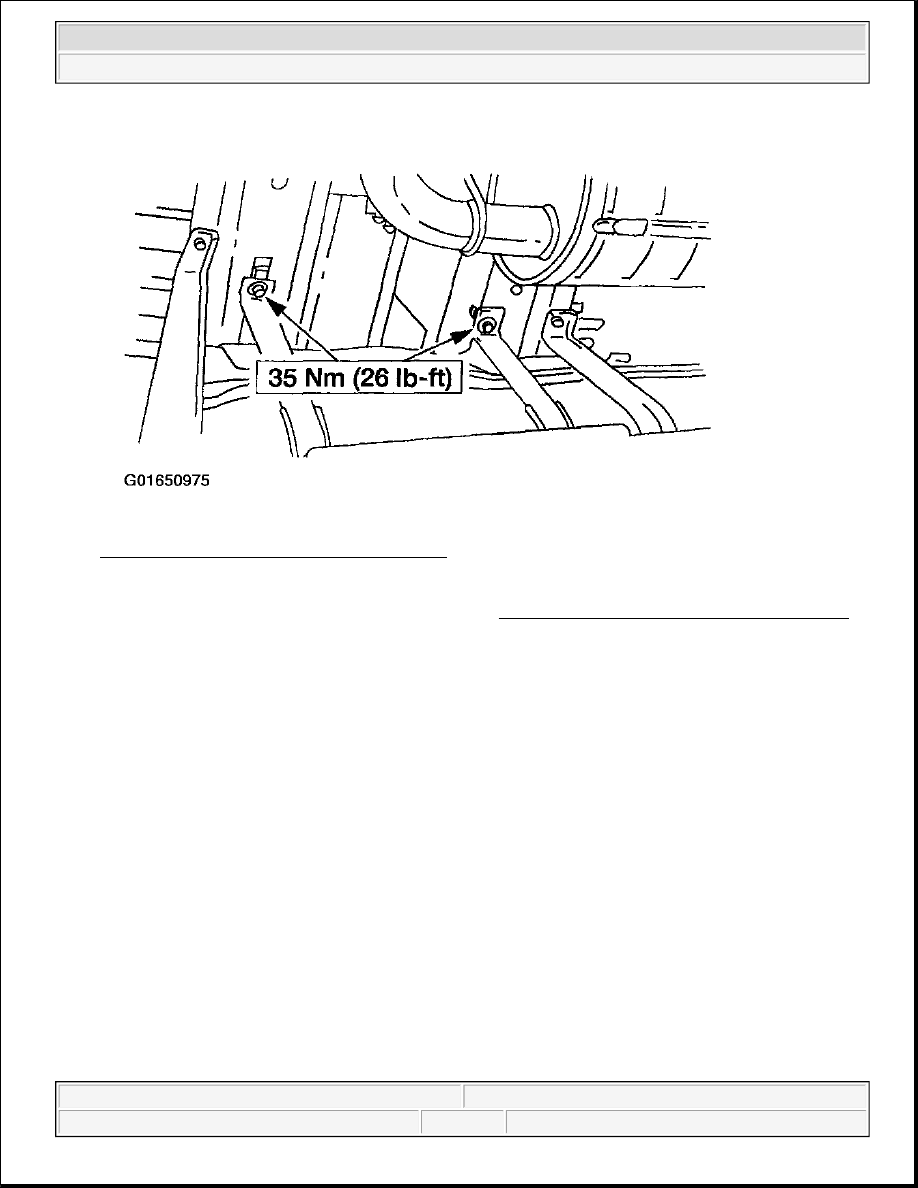

Fig. 10: Removing Fuel Tank Support Straps
Courtesy of FORD MOTOR CO.

11. Disconnect the fuel tubes from the fuel pump. Refer to FUEL LINE FITTINGS -- PUSH CONNECT .



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup

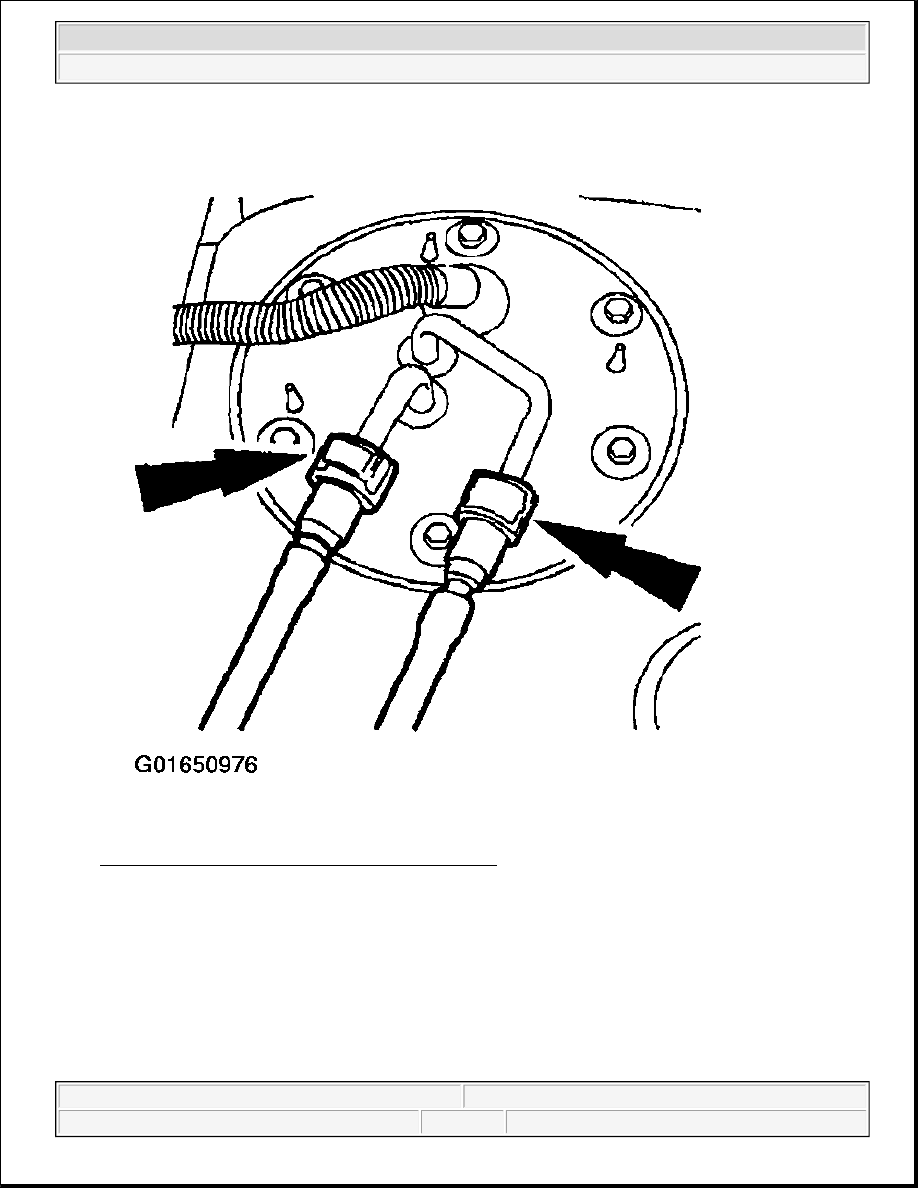

Fig. 11: Disconnecting Fuel Tubes From Fuel Pump
Courtesy of FORD MOTOR CO.

12. Disconnect the fuel tank front connections.

z

Disconnect the evaporative emission (EVAP) hose.

z

Disconnect the fuel tank pressure transducer electrical connector.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup
