Fig. 12: Disconnecting Fuel Fill Line From Fuel Fill Valve
Courtesy of FORD MOTOR CO.

4. Connect the Fuel Venting Kit and Adapter to the fuel fill line.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System-General Information-Bi-Fuel - F150 Pickup

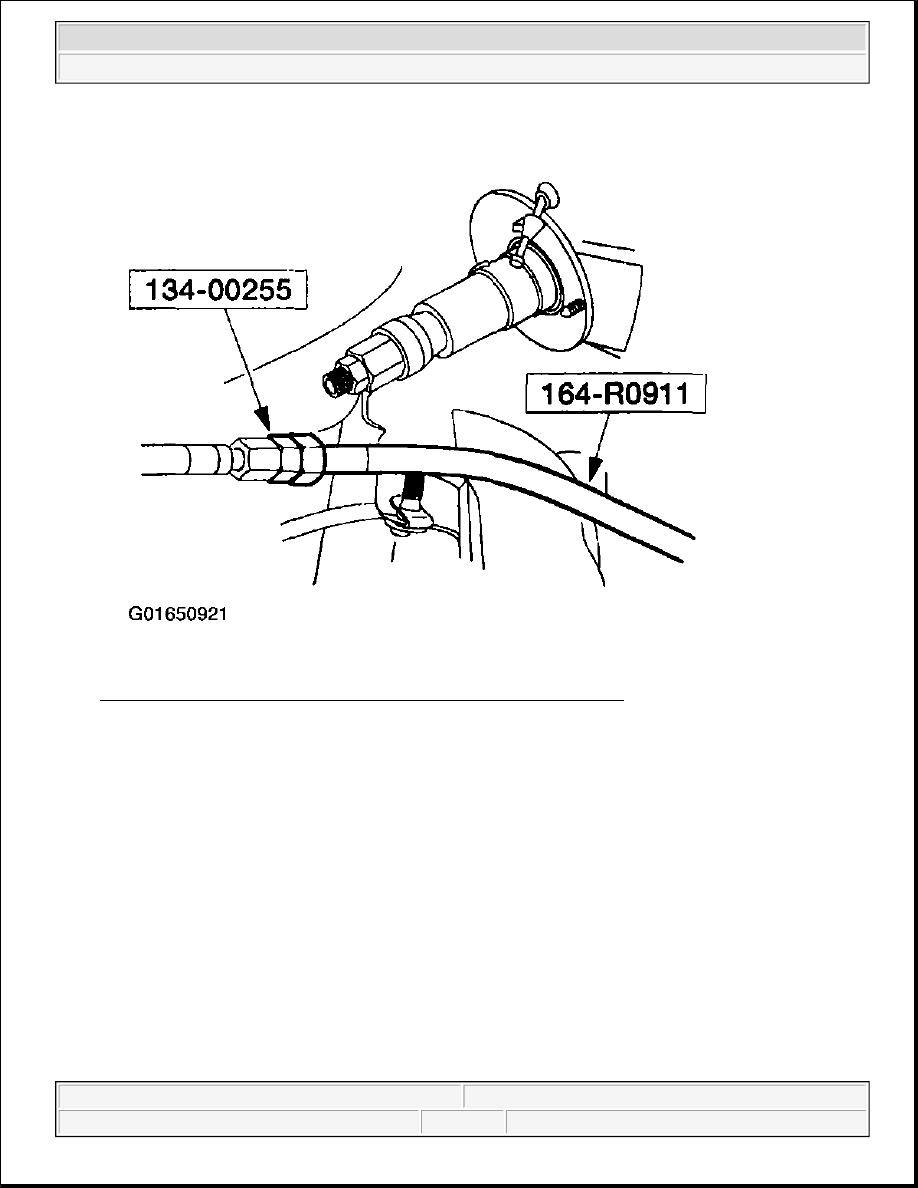

Fig. 13: Connecting Fuel Venting Kit And Adapter To Fuel Fill Line
Courtesy of FORD MOTOR CO.

NOTE:

Solenoid diagnostics must be completed on all tank solenoid valves prior
to venting.

NOTE:

All fuel tank solenoid valves must be in the locked down position.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System-General Information-Bi-Fuel - F150 Pickup

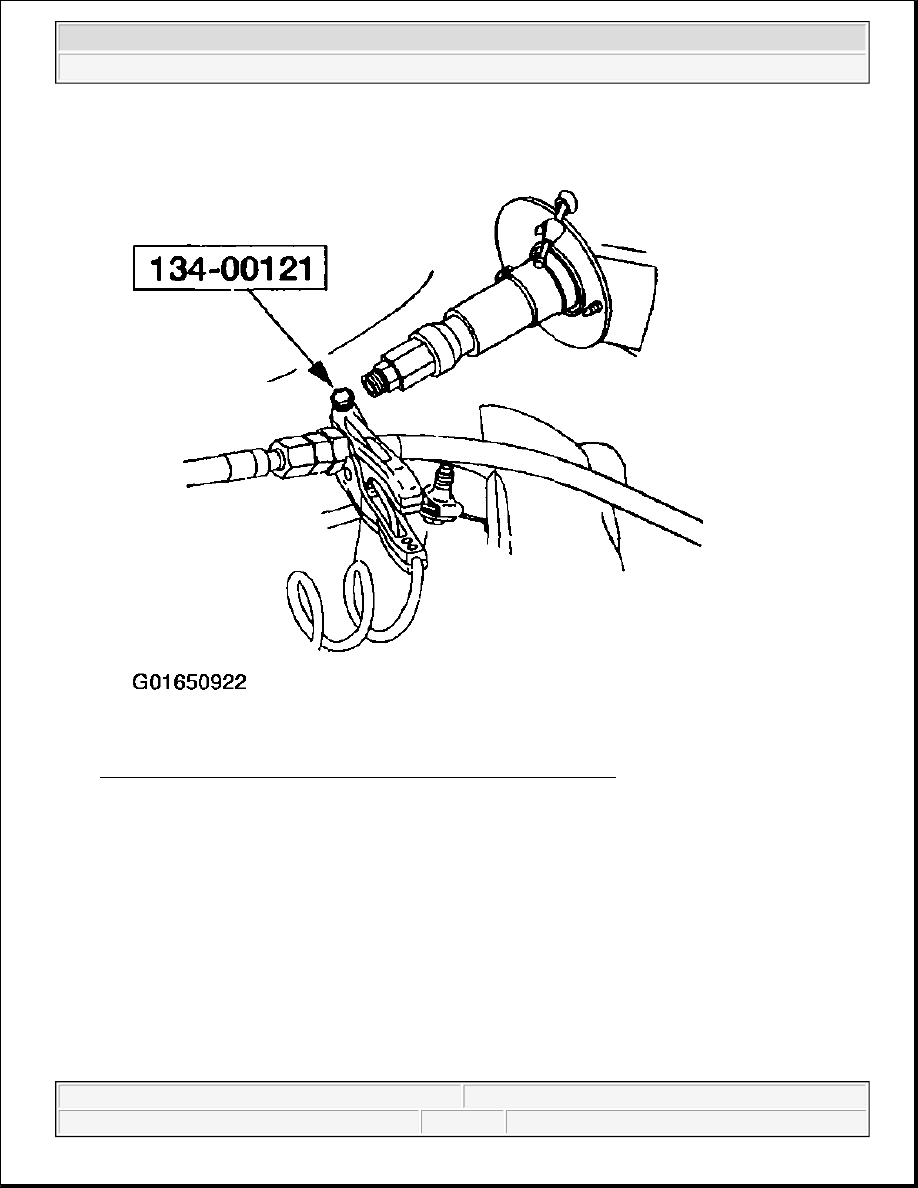

Fig. 14: Connecting Grounding Cable To Fuel Fill Line Connection
Courtesy of FORD MOTOR CO.

5. Connect the Grounding Cable to the fuel fill line connection.

6. Connect the Grounding Cable to the ground rod.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System-General Information-Bi-Fuel - F150 Pickup

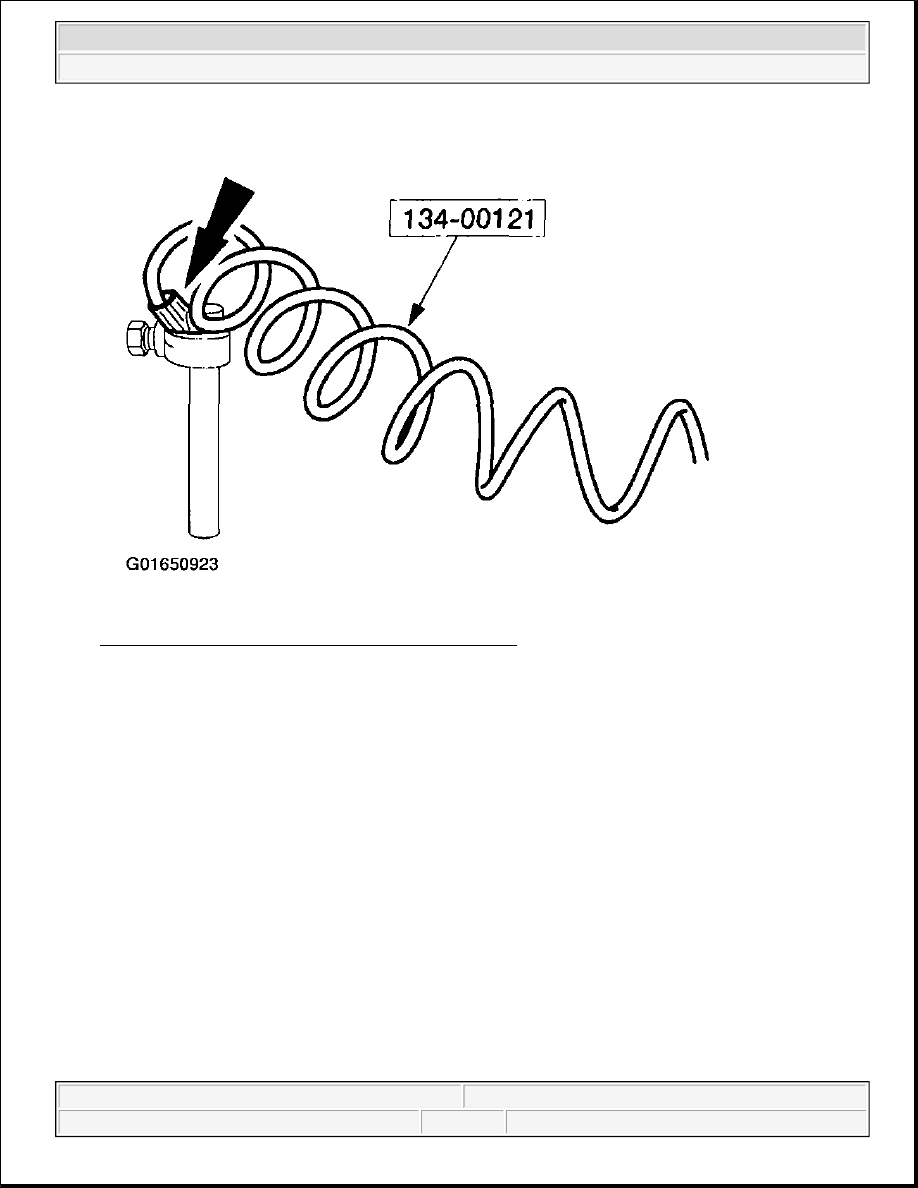

Fig. 15: Connecting Grounding Cable To Ground Rod
Courtesy of FORD MOTOR CO.

7. Connect the Fuel Filler Neck Venting Kit to the Venting Hose Assembly and Adapter.
