Ford F150 Pickup. Instruction - part 1125

Fig. 23: Removing Heat Shield-To-Transmission Support Crossmember Nuts (4X4 Vehicles With
4R100 Transmission)
Courtesy of FORD MOTOR CO.

6. Using a suitable high-lift jack, support the transmission.

7. Remove the nuts.

CAUTION: Support the transmission on the oil pan rails only or internal

transmission damage may occur.



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup



Fig. 24: Removing Transmission Support Nuts
Courtesy of FORD MOTOR CO.

8. Remove the LH and RH bolts, the nuts and the transmission support crossmember (6A023).



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup



Fig. 25: Removing Transmission Support Crossmember Bolts & Nut
Courtesy of FORD MOTOR CO.

9. Remove the bolt.



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup



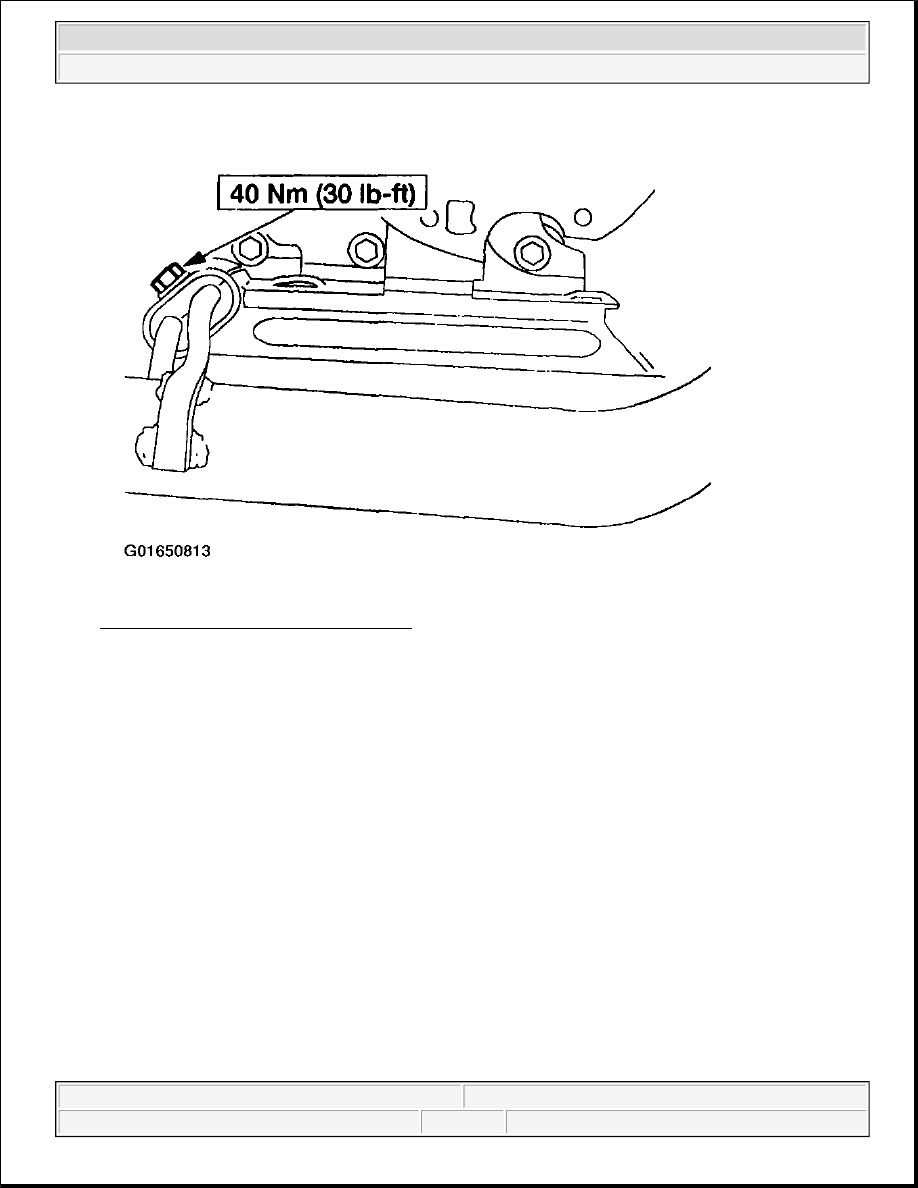

Fig. 26: Removing Exhaust Support Bolt
Courtesy of FORD MOTOR CO.

All Vehicles

10. Loosen the nut and remove the converter.
