Ford F150 Pickup. Instruction - part 1123

Fig. 15: Removing Transmission Support Bolt
Courtesy of FORD MOTOR CO.

9. Remove the LH and RH bolts, the nuts, and the transmission support crossmember (6A023).



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup



Fig. 16: Removing Transmission Support Crossmember Bolts & Nut
Courtesy of FORD MOTOR CO.

Vehicles With 4R100 Transmission

10. Remove the bolt.



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup

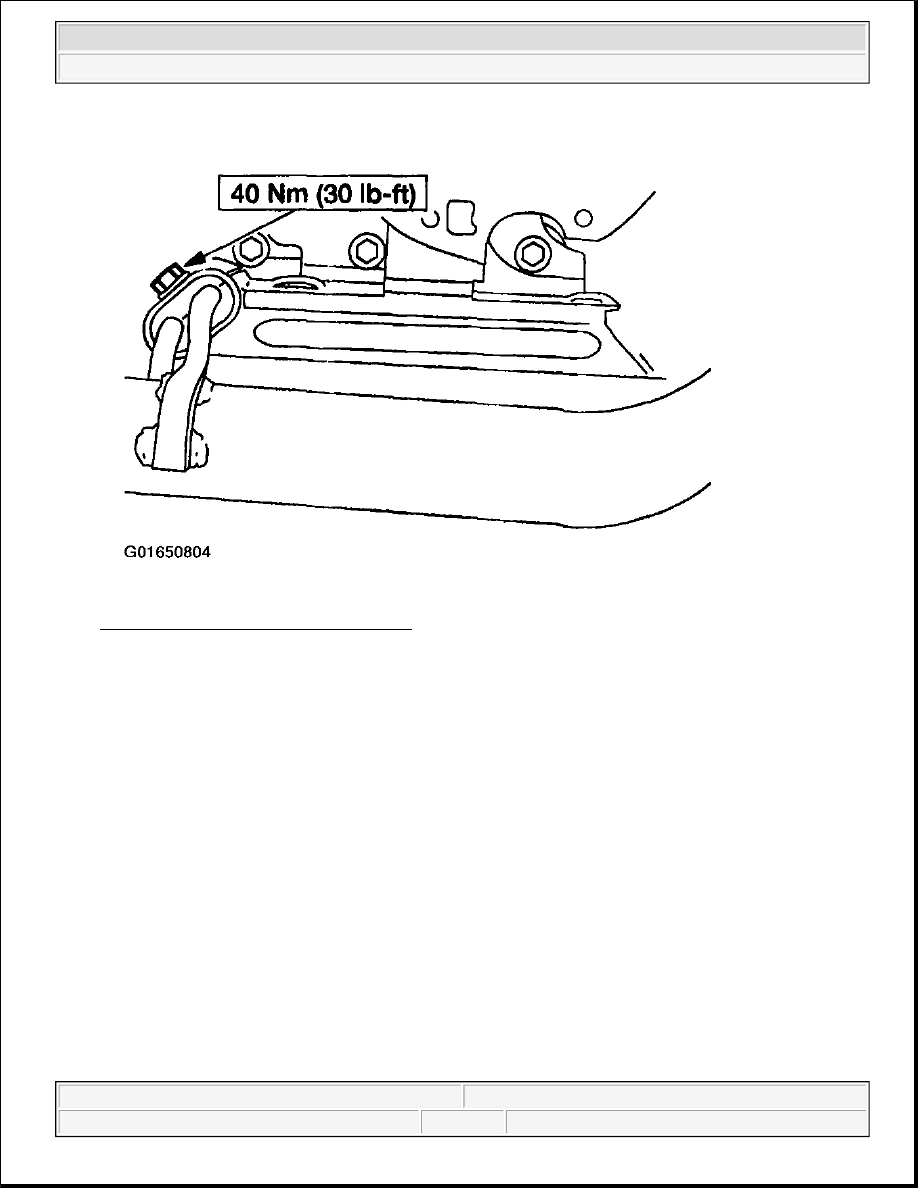

Fig. 17: Removing Exhaust Support Bolt
Courtesy of FORD MOTOR CO.

Vehicles With 4R70W Transmission

11. Remove the nut.



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup

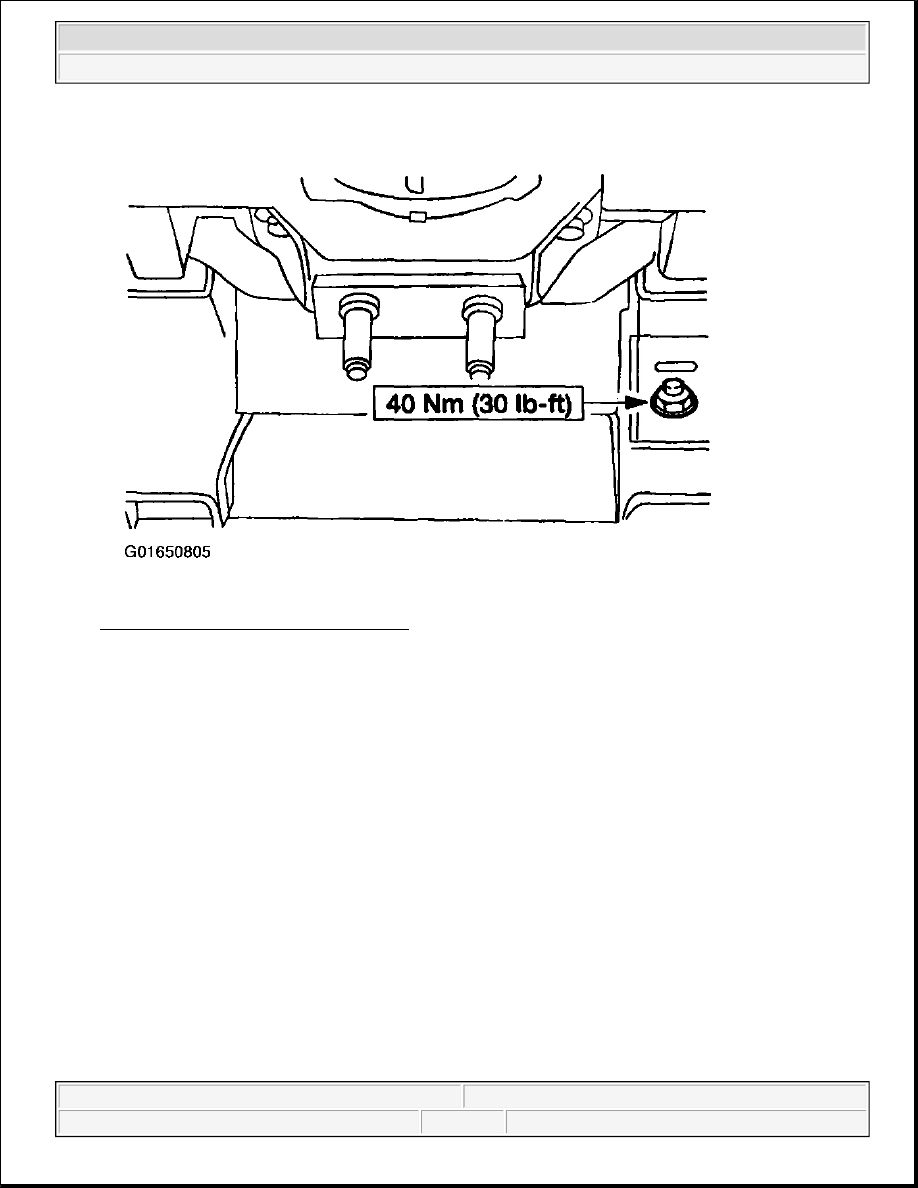

Fig. 18: Removing Exhaust Support Nut
Courtesy of FORD MOTOR CO.

All Vehicles

12. Remove the dual converter Y-pipe.

z

If necessary, loosen the nut and separate the LH and RH converters.



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup
