Ford F150 Pickup. Instruction - part 106

Fig. 75: Connecting Climate Control Head Vacuum Harness Connector
Courtesy of FORD MOTOR CO.

37. Connect the electronic blend door actuator electrical connector.

z

Insert the wiring harness locators.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



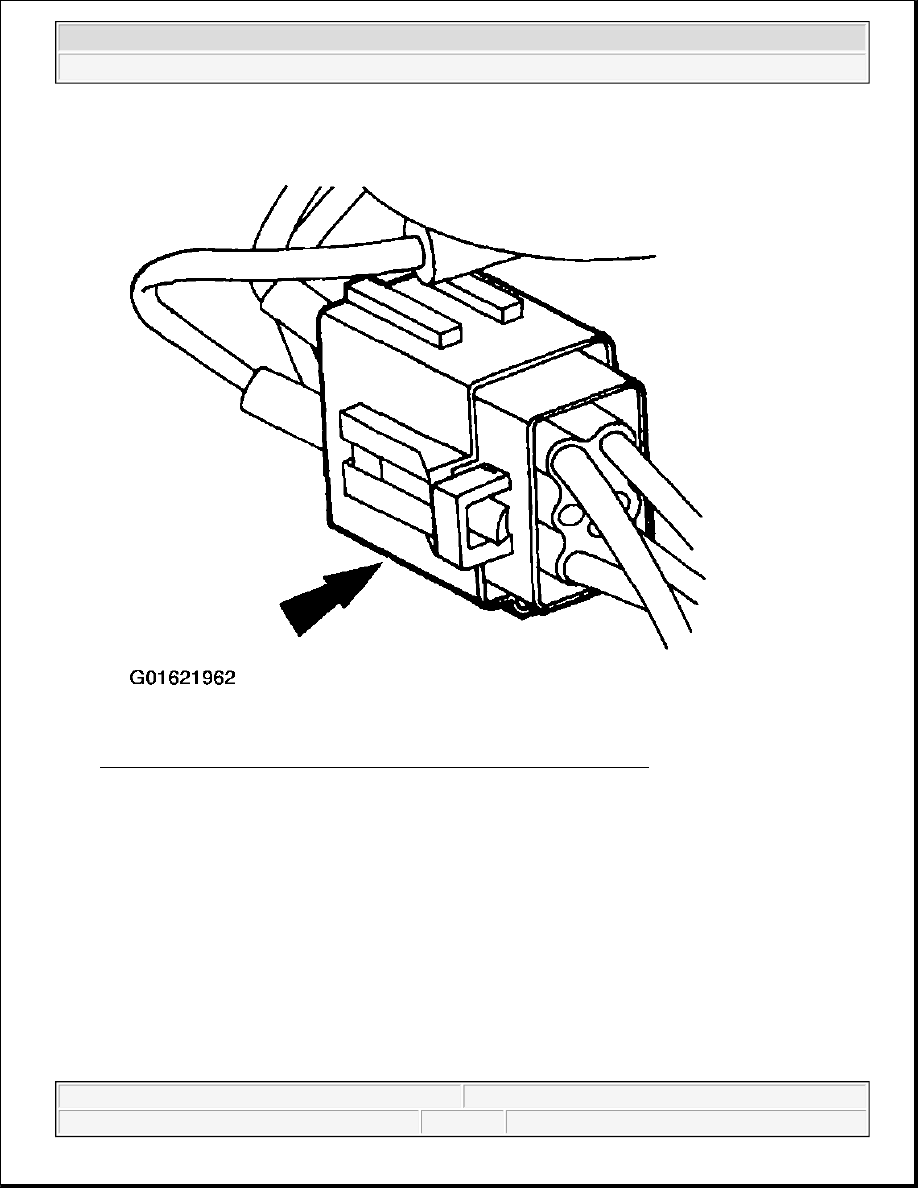

Fig. 76: Connecting Electronic Blend Door Actuator Electrical Connector
Courtesy of FORD MOTOR CO.

38. Connect the RCM electrical connector.

1. Connect the RCM electrical connector

2. Engage the locking tab.

z

Insert the wiring harness locator.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

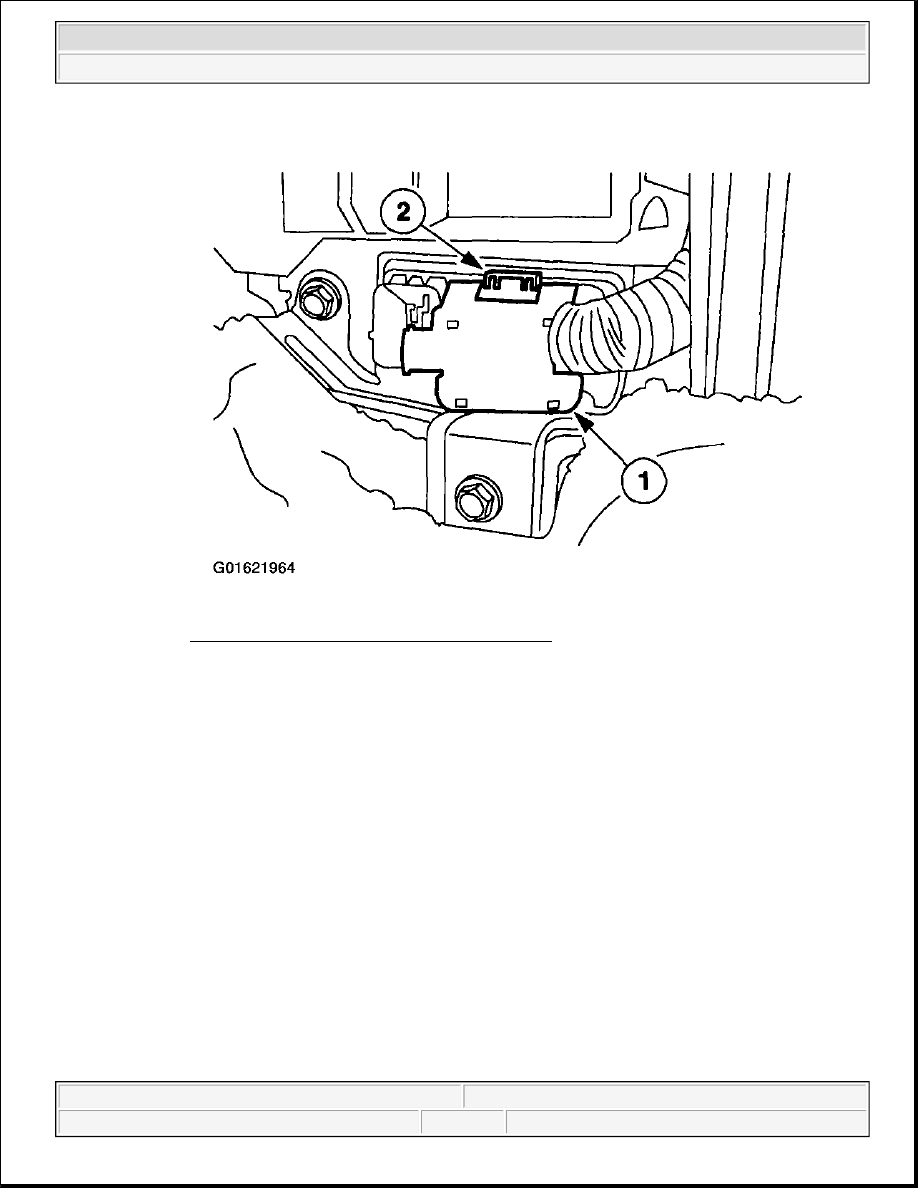

Fig. 77: Connecting RCM Electrical Connector
Courtesy of FORD MOTOR CO.

39. If equipped, install the valance panel.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 78: Installing Valance Panel
Courtesy of FORD MOTOR CO.

40. If equipped, adjust the transmission range indicator. Refer to CABLE ADJUSTMENT -- SHIFT

INDICATOR .

41. Clip the bulkhead electrical connectors into the dash panel.
