Fig. 47: Removing Fan Blade Assembly & Fan Clutch
Courtesy of FORD MOTOR CO.

8. Remove the fan shroud (8146).

1. Remove the screws.

2. Lift and remove the fan shroud.

z

If equipped, disconnect the harness retaining pin-type retainer from the LH side of fan
shroud.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup

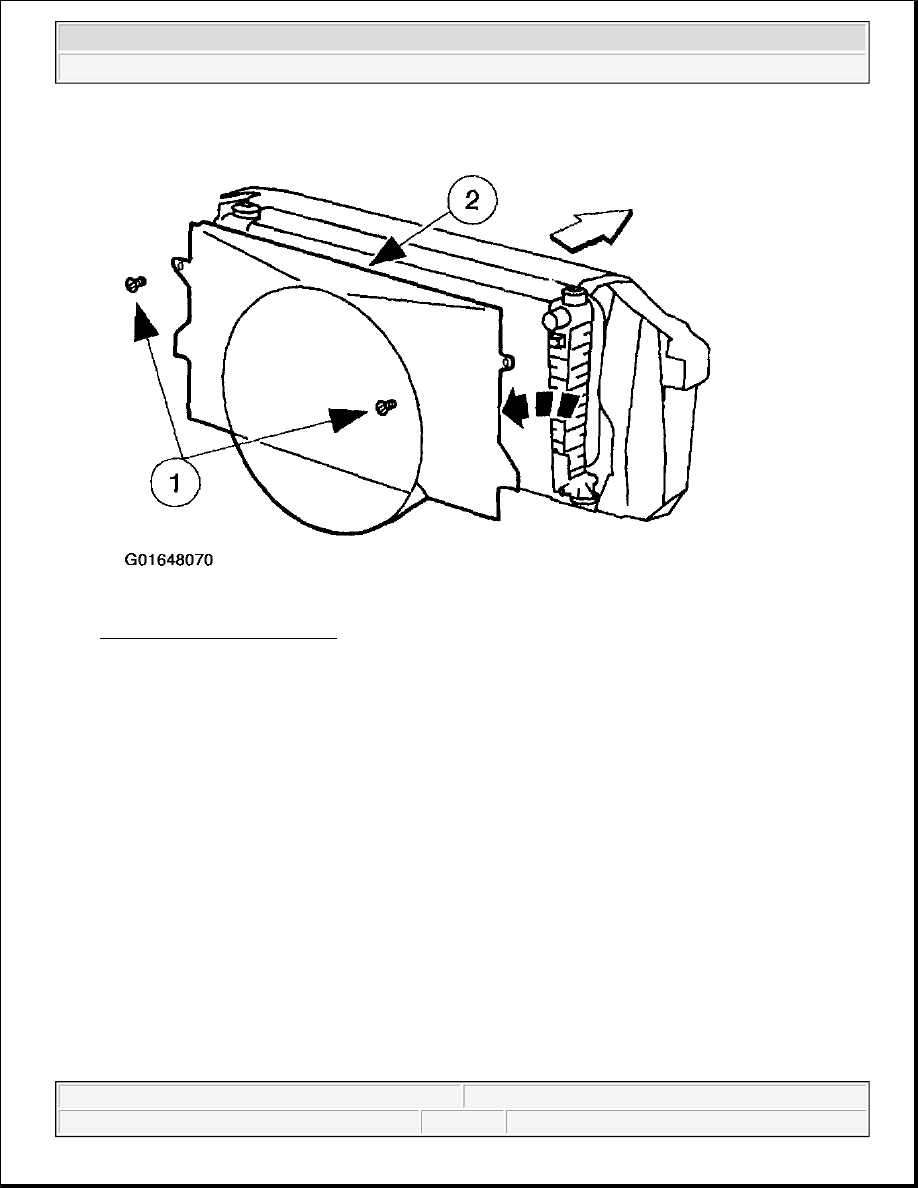

Fig. 48: Removing Fan Shroud
Courtesy of FORD MOTOR CO.

9. Remove the fan blade and fan shroud out of the vehicle together.

10. Remove the bolts and separate the fan blade assembly from the fan clutch.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup

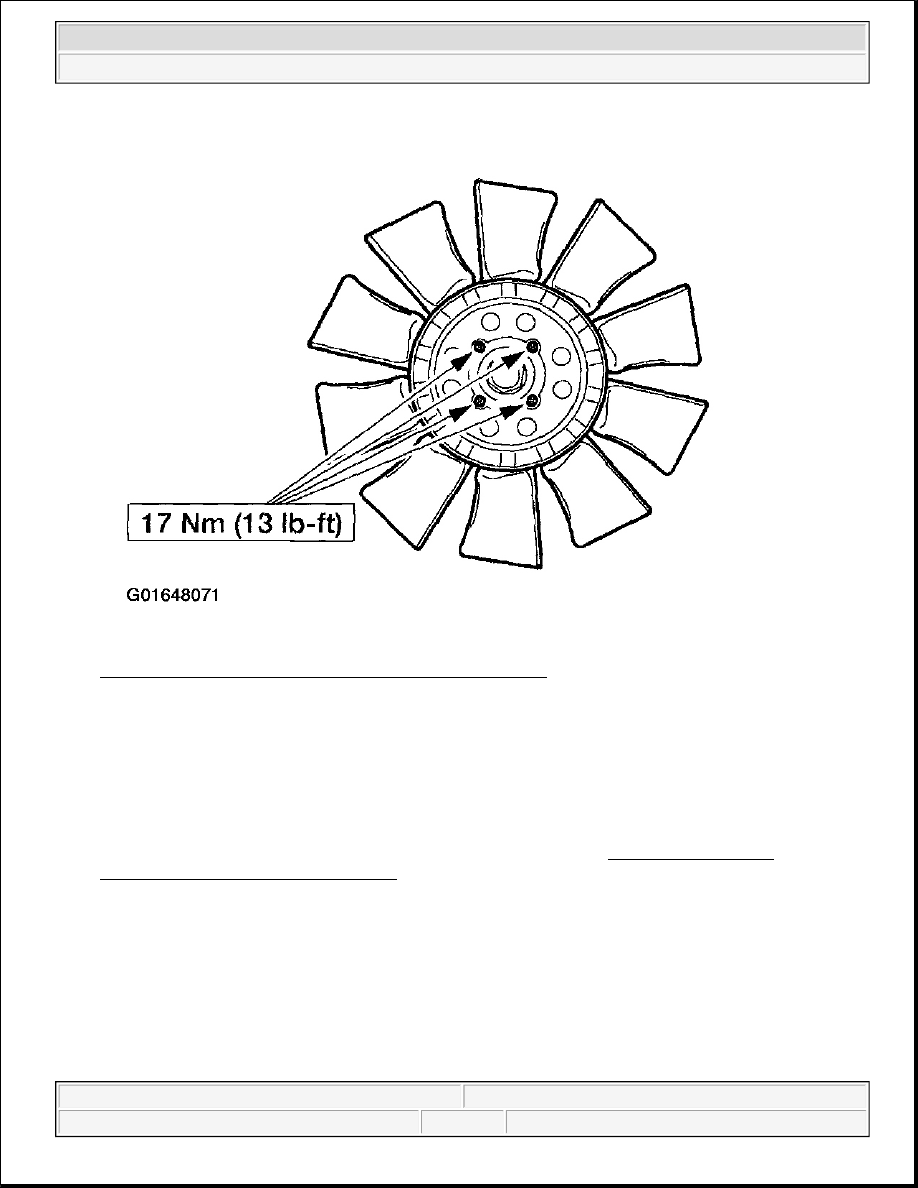

Fig. 49: Separating Fan Blade Assembly From Fan Clutch
Courtesy of FORD MOTOR CO.

11. To install, reverse the removal procedure.

DEGAS BOTTLE

Removal & Installation

1. Partially drain the cooling system. For additional information, refer to COOLING SYSTEM

DRAINING, FILLING & BLEEDING .

2. Remove the degas bottle hose from the radiator (8005).

1. Release the hose clamp and slide it away from the hose end.

2. Slide the overflow hose off the radiator fitting.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup



Fig. 50: Removing Degas Bottle Hose From Radiator
Courtesy of FORD MOTOR CO.

3. Disconnect the lower radiator hose from the degas bottle.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup
