Fig. 11: Removing LH And RH Front Door Scuff Plates
Courtesy of FORD MOTOR CO.

15. Position the LH and RH door weatherstrip seals aside.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup



Fig. 12: Positioning LH And RH Door Weatherstrip Seals Aside
Courtesy of FORD MOTOR CO.

16. Remove the LH and RH A-pillar lower trim panels.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

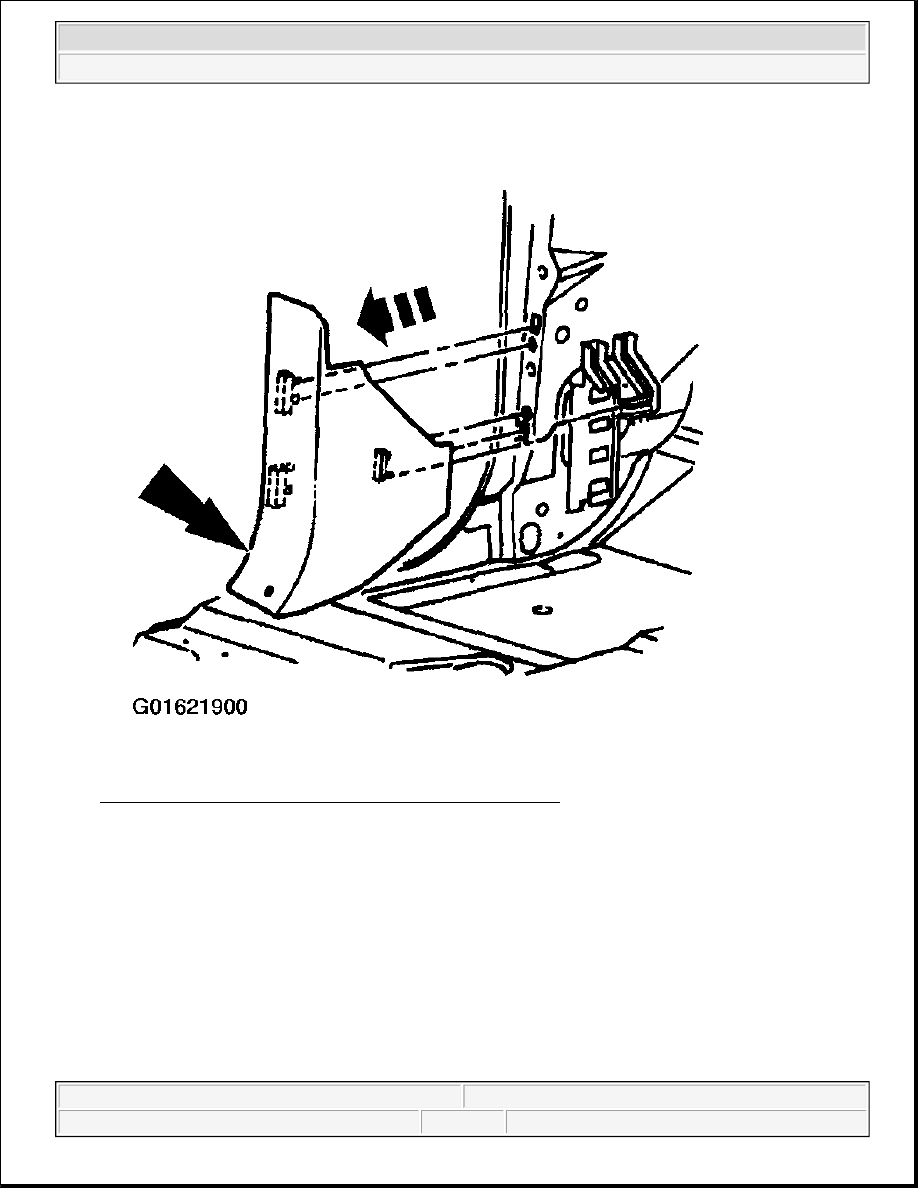

Fig. 13: Removing LH And RH A-Pillar Lower Trim Panels
Courtesy of FORD MOTOR CO.

17. If equipped, remove the alternative fuel control module (AFCM).

1. Disconnect the electrical connector.

NOTE:

The AFCM is attached with Velcro(R)



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

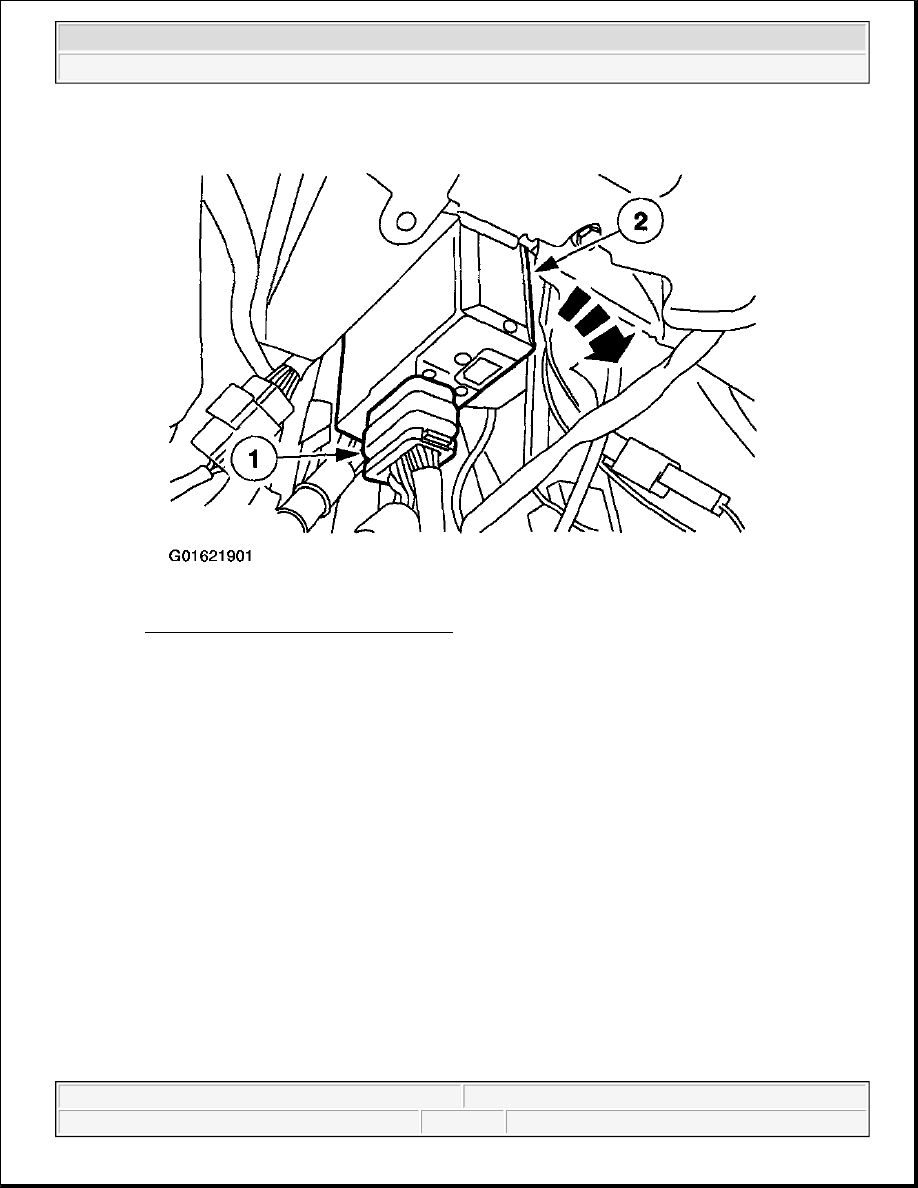

Fig. 14: Removing AFCM From Vehicle
Courtesy of FORD MOTOR CO.

2. Remove the AFCM from the vehicle by pulling gently down and to the right

18. Remove the LH and RH A-pillar passenger assist handles.

z

Remove the four covers and the nuts.
