Ford F150 Pickup. Instruction - part 86

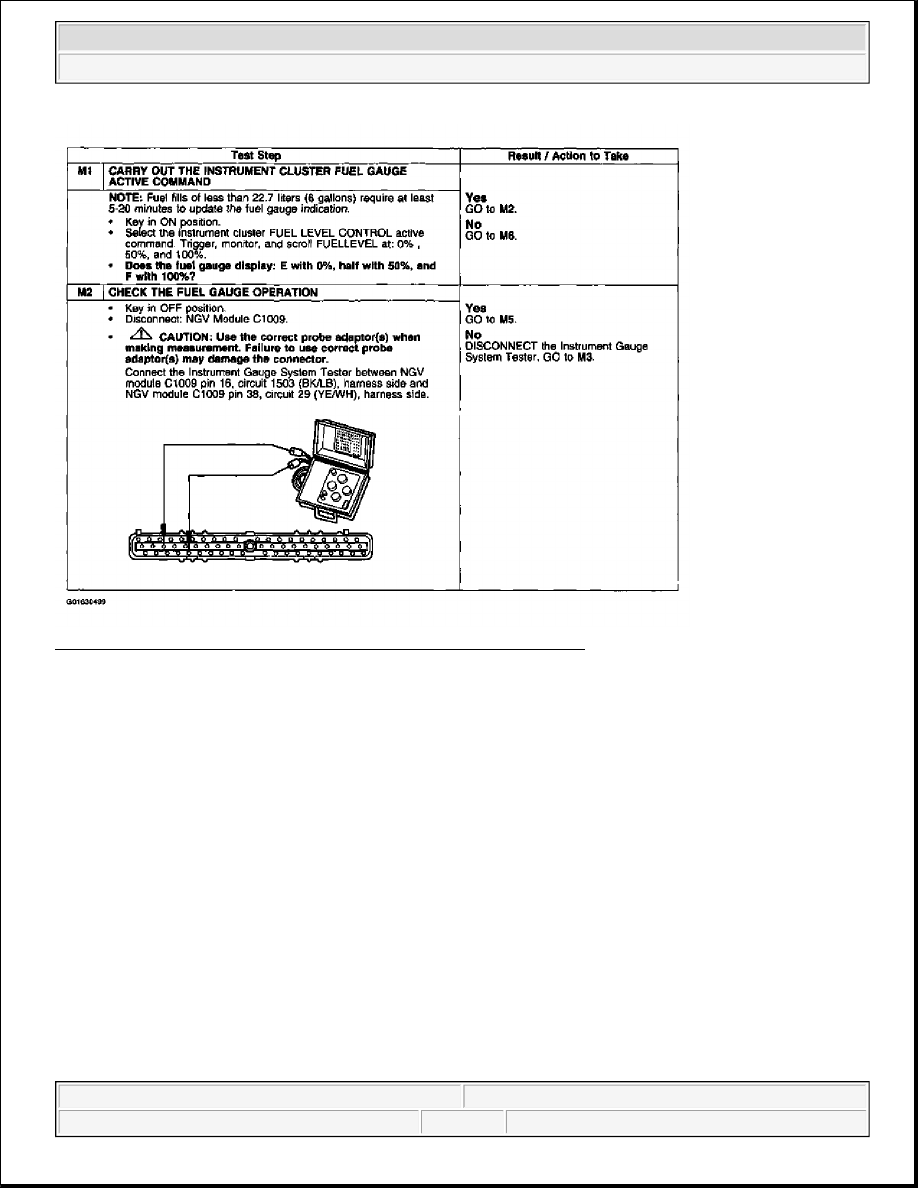

Fig. 42: Pinpoint Test M: Incorrect Fuel Gauge Indication (M1 - M2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150

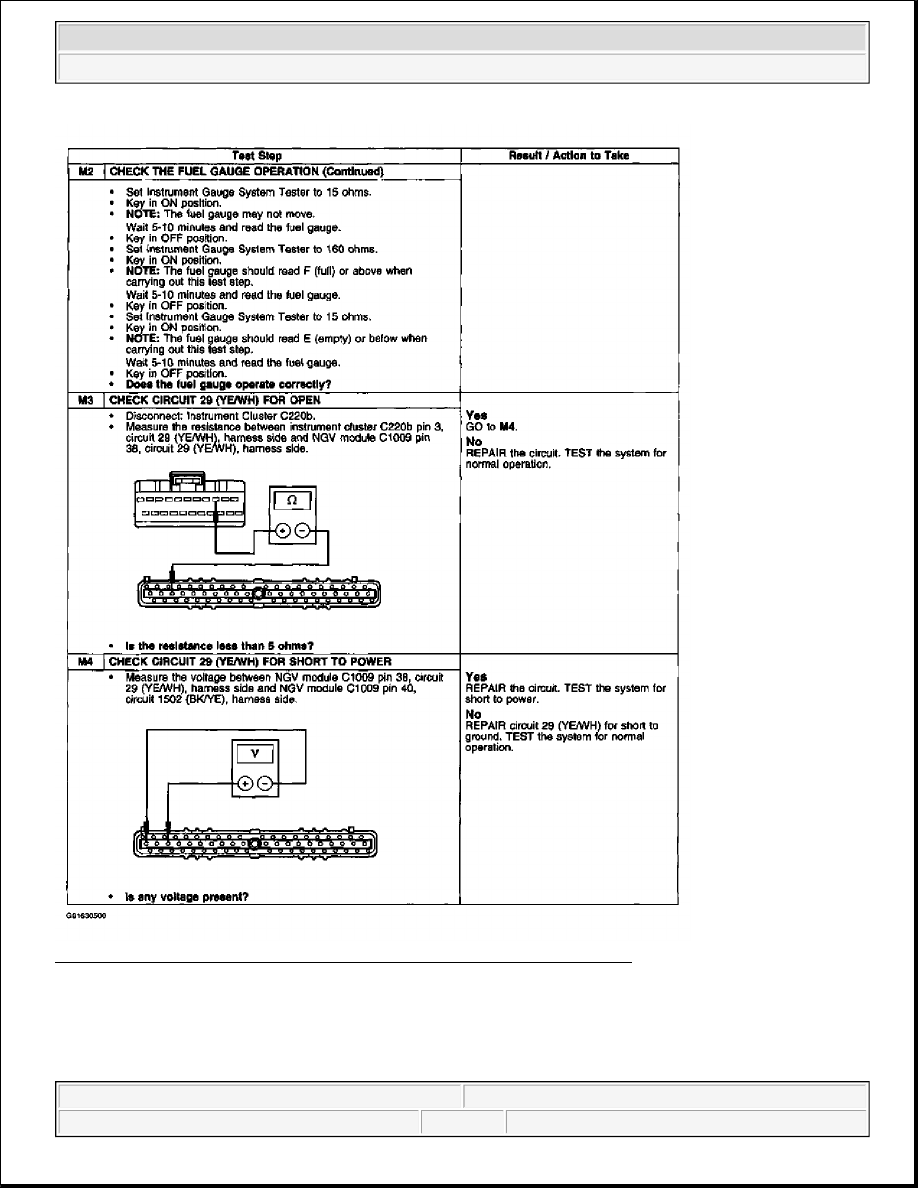

Fig. 43: Pinpoint Test M: Incorrect Fuel Gauge Indication (M2 Cont. - M4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150

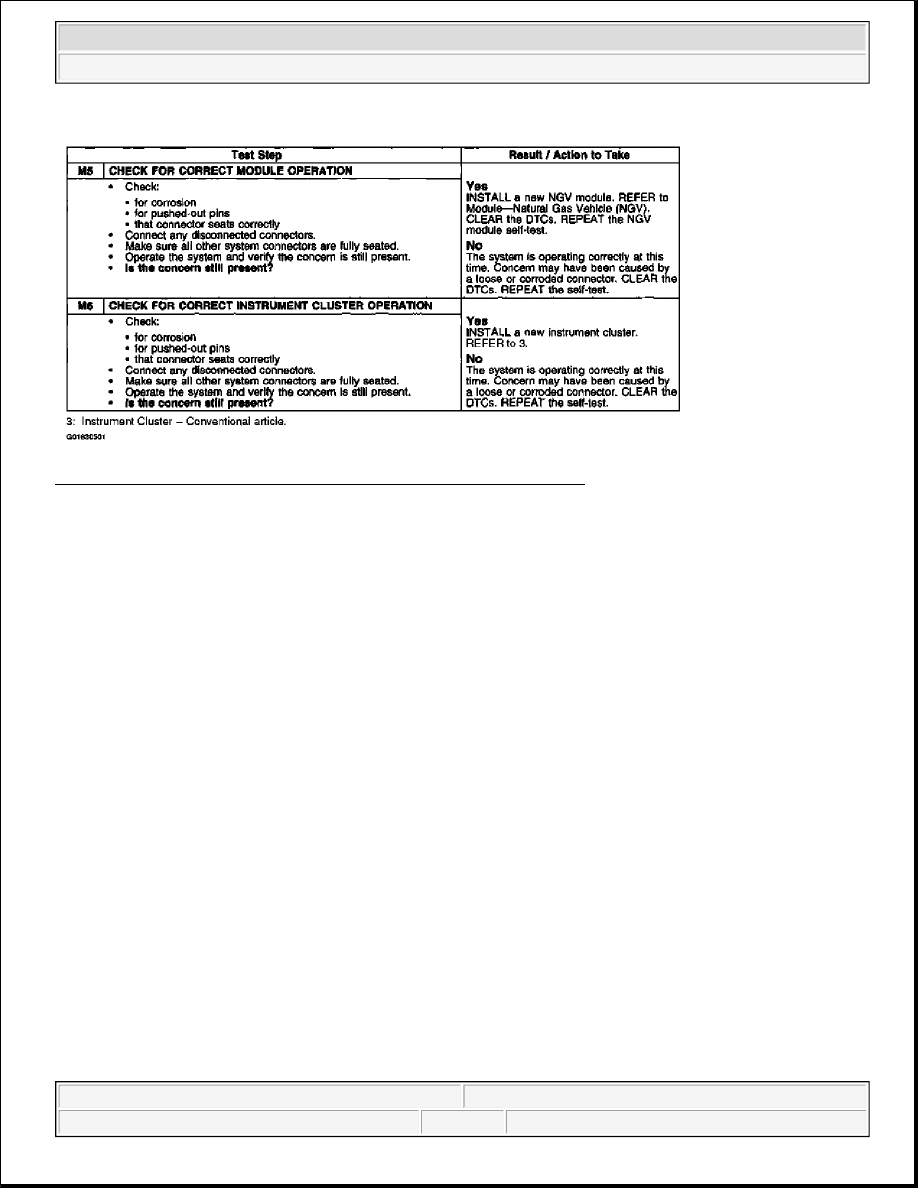

Fig. 44: Pinpoint Test M: Incorrect Fuel Gauge Indication (M5 - M6)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150
