Ford F150 Pickup. Instruction - part 84

Fig. 32: Pinpoint Test H: NGV DTC B1318 - Battery Voltage Low (H4)
Courtesy of FORD MOTOR CO.

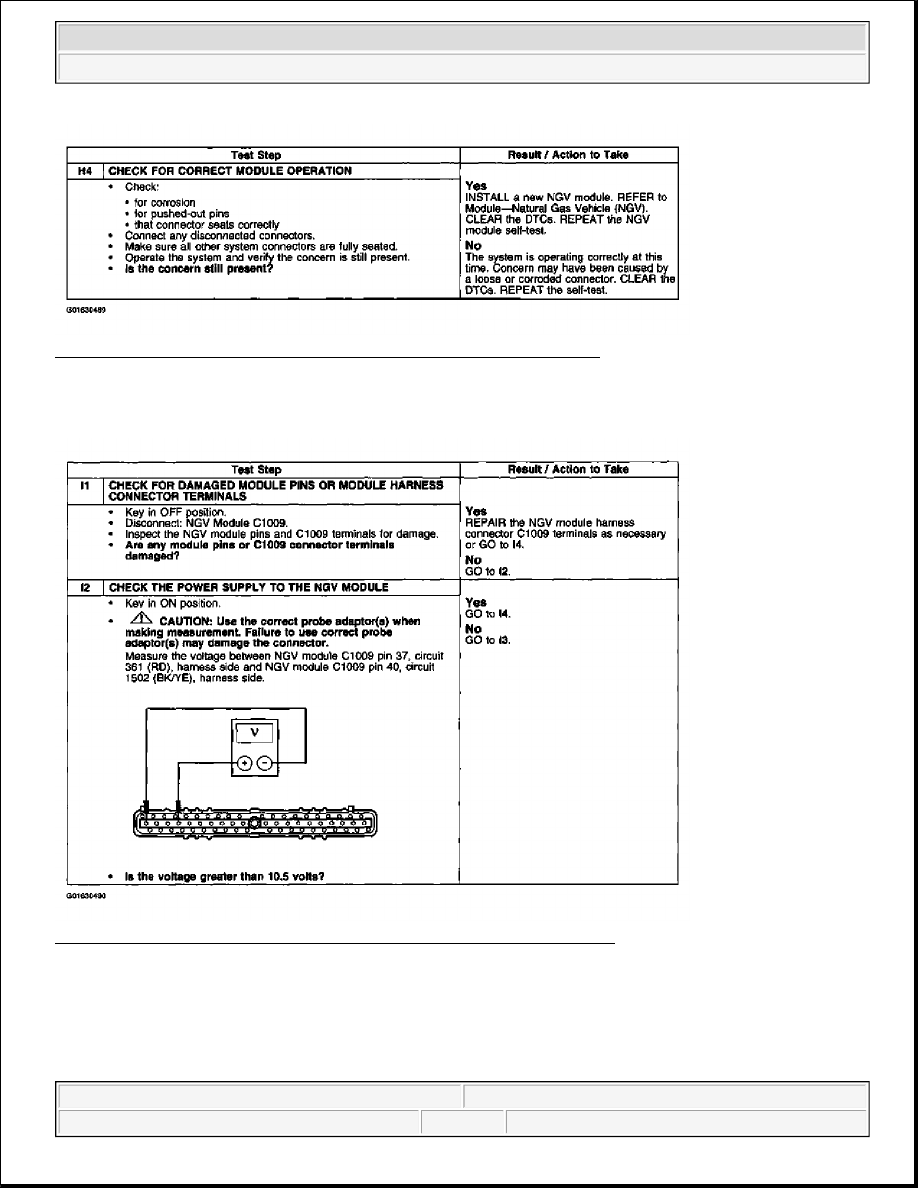

PINPOINT TEST I: NGV DTC B1342 - ECU CIRCUIT FAILURE

Fig. 33: Pinpoint Test I: NGV DTC B1342 - ECU Circuit Failure (I1 - I2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150



Fig. 34: Pinpoint Test I: NGV DTC B1342 - ECU Circuit Failure (I3 - I4)
Courtesy of FORD MOTOR CO.

PINPOINT TEST J: NGV MODULE



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150



Fig. 35: Pinpoint Test J: NGV Module (J1)
Courtesy of FORD MOTOR CO.

Fig. 36: Pinpoint Test J: NGV Module (J2 - J3)
Courtesy of FORD MOTOR CO.

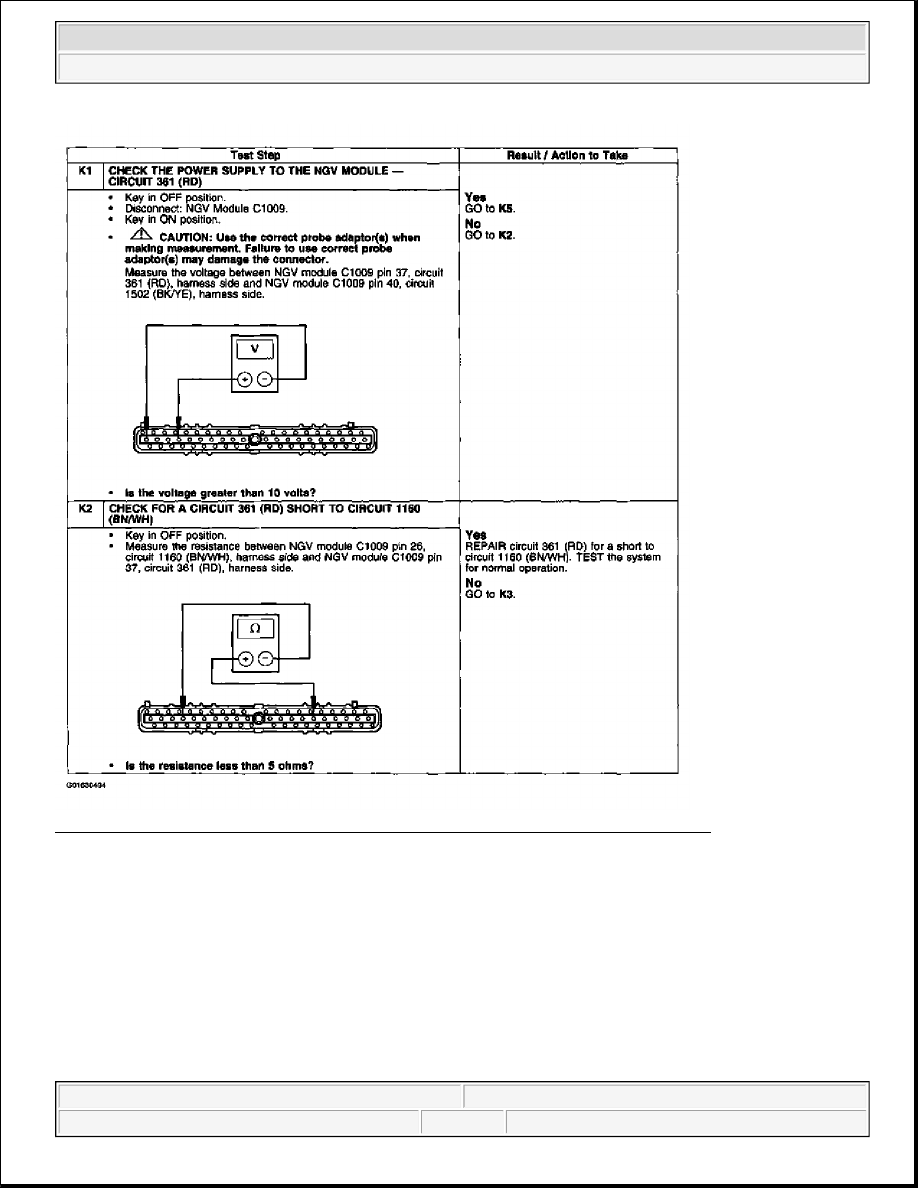

PINPOINT TEST K: INTEGRATED CIRCUIT DISPLAY INOPERATIVE OR ERRATIC



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150



Fig. 37: Pinpoint Test K: Integrated Circuit Display Inoperative Or Erratic (K1 - K2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150
