Ford F150 Pickup. Instruction - part 81

Fig. 17: Pinpoint Test C: NGV DTC B1222 - Tank Temperature Sensor Circuit Failure (C1 - C2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150

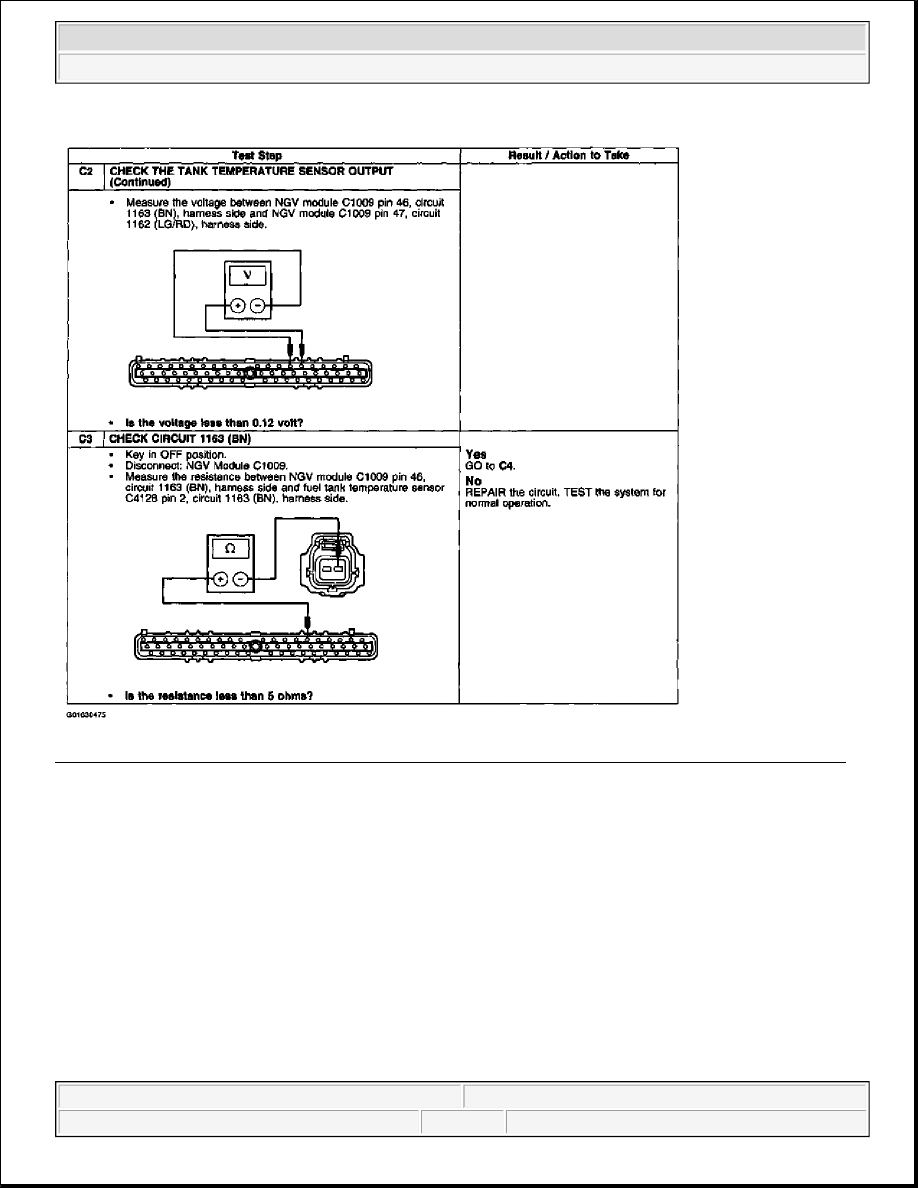

Fig. 18: Pinpoint Test C: NGV DTC B1222 - Tank Temperature Sensor Circuit Failure (C2 Cont. - C3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150

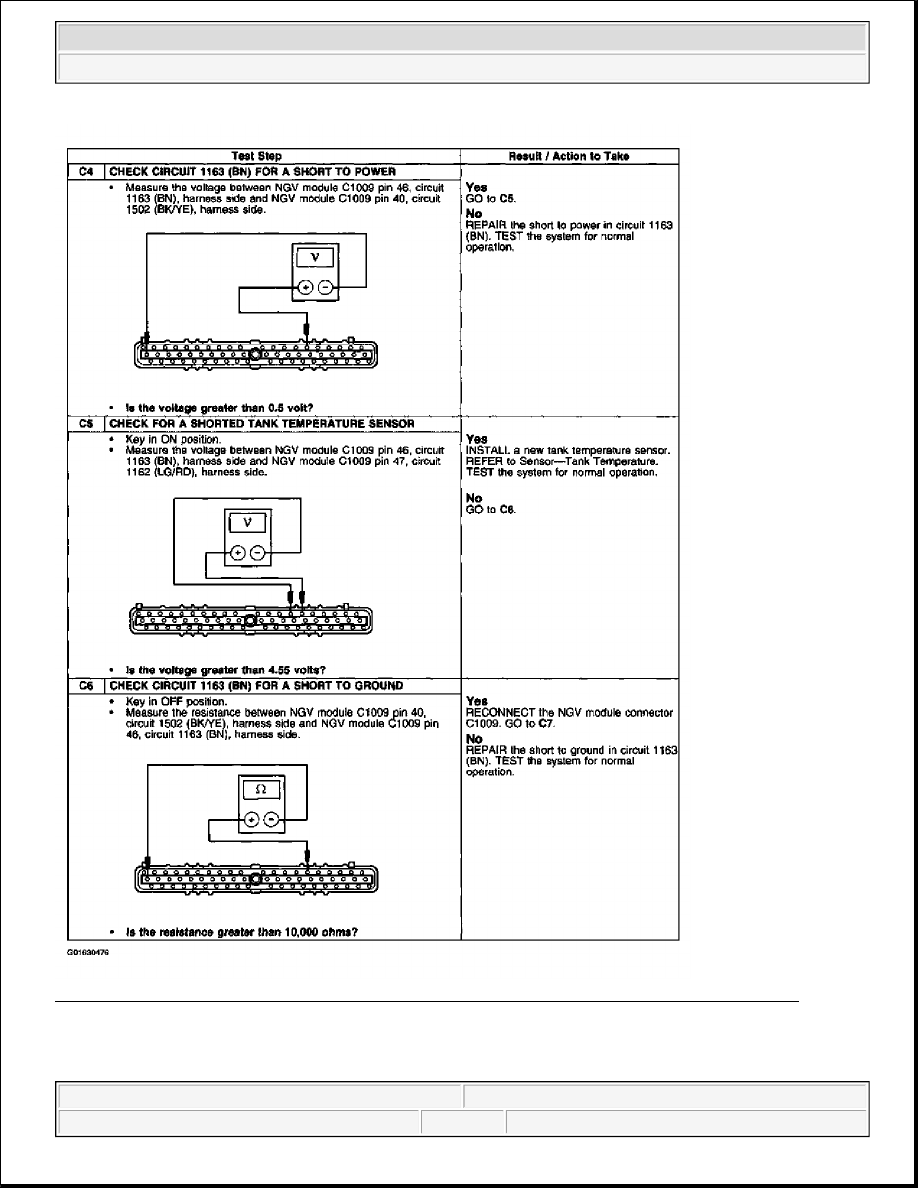

Fig. 19: Pinpoint Test C: NGV DTC B1222 - Tank Temperature Sensor Circuit Failure (C4 - C6)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150

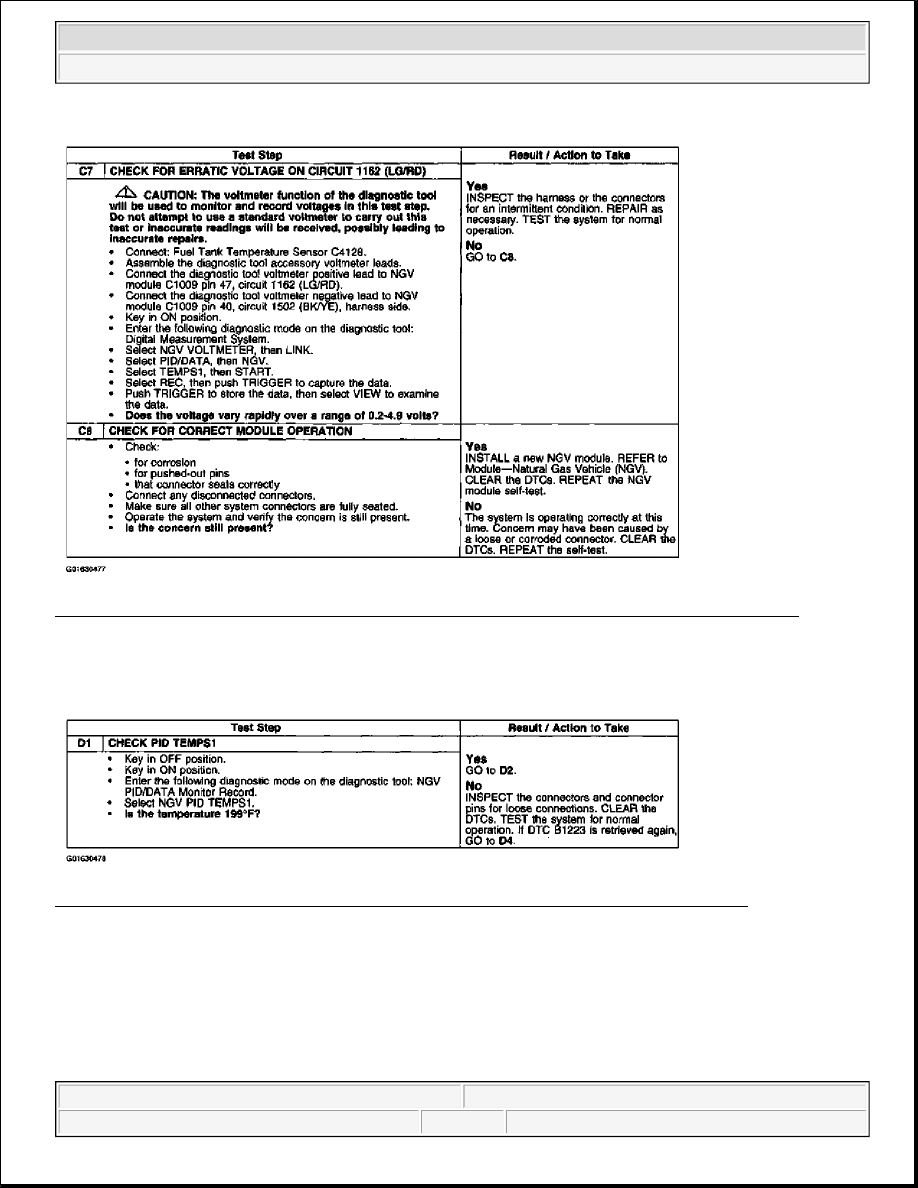

Fig. 20: Pinpoint Test C: NGV DTC B1222 - Tank Temperature Sensor Circuit Failure (C7 - C8)
Courtesy of FORD MOTOR CO.

PINPOINT TEST D: NGV DTC B1213 - TANK TEMPERATURE SENSOR CIRCUIT OPEN

Fig. 21: Pinpoint Test D: NGV DTC B1213 - Tank Temperature Sensor Circuit Open (D1)
Courtesy of FORD MOTOR CO.
