Ford F150 Pickup. Instruction - part 80

Fig. 12: Pinpoint Test A: NGV DTC B1219 - Fuel Tank Pressure Sensor Circuit Failure (A7 - A9)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150



Fig. 13: Pinpoint Test A: NGV DTC B1219 - Fuel Tank Pressure Sensor Circuit Failure (A10 - A13)
Courtesy of FORD MOTOR CO.

PINPOINT TEST B: DTC B1220 - FUEL TANK PRESSURE SENSOR CIRCUIT SHORT TO POWER



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150



Fig. 14: Pinpoint Test B: NGV DTC B1220 - Fuel Tank Pressure Sensor Circuit Short To Power (B1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150



Fig. 15: Pinpoint Test B: NGV DTC B1220 - Fuel Tank Pressure Sensor Circuit Short To Power (B2 -
B3)
Courtesy of FORD MOTOR CO.

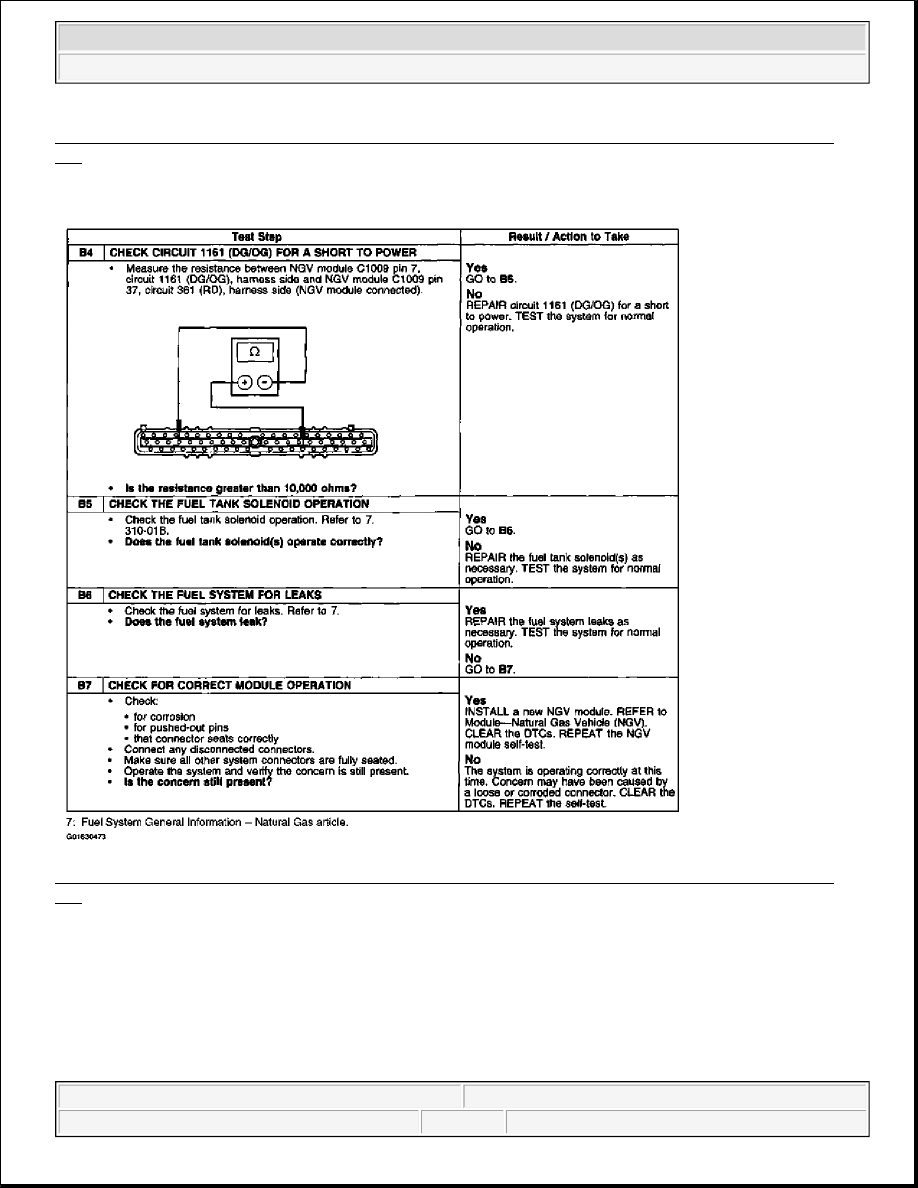

Fig. 16: Pinpoint Test B: NGV DTC B1220 - Fuel Tank Pressure Sensor Circuit Short To Power (B4 -
B7)
Courtesy of FORD MOTOR CO.

PINPOINT TEST C: NGV DTC B1222 - TANK TEMPERATURE SENSOR CIRCUIT FAILURE



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Natural Gas - F150
