Ford F150 Pickup. Instruction - part 67

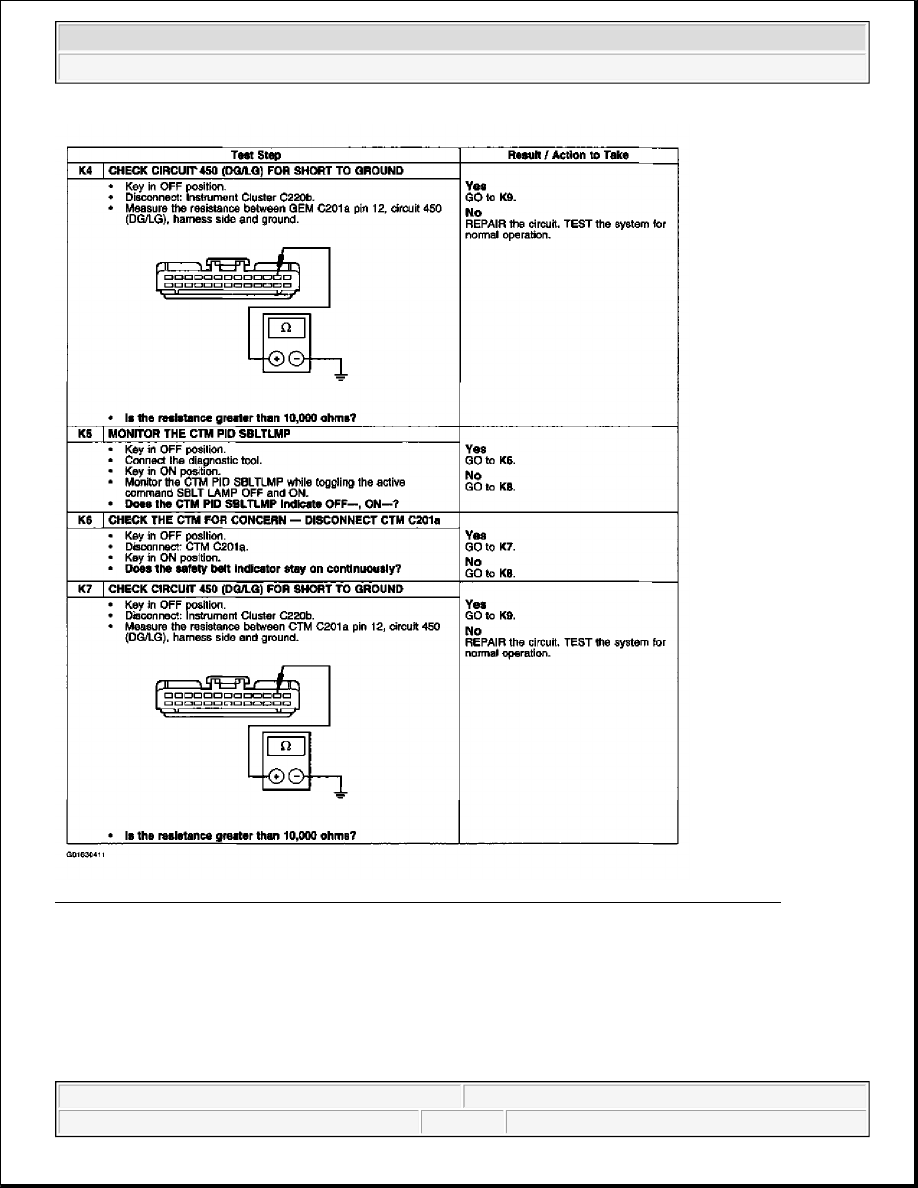

Fig. 33: Pinpoint Test K: Safety Belt Warning Indicator Does Not Operate Correctly (K4 - K7)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

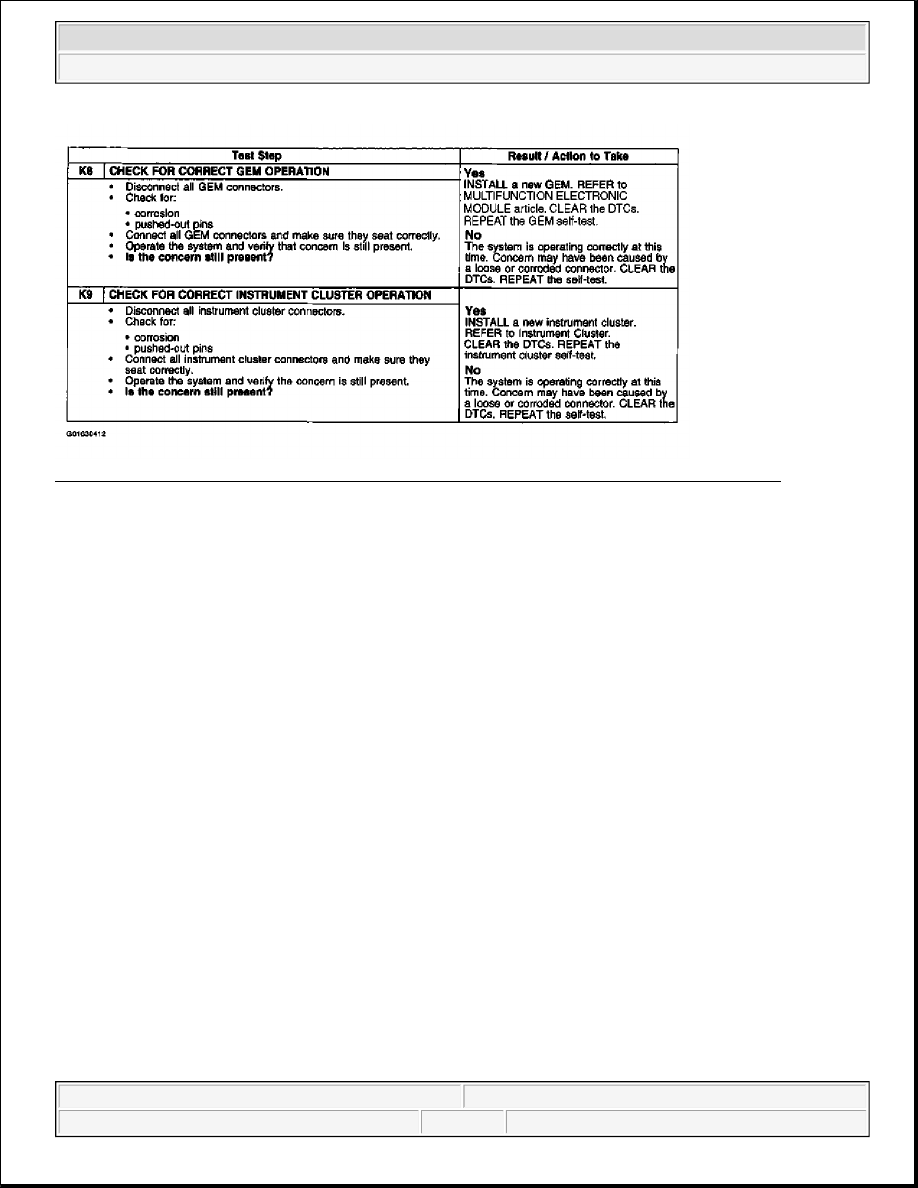

Fig. 34: Pinpoint Test K: Safety Belt Warning Indicator Does Not Operate Correctly (K8 - K9)
Courtesy of FORD MOTOR CO.

PINPOINT TEST L: THE DOOR AJAR INDICATOR IS INOPERATIVE (CHIME IS OPERATIVE)

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to

use the correct probe adapter(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

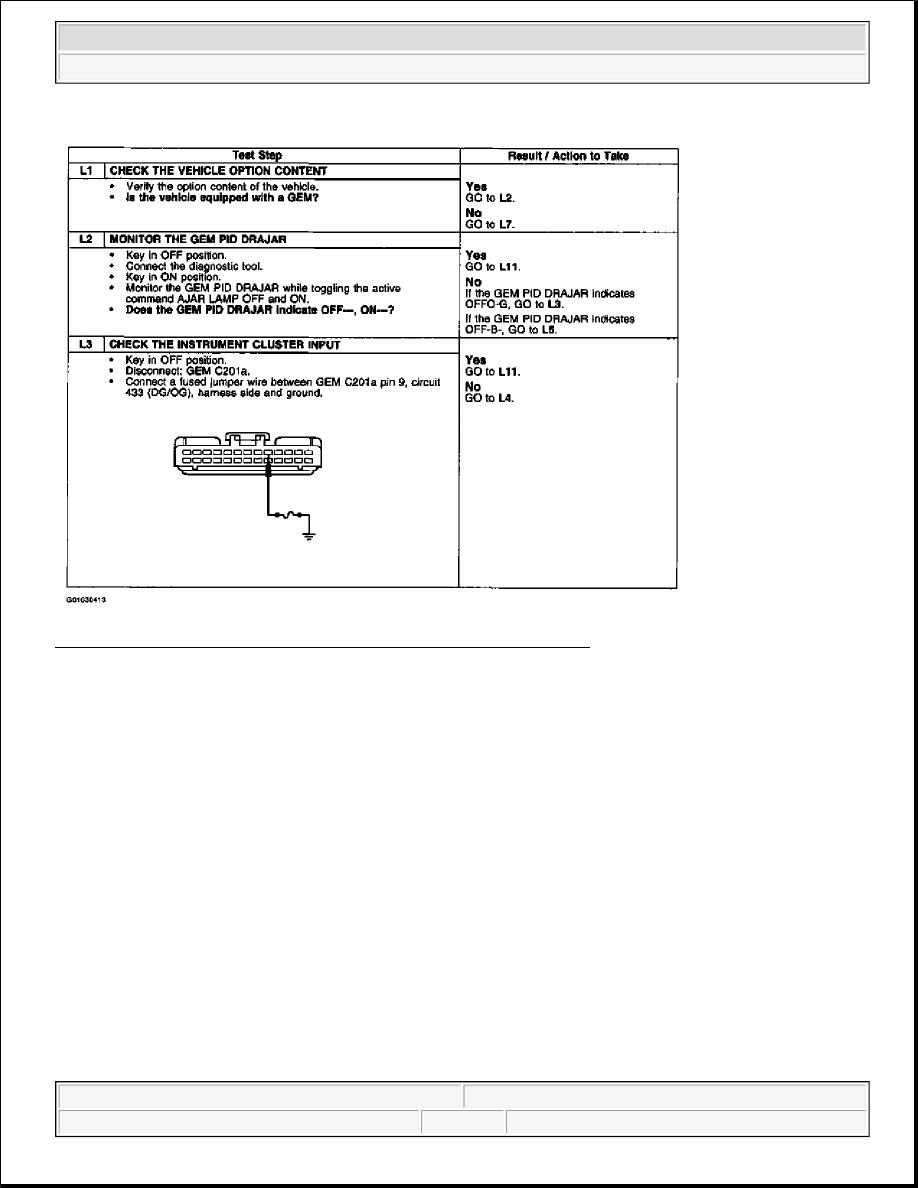

Fig. 35: Pinpoint Test L: Door Ajar Indicator Is Inoperative (L1 - L3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup

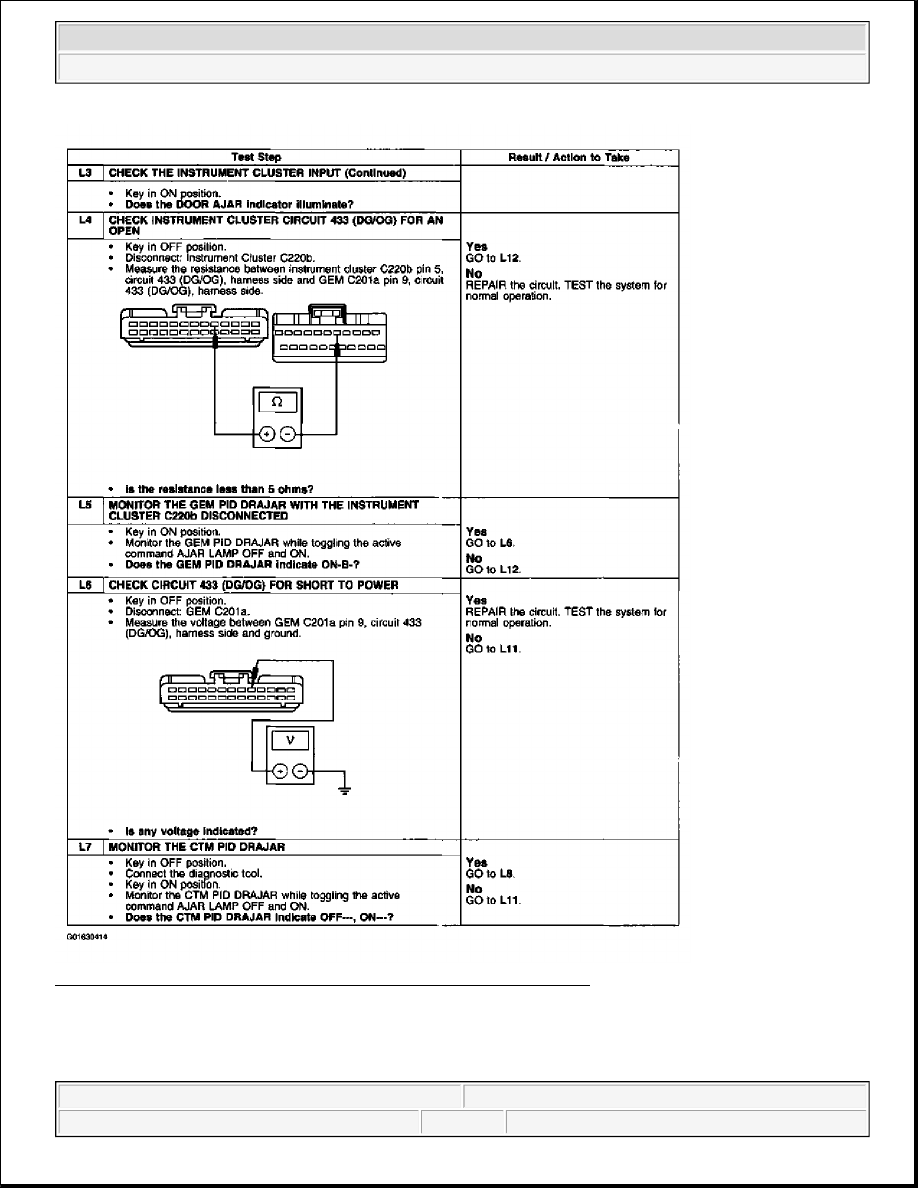

Fig. 36: Pinpoint Test L: Door Ajar Indicator Is Inoperative (L4 - L7)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Cluster-Conventional - F150 Pickup
