PINPOINT TEST

PINPOINT TEST A: NO COMMUNICATION WITH INSTRUMENT CLUSTER

Fig. 3: Pinpoint Test A: No Communication With Instrument Cluster (A1)
Courtesy of FORD MOTOR CO.

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to

use the correct probe adaptor(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Instrument Cluster-Bi-Fuel - F150 Pickup

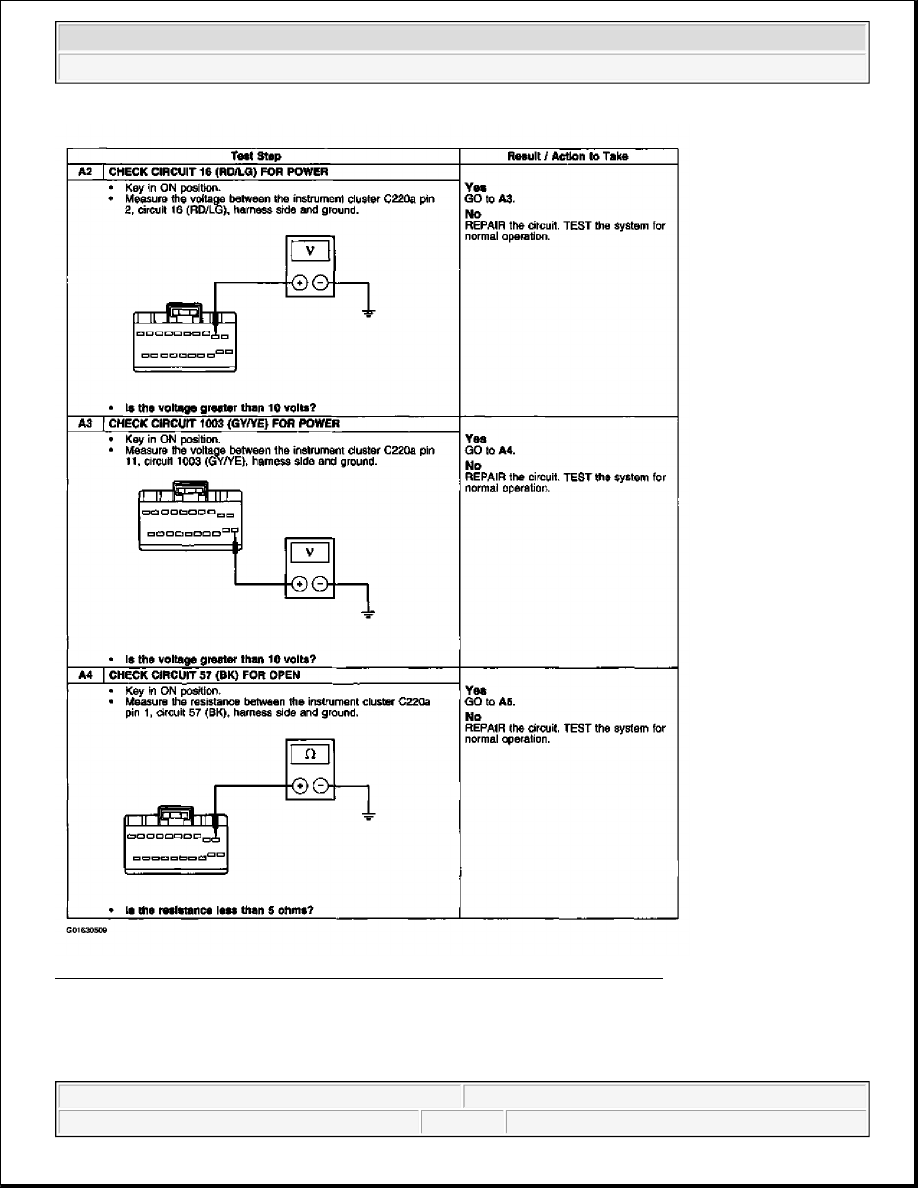

Fig. 4: Pinpoint Test A: No Communication With Instrument Cluster (A2 - A4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Instrument Cluster-Bi-Fuel - F150 Pickup

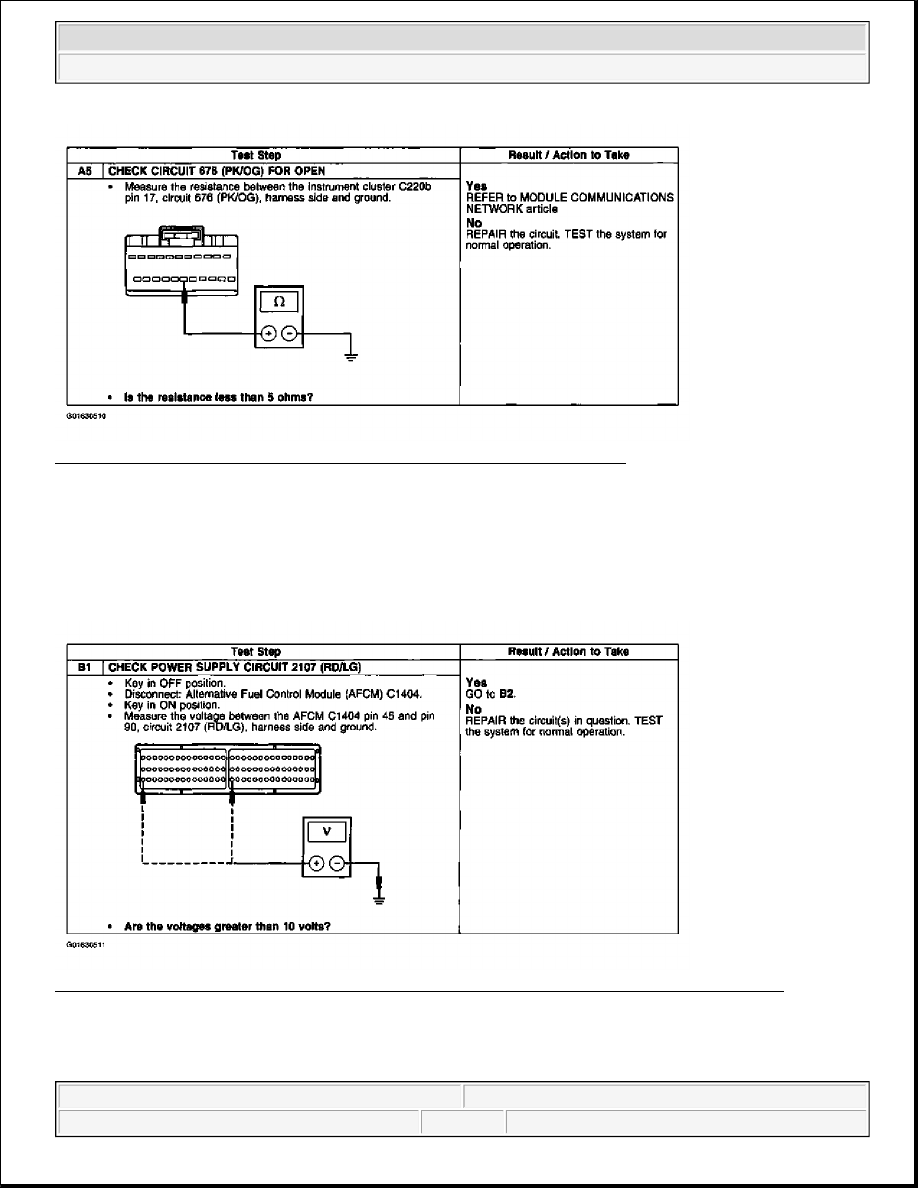

Fig. 5: Pinpoint Test A: No Communication With Instrument Cluster (A5)
Courtesy of FORD MOTOR CO.

PINPOINT TEST B: NO COMMUNICATION WITH ALTERNATIVE FUEL CONTROL MODULE - CNG

Fig. 6: Pinpoint Test B: No Communication With Alternative Fuel Control Module - CNG (B1)
Courtesy of FORD MOTOR CO.

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to

use the correct probe adaptor(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Instrument Cluster-Bi-Fuel - F150 Pickup

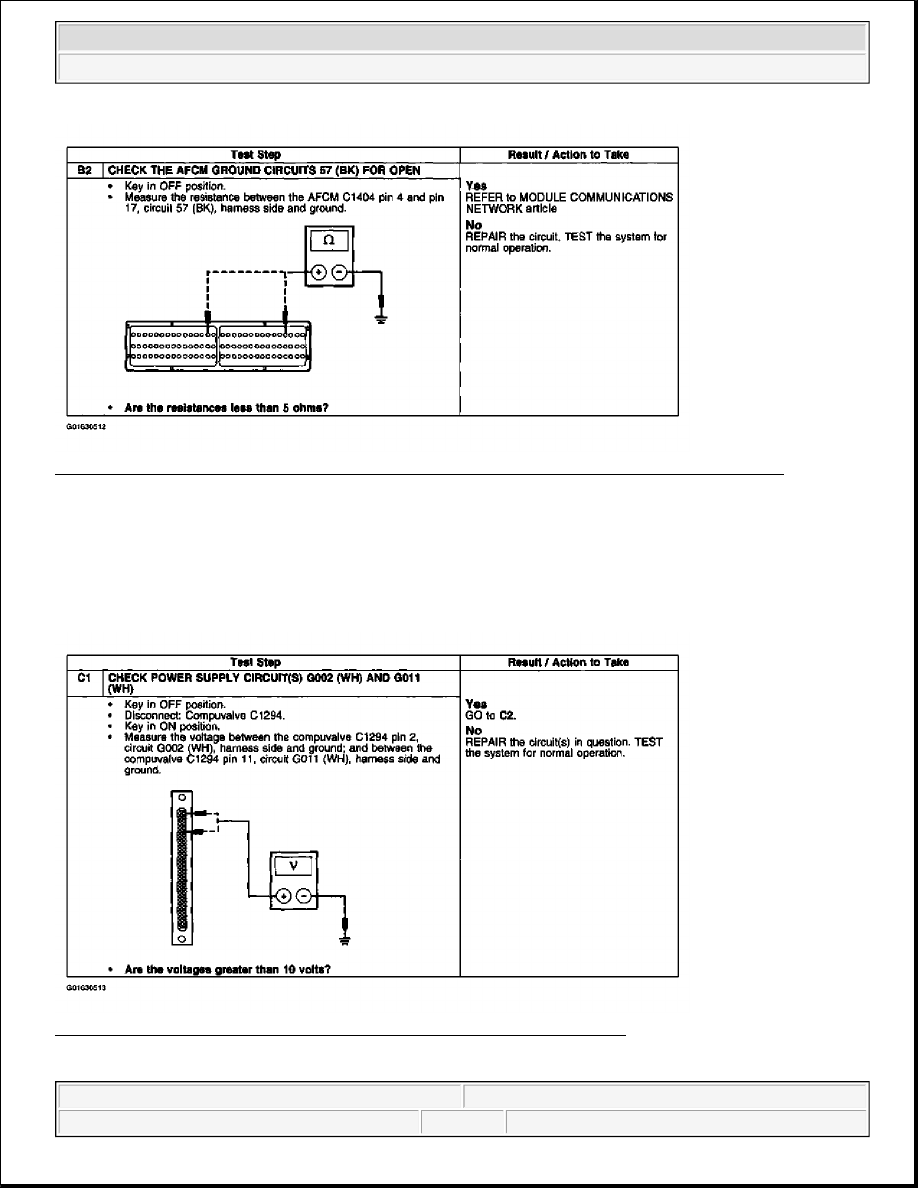

Fig. 7: Pinpoint Test B: No Communication With Alternative Fuel Control Module - CNG (B2)
Courtesy of FORD MOTOR CO.

PINPOINT TEST C: NO COMMUNICATION WITH COMPUVALVE - LPG

Fig. 8: Pinpoint Test C: No Communication With Compuvalve - LPG (C1)
Courtesy of FORD MOTOR CO.

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to

use the correct probe adaptor(s) may damage the connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Instrument Cluster-Bi-Fuel - F150 Pickup
