Ford F150 Pickup. Instruction - part 26

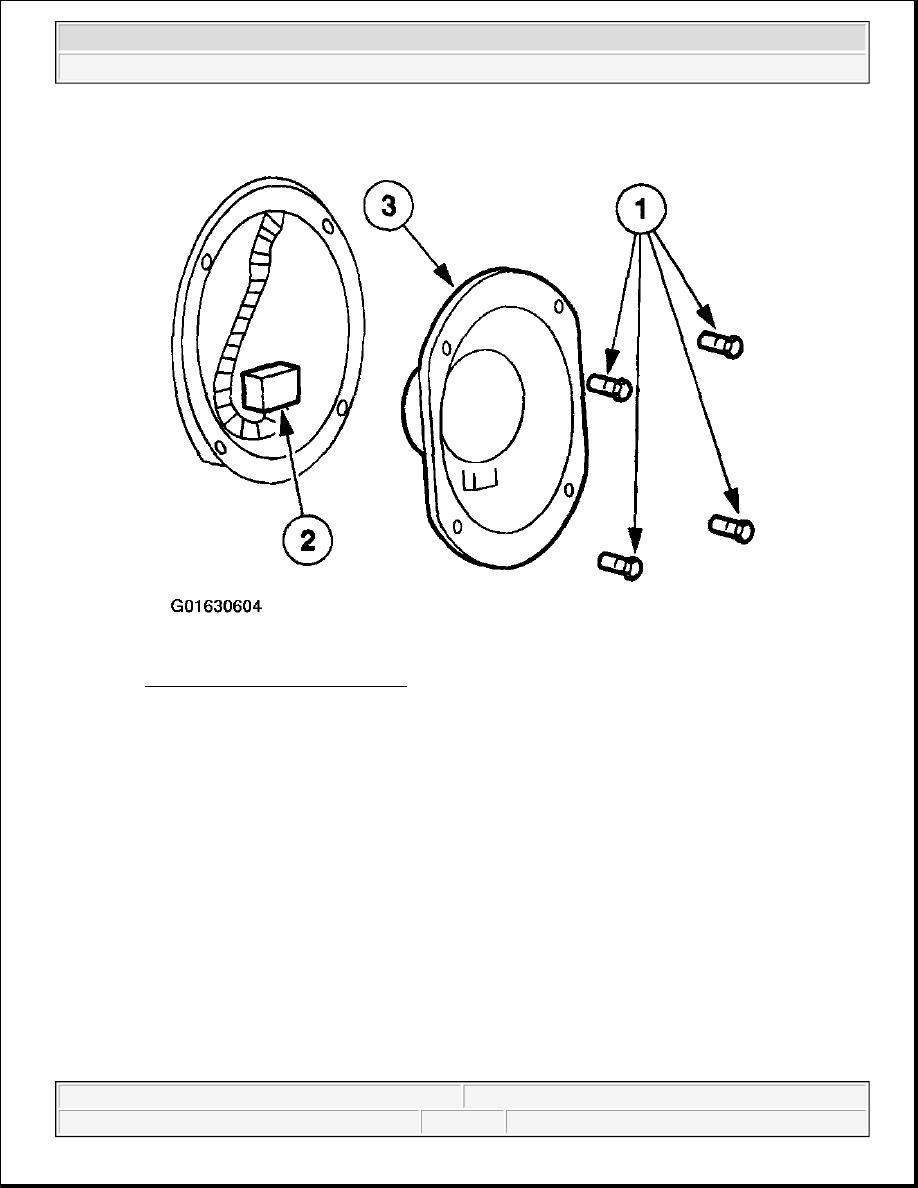

Fig. 1: Exploded View Of Speaker
Courtesy of FORD MOTOR CO.

3. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Speakers - F150 Pickup



2003 ACCESSORIES AND BODY, CAB

Video System - F150 Pickup

DESCRIPTION AND OPERATION

VIDEO SYSTEM

The video system consists of:

z

video cassette player (VCP) located in the floor console

z

overhead assembly containing the display screen

z

remote control

z

rear passenger entertainment control panel

z

FM modulator, located behind the audio unit

The VCP, the overhead assembly and the rear passenger entertainment control panel are not repairable.
For diagnosis and testing, refer to ENTERTAINMENT SYSTEM GENERAL INFORMATION .

DIAGNOSIS AND TESTING

VIDEO SYSTEM

Refer to ENTERTAINMENT SYSTEM GENERAL INFORMATION .

REMOVAL AND INSTALLATION

VIDEO CASSETTE PLAYER

Removal and Installation

1. Disconnect the battery ground cable.

2. Remove the screws and the video cassette player (VCP).



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Video System - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Video System - F150 Pickup



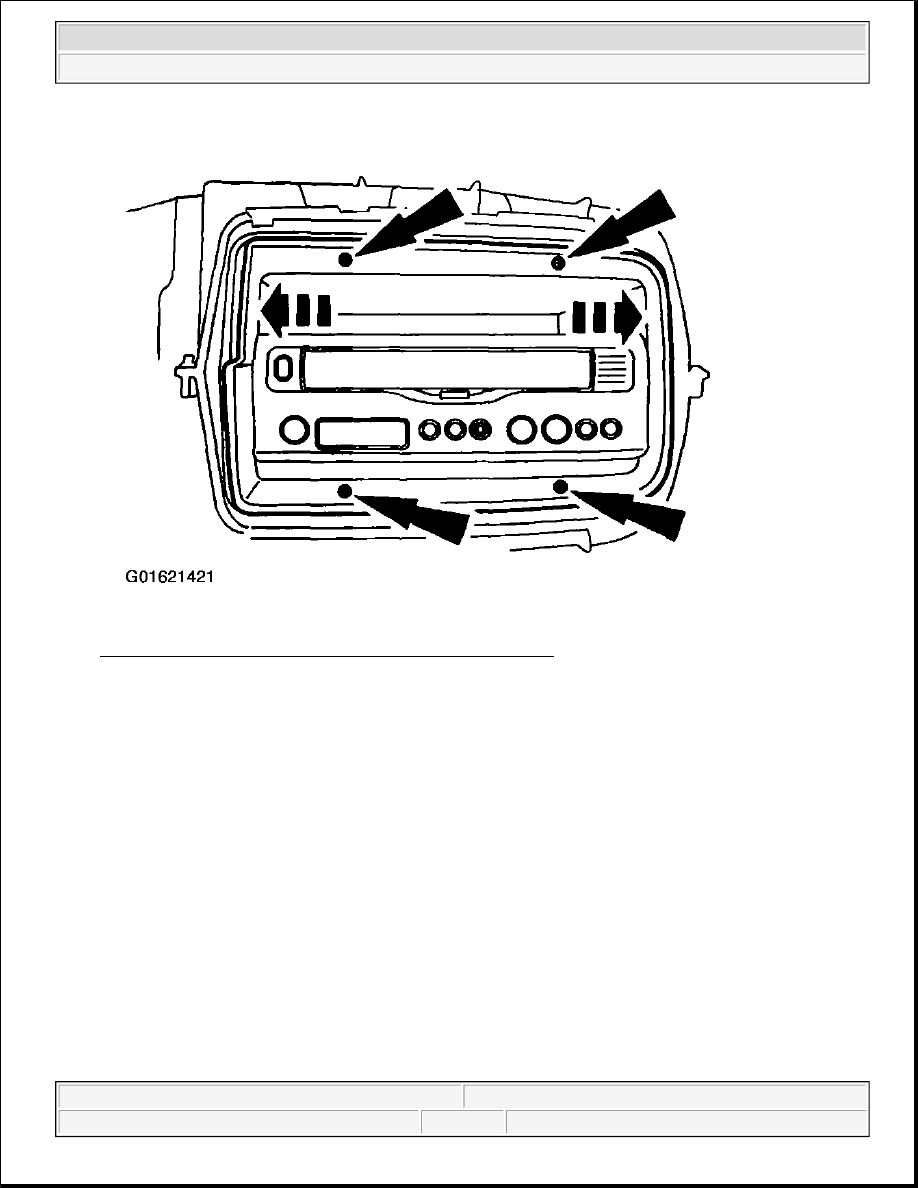

Fig. 1: Removing Screws And Video Cassette Player (VCP)
Courtesy of FORD MOTOR CO.

3. Disconnect the electrical connections.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Video System - F150 Pickup



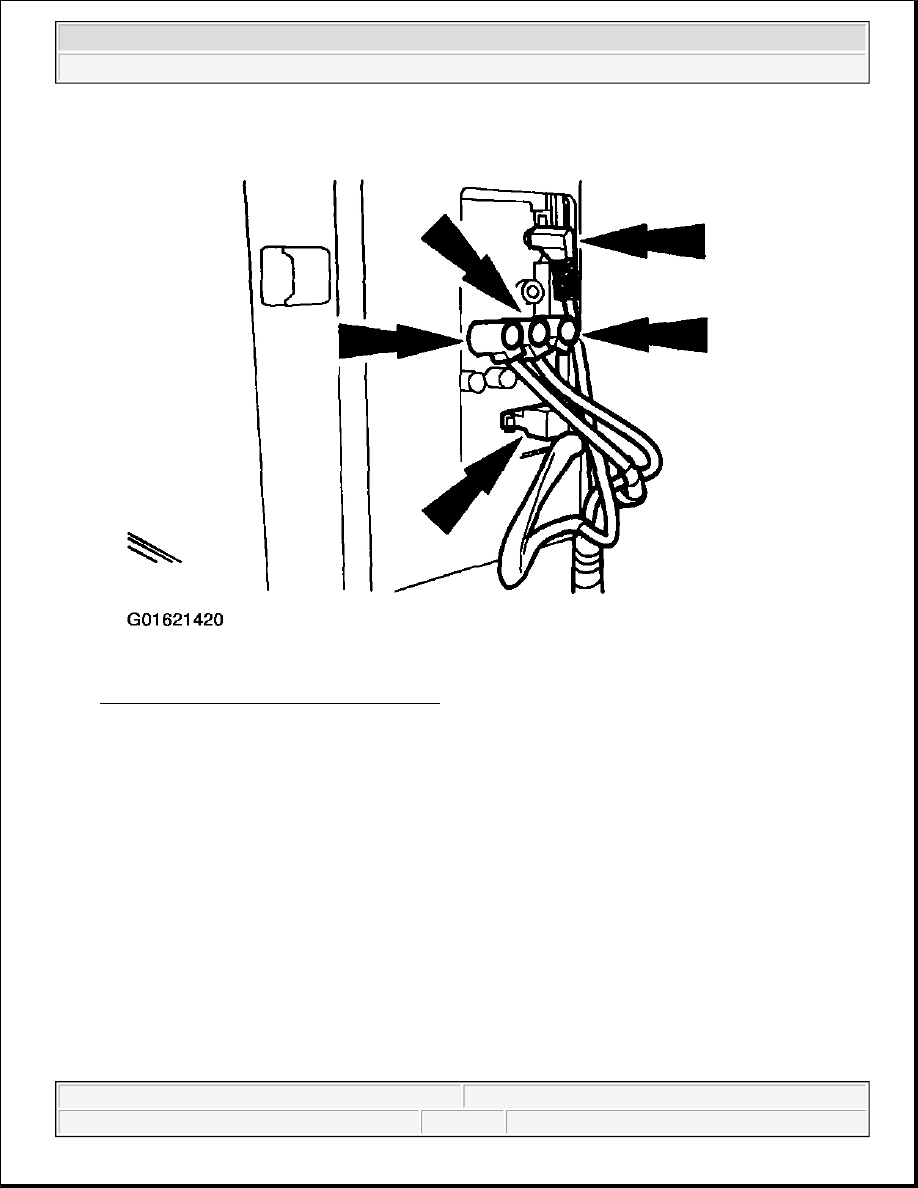

Fig. 2: Disconnecting Electrical Connections
Courtesy of FORD MOTOR CO.

4. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Video System - F150 Pickup
