Ford F150 Pickup. Instruction - part 14

Fig. 6: Identifying Hand-Held Transmitter Button And Universal Transmitter Button
Courtesy of FORD MOTOR CO.

5. Use both hands to press the hand-held transmitter button and the desired button on the universal

transmitter. Do not release either button.

6. Hold down both buttons until the red light on the universal transmitter flashes, first slowly and then

rapidly. Release both buttons when the rapid flashing begins. The universal transmitter has successfully
learned the new frequency signal and can be used in place of the hand-held transmitter(s).

NOTE:

If the hand-held transmitter appears to program the universal transmitter
but does not open the garage door, the garage door opener may have a



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Remote Convenience - F150 Pickup



7. To operate, simply press the appropriate button on the universal transmitter. The red light is on while the

signal is being transmitted.

Training a Garage Door Opener Equipped With "Rolling Codes"

1. Program the hand-held transmitter to the universal transmitter. Refer to PROGRAMMING .

2. Train the garage door opener receiver to recognize the universal transmitter.

1. Remove the cover panel from the garage door opener receiver.

2. Locate the training button on the garage door opener receiver. Location and color of the button may

vary by garage door opener manufacturer. Refer to the garage door opener instruction instruction or
call HomeLink(R) customer assistance at 1-800-355-3515.

3. Press the training button on the garage door opener receiver for 1-2 seconds.

4. Press the programmed universal transmitter button for as long as the universal transmitter red light

flashes (1-2 seconds). Release the button and re-press the button to confirm that the universal
transmitter is trained to the receiver.

5. The garage door opener should recognize the universal transmitter.

Erasing Channels

1. To erase all three programmed channels, hold down the two outside buttons until the red light begins to

flash (20-30 seconds). Release both buttons.

"code protected" or "rolling code" feature.

NOTE:

Individual channels cannot be erased, but can be reprogrammed using the
procedures for programming. Refer to PROGRAMMING .



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Remote Convenience - F150 Pickup



2003 ACCESSORIES AND EQUIPMENT

Module Communications Network - F150 Pickup

SPECIFICATIONS

GENERAL SPECIFICATIONS

Fig. 1: General Specifications Chart
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

COMMUNICATIONS NETWORK

Module Communications Network Components

z

powertrain control module (PCM)

z

restraint control module (RCM)



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Module Communications Network - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Module Communications Network - F150 Pickup



DIAGNOSIS AND TESTING

COMMUNICATIONS NETWORK

Refer to COMPUTER DATA LINES for schematic and connector information.

Special Tool(s)

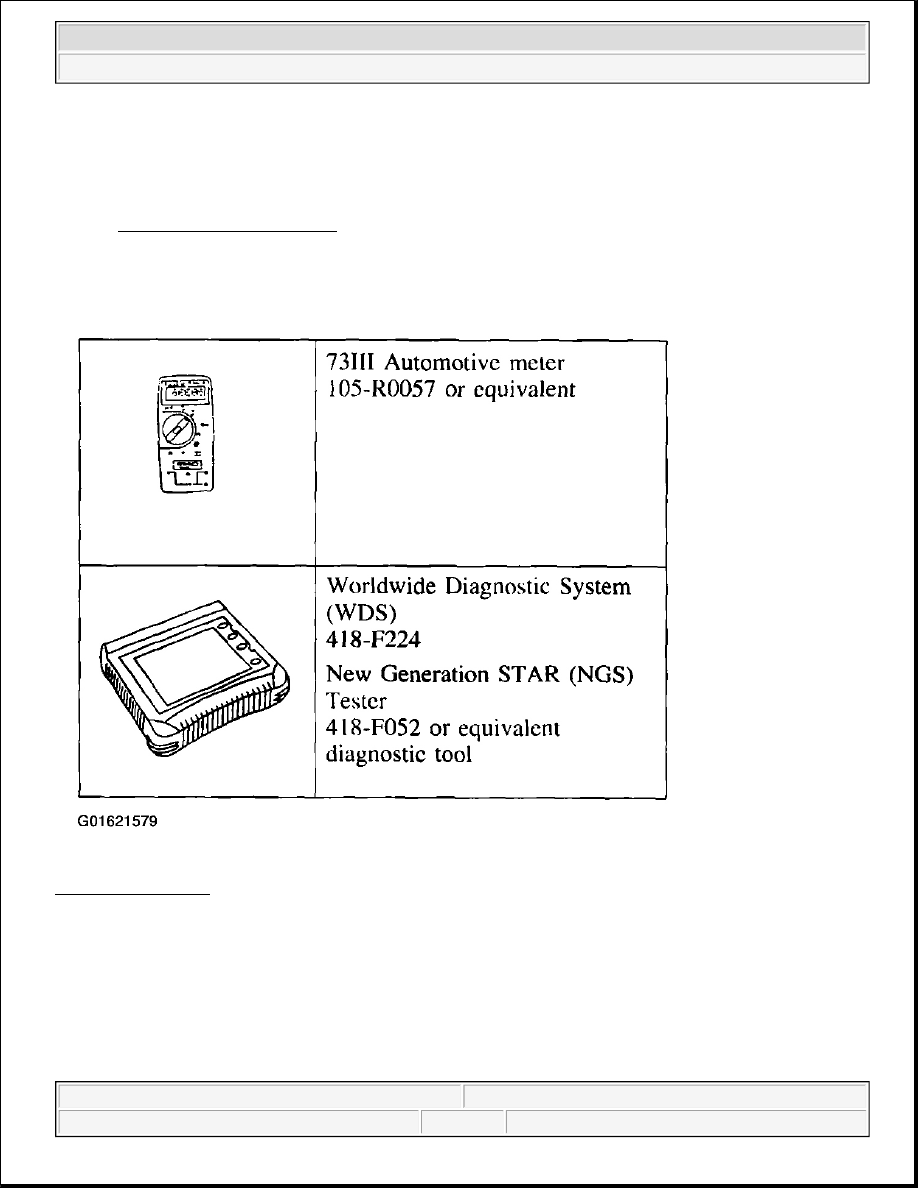

Fig. 2: Special Tools
Courtesy of FORD MOTOR CO.

z

instrument cluster

z

4-wheel anti-lock brake (4WABS) control module

z

generic electronic module (GEM)

z

central security module (optional)

z

natural gas vehicle module (NGVM)
