2003 ACCESSORIES AND BODY, CAB

Remote Convenience - F150 Pickup

DESCRIPTION AND OPERATION

UNIVERSAL TRANSMITTER

Fig. 1: Identifying Universal Transmitter
Courtesy of FORD MOTOR CO.

The HomeLink(R) universal transmitter provides a convenient way to substitute up to three hand-held
transmitters with a single built-in device. The universal transmitter:

z

will operate garage doors, gates and home/office lighting and security systems.

z

will actually learn and transmit the radio frequency of up to three hand-held transmitters from any of the
systems mentioned above.

z

is an integral part of the left sun visor assembly and is powered by the vehicle battery and charging
system.

DIAGNOSIS AND TESTING



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Remote Convenience - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Remote Convenience - F150 Pickup



UNIVERSAL TRANSMITTER

Refer to INTERIOR LIGHTS for schematic and connector information.

Inspection and Verification

Fig. 2: Visual Inspection Chart
Courtesy of FORD MOTOR CO.

1. Verify the customer concern by operating the system.

2. Visually inspect for obvious signs of mechanical damage.

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step.

4. If the fault is not visually evident, verify the symptom and refer to the Symptom Chart .

Symptom Chart

Fig. 3: Remote Convenience Symptom Chart
Courtesy of FORD MOTOR CO.

Pinpoint Tests

PINPOINT TEST A: UNIVERSAL TRANSMITTER IS INOPERATIVE



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Remote Convenience - F150 Pickup

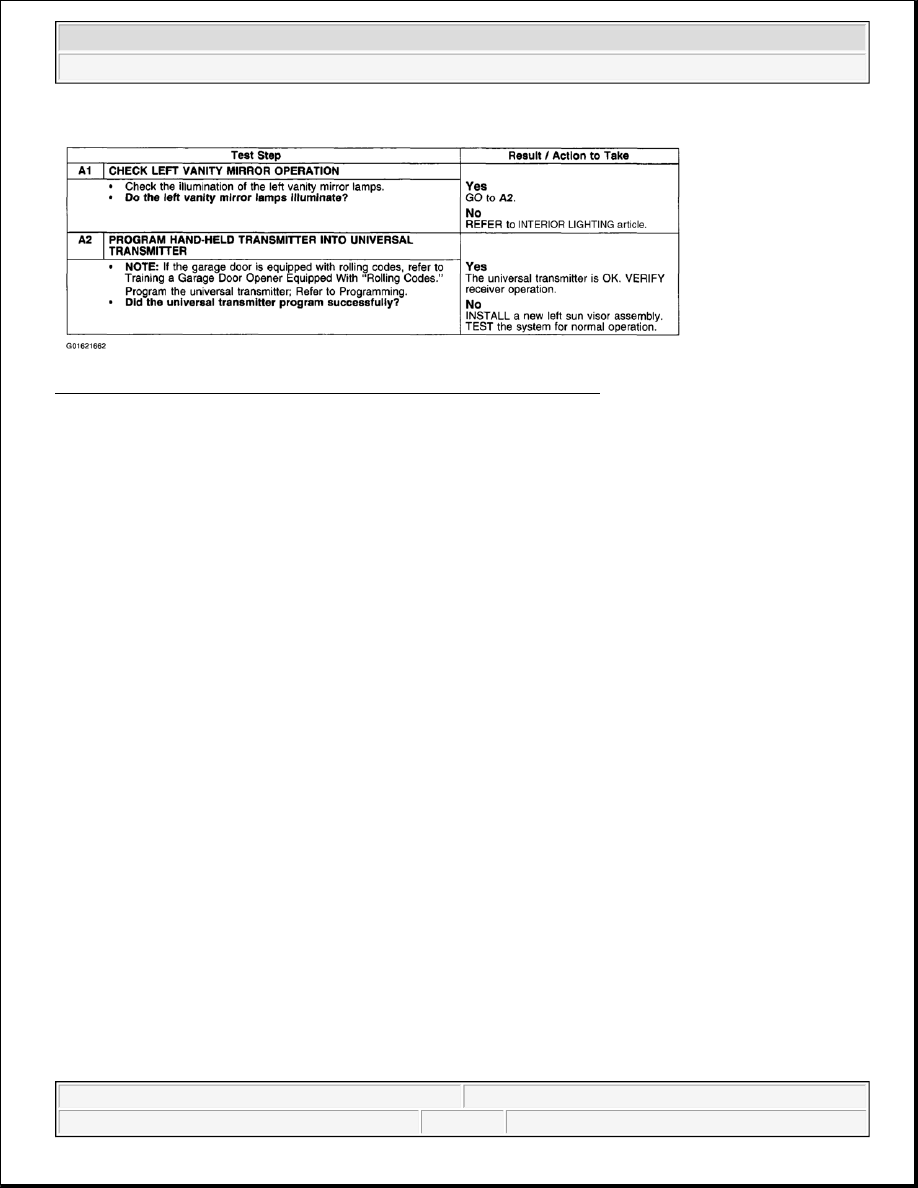

Fig. 4: Pinpoint Test A: Universal Transmitter Is Inoperative (A1 - A2)
Courtesy of FORD MOTOR CO.

GENERAL PROCEDURES

PROGRAMMING

1. Verify the hand-held transmitter is operative.

2. Prepare for programming the universal transmitter by erasing all three channels by holding down the two

outside buttons until the red light begins to flash (20-30 seconds). Release both buttons.

WARNING:

A garage door opening system that cannot stop or reverse itself after
detecting an object in its path does not meet current federal safety
standards. To decrease the risk of serious injury or death, do not use this
HomeLink(R) transmitter with a door opening system that lacks stop and
reverse features as required by federal standards. This includes any
garage door opening system manufactured before April 1, 1982. For more
information, call HomeLink(R) customer assistance at 1-800-355-3515.

CAUTION: During this procedure, the system that you are programming will be

made to operate. Make sure that people or objects are clear of the
garage door or gate being programmed.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Remote Convenience - F150 Pickup

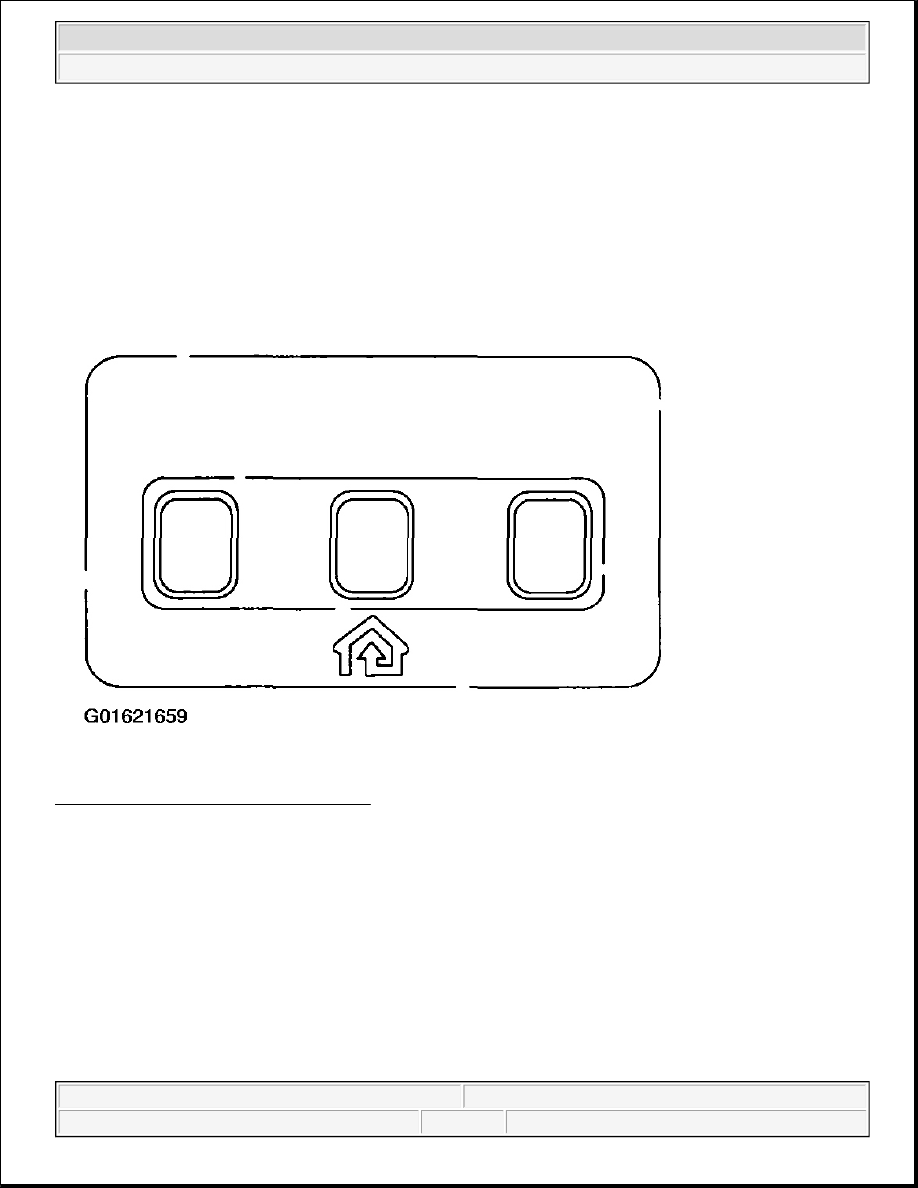

Fig. 5: Locating Universal Transmitter Outside Buttons
Courtesy of FORD MOTOR CO.

3. Select one of the three universal transmitter channels to be programmed by pressing the desired button.

4. Hold the end of the hand-held transmitter 25-5 1mm (1-2 in) from the front surface of the universal

transmitter so that the red light can still be seen.

NOTE:

During programming, the hand-held transmitter may automatically stop
transmitting after two seconds, which may not be long enough to program
the universal transmitter. If programming this type of hand-held
transmitter, continue to hold the button on the universal transmitter while
re-pressing the hand-held transmitter button every two seconds (Canada
only).



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Remote Convenience - F150 Pickup
