Fiat Bravo (2015 year). Manual - part 18





TYRE INFLATION PRESSURE WHEN COLD (bar)
GETTINGTOKNOW
Unladen/medium load
Full load
Space-saver
YOURCAR
Tyres
wheel (*)
Front
Rear
Front
Rear
195/65 R15 91H (*)
2,3
2,3
2,6
2,6
195/55 R16 91V
2,3
2,3
2,6
2,6
205/55 R16 91H
2.3
2.3
2.6
2.6
4,2
205/55 R16 91V
2.3
2.3
2.6
2.6
225/45 R17 91W
2.3
2.3
2.6
2.6
225/40 R18 92W
2,6
2,6
2,9
2,9
(*) For versions/markets, where provided
Add +0.3 bar to the prescribed pressure when the
tyres are warm.
Recheck pressure value with cold tyres. With snow
tyres, add +0.2 bar to the pressure value prescribed
for standard tyres.
When travelling at speeds above 160 km/h, inflate
the tyres to the values specified for fully laden
conditions.
238
DIMENSIONS
GETTINGTOKNOW

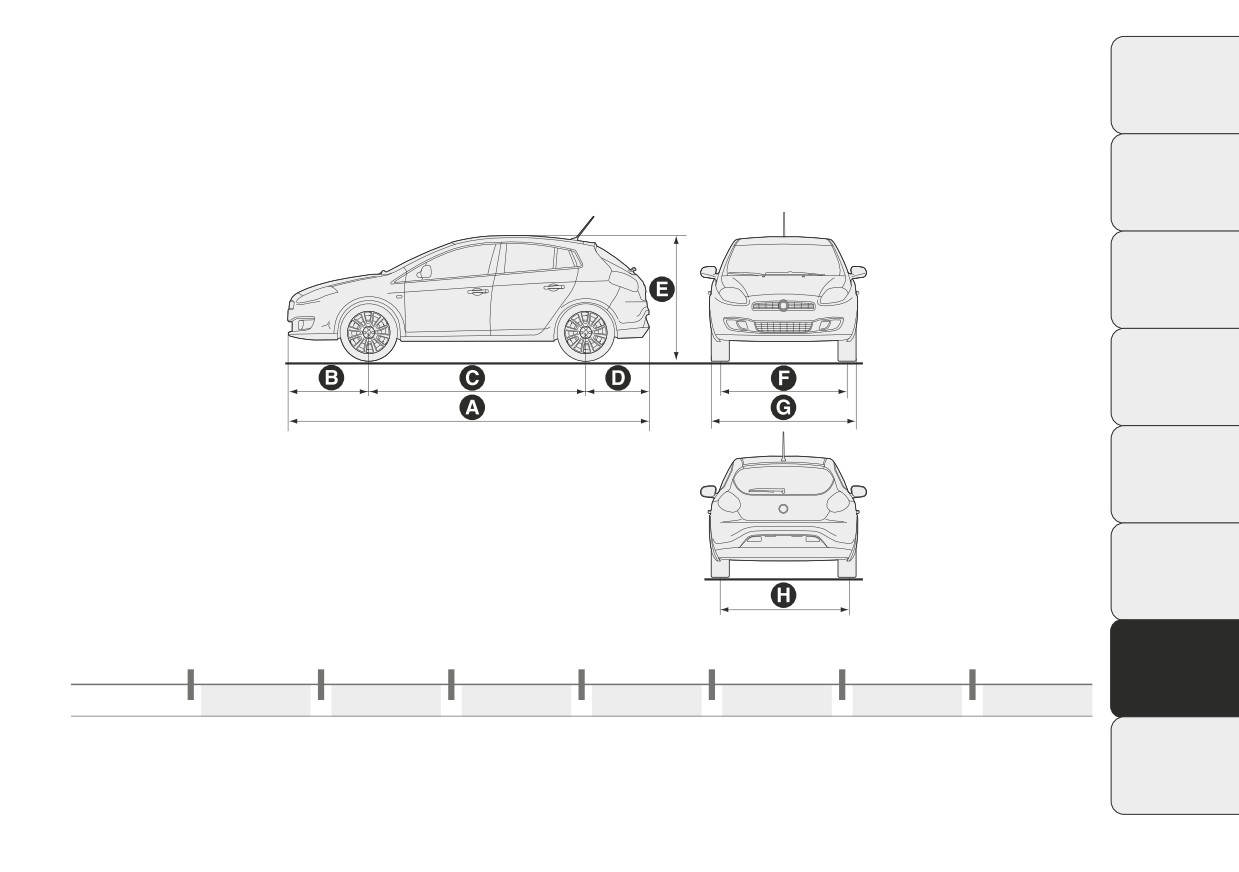

Dimensions are expressed in mm fig. 187 and refer to the vehicle equipped with its original tyres. Height is
YOURCAR
measured with car unladen.
LUGGAGE COMPARTMENT CAPACITY Capacity with car unladen (VDA standards): 400 dm3 with
cargo box (for versions/markets, where provided). Capacity with rear seat backrest folded down: 1175 dm3
with cargo box (for versions/markets, where provided).
fig. 187
F0Q0003
A
B
C
D
E
F (*)
G
H(*)
4336
974
2600
762
1498
1538
1792
1532
(*) Small variations in size are possible depending on the dimensions of the rims.
239
PERFORMANCE
GETTINGTOKNOW
Max. speed in km/h that can be reached after initial car use.
YOURCAR
Versions
km/h
1.6 MultiJet 105 HP
187
(*)
1.6 MultiJet 120 HP
194
2.0 MultiJet 165 HP (**)
215
(*) Top speed in sixth gear
(**) For versions/markets, where provided
240
WEIGHTS
Weights (kg)
1.6 MultiJet
2.0 MultiJet(*)
GETTINGTOKNOW
YOURCAR
Unladen weight (with all fluids, fuel tank filled
1320
1360
to 90% and without optional equipment)
Payload including the driver: (**)
510
510
Maximum permitted loads: (***)
- front axle:
1060
1060
– rear axle:
860
860
- total:
1830
1870
Towable loads
- braked trailer:
1300
1300
- non-braked trailer:
500
500
Maximum load on roof: (****)
80
80
Maximum load on ball joint (braked trailer):
60
60
(*) For versions/markets, where provided
(**) If special equipment is fitted (sun roof, tow hook, etc.) the unladen car weight increases, thus reducing the specified payload with
respect to the maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(****) Lineaccessori Fiat roof rack bars, max capacity: 50 kg.
241
REFUELLING
GETTINGTOKNOW
Prescribed fuels and
1.6 MultiJet
2.0
MultiJet (*)
YOURCAR
original lubricants
Fuel tank (litres):
58
58
Diesel for motor vehicles
including a reserve of
(EN 590 Specification)
8 ÷ 10
8 ÷ 10
(litres):
Mixture of demineralised
Engine cooling system
7,1
7,1
water and
(litres):
50% PARAFLUUP (**)
Engine sump (litres):
4,3
4,3
SELENIA WR FORWARD
Engine sump and filter
4,6
4,9
(litres):
Gearbox/differential casing
TUTELA TRANSMISSION
1,87
1,87
(litres):
GEARFORCE
Hydraulic brake circuit with
0,56
0,56
TUTELA TOP 4
ABS:
Windscreen and rear
Mixture of water and
window washer fluid
3
(6)
3
(6)
TUTELA PROFESSIONAL
reservoir (litres):
SC35
(**) For particularly harsh climate conditions, a mixture of
60% PARAFLUUP and 40% demineralised water is recommended.
(*) For versions/markets, where provided
242
FLUIDS AND LUBRICANTS
GETTINGTOKNOW
Your car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
YOURCAR
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the
fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
Fluid and lubricant specifications for a
Genuine fluids and
Use
Replacement interval
correct use of the car
lubricants
SELENIA WR
Lubricant for
SAE 0W-30 grade fully synthetic lubricant.
FORWARD
According to Scheduled
diesel engines
FIAT 9.55535-DS1, ACEA C2 classification.
Contractual Technical
Servicing Plan
Reference No. F842.F13
In case of emergency, if lubricants with the prescribed specifications are not available, products with the
minimum indicated ACEA performance can be used for topping up; in this case optimal performance of the
engine is not guaranteed.
The use of products with different specifications than those indicated above could cause
damage to the engine that is not covered by the warranty.
243
Fluid and lubricant specifications for a
Genuine fluids and
Use
Applications
GETTINGTOKNOW
correct use of the car
lubricants
YOURCAR
TUTELA
TRANSMISSION
SAE 75W grade synthetic lubricant.
Manual gearboxes and
GEARFORCE
FIAT 9.55550-MZ6 classification
differentials
Contractual Technical
Reference No. F002.F10
Lubricants and
TUTELA ALL STAR
greases for
Molybdenum disulphide grease, for use at
Contractual Technical
Wheel side constant
drive
high temperatures. NL.G.I. 1-2 consistency.
Reference No.
velocity joints
transmission
FIAT Classification 9.55580
F702.G07
TUTELA STAR 700
Grease for constant velocity joints with low
Contractual Technical
Differential side constant
friction coefficient. NL.G.I. 0-1 consistency.
Reference No.
velocity joints
FIAT Classification 9.55580
F701.C07
Synthetic fluid for brake and clutch systems.
TUTELA TOP 4
Exceeds specifications: FMVSS no. 116 DOT
Contractual Technical
Hydraulic brakes and
Brake fluid
4, ISO 4925 SAE J1704. FIAT Classification
Reference No.
hydraulic clutch controls
9.55597
F001.A93
244
Fluid and lubricant specifications for a
Genuine fluids and
Use
Applications
correct use of the car
lubricants
GETTINGTOKNOW
YOURCAR
Red protective agent with antifreeze action,
PARAFLUUP (*)
Cooling circuit usage
Protective
based on inhibited monoethylene glycol with
Contractual Technical
percentage: 50%
agent for
organic formula. Exceeds CUNA NC 956-16,
Reference No.
demineralised water
radiators
ASTM D 3306 specifications. FIAT 9.55523
F101.M01
50% PARAFLUUP (**)
classification
TUTELA
Additive for
Additive for diesel with antifreeze and
DIESEL ART
To be mixed with diesel
diesel
protective action for diesel engines
Contractual Technical
(25 cc per 10 litres)
Reference No. F601.L06
TUTELA
PROFESSIONAL
To be used diluted or
Windscreen/
Mixture of alcohols and surfactants. Exceeds
SC 35
undiluted in windscreen/
rear window
CUNA NC 956-11 specifications.
Contractual Technical
rear window washer/wiper
washer fluid
FIAT Classification 9.55522
Reference No.
systems
F201.D02
(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60% PARAFLUUP and 40% demineralised water is recommended.
245
FUEL CONSUMPTION
GETTINGTOKNOW
The fuel consumption figures given in the table below are determined on the basis of the type-approval tests
YOURCAR
laid down by specific European Directives.
The procedures below are followed for measuring consumption:
urban cycle: cold starting followed by driving that simulates urban use of the car;
extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies
between 0 and 120 km/h;
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63%
of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the
car, trim level/equipment/accessories, use of the climate control system, car load, presence of roof racks
and other situations that adversely affect the aerodynamics or wind resistance lead to different fuel
consumption values than those measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)
Versions
Urban
Extra-urban
Combined
1.6 MultiJet 105 HP
5,3
3,7
4,3
1.6 MultiJet 120 HP
5,6
3,8
4,5
2.0 MultiJet (*)
6,7
4,2
5,1
(*) For versions/markets, where provided
246
CO2 EMISSIONS
GETTINGTOKNOW
The CO2 emission levels given in the following table refer to combined consumption.
YOURCAR
Versions
CO2 emissions according to the current European directive (g/km)
1.6 MultiJet 105 HP
113
1.6 MultiJet 120 HP
117
2.0 MultiJet (*)
135
(*) For versions/markets, where provided
247

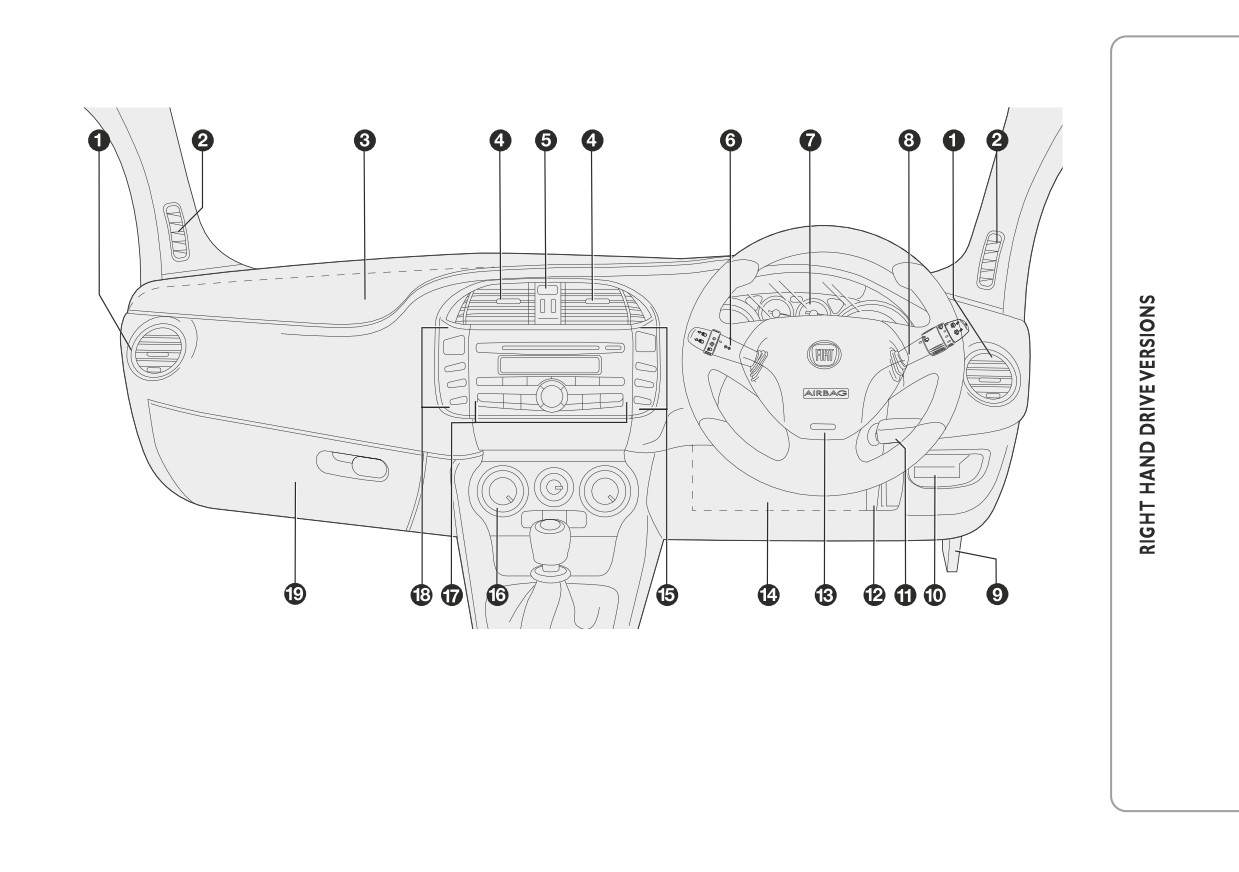

The presence and the position of the instruments and warning lights may vary according to the versions.
fig. 1
F0Q0005
1. Adjustable and swivel air vent - 2. Side window air vent - 3. Front passenger air bag - 4. Adjustable and swivel air vents
- 5. Hazard light switch - 6. External light stalk - 7. Instrument panel - 8. Windscreen/rear window wiper/trip computer
stalk - 9. Bonnet opening lever - 10. Glovebox - 11. Ignition key and ignition device - 12. Steering wheel locking/release
stalk - 13. Driver’s air bag - 14. Driver’s knees air bag (for versions/markets, where provided) - 15. Set of switches for
front/rear fog lights and menu opening/setting - 16. Controls for heating/ventilation/climate control - 17. Sound system
controls - 18. Set of ON/OFF switches for electric power steering and ASR system (for versions/markets, where
provided) - 19. Oddment compartment
249

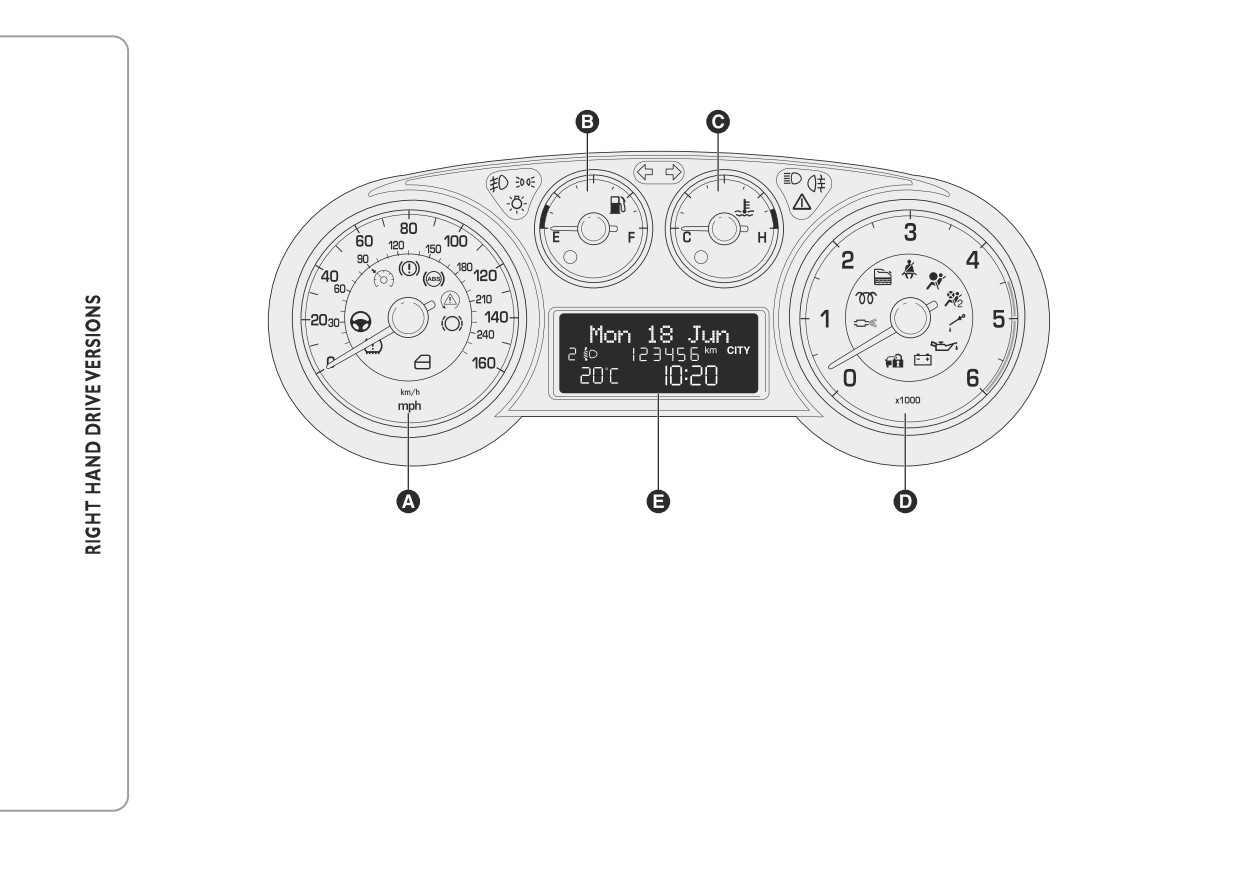

INSTRUMENT PANEL
A. Speedometer (speed indicator) B. Fuel level gauge with reserve warning light C. Engine coolant temperature gauge and
fig. 2
F0Q0911
excessive temperature warning light D. Rev counter E. Display
