Fiat Bravo (2015 year). Manual - part 17





LEATHER STEERING WHEEL/GEAR
IMPORTANT Be careful when using a steering wheel
KNOB/HANDBRAKE
lock device, where applicable, to avoid damaging
GETTINGTOKNOW
YOURCAR
the leather upholstery by rubbing.
These components must be cleaned with mild soap
and water only. Never use alcohol or alcohol-based
products.
Read the product label carefully before using specific
products for cleaning the interiors: make sure the
product does not contain alcohol or alcohol-based
substances.
If, when cleaning the windscreen with special
products, window cleaner accidentally drips onto the
leather of the steering wheel/gear lever knob/hand
brake, wipe away immediately and then wash the
affected area with mild soap and water.
224
TECHNICAL SPECIFICATIONS
GETTINGTOKNOW
YOURCAR
IDENTIFICATION DATA
D Chassis serial number.
E Maximum authorised weight of vehicle fully laden.
The identification data of the car are:
F Maximum authorised weight of vehicle fully laden
VIN plate;
plus trailer.
Chassis marking;
G Maximum authorised weight on first (front) axle.
Bodywork paint identification plate;
H Maximum authorised weight on second (rear)
axle.
Engine marking.
I Engine type.

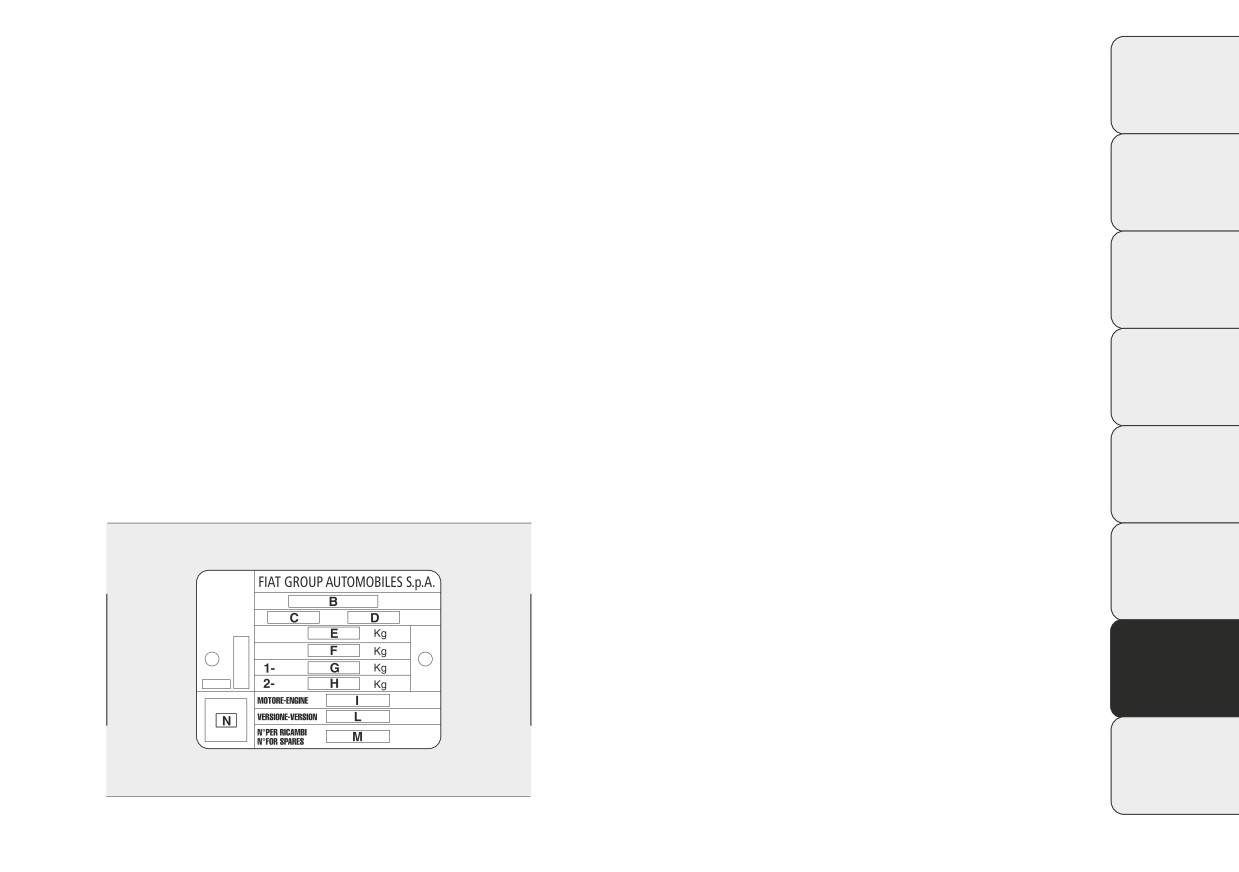

VIN PLATE
L Bodywork version code.
This plate is fitted to the engine compartment front
M Number for spare parts.
crossmember and contains the following data
N Correct value of smoke coefficient (for diesel
fig. 183:
engines).
B Type-approval number.
C Vehicle type identification code.
fig. 183
F0Q0029
225
CHASSIS MARKING
BODYWORK PAINT IDENTIFICATION
PLATE
GETTINGTOKNOW
This is printed on the passenger compartment floor,
YOURCAR
near the front right seat.
This is fitted to the inside of the tailgate and bears
the following data fig. 185:

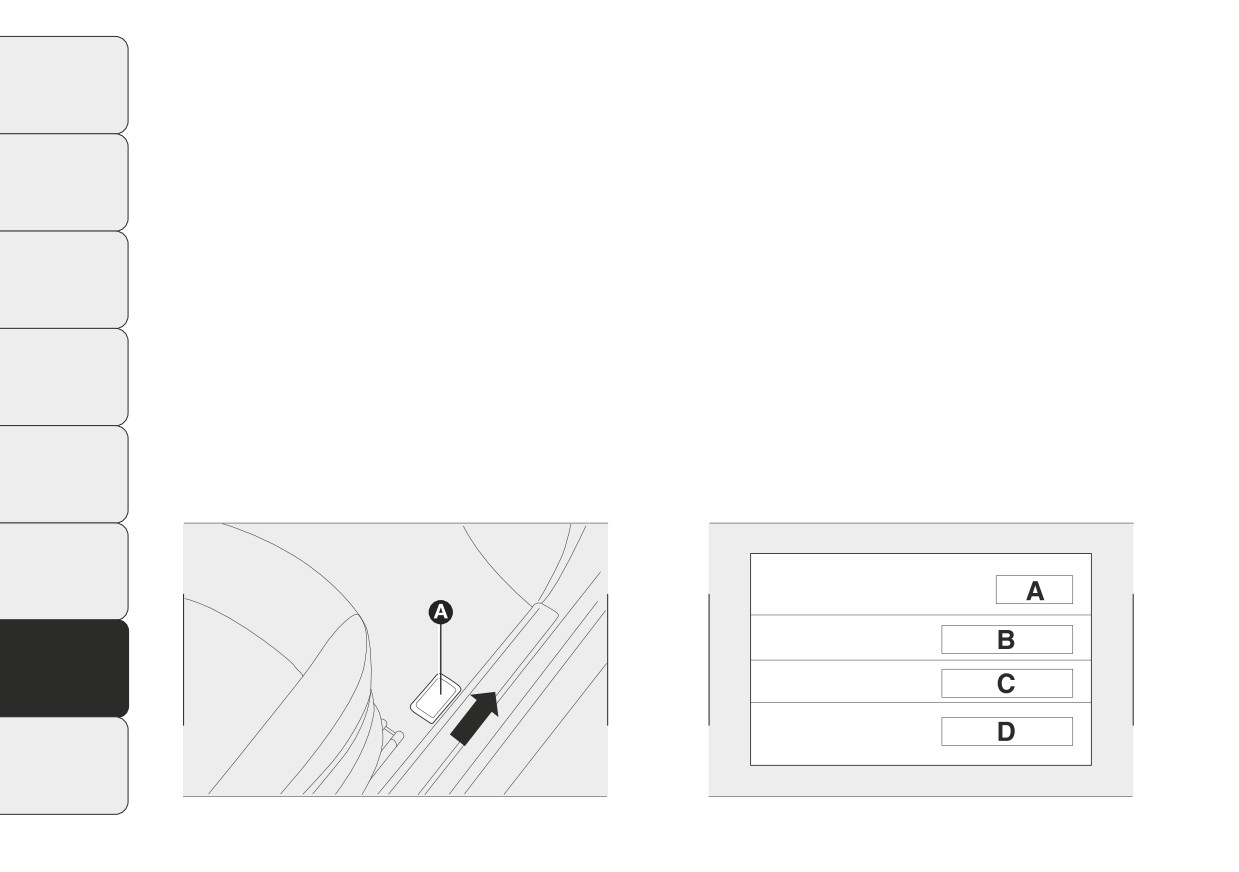

Slide flap A fig. 184 forward to access:
A Paint manufacturer.
The marking includes:
B Colour name.
car model (ZFA 198000);
C Fiat colour code.
chassis serial number.
D Respray and touch up code.
ENGINE MARKING
This is stamped on the cylinder block and gives the
model and the chassis serial number.
fig. 184
F0Q0667
fig. 185
F0Q0100
226
ENGINE CODE - BODYWORK VERSIONS
GETTINGTOKNOW
Versions
Engine code
Bodywork versions
YOURCAR
198AXV1B 18
1.6 MultiJet 105 HP
844A3000
198AXV1B 18B (*)
198AXL1B 08M
1.6 MultiJet 120 HP
198A2000
198AXL1B 08N (*)
198AXT1B 16
2.0 MultiJet 165 HP (**)
198A8000
198AXT1B 16B (*)
(*) Versions where 18" tyres can be fitted
(**) For versions/markets, where provided
227
ENGINE
GETTINGTOKNOW
1.6
MultiJet 105
HP
1.6
MultiJet 120 HP
YOURCAR
Type code
844A3000
198A2000
Cycle
Diesel
Diesel
Number and arrangement of cylinders
4 in line
4 in line
Piston bore and stroke (mm)
79.5 × 80.5
79.5 × 80.5
Total displacement (cm3)
1598
1598
Compression ratio
16,5
16,5
Maximum power (EC) (kW)
77
88
Maximum power (EC) (HP)
105
120
corresponding engine speed (rpm)
4000
4000
Maximum torque (EC) (Nm)
300
300
Maximum torque (EC) (kgm)
30,6
30,6
corresponding engine speed (rpm)
1500
1500
Fuel
Diesel for automotive engines (Specification EN590)
228
2.0 MultiJet 165 HP (*)
GETTINGTOKNOW
Type code
198A8000
YOURCAR
Cycle
Diesel
Number and arrangement of cylinders
4 in line
Piston bore and stroke (mm)
83.0 x 90.4
Total displacement (cm3)
1956
Compression ratio
16,5
Maximum power (EC) (kW)
121
Maximum power (EC) (HP)
165
corresponding engine speed (rpm)
4000
Maximum torque (EC) (Nm)
350
Maximum torque (EC) (kgm)
35,6
corresponding engine speed (rpm)
1750
Fuel
Diesel for automotive engines (Specification EN590)
(*) For versions/markets, where provided
229
FUEL SUPPLY
GETTINGTOKNOW
Versions
Fuel supply
YOURCAR
Electronically controlled Common Rail MultiJet direct
1.6 MultiJet - 2.0 MultiJet
injection with turbo and intercooler
WARNING
Modifications or repairs to the fuel supply system that are not carried out correctly or do not
take the system's technical specifications into account can cause malfunctions leading to
the risk of fire.
TRANSMISSION
Versions
Gearbox
Clutch
Drive
Six forward gears
plus reverse with
Self-adjusting with
1.6 MultiJet - 2.0 MultiJet
synchronisers for
pedal without idle
Front
forward gear
stroke
engagement
230
BRAKES
Front service
Rear service
GETTINGTOKNOW
Versions
Parking brake
brakes
brakes
YOURCAR
Controlled by hand
1.6 MultiJet - 2.0 MultiJet
Self-ventilated disc
Disc
lever, acting on the
rear brakes
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs reducing braking
efficiency the first time the brakes are applied.
SUSPENSION
Versions
Front
Rear
MacPherson independent wheels
Interconnected wheels with
1.6 MultiJet - 2.0 MultiJet
with anti-roll bar
torsion beam
231
STEERING SYSTEM
GETTINGTOKNOW
Turning circle (kerb to kerb)
Versions
Type
YOURCAR
(m)
Rack and pinion with electric
10.4
(11.0 with optional 18" alloy
1.6 MultiJet - 2.0 MultiJet
power steering
rims)
232
WHEELS
16 Rim diameter in inches (Ø)
91 Load rating (capacity)
GETTINGTOKNOW
RIMS AND TYRES
YOURCAR
V Maximum speed rating
Pressed steel or alloy rims. Tubeless radial carcass
Maximum speed rating
tyres. The vehicle registration document also lists all
type-approved tyres.
Q up to 160 km/h
R up to 170 km/h
IMPORTANT If there are any discrepancies between
S up to 180 km/h
the Owner Handbook and the registration
document, take the information from the latter. For
T up to 190 km/h
safe driving, the car must be fitted with tyres of
U up to 200 km/h
the same make and type on all wheels.
H up to 210 km/h
IMPORTANT Do not use air chambers with Tubeless
V up to 240 km/h
tyres.
W up to 270 km/h
Y up to 300 km/h
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to rim:
- 1 mm +/- 1 mm
The values refer to the car in running order.
CORRECT TYRE READING

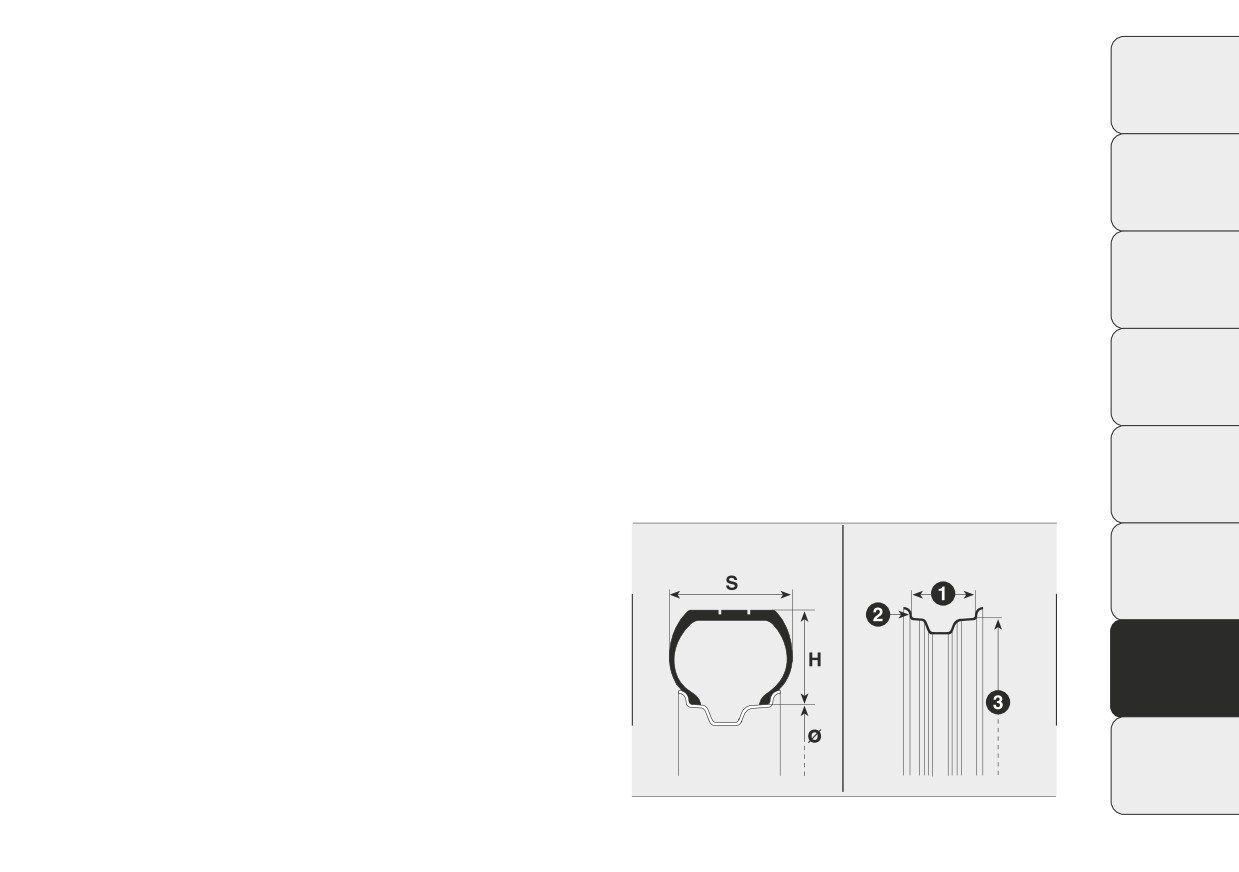

Example fig. 186: 195/55 R 16 91V
195 Nominal width (S, distance in mm between
sidewalls)
55 Height/width ratio (H/S) as a percentage
R Radial tyre
fig. 186
F0Q0200
233
Maximum speed index for snow tyres
Load rating (capacity)
GETTINGTOKNOW
QM + S up to 160 km/h
77 = 412 kg
101 = 825 kg
YOURCAR
TM + S up to 190 km/h
78 = 425 kg
102 = 850 kg
HM + S up to
210 km/h
Load rating (capacity)
79 = 437 kg
103 = 875 kg
60
= 250
kg
84
= 500
kg
80 = 450 kg
104 = 900 kg
61
= 257
kg
85
= 515
kg
81 = 462 kg
105 = 925 kg
62
= 265
kg
86
= 530
kg
82 = 475 kg
106 = 950 kg
63
= 272
kg
87
= 545
kg
83 = 487 kg
64
= 280
kg
88
= 560
kg
CORRECT READING OF THE WHEEL RIM
65
= 290
kg
89
= 580
kg
Example fig. 186: 7 J x 16 ET 31
66
= 300
kg
90
= 600
kg
7 rim diameter in inches (1).
67
= 307
kg
91
= 615
kg
J rim drop centre outline (side projection where the
tyre bead rests) (2).
68
= 315
kg
92
= 630
kg
16 rim nominal diameter in inches (corresponds to
69
= 325
kg
93
= 650
kg
diameter of the tyre to be mounted) (3 = Ø).
70
= 335
kg
94
= 670
kg
H2 shape and number of humps (circumference
measurement which keeps the bead of Tubeless
71
= 345
kg
95
= 690
kg
tyres in position on the rim).
72
= 355
kg
96
= 710
kg
ET 31 wheel camber (distance between the disc/rim
support plane and the wheel centre line).
73
= 365
kg
97
= 730
kg
74
= 375
kg
98
= 750
kg
75
= 387
kg
99
= 775
kg
76
= 400
kg
100 = 800 kg
234
RIMS AND TYRES PROVIDED AS STANDARD
Spare wheel
GETTINGTOKNOW
Version
Rims
Tyres
Snow tyres
YOURCAR
Rim
Tyre
6J x 15 ET 31.5
195/65 R15 91H
195/65 R15 91T
(**)
(**)
(M+S) (**)
(***)
(***)
205/55 R16 91T
7J x 16 ET 31
205/55 R16 91H
(M+S)
225/45 R17 91T
1.6 MultiJet
7J x 17 ET 26
225/45 R17 91W
(M+S)
105 HP
225/45 R17 91T
205/55 R16
91H
7J x 17 ET 31
225/45 R17 91W
(M+S)
7J x
16 ET
31
205/55 R16
91V
(****)
225/40 R18 92V
225/40 R18 92T
7 1/2J x 18 ET 35
REINFORCED
(M+S)
(*****)
(**) For versions/markets, where provided
(***) On versions equipped with 195/65 R15
and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the
Fix&Go.
(****) The 205/55 R16 91H (or 205/55 R16 91V) tyre has the same specifications as the space-saver wheel: the information in the
“Replacing a wheel” paragraph therefore refers to the 205/55 R16 91H (or 205/55 R16 91V) tyre.
(*****) Tyres which cannot be fitted with chains.
235
Spare wheel
Version
Rims
Tyres
Snow tyres
GETTINGTOKNOW
Rim
Tyre
YOURCAR
195/55 R16 91T
7J x 16 ET 31
195/55 R16 91V
(M+S)
(***)
(***)
205/55 R16 91T
7J x 16 ET 31
205/55 R16 91V
(M+S)
1.6 MultiJet
120 HP
225/45 R17 91T
7J x 17 ET 31
225/45 R17 91W
(M+S)
205/55 R16 91H
7J x 16 ET 31
205/55 R16 91V
225/40 R18 92W
225/40 R18 92T
(****)
7 1/2J x 18 ET 35
REINFORCED
(M+S)
(*****)
(***) On versions equipped with 195/55 R16
and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the
Fix&Go.
(****) The 205/55 R16 91H (or 205/55 R16 91V) tyre has the same specifications as the space-saver wheel: the information in the
“Replacing a wheel” paragraph therefore refers to the 205/55 R16 91H (or 205/55 R16 91V) tyre.
(*****) Tyres which cannot be fitted with chains.
236
Spare wheel
Version
Rims
Tyres
Snow tyres
GETTINGTOKNOW
Rim
Tyre
YOURCAR
195/55 R16
91T
7J x 16 ET 31
195/55 R16 91V
(M+S)
(***)
(***)
205/55 R16
91T
7J x 16 ET 31
205/55 R16 91V
(M+S)
225/45 R17
91T
2.0 MultiJet
7J x 17 ET 26
225/45 R17 91W
(M+S)
165 HP
225/45 R17
91T
205/55 R16
91H
7J x 17 ET 31
225/45 R17 91W
(M+S)
7J x
16 ET
31
205/55 R16
91V
(****)
225/40 R18 92W
225/40 R18
92T
7 1/2J x 18 ET 35
REINFORCED
(M+S)
(*****)
(***) On versions equipped with 195/55 R16
and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the
Fix&Go.
(****) The 205/55 R16 91H (or 205/55 R16 91V) tyre has the same specifications as the space-saver wheel: the information in the
“Replacing a wheel” paragraph therefore refers to the 205/55 R16 91H (or 205/55 R16 91V) tyre.
(*****) Tyres which cannot be fitted with chains.
SPACE-SAVER WHEEL (for versions/markets, where provided)
Rim: 4B x 15H ET 35
Tyre: T125/90 R15 96M
IMPORTANT Special techniques need to be adopted for 225/40 R18 92W tyres. For this reason, these tyres
can only be requested when the vehicle is purchased. Do not fit this tyre after the vehicle has been
purchased!
