REVERSE LIGHT
REAR FOG LIGHT
GETTINGTOKNOW
For bulb replacement fig.
150, contact a Fiat
For bulb replacement fig. 151, contact a Fiat
YOURCAR
Dealership.
Dealership.
3rd BRAKE LIGHTS
To change the bulb proceed as follows:
open the luggage compartment;
remove the cover A fig. 152;
extract the lens unit B fig. 153 and disconnect the
electrical connector;
press in the tabs C fig. 153 and remove the bulb
holder;
remove the snap-fitted bulb and replace it.
refit the cover A fig. 152 and close the luggage
compartment.
INAN
EMERGENCY
fig. 149
F0Q0713
fig. 150
F0Q0711
fig. 151
F0Q0712
182
NUMBER PLATE LIGHTS
turn the bulb holder B fig. 155 clockwise;
remove bulb C and replace it.
GETTINGTOKNOW
To replace the bulbs proceed as follows:
YOURCAR
operate in the point indicated by the arrows and
remove the lens units A fig. 154;
INAN
EMERGENCY
fig. 153
F0Q0751
fig. 152
F0Q0716
fig. 154
F0Q0718
183
REPLACING INTERIOR BULBS
GETTINGTOKNOW
For the type of bulb and corresponding power rating,
YOURCAR
see the paragraph "Changing a bulb".
FRONT ROOF LIGHT
To change the bulbs, proceed as follows:
operate in the points indicated by the arrows and
remove light A fig. 156;
open protective flap B fig. 157;
replace the bulbs C releasing them from the side
contacts and making sure that the new bulbs are
correctly secured between the contacts;
close flap B fig. 157 and fix roof light A fig. 156 in
its housing, making sure that it locks into place.
INAN
EMERGENCY
fig. 156
F0Q0720
fig. 155
F0Q0719
fig. 157
F0Q0721
184
REAR ROOF LIGHT
Versions with sun roof
GETTINGTOKNOW
Proceed as follows to replace the bulbs:
Versions without sun roof
YOURCAR
operate in the point shown by the arrow and
Proceed as follows to replace the bulbs:
remove roof light A fig. 159;
operate in the point shown by the arrow and
replace bulb B releasing it from the side contacts
remove roof light A fig. 158;
and making sure the new bulb is correctly
replace bulb B releasing it from the side contacts
fastened between the contacts.
and making sure the new bulb is correctly
fastened between the contacts.
INAN
EMERGENCY
fig. 158
F0Q0905
fig. 159
F0Q0906
185
LUGGAGE COMPARTMENT ROOF LIGHT
replace bulb B releasing it from the side contacts
and making sure the new bulb is correctly
GETTINGTOKNOW
To replace the bulb, proceed as follows:
fastened between the contacts.
YOURCAR
open the luggage compartment;
remove the light A fig. 160 levering in the point
shown by the arrow;
open protection B fig. 161 and replace the
snap-fitted bulb;
re-close the protection B on the lens;
refit the roof light A by inserting it in its correct
position firstly on one side and then pressing on
the other until it clicks into place.
GLOVE COMPARTMENT LIGHT
To change the bulbs, proceed as follows:
open the glove compartment and extract roof light
INAN
A fig. 162;
EMERGENCY
fig.
161
F0Q0725
fig. 160
F0Q0724
fig. 162
F0Q0726
186
COURTESY MIRROR LIGHTS
REPLACING FUSES
GETTINGTOKNOW
(for versions/markets, where provided)
INTRODUCTION
YOURCAR
Replace the bulb as follows:
Fuses protect the electrical system: they intervene
open the mirror cover A fig. 163;
(blow) in the event of a failure or improper
extract light B levering in the points shown by the
intervention on the system.
arrows;
When a device does not work, check the condition
replace bulb C releasing the side contacts, insert
of its protective fuse: the conductor element A
the new bulb and make sure that it is correctly
fig. 164 must be intact. If it is not, replace the blown
locked between the contacts.
fuse with another with the same amperage (same
colour).
B = intact fuse;
C = fuse with damaged filament.
To facilitate fuse replacement, use the pliers D
hooked inside the fuse box lid on the dashboard
left-hand side.
INAN
Refer to the tables on the following pages to identify
EMERGENCY
the protective fuse.
fig. 163
F0Q0753
fig. 164
F0Q0220
187
WARNING
WARNING
GETTINGTOKNOW
If the replaced fuse blows again, contact
Before replacing a fuse, make sure that
YOURCAR
a Fiat Dealership.
the ignition key has been removed
and that all the other services are switched off
and/or disengaged.
WARNING
Never replace a fuse with metal wires or
WARNING
other material.
Contact a Fiat Dealership if a safety
system (airbags, brakes), engine system
(engine, gearbox) or steering system general
WARNING
protection fuse blows.
Never replace a fuse with another with
a higher amp rating; DANGER OF FIRE.
FUSE LOCATION
The fuses are grouped in three fuse boxes:
INAN
WARNING
EMERGENCY
dashboard fuse box;
If a general protective fuse (MEGA-
engine compartment fuse box;
FUSE, MIDI-FUSE, MAXI-FUSE) blows,
luggage compartment fuse box.
contact a Fiat Dealership.
188
Dashboard fuse box
fig. 166
GETTINGTOKNOW
YOURCAR
To access the dashboard fuse box, loosen the three
screws A in fig. 165 and remove the flap B.
INAN
EMERGENCY
fig. 165
F0Q0727
fig. 166
F0Q0778
189
Engine compartment fuse box
next to the battery
GETTINGTOKNOW
fig. 168
YOURCAR
(for versions/markets, where provided)
A second fuse box is located on the right-hand of the
engine compartment, next to the battery; to reach
it loosen the fixing screws and remove cover A
fig. 167.
The number identifying the electrical component
corresponding to each fuse is on the back of the
cover.
INAN
EMERGENCY
fig. 167
F0Q0816
fig. 168
F0Q0815
190

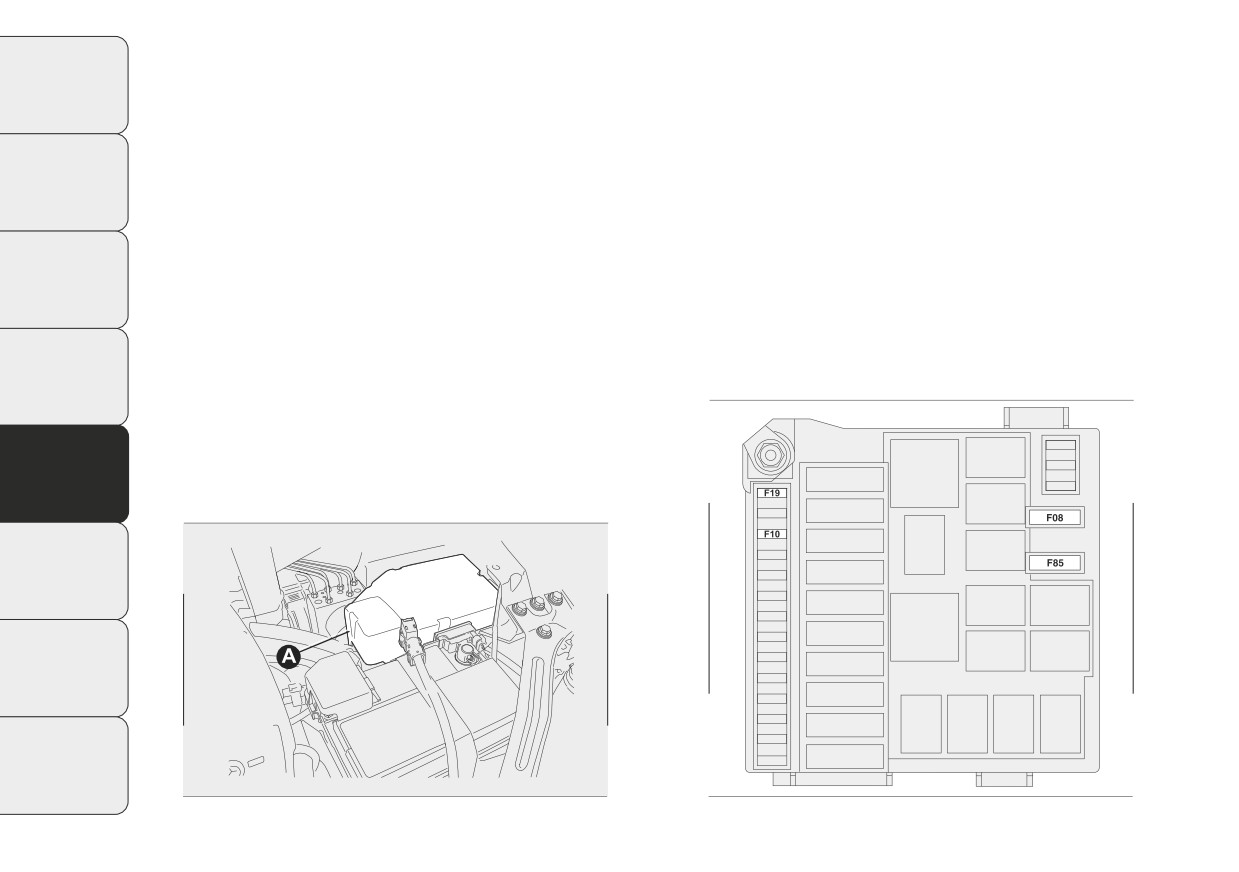

Engine compartment fuse box
next to the battery
GETTINGTOKNOW
fig. 170
YOURCAR
(for versions/markets, where provided)

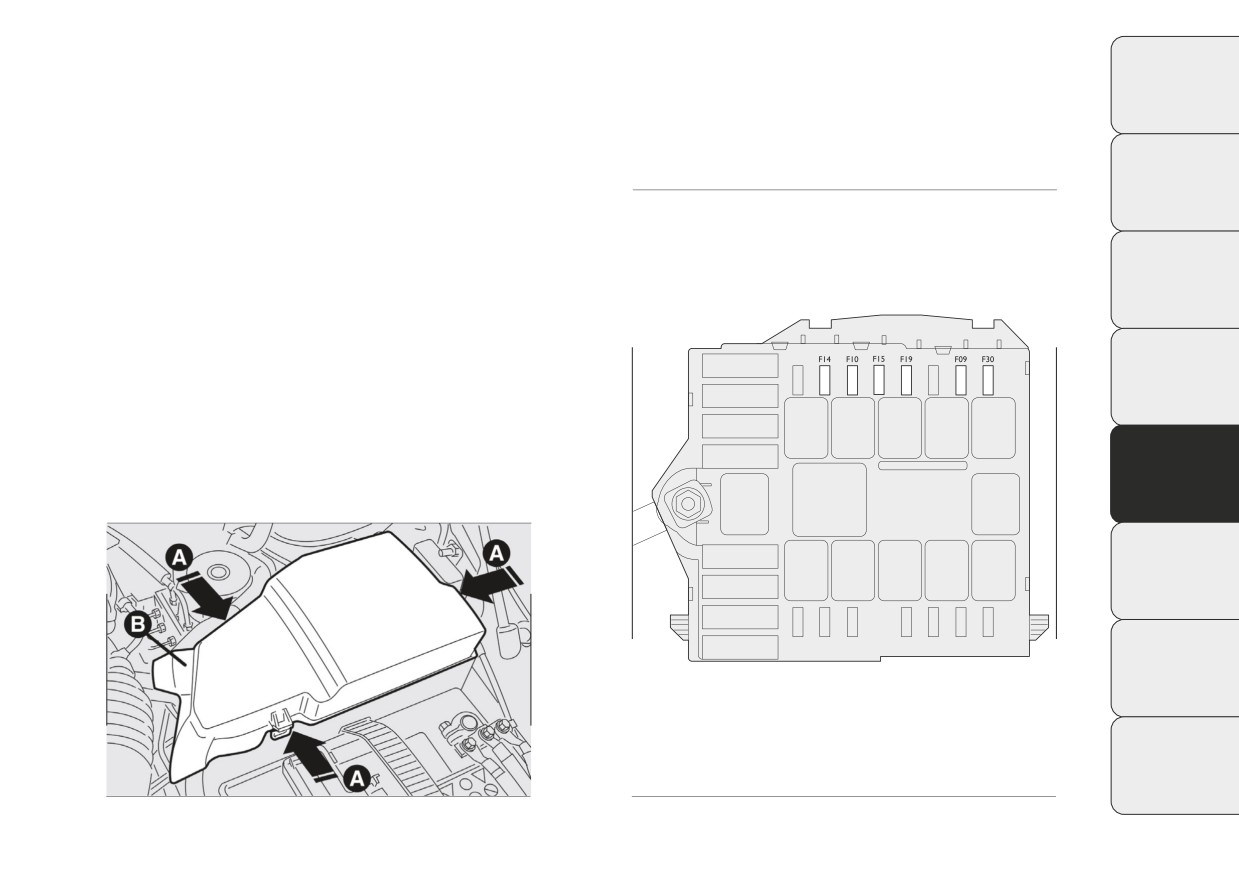

To access the fuse box next to the battery, press
retaining clips A fig. 169 and remove protection
cover B.
INAN
EMERGENCY
fig. 169
F0Q0498
fig. 170
F0Q0779
191

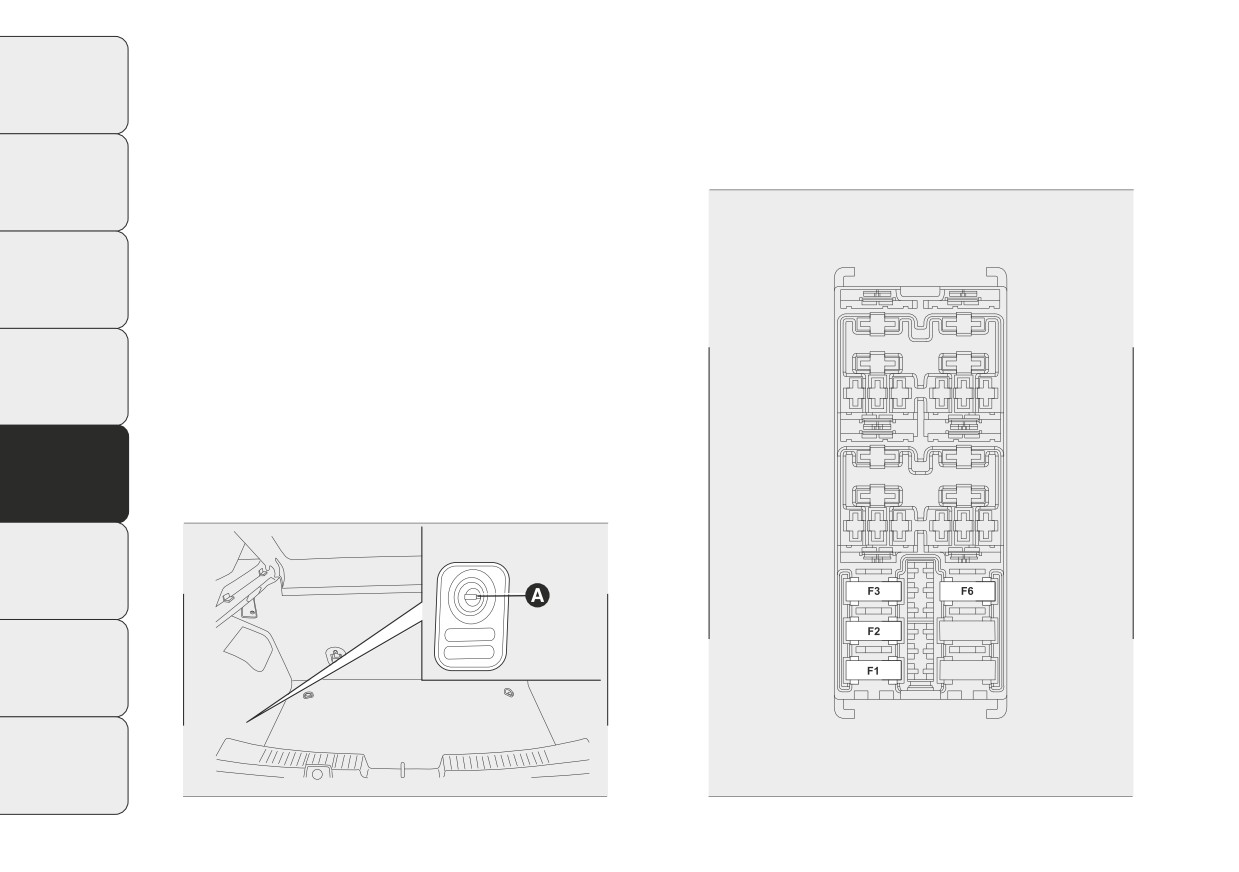

Luggage compartment fuse box
