At the end of operation
GETTINGTOKNOW
Proceed as follows:
YOURCAR
arrange the space-saver wheel G fig. 131 in the
specific compartment in the luggage compartment;
insert the partially open jack into container F
and force it slightly into its housing so that it does
not vibrate when the car is moving;
put the tools back into their places in the
container;
stow the container complete with tools on the
space-saver wheel and secure everything with
clamping device E;
correctly reposition the rigid preformed cover in
the luggage compartment.
INAN
EMERGENCY
fig. 131
F0Q0392
168
FIX&GO Automatic KIT
WARNING
GETTINGTOKNOW
The Fix&Go Automatic kit is located in a special
Give the booklet to the technicians who
YOURCAR
container in the boot.
will be handling the tyre that was
The kit includes fig. 132:
treated using the kit.
a cylinder A containing sealing fluid and fitted with:
filling tube B and adhesive label C with the wording
“max. 80 km/h” to be placed in a position clearly
visible for the driver (e.g. on the dashboard)
In the event of a puncture caused by
after repairing the tyre;
foreign bodies, the kit may be used to
repair tyres showing damages on the
an information leaflet fig. 133, providing
track or shoulder up to max 4 mm diameter.
instructions for using the kit correctly. This
booklet should be given to the persons charged
with handling the tyre treated with this kit;
WARNING
a compressor D including a pressure gauge and
Holes and damage on the tyre side walls
connections, found in the compartment;
cannot be repaired. Do not use the kit
a pair of protective gloves located in the side
if the tyre was damaged as a result of being
compartment of the compressor;
INAN
used when underinflated.
adapters for inflating different elements.
EMERGENCY
fig. 132
F0Q0510
fig. 133
F0Q0511
169
WARNING
WARNING
GETTINGTOKNOW
If the wheel rim has been damaged
The cylinder contains ethylene glycol
YOURCAR
(bent so as to cause air to leak), the tyre
and latex: it may cause an allergic
may not be repaired. Do not remove foreign
reaction. It is harmful if swallowed. It is irritant
bodies (screws or nails) from the tyre.
for the eyes in case of contact. May cause
irritation if inhaled or on contact. Avoid contact
with the eyes, skin and clothes. In the event of
IMPORTANT INFORMATION:
contact, rinse immediately with plenty of water.
If ingested, do not induce vomiting. Rinse out
The sealing fluid of the quick tyre repair kit is
your mouth, drink large quantities of water and
effective with external temperatures of between
seek immediate medical attention. Keep away
−20°C and +50°C.
from children.The product must not be used
by asthmatics. Do not inhale the vapours during
WARNING
insertion and suction. Call a doctor immediately
if allergic reactions are noted. Store the
Never operate the compressor for longer
cylinder in the specific compartment, away
than 20 consecutive minutes. Risk of
from sources of heat.The sealing fluid has an
overheating.The kit is not suitable for definitive
expiry date. Replace the cylinder containing
INAN repairs, so the repaired tyres may only be
out-of-date sealing fluid.
EMERGENCY
used temporarily.
Dispose of the cylinder and the sealing
fluid properly. Have the sealing fluid and
the cylinder disposed of in compliance
with national and local regulations.
170
INFLATING PROCEDURE
compressor off to obtain a more precise reading;
if after 5 minutes it is still impossible to reach at
GETTINGTOKNOW
least 1.5 bar, disengage the compressor from the
YOURCAR
WARNING
valve and power socket, then move the car
Wear the protective gloves provided
forwards by approx. 10 metres in order to
with the kit.
distribute the sealing fluid inside the tyre evenly,
then repeat the inflation operation;
Proceed as follows:
operate the handbrake. Unscrew the tyre valve
cap, take out the flexible filler pipe A fig. 134
and tighten the ring nut B on the tyre valve;
make sure that switch E fig. 136 for the
compressor is in position 0 (off ), start the engine,
insert plug D fig. 135 into the cigar lighter socket
and switch on the compressor by placing switch
E fig. 136 in position I (on). Inflate the tyre to the
pressure specified in the "Cold tyre pressures"
INAN
paragraph in "Technical data" chapter. Check tyre
EMERGENCY
pressure on pressure gauge F fig. 136 with
fig. 135
F0Q0515
fig. 134
F0Q0513
fig. 136
F0Q0516
171
if after this operation it is still impossible after 5
WARNING
minutes to reach at least 1.8 bar, do not start
GETTINGTOKNOW
driving since the tyre is excessively damaged and
If the pressure has fallen below 1.8 bar,
YOURCAR
the kit cannot guarantee proper hold, contact
do not drive any further: the Fix&Go
a Fiat Dealership.
Automatic kit cannot guarantee proper hold
because the tyre is too damaged. Contact a Fiat
if reaching the tyre pressure specified in paragraph
Dealership.
“Inflation pressure” in chapter “Technical Data”,
start driving immediately;
after having driven for about 10 minutes, stop and
recheck the tyre pressure; remember to apply the
WARNING
handbrake;
You must always indicate that the tyre
if, on the other hand, the pressure is at least 1.8
was repaired using the Fix&Go
bar, restore the correct pressure (with the engine
Automatic kit. Give the booklet to the
running and the handbrake applied) and resume
technicians who will be handling the tyre that
driving;
was treated using the kit.
drive with the utmost care to the nearest Fiat
Dealership.
INAN
EMERGENCY
WARNING
Apply the adhesive label where it can be
easily seen by the driver as a reminder
that the tyre has been treated with the Fix&Go
Automatic kit. Drive carefully, particularly on
bends. Do not exceed 80 km/h. Do not
accelerate or brake suddenly.
172
CHECKING AND RESTORING TYRE
CYLINDER REPLACEMENT
PRESSURE
GETTINGTOKNOW
To replace the cylinder, proceed as follows:
YOURCAR

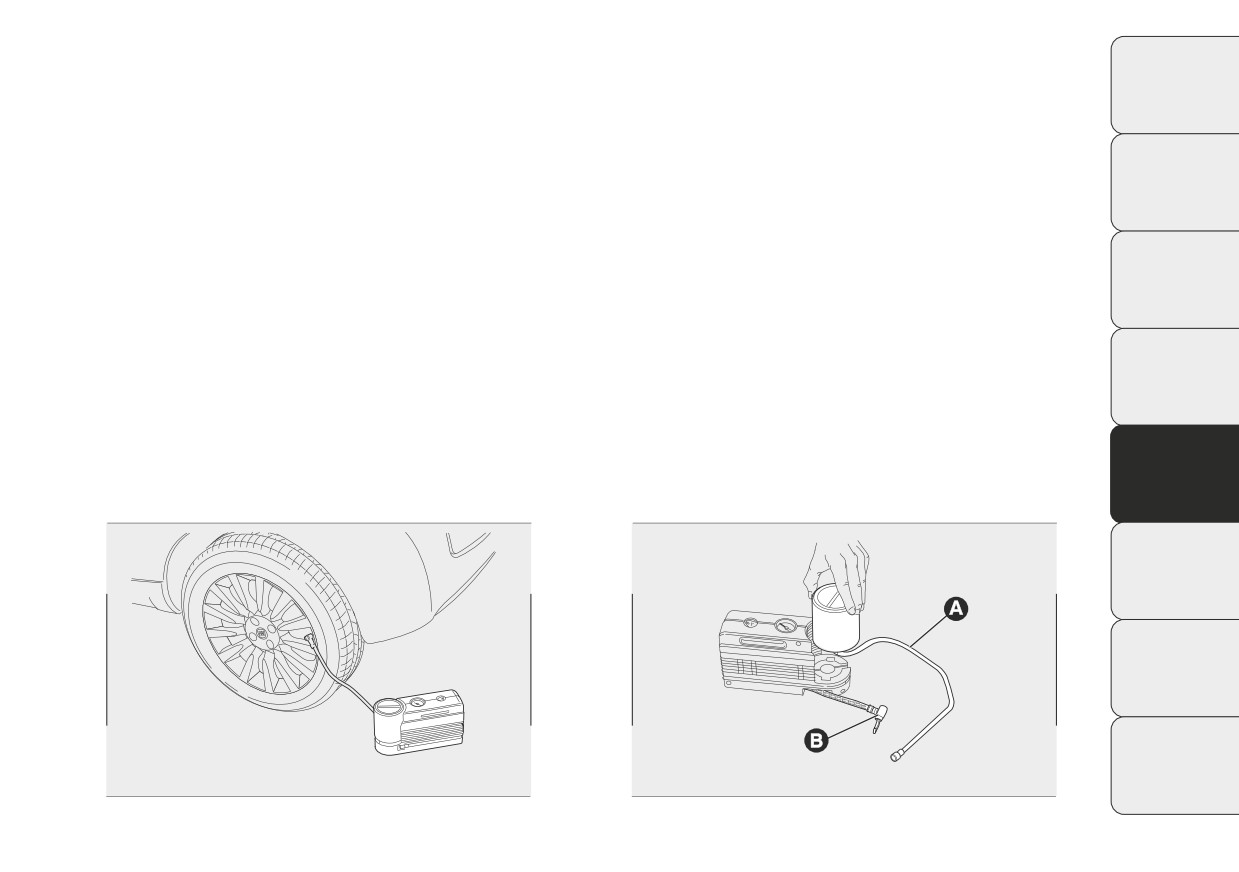

The compressor may also be used for restoring
disconnect coupling B fig. 138;
pressure only. Release the quick coupling and
turn the cylinder to be replaced anticlockwise and
connect directly to the tyre valve fig. 137; in this way,
raise it;
the cylinder will not be connected to the
compressor and no sealing fluid will be injected.
fit the new cylinder and turn it clockwise;
connect coupling B to the cylinder and fit
transparent pipe A in the specific compartment.
INAN
EMERGENCY
fig. 137
F0Q0517
fig. 138
F0Q0512
173
CHANGING A BULB
Halogen bulbs must be handled holding
GETTINGTOKNOW
the metallic part only.Touching the
YOURCAR
GENERAL INSTRUCTIONS
transparent part of the bulb with your
Before changing a bulb check the contacts for
fingers may reduce the intensity of the emitted
oxidation;
light and even reduce the lifespan of the bulb. In
case of accidental contact, wipe the bulb with
Burnt bulbs must be replaced by others of the
a cloth moistened with alcohol and let the bulb
same type and power;
dry.
after replacing a headlight bulb, always check its
alignment;
If possible, we recommend have bulbs
when a light is not working, check that the
replaced by a Fiat Dealership.The correct
corresponding fuse is intact before changing a bulb.
operation and aiming of the outer lights
For the location of fuses, refer to the paragraph
are absolutely essential for the safety of the car
“If a fuse blows” in this section;
and of compliance with law.
WARNING
Due to the high supply voltage, gas
Modifications or repairs to the electric
discharge bulbs (Bi-Xenon) (for versions/
INAN
system that are not carried out properly
markets, where provided) must only be
EMERGENCY
or do not take the system technical
replaced by a specialist technician: danger of
specifications into account can cause
death! Contact a Fiat Dealership.
malfunctions leading to the risk of fire.
IMPORTANT When the weather is cold or damp or
after heavy rain or washing, the surface of headlights
or rear lights, may steam up and/or form drops of
WARNING
condensation on the inside. This is a natural
Halogen bulbs contain pressurised gas,
phenomenon due to the difference in temperature
in the case of breakage they may burst.
and humidity between the inside and the outside
of the glass which does not indicate a fault and does
not compromise the normal operation of lighting
devices. The mist disappears quickly when the lights
are turned on, starting from the centre of the
diffuser, extending progressively towards the edges.
174
TYPES OF BULBS
Various types of bulbs are fitted to your car:
GETTINGTOKNOW
YOURCAR
All-glass bulbs: (type A) press-fitted. Pull to remove.
Bayonet type bulbs: (type B) to remove them press the
bulb and turn it anticlockwise.
Tubular bulbs: (type C) release them from their contacts
to remove.
Halogen bulbs: (type D) to remove the bulb, release the
clip holding the bulb in place.
INAN
EMERGENCY
Halogen bulbs: (type E) to remove the bulb, release the
clip holding the bulb in place.
Gas discharge bulb (Xenon): (type F) to replace them
contact a Fiat Dealership.
175
Bulbs
GETTINGTOKNOW
Use
Type
Power
Re. Figure
YOURCAR
Main beam headlights
H1
55 W
E
Longlife dipped headlights
H1
55 W
D
Dipped headlights with gas discharge bulbs
D2R
35 W
F
(for versions/markets, where provided)
Longlife front side lights
W5W
5W
A
Front fog lights (for versions/markets, where provided)
H11
55 W
E
Front direction indicators
PY24W
24W
B
Side direction indicators
WY5W
5W
A
Rear direction indicators
R10W
10 W
B
Rear side lights/rear fog lights
P5/21W
5
W/21 W
B
Rear side lights/break lights
P5/21W
5
W/21 W
B
EMERGENCY Third brake light (additional brake light)
W2.3W
2.3 W
A
Reverse lights
P21W
21 W
B
Number plate lights
W5W
5W
A
Front roof light
C10W
2x10 W
C
Rear roof light (for versions/markets, where provided)
C10W
10 W
C
Glove compartment light
C5W
5W
C
Luggage compartment roof light
W5W
5W
A
Courtesy mirror lights (for versions/markets, where
C5W
5W
C
provided)
176
REPLACING EXTERIOR BULBS
DIPPED HEADLIGHTS
GETTINGTOKNOW
To change the bulb, proceed as follows:
For the type of bulb and power rating, see “Changing
YOURCAR
a bulb" paragraph.
remove the protective cover B fig. 139;
release the bulb holding clip A fig. 140;
FRONT LIGHT CLUSTERS
disconnect the electrical connector B;
The front light clusters contain side lights, dipped
remove bulb C and replace it;
headlights, main beam headlights and direction
fit the new bulb, ensuring that the outline of the
indicator bulbs.
metal part coincides with the splining on the
The bulbs are arranged inside the light cluster as
curve of the headlight. Then reconnect the
follows fig. 139:
electrical connector B and reattach the bulb
A Side lights/daytime running lights and main beam
holding clip A;
headlights
refit the protective cover A fig. 139.
B Dipped headlights
C Direction indicators
INAN
EMERGENCY
fig. 139
F0Q0704
fig. 140
F0Q0705
177
With gas discharge bulbs (Bi-Xenon)
SIDE LIGHTS
(for versions/markets, where provided)
GETTINGTOKNOW
To change the bulb, proceed as follows:
YOURCAR
remove the protective cover A fig. 139;
WARNING
turn the bulb holder A fig. 141 anticlockwise and
Due to the high power supply voltage,
remove it;
gas discharge bulbs (Bi-Xenon) should
remove the bulb B and replace it;
only be replaced by specialised personnel:
danger of death! Contact a Fiat Dealership.
refit the new bulb, put the bulb holder A fig. 141
back into place and then refit the protective cover
B fig. 139 properly.
INAN
EMERGENCY
fig. 141
F0Q0706
178
MAIN BEAM HEADLIGHTS
DIRECTION INDICATORS
GETTINGTOKNOW
To change the bulb, proceed as follows:
Front
YOURCAR
remove the protective cover A fig. 139;
To change the bulb, proceed as follows:
release the bulb holding clip A fig. 142;
rotate the protective cover C fig. 139
remove bulb C and replace it;
anticlockwise;
fit the new bulb, ensuring that the outline of the
remove the bulb B fig. 143 and replace it;
metal part coincides with the splining on the
refit the protective cover A.
curve of the headlight. Then reconnect the
electrical connector B and reattach the bulb
holding clip A;
refit the protective cover B fig. 139.
INAN
EMERGENCY
fig. 142
F0Q0707
fig. 143
F0Q0708
179
Side
FOG LIGHTS
GETTINGTOKNOW

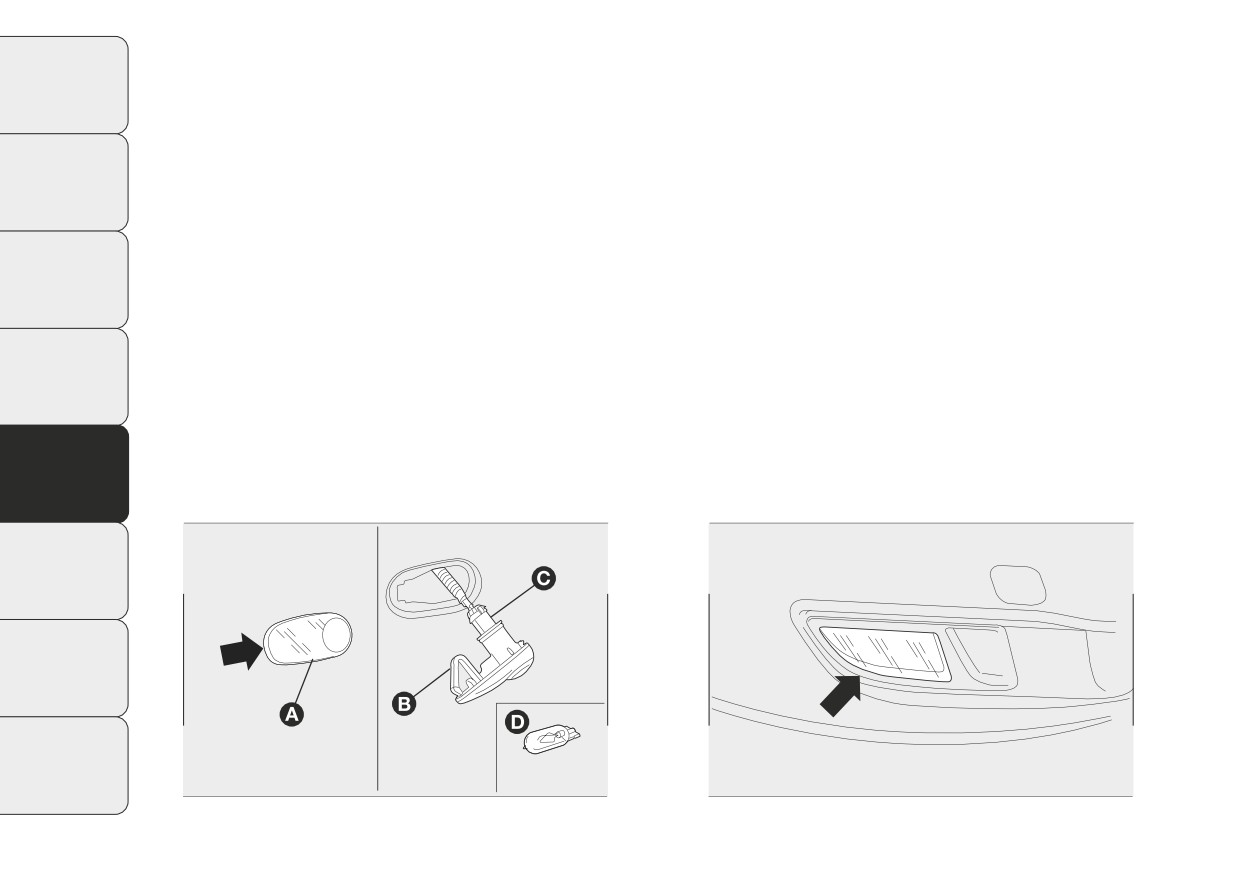

To change the bulb, proceed as follows:
For replacing the bulb fig. 145 contact a Fiat
YOURCAR
Dealership.
adjust the lens A fig. 144 to compress in the
internal catch B, then pull the cluster outwards;
turn the bulb holder C anticlockwise, extract the
press-fitted bulb D and replace it;
refit the bulb holder C in the lens and turn it
clockwise;
refit the cluster making sure that the internal catch
B clips into position.
INAN
EMERGENCY
fig. 144
F0Q0709
fig. 145
F0Q0710
180
REAR LIGHT CLUSTERS
GETTINGTOKNOW
The rear light clusters contain side lights, direction
YOURCAR
indicators and brake lights (stop) bulbs.
The bulbs are arranged inside the light cluster as
follows fig. 146:
B Side lights/brake light (double light)
C Direction indicators
To change the bulb, proceed as follows:
open the luggage compartment and loosen the
two rear light cluster fastening screws A fig. 147;
extract the light cluster by removing it with both
hands in the direction indicated by the arrows
fig. 148;
disconnect the electrical connector and, adjusting
the three retaining tabs, remove the protective
cover A fig. 149. Then, replace the concerned bulb.
INAN
EMERGENCY
fig.
147
F0Q0715
fig. 146
F0Q0714
fig. 148
F0Q0739
181















Content      ..     11      12      13      14     ..
