Fiat Abarth (2018 year). Manual - part 13





Cavity

Maxi Fuse

Mini Fuse

Description

F06

20 Amp Yellow

Radiator Fan - Single Speed

F06

30 Amp Green

Radiator Fan - Low Speed

F07

40 Amp Orange

Radiator Fan - High Speed

F08

40 Amp Orange

Blower Motor

F09

10 Amp Red

Powertrain

F10

10 Amp Red

Horn

F11

15 Amp Blue

Powertrain

F11

10 Amp Red

Powertrain (Multiair – If Equipped)

F14

5 Amp Tan

High Beam (Shutter)

F15

15 Amp Blue

Cigar Lighter

F16

7.5 Amp Brown

Transmission

F17

25 Amp Clear

Powertrain (Multiair – If Equipped)

F17

15 Amp Blue

Powertrain

F18

15 Amp Blue

Powertrain

F18

5 Amp Tan

Powertrain (Multiair – If Equipped)

F19

7.5 Amp Brown

Air Conditioning

F20

15 Amp Blue

Heated Seats – If Equipped

F21

15 Amp Blue

Fuel Pump

F22

20 Amp Yellow

Powertrain

F23

20 Amp Yellow

Anti-Lock Brake Valves

7

IN CASE OF EMERGENCY

201

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cavity

Maxi Fuse

Mini Fuse

Description

F24

7.5 Amp Brown

Stability Control System

F30

15 Amp Blue

Fog Lamps

F82

30 Amp Green

Sunroof/Convertible Top

F83

20 Amp Yellow

Cooling Pump – If Equipped

F84

10 Amp Red

Transmission

F85

30 Amp Green

Rear Defroster

F87

5 Amp Tan

Rear Defroster

F90

5 Amp Tan

Heated Mirrors – If Equipped

TIRE SERVICE KIT

Small punctures up to 1/4 inch (6 mm) in the tire tread can
be sealed with Tire Service Kit. Foreign objects (e.g., screws
or nails) should not be removed from the tire. Tire Service
Kit can be used in outside temperatures down to approxi-
mately -4°F (-20°C).

This kit will provide a temporary tire seal, allowing you to
drive your vehicle up to 100 miles (160 km) with a
maximum speed of 50 mph (80 km/h).

Tire Service Kit Storage

The Tire Service Kit is located under the front driver’s seat.

202

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tire Service Kit Components And Operation

Using The Mode Select Knob And Hoses

Your Tire Service Kit is equipped with the following
symbols to indicate the air or sealant mode.

Selecting Air Mode

Push in the Mode Select Knob (5) and turn to this
position for air pump operation only. Use the Black

Air Pump Hose (7) when selecting this mode.

Selecting Sealant Mode

Push in the Mode Select Knob (5) and turn to this
position to inject the Tire Service Kit Sealant and to

inflate the tire. Use the Sealant Hose (clear hose) (6) when
selecting this mode.

Using The Power Button

Push and release the Power Button (4) once to turn

on the Tire Service Kit. Push and release the Power Button
(4) again to turn Off the Tire Service Kit.

Using The Deflation Button

Push the Deflation Button (2) to reduce the air
pressure in the tire if it becomes over-inflated.

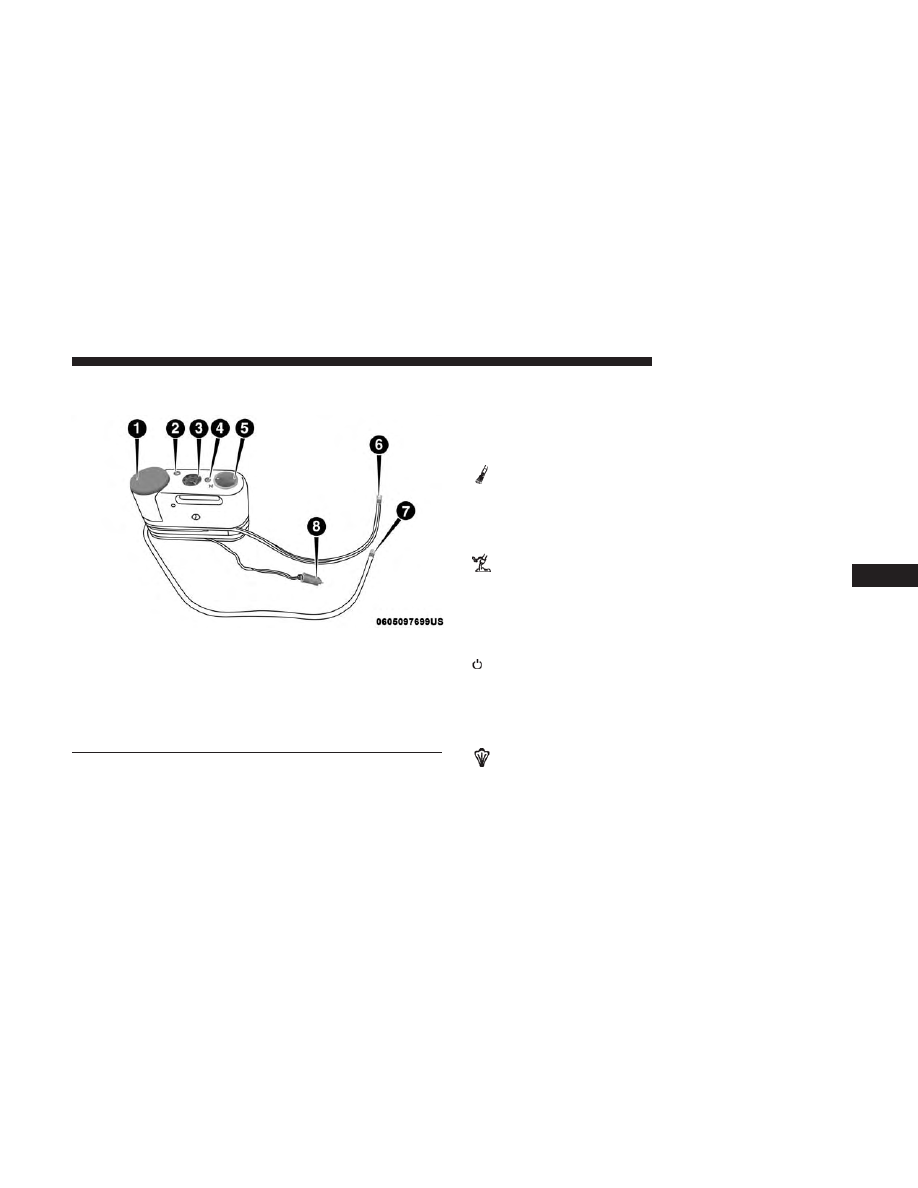

Tire Service Kit Components

1 — Sealant Bottle

5 — Mode Select Knob

2 — Deflation Button

6 — Sealant Hose (Clear)

3 — Pressure Gauge

7 — Air Pump Hose (Black)

4 — Power Button

8 — Power Plug (located on the
bottom side of the Tire Service
Kit)

7

IN CASE OF EMERGENCY

203

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tire Service Kit Usage Precautions

• Replace the Tire Service Kit Sealant Bottle (1) and Sealant

Hose (6) prior to the expiration date (printed at the
lower right hand corner on the bottle label) to assure
optimum operation of the system. Refer to “Sealing A
Tire With Tire Service Kit” section (F) “Sealant Bottle
And Hose Replacement”.

• The Sealant Bottle (1) and Sealant Hose (6) are a one tire

application use and need to be replaced after each use.
Always replace these components immediately at your
original equipment vehicle dealer.

• When the Tire Service Kit sealant is in a liquid form,

clean water and a damp cloth will remove the material
from the vehicle or tire and wheel components. Once the
sealant dries, it can easily be peeled off and properly
discarded.

• For optimum performance, make sure the valve stem on

the wheel is free of debris before connecting the Tire
Service Kit.

• You can use the Tire Service Kit air pump to inflate

bicycle tires. The kit also comes with two needles,
located in the Accessory Storage Compartment (on the
bottom of the air pump) for inflating sport balls, rafts, or
similar inflatable items. However, use only the Air Pump
Hose (7) and make sure the Mode Select Knob (5) is in
the Air Mode when inflating such items to avoid inject-
ing sealant into them. The Tire Service Kit Sealant is only
intended to seal punctures less than 1/4 inch (6 mm)
diameter in the tread of your tire.

• Do not lift or carry the Tire Service Kit by the hoses.

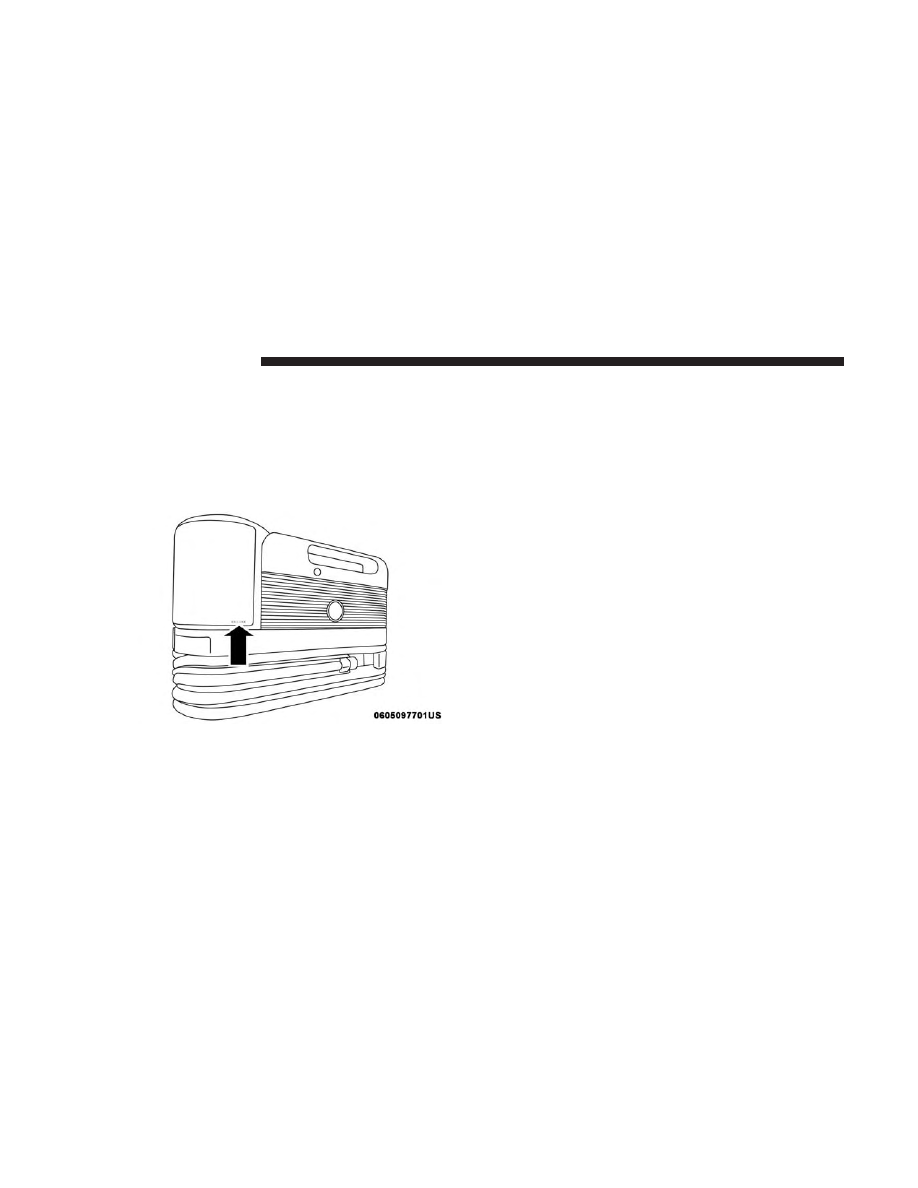

Tire Service Kit Expiration Date Location

204

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING!

• Do not attempt to seal a tire on the side of the vehicle

closest to traffic. Pull far enough off the road to avoid
the danger of being hit when using the Tire Service
Kit.

• Do not use Tire Service Kit or drive the vehicle under

the following circumstances:

– If the puncture in the tire tread is approximately

1/4 inch (6 mm) or larger.

– If the tire has any sidewall damage.
– If the tire has any damage from driving with

extremely low tire pressure.

– If the tire has any damage from driving on a flat

tire.

– If the wheel has any damage.
– If you are unsure of the condition of the tire or the

wheel.

• Keep Tire Service Kit away from open flames or heat

source.

• A loose Tire Service Kit thrown forward in a collision

or hard stop could endanger the occupants of the
vehicle. Always stow the Tire Service Kit in the place
provided. Failure to follow these warnings can result

(Continued)

WARNING! (Continued)

in injuries that are serious or fatal to you, your
passengers, and others around you.

• Take care not to allow the contents of Tire Service Kit

to come in contact with hair, eyes, or clothing. Tire
Service Kit sealant is harmful if inhaled, swallowed,
or absorbed through the skin. It causes skin, eye, and
respiratory irritation. Flush immediately with plenty
of water if there is any contact with eyes or skin.
Change clothing as soon as possible, if there is any
contact with clothing.

• Tire Service Kit Sealant solution contains latex. In

case of an allergic reaction or rash, consult a physi-
cian immediately. Keep Tire Service Kit out of reach
of children. If swallowed, rinse mouth immediately
with plenty of water and drink plenty of water. Do
not induce vomiting! Consult a physician immedi-
ately.

7

IN CASE OF EMERGENCY

205

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Sealing A Tire With Tire Service Kit

(A) Whenever You Stop To Use Tire Service Kit:

1. Pull over to a safe location and turn on the vehicle’s

Hazard Warning flashers.

2. Verify that the valve stem (on the wheel with the

deflated tire) is in a position that is near to the ground.
This will allow the Tire Service Kit Hoses (6) and (7) to
reach the valve stem and keep the Tire Service Kit flat on
the ground. This will provide the best positioning of the
kit when injecting the sealant into the deflated tire and
running the air pump. Move the vehicle as necessary to
place the valve stem in this position before proceeding.

3. Place the transmission in PARK (auto transmission) or in

Gear (manual transmission) and place the ignition in the
OFF position.

4. Apply the parking brake.

(B) Setting Up To Use Tire Service Kit:

1. Push in the Mode Select Knob (5) and turn to the Sealant

Mode position.

2. Uncoil the Sealant Hose (6) and then remove the cap

from the fitting at the end of the hose.

3. Place the Tire Service Kit flat on the ground next to the

deflated tire.

4. Remove the cap from the valve stem and then screw the

fitting at the end of the Sealant Hose (6) onto the valve
stem.

5. Uncoil the Power Plug (8) and insert the plug into the

vehicle’s 12 Volt power outlet.

NOTE:

Do not remove foreign objects (e.g., screws or

nails) from the tire.

(C) Injecting Tire Service Kit Sealant Into The
Deflated Tire:
• Always start the engine before turning ON the Tire

Service Kit.

NOTE:

Manual transmission vehicles must have the park-

ing brake engaged and the gear selector in NEUTRAL.
• After pushing the Power Button (4), the sealant (white

fluid) will flow from the Sealant Bottle (1) through the
Sealant Hose (6) and into the tire.

NOTE:

Sealant may leak out through the puncture in the

tire.

206

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the sealant (white fluid) does not flow within 0 – 10
seconds through the Sealant Hose (6):

1. Push the Power Button (4) to turn Off the Tire Service

Kit. Disconnect the Sealant Hose (6) from the valve stem.
Make sure the valve stem is free of debris. Reconnect the
Sealant Hose (6) to the valve stem. Check that the Mode
Select Knob (5) is in the Sealant Mode position and not
Air Mode. Push the Power Button (4) to turn On the Tire
Service Kit.

2. Connect the Power Plug (8) to a different 12 Volt power

outlet in your vehicle or another vehicle, if available.
Make sure the engine is running before turning ON the
Tire Service Kit.

3. The Sealant Bottle (1) may be empty due to previous

use. Call for assistance.

NOTE:

If the Mode Select Knob (5) is on Air Mode and the

pump is operating, air will dispense from the Air Pump
Hose (7) only, not the Sealant Hose (6).

If the sealant (white fluid) does flow through the Sealant
Hose (6):

1. Continue to operate the pump until sealant is no longer

flowing through the hose (typically takes 30 - 70 sec-
onds). As the sealant flows through the Sealant Hose (6),
the Pressure Gauge (3) can read as high as 70 psi (4.8
Bar). The Pressure Gauge (3) will decrease quickly from
approximately 70 psi (4.8 Bar) to the actual tire pressure
when the Sealant Bottle (1) is empty.

2. The pump will start to inject air into the tire immedi-

ately after the Sealant Bottle (1) is empty. Continue to
operate the pump and inflate the tire to the pressure
indicated on the tire pressure label on the driver-side
latch pillar (recommended pressure). Check the tire
pressure by looking at the Pressure Gauge (3).

If the tire does not inflate to at least 26 psi (1.8 Bar)
pressure within 15 minutes:
• The tire is too badly damaged. Do not attempt to drive

the vehicle further. Call for assistance.

NOTE:

If the tire becomes overinflated, push the Deflation

Button to reduce the tire pressure to the recommended
inflation pressure before continuing.

7

IN CASE OF EMERGENCY

207

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the tire inflates to the recommended pressure or is at
least 26 psi (1.8 Bar) pressure within 15 minutes:

1. Push the Power Button (4) to turn off the Tire Service

Kit.

2. Remove the Speed Limit sticker from the top of the

Sealant Bottle (1) and place the sticker on the instrument
panel.

3. Immediately disconnect the Sealant Hose (6) from the

valve stem, reinstall the cap on the fitting at the end of
the hose, and place the Tire Service Kit in the vehicle
storage location. Quickly proceed to (D) “Drive Ve-
hicle.”

CAUTION!

• The metal end fitting from Power Plug (8) may get

hot after use, so it should be handled carefully.

• Failure to reinstall the cap on the fitting at the end of

the Sealant Hose (6) can result in sealant contacting
your skin, clothing, and the vehicle’s interior. It can
also result in sealant contacting internal Tire Service
Kit components which may cause permanent damage
to the kit.

(D) Drive Vehicle:

Immediately after injecting sealant and inflating the tire,
drive the vehicle 5 miles (8 km) or ten minutes to ensure
distribution of the Tire Service Kit Sealant within the tire.
Do not exceed 50 mph (80 km/h).

WARNING!

Tire Service Kit is not a permanent flat tire repair. Have
the tire inspected and repaired or replaced after using
Tire Service Kit. Do not exceed 50 mph (80 km/h) until
the tire is repaired or replaced. Failure to follow this
warning can result in injuries that are serious or fatal
to you, your passengers, and others around you.

(E) After Driving:

Pull over to a safe location. Refer to “Whenever You Stop
To Use Tire Service Kit” before continuing.

1. Push in the Mode Select Knob (5) and turn to the Air

Mode position.

2. Uncoil the power plug and insert the plug into the

vehicle’s 12 Volt power outlet.

3. Uncoil the Air Pump Hose (7) (black in color) and screw

the fitting at the end of hose (7) onto the valve stem.

208

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Check the pressure in the tire by reading the Pressure

Gauge (3).

If tire pressure is less than 19 psi (1.3 Bar):

The tire is too badly damaged. Do not attempt to drive the
vehicle further. Call for assistance.

If the tire pressure is 19 psi (1.3 Bar) or higher:

1. Push the Power Button (4) to turn on Tire Service Kit

and inflate the tire to the pressure indicated on the tire
and loading information label on the driver-side door
opening.

NOTE:

If the tire becomes over-inflated, push the Deflation

Button to reduce the tire pressure to the recommended
inflation pressure before continuing.

2. Disconnect the Tire Service Kit from the valve stem,

reinstall the cap on the valve stem and unplug from 12
Volt outlet.

3. Place the Tire Service Kit in its proper storage area in the

vehicle.

4. Have the tire inspected and repaired or replaced at the

earliest opportunity at an authorized dealer or tire
service center.

5. Remove the Speed Limit sticker from the instrument

panel after the tire has been repaired.

6. Replace the Sealant Bottle (1) and Sealant Hose (6)

assembly at an authorized dealer as soon as possible.
Refer to “(F) Sealant Bottle And Hose Replacement”.

NOTE:

When having the tire serviced, advise the autho-

rized dealer or service center that the tire has been sealed
using the Tire Service Kit.

(F) Sealant Bottle And Hose Replacement:

1. Uncoil the Sealant Hose (6) (clear in color).

2. Locate the round Sealant Bottle release button in the

recessed area under the sealant bottle.

3. Push the Sealant Bottle release button. The Sealant Bottle

(1) will pop up. Remove the bottle and dispose of it
accordingly.

4. Clean any remaining sealant from the Tire Service Kit

housing.

5. Position the new Sealant Bottle (1) in the housing so that

the Sealant Hose (6) aligns with the hose slot in the front

7

IN CASE OF EMERGENCY

209

-------------------------------------------------------------------------------------------------------------------------------------------------------------

of the housing. Push the bottle into the housing. An
audible click will be heard indicating the bottle is locked
into place.

6. Verify that the cap is installed on the fitting at the end of

the Sealant Hose (6) and return the hose to its storage
area (located on the bottom of the air pump).

7. Return the Tire Service Kit to its storage location in the

vehicle.

JUMP STARTING PROCEDURE

If your vehicle has a discharged battery, it can be jump-
started using a set of jumper cables and a battery in another
vehicle or by using a portable battery booster pack. Jump
starting can be dangerous if done improperly so please
follow the procedures in this section carefully.

NOTE:

When using a portable battery booster pack, follow

the manufacturer’s operating instructions and precautions.

WARNING!

Do not attempt jump starting if the battery is frozen. It
could rupture or explode and cause personal injury.

CAUTION!

Do not use a portable battery booster pack or any other
booster source with a system voltage greater than 12
Volts or damage to the battery, starter motor, alternator
or electrical system may occur.

Preparations For Jump Start

The battery in your vehicle is located on the left side of the
engine compartment.

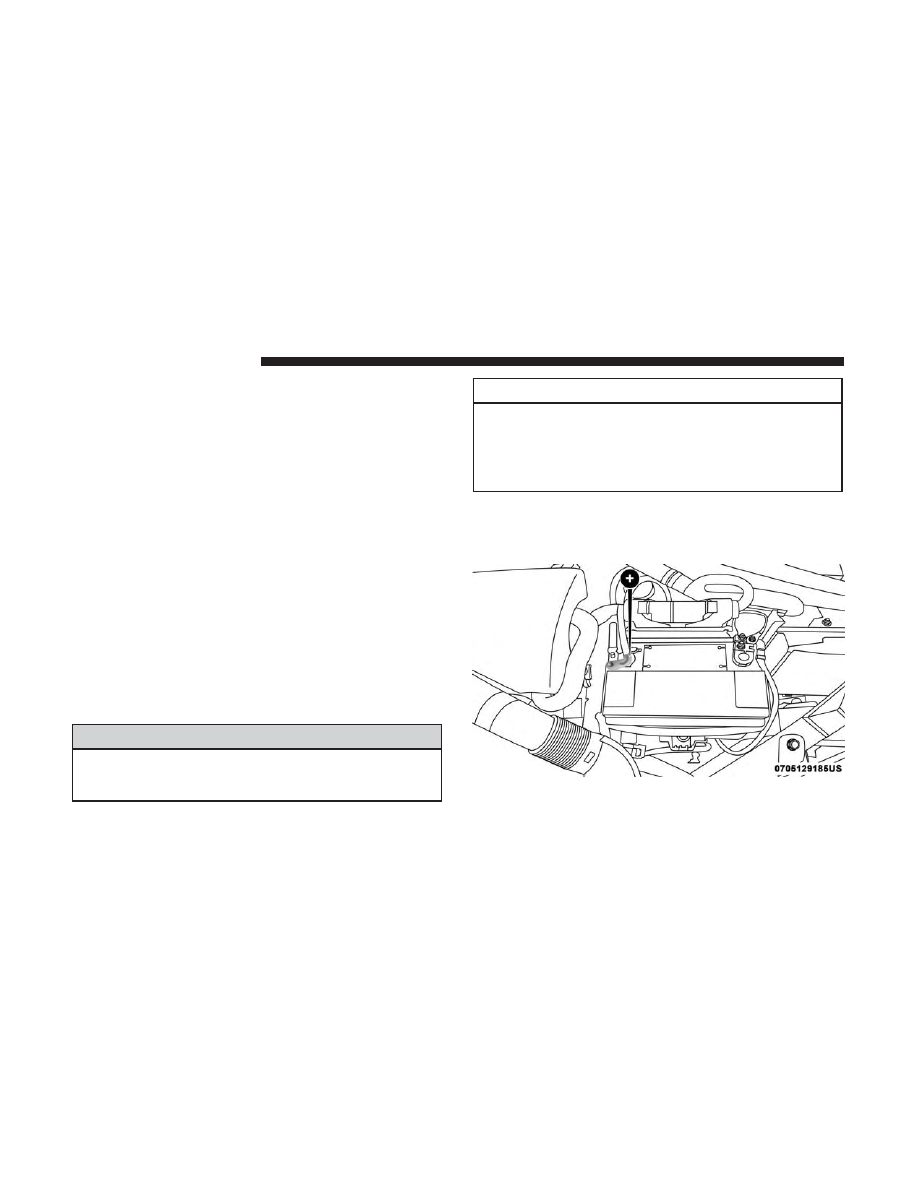

Positive Post Location

210

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING!

• Take care to avoid the radiator cooling fan whenever

the hood is raised. It can start anytime the ignition
switch is ON. You can be injured by moving fan
blades.

• Remove any metal jewelry such as rings, watch

bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.

• Batteries contain sulfuric acid that can burn your

skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.

1. Apply the parking brake, shift the transmission into

gear and turn the ignition to OFF/LOCK.

2. Turn off the heater, radio, and all unnecessary electrical

accessories.

3. Remove the protective cover over the positive (+) bat-

tery post. To remove the cover pull upward on the cover.

4. If using another vehicle to jump start the battery, park

the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.

WARNING!

Do not allow vehicles to touch each other as this could
establish a ground connection and personal injury
could result.

Jump Starting Procedure

WARNING!

Failure to follow this jump starting procedure could
result in personal injury or property damage due to
battery explosion.

CAUTION!

Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.

Connecting The Jumper Cables

1. Connect the positive (+) end of the jumper cable to the

positive (+) post of the discharged vehicle.

2. Connect the opposite end of the positive (+) jumper

cable to the positive (+) post of the booster battery.

7

IN CASE OF EMERGENCY

211

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Connect the negative end (-) of the jumper cable to the

negative (-) post of the booster battery.

4. Connect the opposite end of the negative (-) jumper

cable to a good engine ground (exposed metal part of
the discharged vehicle’s engine) away from the battery
and the fuel injection system.

WARNING!

Do not connect the jumper cable to the negative (-) post
of the discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury. Only use the specific ground point, do
not use any other exposed metal parts.

5. Start the engine in the vehicle that has the booster

battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.

6. Once the engine is started, remove the jumper cables in

the reverse sequence.

Disconnecting The Jumper Cables

1. Disconnect the negative (-) jumper cable from the engine

ground (-) of the vehicle with the discharged battery.

2. Disconnect the negative end (-) of the jumper cable from

the negative (-) post of the booster battery.

3. Disconnect the opposite end of the positive (+) jumper

cable from the positive (+) post of the booster battery.

4. Disconnect the positive (+) end of the jumper cable from

the positive (+) post of the discharged vehicle.

If frequent jump starting is required to start your vehicle,
you should have the battery and charging system in-
spected at an authorized dealer.

CAUTION!

Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular devices, etc.). Eventually, if plugged
in long enough without engine operation, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.

212

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GEAR SELECTOR OVERRIDE

If a malfunction occurs and the gear selector cannot be
moved out of the PARK position, you can use the following
procedure to temporarily move the gear selector:

1. Turn the engine OFF.

2. Firmly apply the parking brake.

3. Remove the gear selector override access cover (located

on the right side of the gear selector housing) by prying
at the bottom edge of the cover.

4. Press and maintain firm pressure on the brake pedal.

5. Insert a small screwdriver or similar tool into the access

hole, and push and hold the override release lever in.

6. Move the gear selector to the NEUTRAL position.

7. The vehicle may then be started in NEUTRAL.

8. Reinstall the gear selector override access cover.

IF YOUR ENGINE OVERHEATS

In any of the following situations, you can reduce the
potential for overheating by taking the appropriate action.
• On the highways — slow down.
• In city traffic — while stopped, place the transmission in

NEUTRAL, but do not increase engine idle speed.

NOTE:

There are steps that you can take to slow down an

impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C

system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.

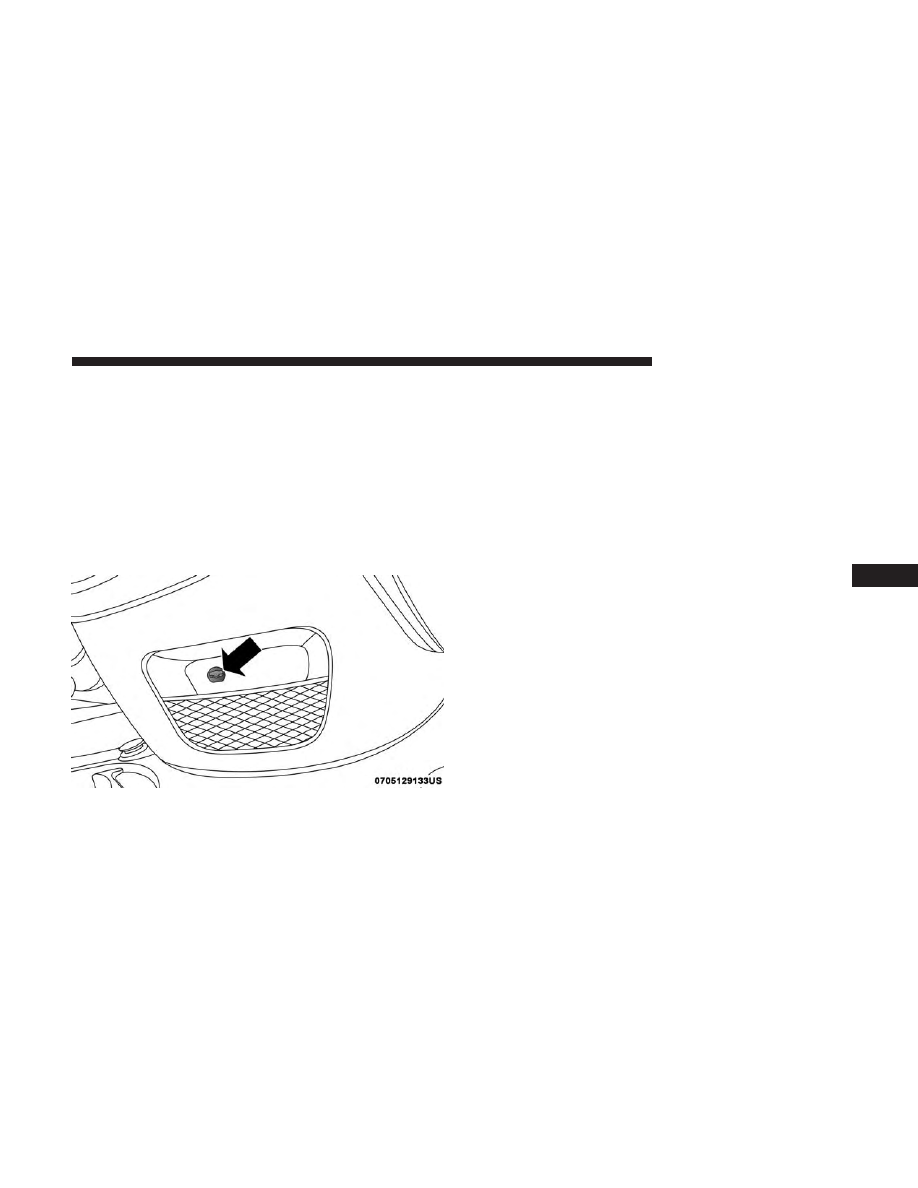

Gear Selector Override Access Hole

7

IN CASE OF EMERGENCY

213

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• You can also turn the temperature control to maximum

heat, the mode control to floor and the blower control to
high. This allows the heater core to act as a supplement
to the radiator and aids in removing heat from the
engine cooling system.

WARNING!

You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.

CAUTION!

Driving with a hot cooling system could damage your
vehicle. If the pointer rises to the H (red) mark, the
instrument cluster will sound a chime. When safe, pull
over and stop the vehicle with the engine at idle. Turn
off the air conditioning and wait until the pointer
drops back into the normal range. If the pointer

(Continued)

CAUTION! (Continued)

remains on the H (red) mark for more than a minute,
turn the engine off immediately and call for service.

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand or snow, it can
often be moved using a rocking motion. Turn the steering
wheel right and left to clear the area around the front
wheels. Then shift back and forth between DRIVE and
REVERSE (with automatic transmission) or SECOND
GEAR and REVERSE (with manual transmission), while
gently pressing the accelerator. Use the least amount of
accelerator pedal pressure that will maintain the rocking
motion, without spinning the wheels, or racing the engine.

NOTE:

Push the

⬙ESC Off⬙ switch, to place the Electronic

Stability Control (ESC) system in

⬙Partial Off⬙ mode, before

rocking the vehicle. Refer to “Electronic Brake Control” in
“Safety” for further information. Once the vehicle has been
freed, push the

⬙ESC Off⬙ switch again to restore ⬙ESC On⬙

mode.

214

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING!

Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause damage, or even
failure, of the axle and tires. A tire could explode and
injure someone. Do not spin your vehicle’s wheels
faster than 30 mph (48 km/h) or for longer than 30
seconds continuously without stopping when you are
stuck and do not let anyone near a spinning wheel, no
matter what the speed.

CAUTION!

• Racing the engine or spinning the wheels may lead

to transmission overheating and failure. Allow the
engine to idle with the transmission in NEUTRAL

(Continued)

CAUTION! (Continued)

for at least one minute after every five rocking-
motion cycles. This will minimize overheating and
reduce the risk of clutch or transmission failure
during prolonged efforts to free a stuck vehicle.

• When “rocking” a stuck vehicle by shifting between

DRIVE/SECOND GEAR and REVERSE, do not spin
the wheels faster than 15 mph (24 km/h), or drive-
train damage may result.

• Revving the engine or spinning the wheels too fast

may lead to transmission overheating and failure. It
can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no transmis-
sion shifting occurring).

7

IN CASE OF EMERGENCY

215

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TOWING A DISABLED VEHICLE

This section describes procedures for towing a disabled
vehicle using a commercial towing service.

Towing Condition

Wheels OFF The Ground

Automatic Transmission

Manual Transmission

Flat Tow

NONE

NOT ALLOWED

If transmission is oper-

able:

• Transmission in NEU-

TRAL

• 65 mph (104 km/h) max

speed

Wheel Lift Or Dolly Tow

Rear

NOT ALLOWED

NOT ALLOWED

Front

OK

OK

Flatbed

ALL

BEST METHOD

BEST METHOD

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equipment
manufacturer’s instructions. Use of safety chains is man-
datory. Attach a tow bar or other towing device to main
structural members of the vehicle, not to bumpers or
associated brackets. State and local laws regarding vehicles
under tow must be observed.

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
mode.

216

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     11      12      13      14     ..
