Electric System

EL-21

Trouble analysis

Trouble

Cause

Method

Both the speed
division and the
distance count-
ing division of
the speedometer
do not work

Flexible shaft core broken

Replace

Odometer rotating shaft seized

Replace the odometer

Square connector nut slackened

Tighten again

Only the speed
division of the
speedometer does
not work

Needle deformed and seized with dial or glass

Correct

Drive worm wheel and worm, and inductive plate
seized, broken, or dirtied

Replace or clean

The needle and
the accumulated
machine do not
run simulta-
neously

Drive gear or driven gear of the speedometer dam-
aged

Replace meter

Meter failed

Replace meter

The deflection
indication of the
needle is too
high.

Speedometer flexible shaft deformed or radius
area bent

Correct the flexible shaft

Input shaft or gear worn

Replace meter

The speedometer
indication is on
the low side

Transmission output shaft slipped

Tighten the flange fork under the rec-

ommended torque

The magnetic effect of the magnetic steel reduced

Replace

Needle indica-
tion error

Hairspring deformed or deviate from the original
position

Move the hairspring to one side to

adjust the indication of the needle

Magnetic body cracked

Replace meter

Dimension of tyre is wrong

Replace and use the recommended tyre

Speed gear worn or damaged

Replace meter

The needle
deflection
exceeds the dial

Grease on the magnet

Clean out the grease

The speed needle
of the speedome-
ter works
unsteadily

Hairspring broken

Replace meter

At the constance velocity of the vehicle when the
speed needle's indication unsteadily reaches to
3km/h, it is in trouble. Check the curvature of the
flexible shaft to see if it is too small.

Adjust

Flexible shaft core seized

Clean and lubricate

Speedometer nee-
dle oscillates
severely

The axial clearance of the flexible shaft is too big
causes the flexible shaft and speedometer's rotat-
ing shaft sometimes engaged, sometimes sepa-
rated.

Replace shaft core

Electric  System

EL-22

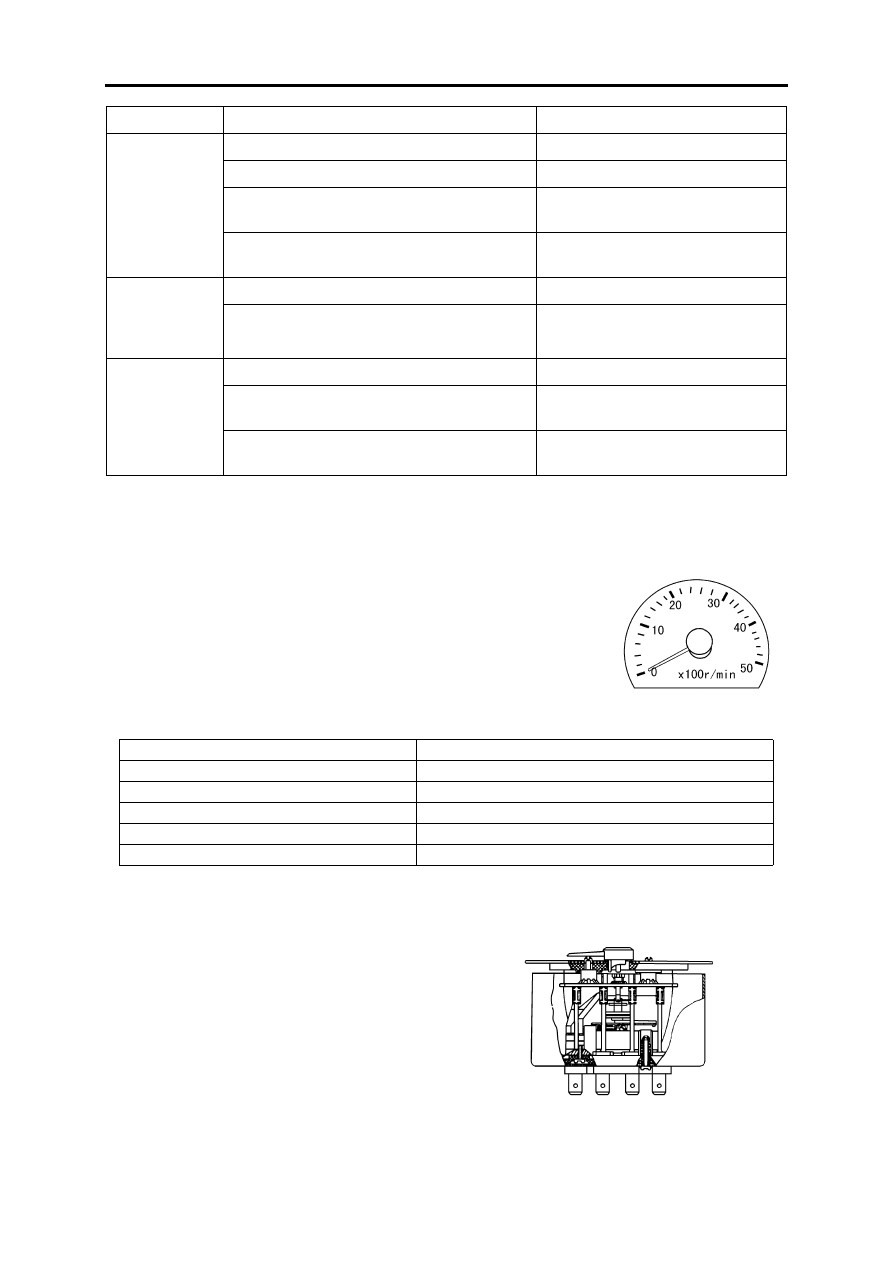

Tachometer

Dial description

The needle of the electronic tachometer indicates the engine speed in revolu-

tions per minute. The red zone indicates the range of the critical engine speed.
Strictly be sure to always keep the indicator below this critical zone. The green
zone indicates the most economical engine operation. Driving within this green
zone will save fuel and extend the engine life.

Technical specification

Constructional description

The electronic tachometer construction including:

The indication division: comprise of needle, dial

and so on.

The signal processing division: comprise of printed-

circuit plate and electronic parts.

The measuring mechanism: comprise of magnetic

steel, pole plate, pole ring, and needle shaft coil assem-
bly, bracket assembly, upper and lower bearing and so
on.

Auxiliary part: Base, housing, screws and electrical

connectors.

The needle seized
or failed that can
not return to zero

Grease on the magnet

Clean out the grease

Hairspring deformed

Replace meter

Wrong assembling of the needle (needle slack-
ened)

Tighten

There are impurities absorbed on the magnet of the
indication board.

Clean

The day distance
counter does not
work or can not
return to zero

Odometer drive pinion damaged

Repair or replace

Return zero button damaged

Repair or replace

Speedometer
noise

Speedometer bearing worn and damaged

Replace meter

Speedometer gear lacks of lubricating and causing
worn

Fill with grease

Speedometer flexible shaft lacks of lubricating and
causing worn

Fill with grease

Type Moving

coil

Range(r/min)

0~5000

Deflecting angle(º)

245

Min. graduation (r/min)

100

Accuracy level

1.5

Connector

DJ7043-6.3-20 type, 4-cable combined socket

Trouble

Cause

Method

Electric System

EL-23

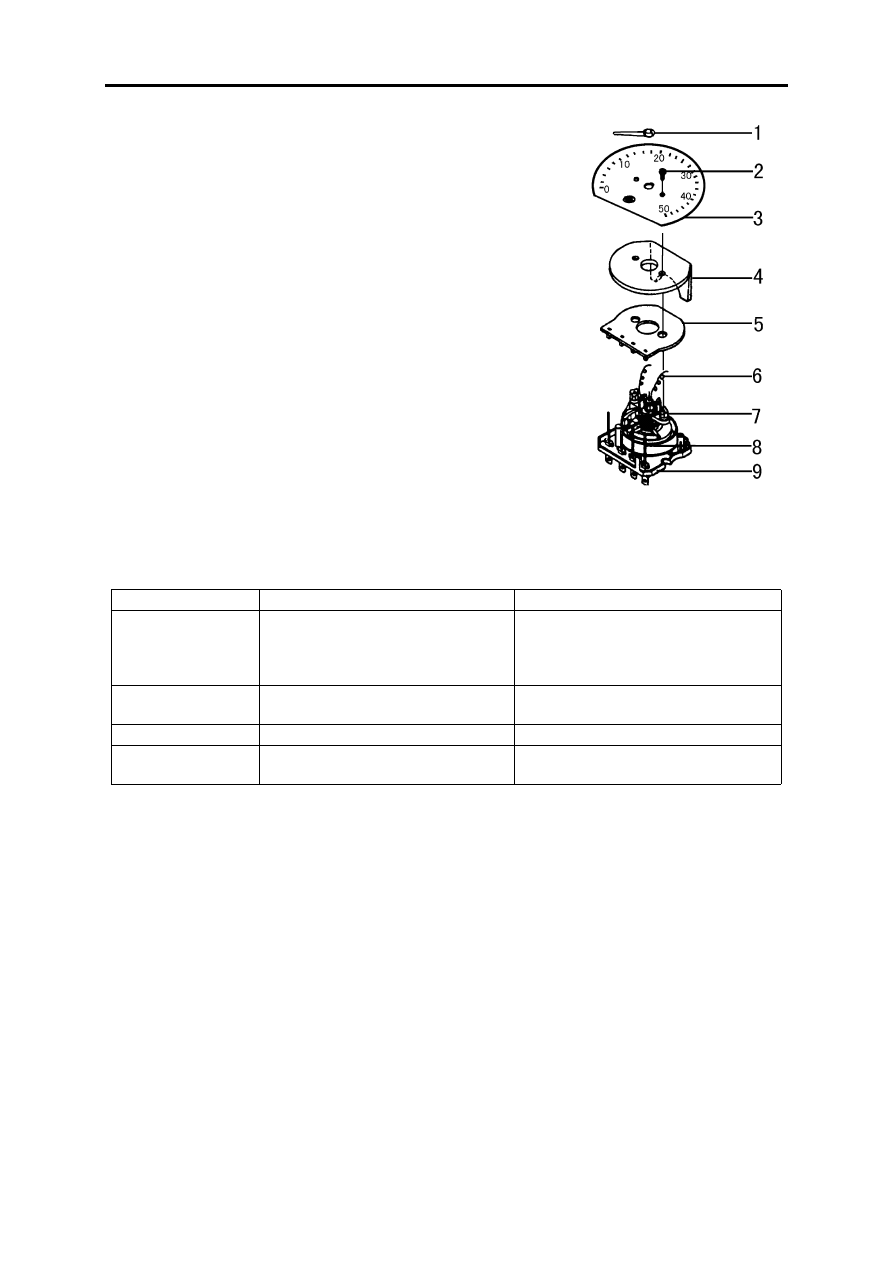

Instrument assembly and disassembly

Before disassembling the instrument, pull out needle 1, and then

loosen two screws 2.

When disassembling the printed-circuit board; pull it out directly

after welding off two wires 9(the printed board and blade connector are
directly connected together through a spring blade socket on the board).

Generally, do not disassemble the unit core. If it has to be disassem-

bled, weld off both the upper and the lower hairsprings, and the conduc-
tive blade at first so as not to damage the hairsprings In addition, do not
break the coil output wire.

1.Needle   2.Screw    3.Dial    4.Light guiding glass

5.Printed circuit-board     6.Connection wire    7.Bracket

8.Blade connector    9.Base

Trouble analysis

Trouble

Case

Repair

The instrument doesn't
work

Circuit broke

Sensor damaged
Instrument burnt out

Check wire connection and connector with
socket's contact
Replace sensor
Replace instrument

Needle shakes abnor-
mally

Wire connection is not good
Integrated body damaged

Check wire connection
Replace integrated body

Needle clicked

There's foreign objects in the core

Remove foreign objects

Needle doesn't return
to zero

Needle slacked
Core is clicked by foreign objects

Press the needle firmly and turn to zero
Remove foreign objects

Electric  System

EL-24

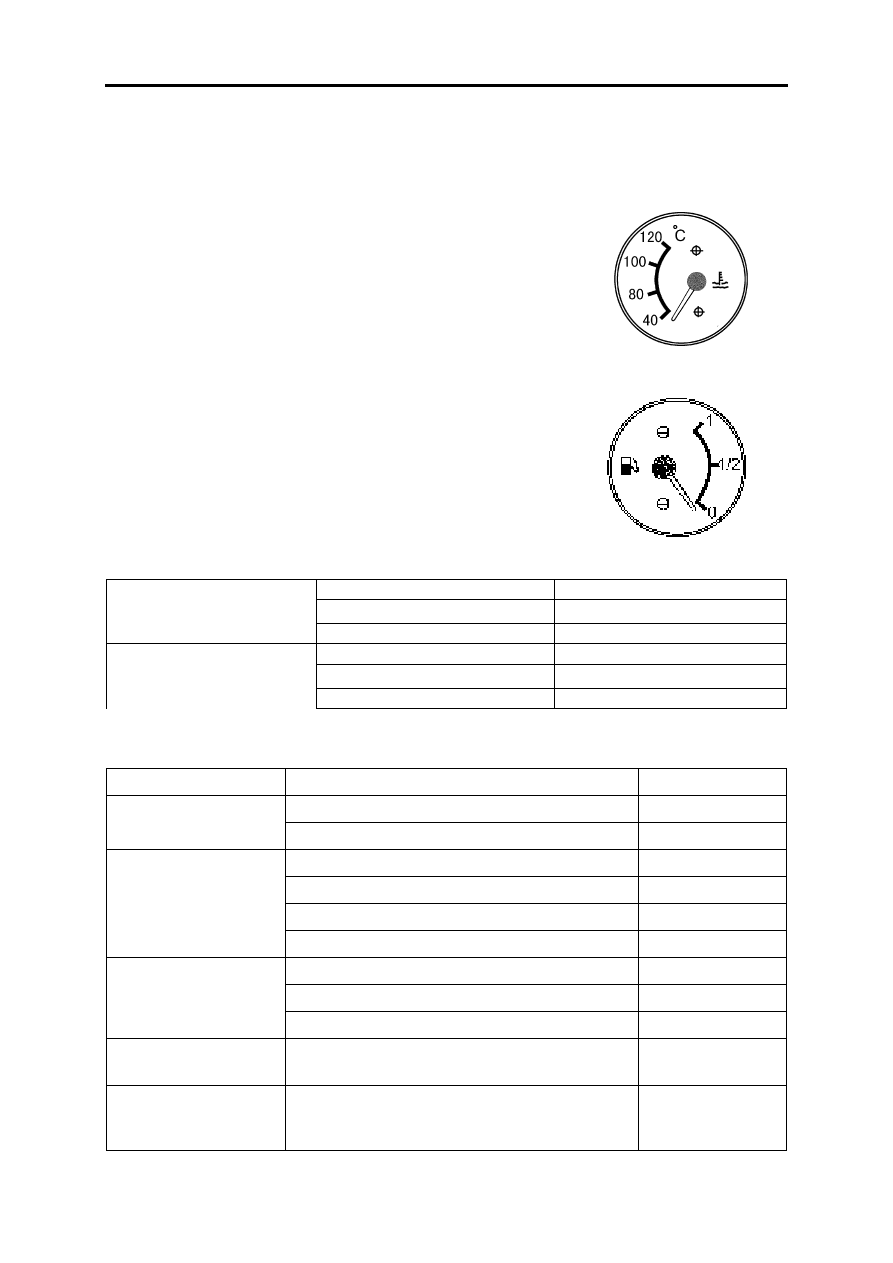

Water Temperature Meter and Fuel Meter

Dial description

Water temperature meter

The water temperature meter is used to indicate the temperature of the

engine coolant. The temperature of the coolant will change because of the
temperature of the atmosphere and vehicle running condition. If the indication
of the meter is over its normal range, stop the vehicle as soon as possible.
Under the condition of too hot engine, continuously drive the vehicle will
cause the damages of the engine.

Fuel meter

The fuel meter is used to indicate the fuel level in the tank. The indica-

tion may change slightly because of braking, turning, or accelerating of the
vehicle. Please fill the fuel tank in time before the fuel is used up.

Technical parameter

Trouble analysis

Water temperature meter

Type

Moving magnet

Indicating range ( ℃ )

40 ～ 80 ～ 100 ～ 120

Meter seat connection

3-M3-6g screw

Fuel meter

Type

Moving magnet

Indicating range

0 ～ 1/2 ～ 1

Meter seat connection

3-M3-6g

Trouble

Cause

Method

Fuel meter does not work

Open circuit of the sensor resistance wire

Replace

Open circuit of the sensor and meter electric wire

Connect

Wrong indication of the fuel
meter

Sensor floater cracked and does not float

Replace

Wrong connection between meter and sensor

Check and connect

Floater lever deformed or seized

Repair or replace

Sensor does not match with fuel meter

Replace

Water temperature meter
does not work

Instrument power supply opened

Check and connect

Open circuit of the sensor

Replace

Open circuit of the water temperature meter

Repair or replace

Water temperature meter
indication stays at 40 ℃

Sensor damaged

Replace

Water temperature meter
indication increase to 120
℃

suddenly

Short circuit of the circuit or induced plug

Check or replace
