Dongfeng DFA1063DJ10 (14)-301/303. Manual - part 28

Cab

BF-10

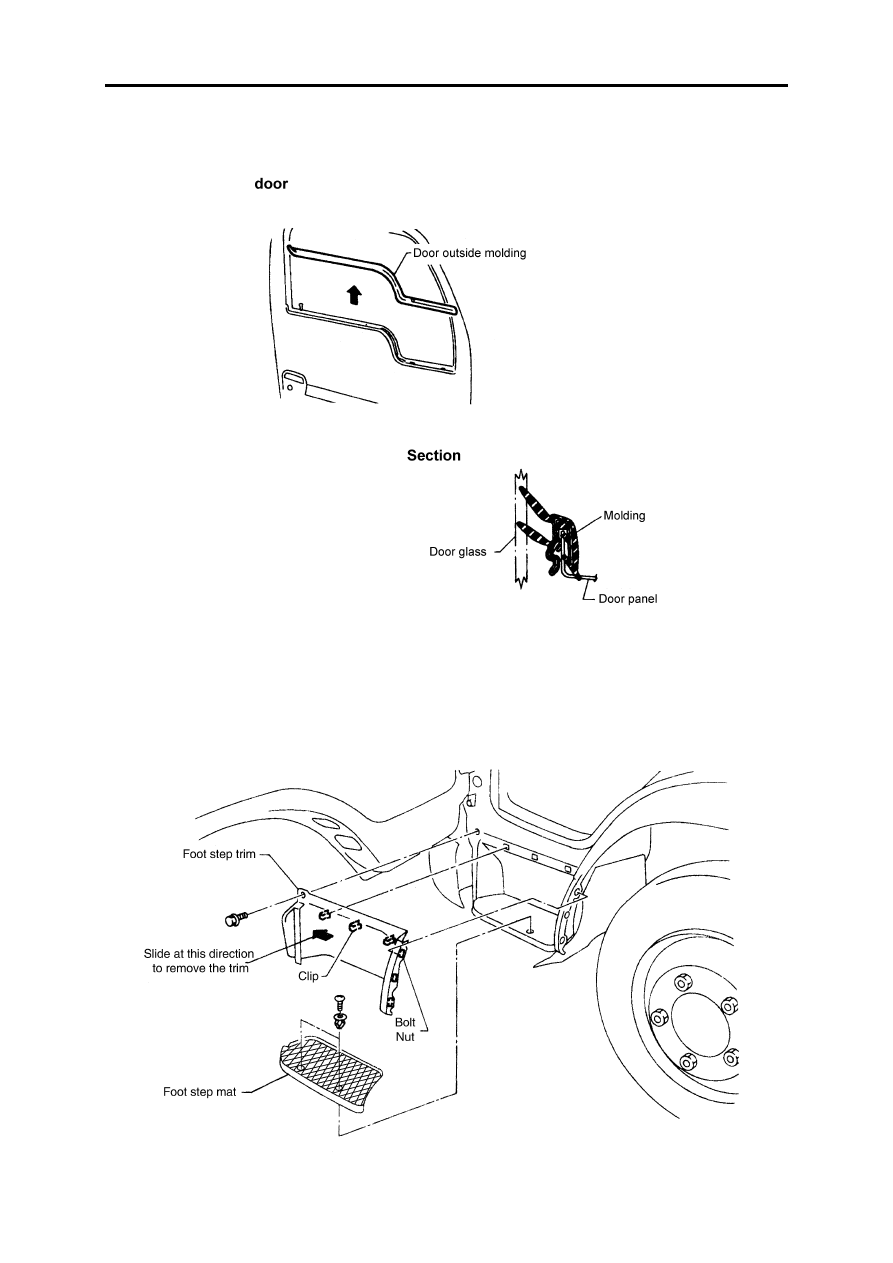

Door outside molding

Foot step shield and mat

Cab

BF-11

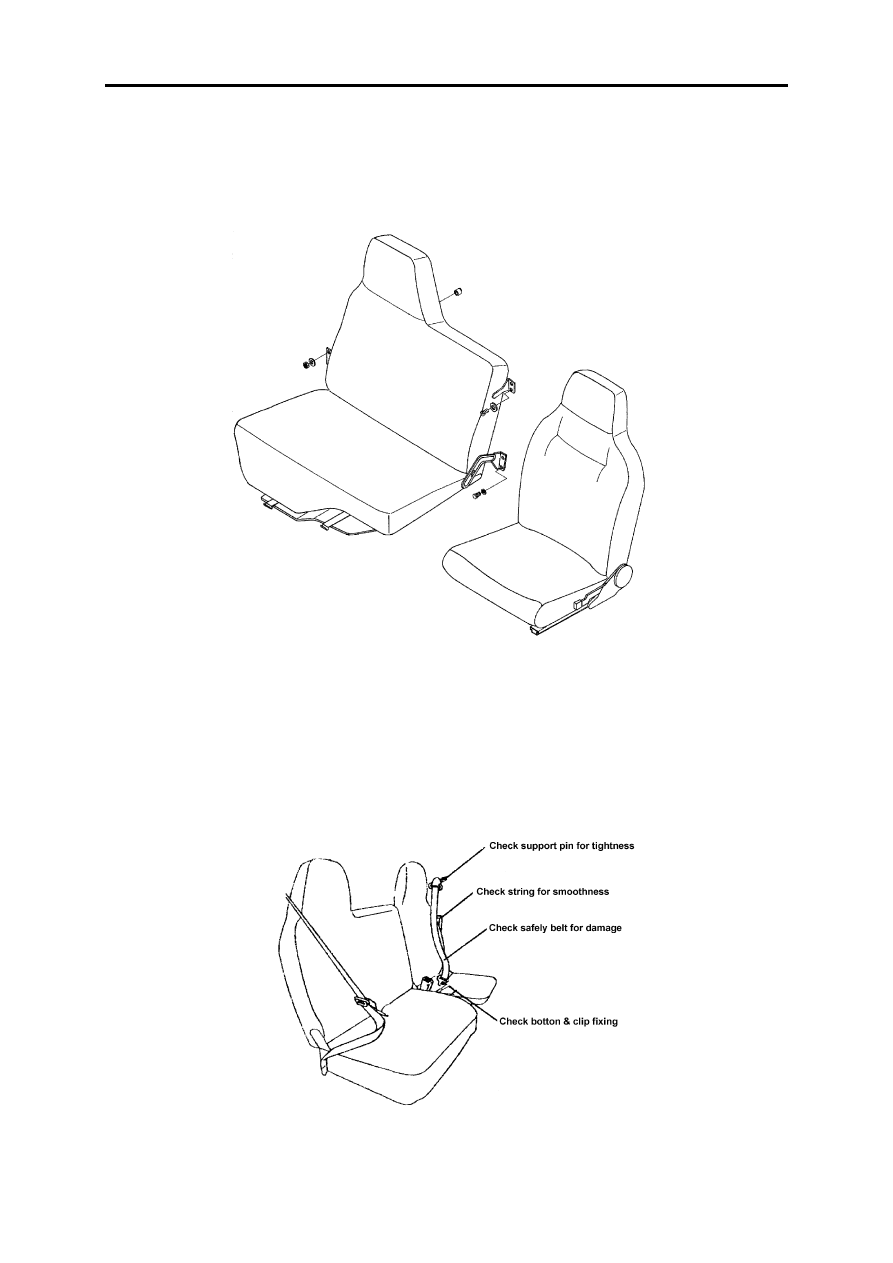

Seat

When assemble or disassemble the seat, it should be maintarined clean and well.

Front seat

Cab Safety Belt

Notes:
If the vehicle in severely dashed in an accident, whatever the nature of the accident is, the belt assembly must

be replaced.

If any part of the belt has quality problems, it must be replaced instead of repairing it.
If there is any cut, looseness or damage on the texture, etc., replace the assembly.
Wine, oil or other material should not be sprayed into the buckle hole lock, so does not the huckle and the

knob.

Cab

BF-12

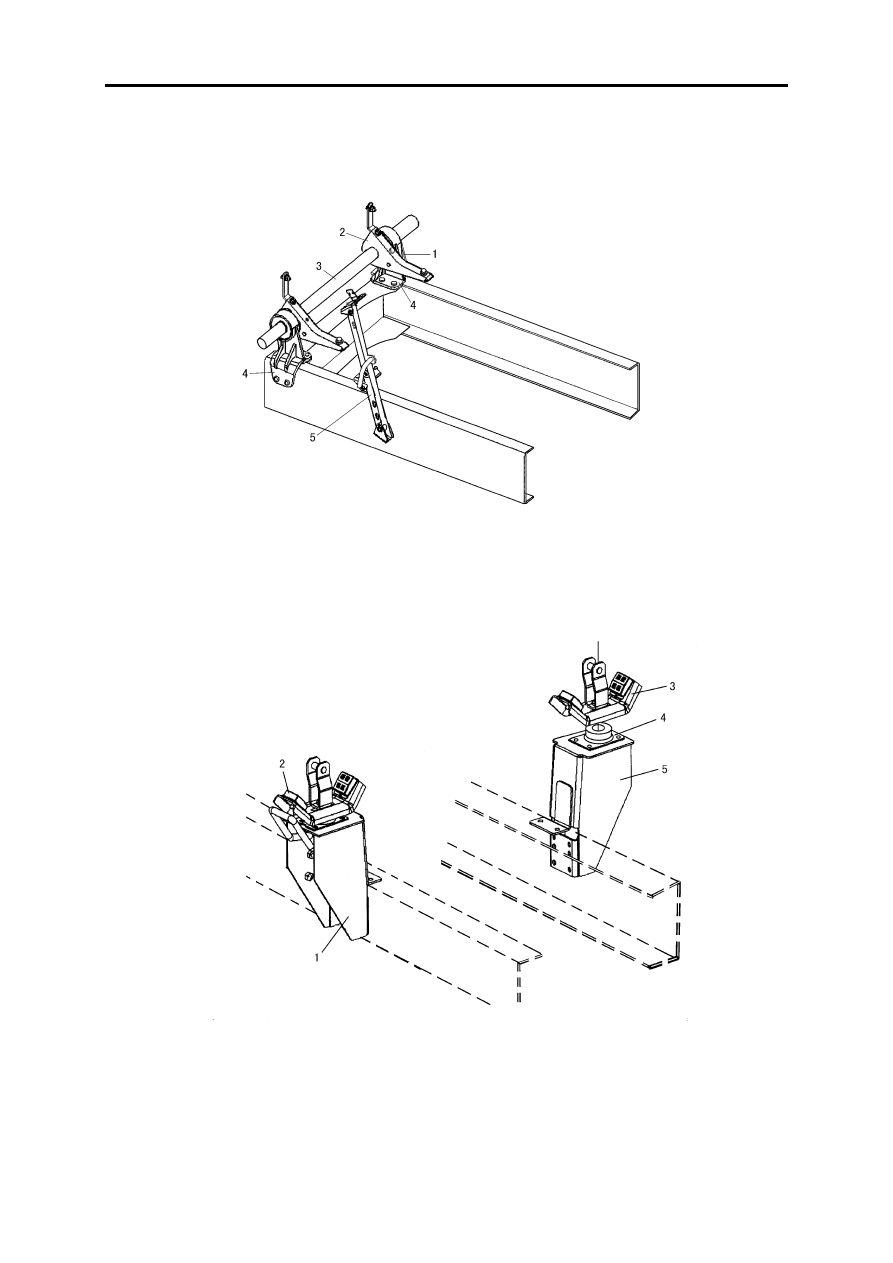

Cab Mounting

Cab front mounting

Cab rear mounting

1.Torsion bar arm assy
2.Tilting bracket assy
3.Torsion bar

4.Left bracket--front mounting
5.Retainer lower assy

1.Left connecting bracket assy--rear mounting
2.Upper cushion assy
3.U-suppot welding assy

4.Rear mounting lower cushion assy
5.Right connecting bracket assy--rear mount-
ing

Cab

BF-13

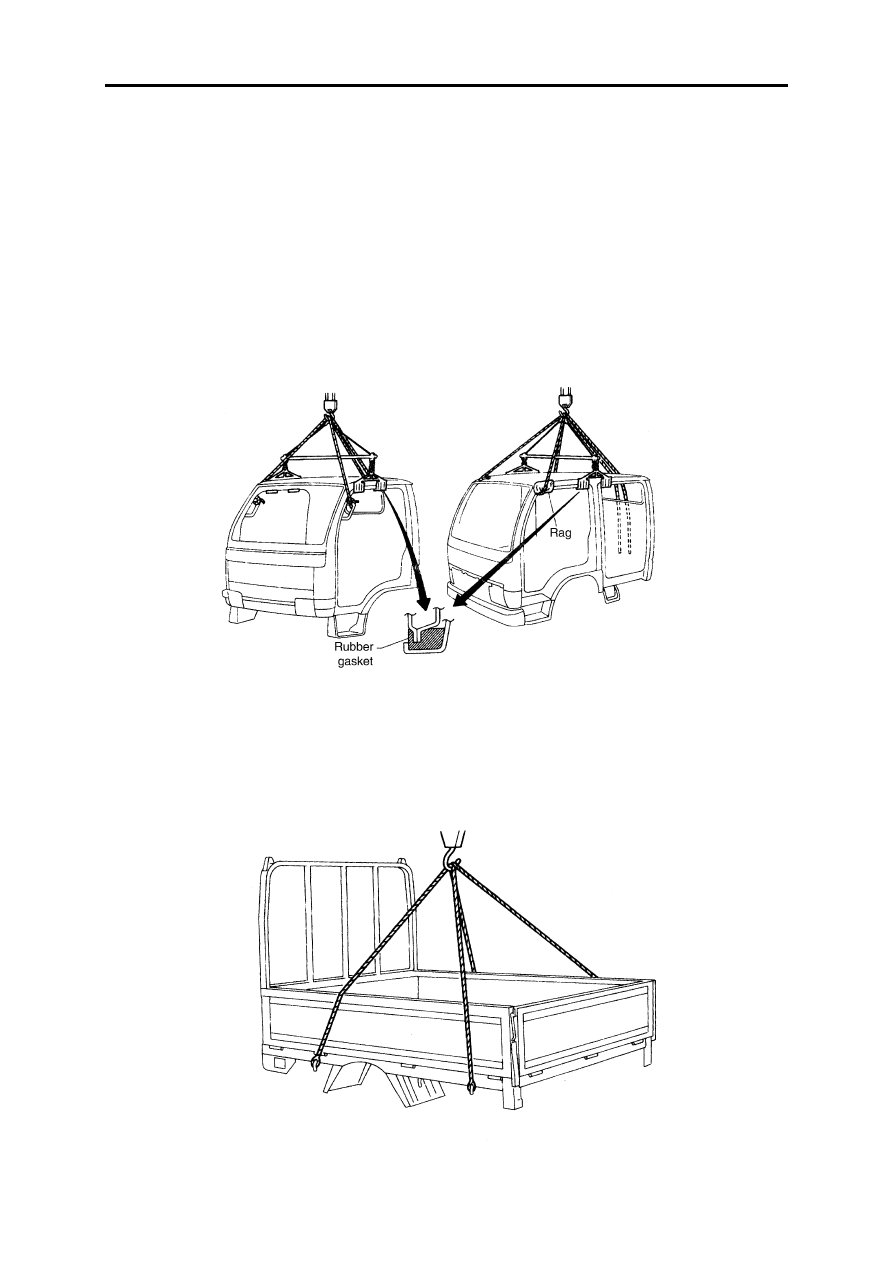

Cab and Cargo Body

Cab

The following parts at least should be disassembled in the area of cab engine:

Main electric system and wire harness.

Sparate the engine part from steering transminsion device, brake system and clutch operation system.
The following parts at least should be disassembled in the area of cab:

1.Transmission system and steering control system.

2.Hand brake operation and brake drag wire.

3.Electric system, wire harness and tube

Cargo body

First disassemble the following part:

Rear combination light system and license lamp
