Cab

BF-6

⑥

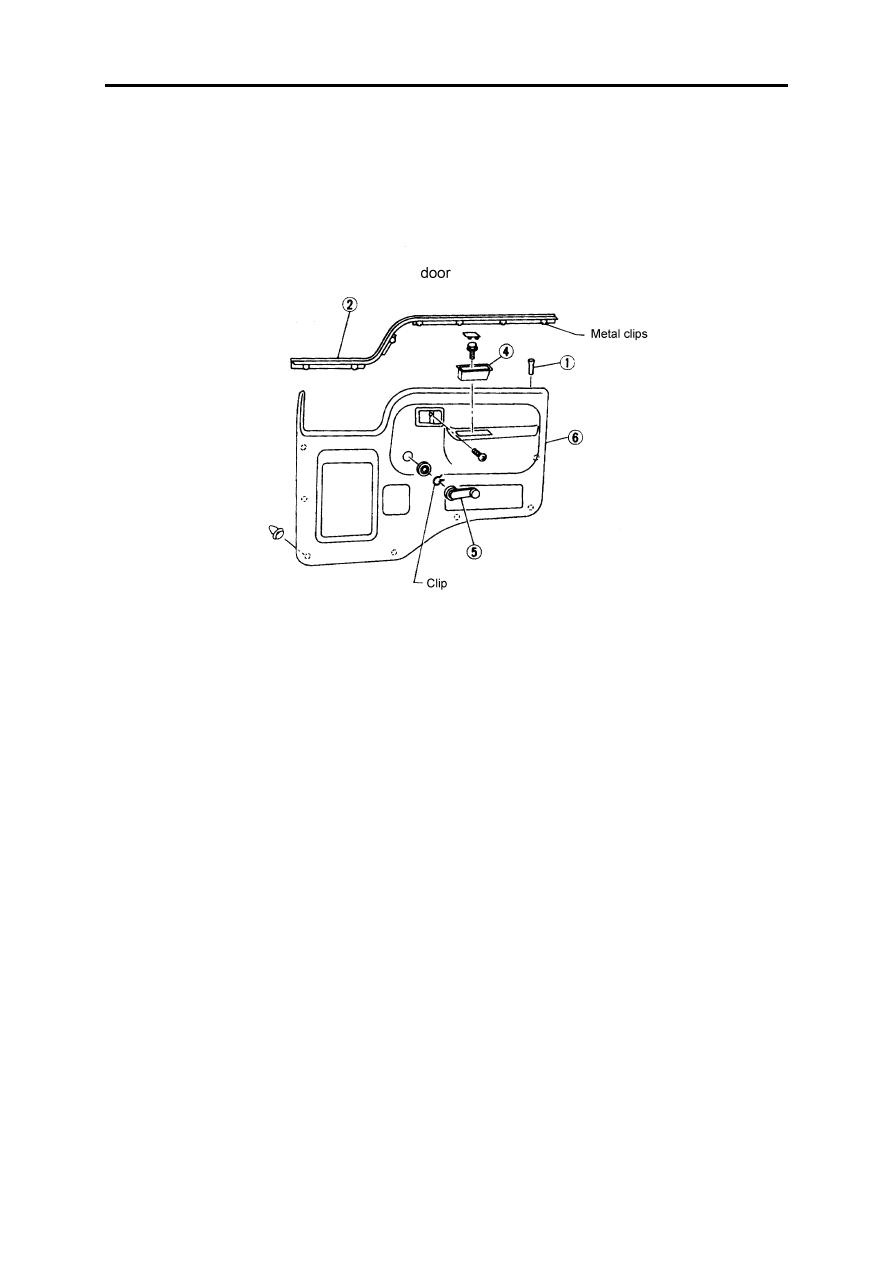

Disassemble inner guard board of door (front door).

⑦

Disassemble inner guard board of door (rear door)

.

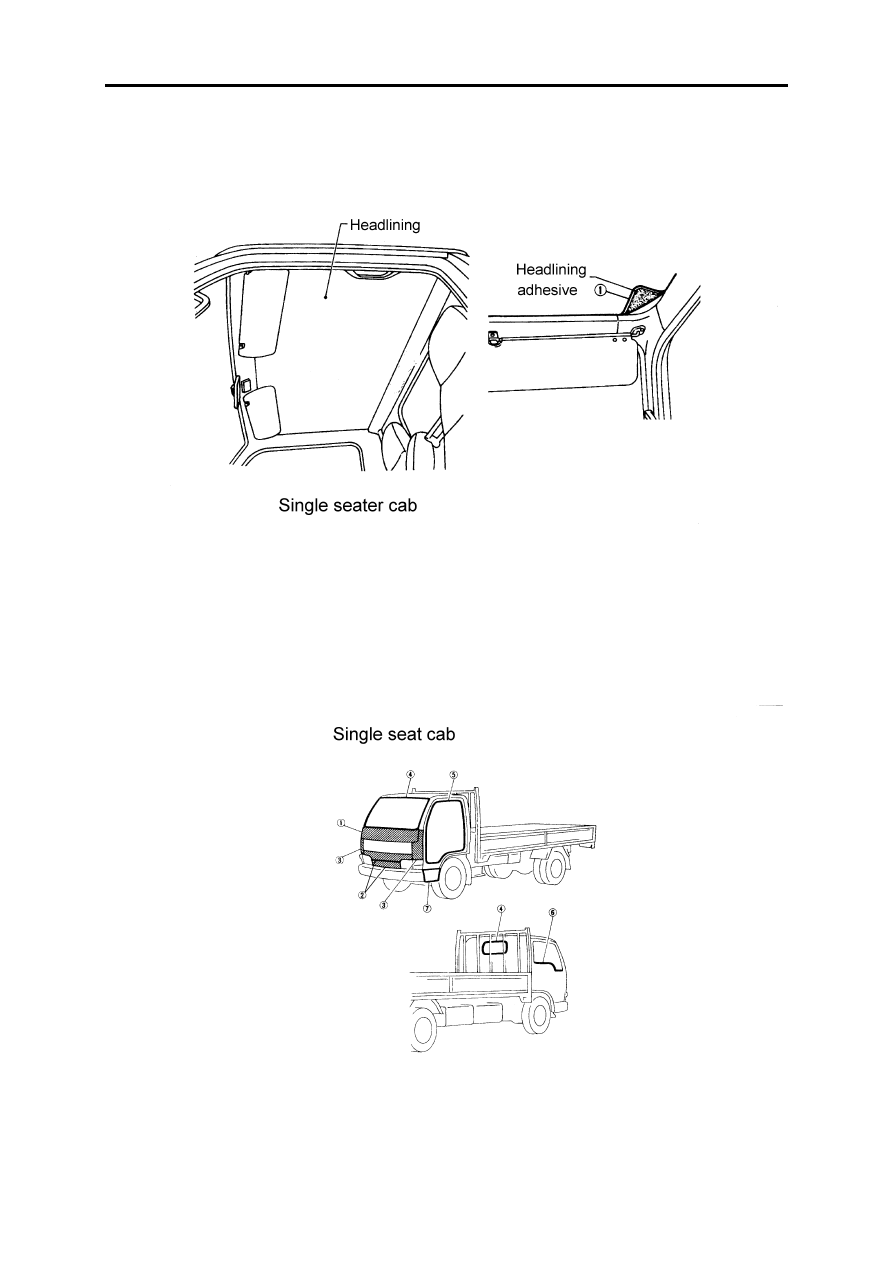

Roof trims

Disassembly of the roof trims

Single seater cab

①

Remove part of headlining from corner and gradually peel headlining off.

Double seater cab

①

Disassemble the screw and roof bow.

②

Remove headlining by peeling if off, starting with middle portion

Cab

BF-7

.

Cab External Trims

Cab

BF-8

①

Front upper cover

②

Front lower cover and lower cover board

③

Side external cover board

④

Front and rear windows

⑤

Cab door seal strips

⑥

Door and window seal strips

⑦

Front pedal cover and pedal mat (option).

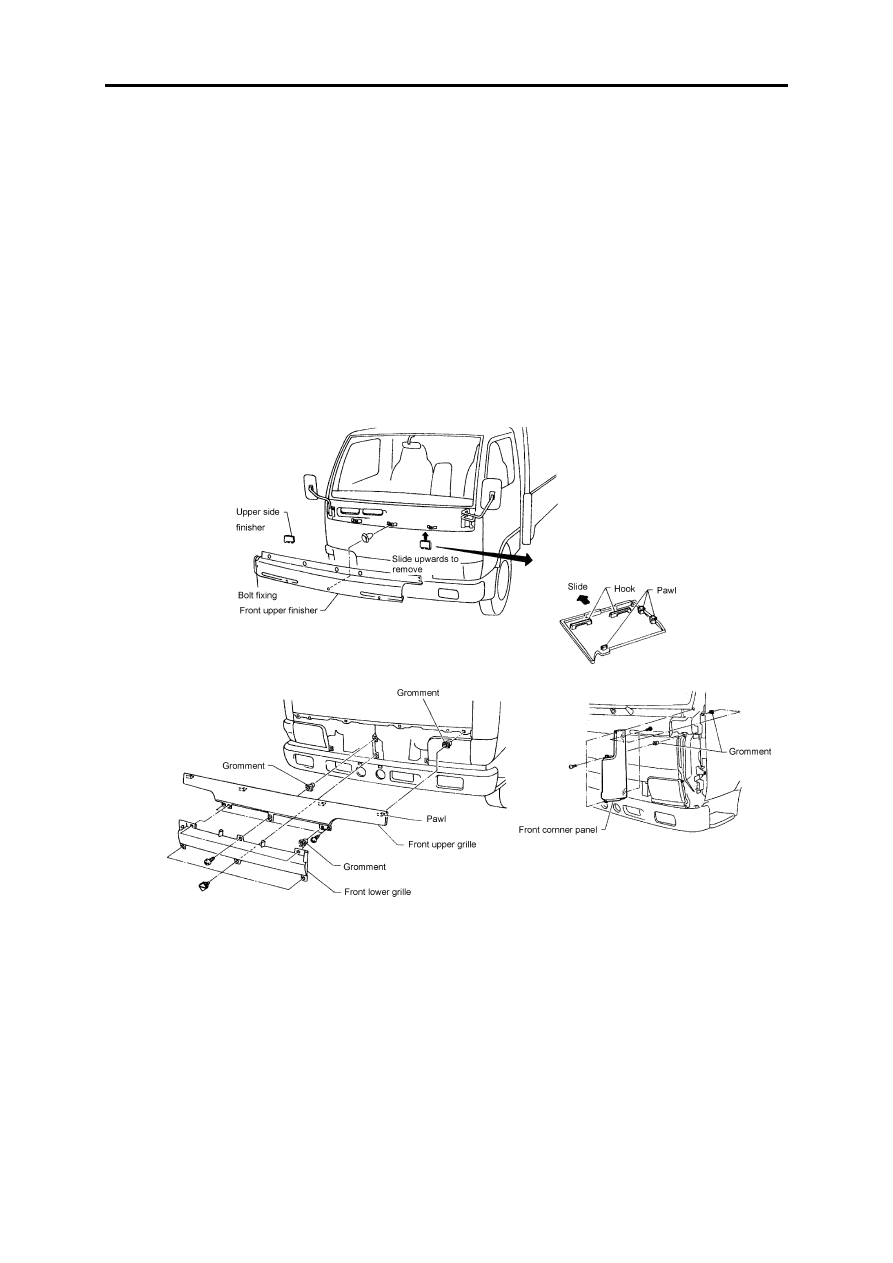

Front upper finisher, Front grille, Front corner panel



Cab

BF-9

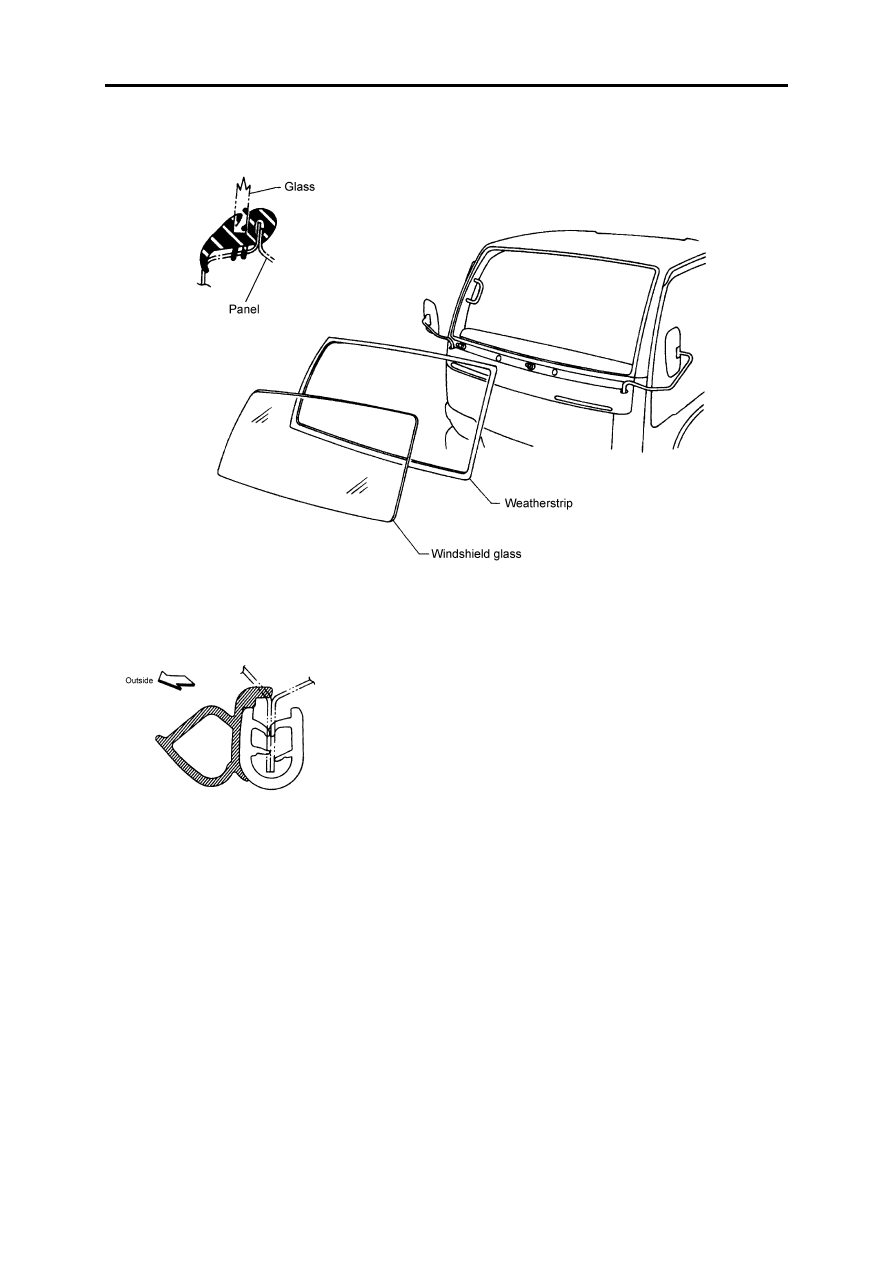

Front and rear window

Cab door seal strip
