Dongfeng EQ1030T47D-820. Manual - part 26

Profeller Shaft and Differential

PD-14

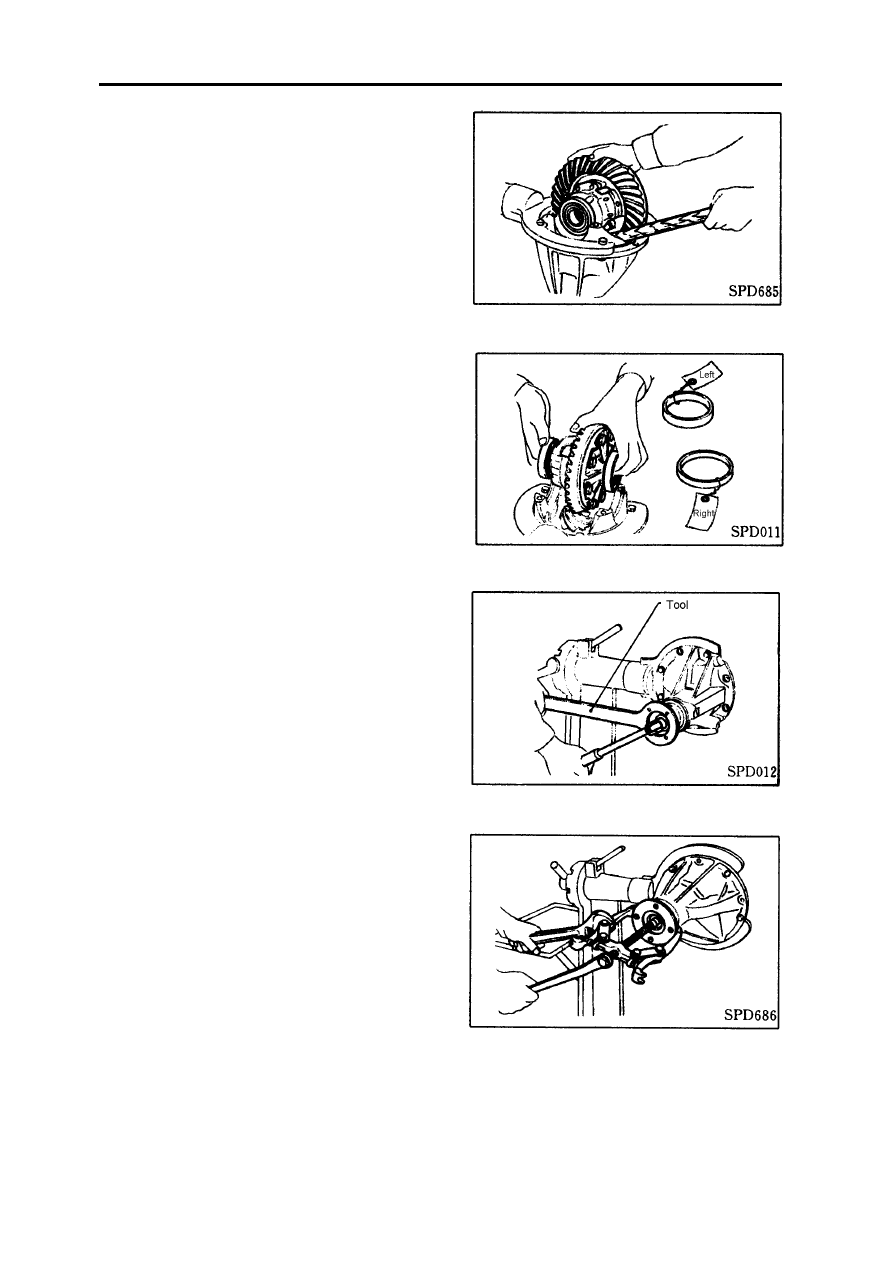

5. Disassembly differential housing ass'y by a tommy

bar.

Pay attention that seperate the outside track of bearing

and taper in right and left respectively--in order not to mis-
tacken them.

6. Diassembly nut of drive conic gear by tool.

7. Disassemby connecting flange by tension imple-

ment.

Profeller Shaft and Differential

PD-15

8. Take off drive conic gear, its rear inner conic bear-

ing, bearing seat and adjusting gasket of bearing together.

9. Disassembly front oil seal and front conic bearing.

10.Disassembly outside track of gear bearing by a

brass stick.

11.Disassembly inner conic bearing of drive conic

gear and adjusting gasket.

Differential Housing

1 .Disassembly inner conic bearing of half shaft.

Pay attention not to damage bearing or engaging key.

Profeller Shaft and Differential

PD-16

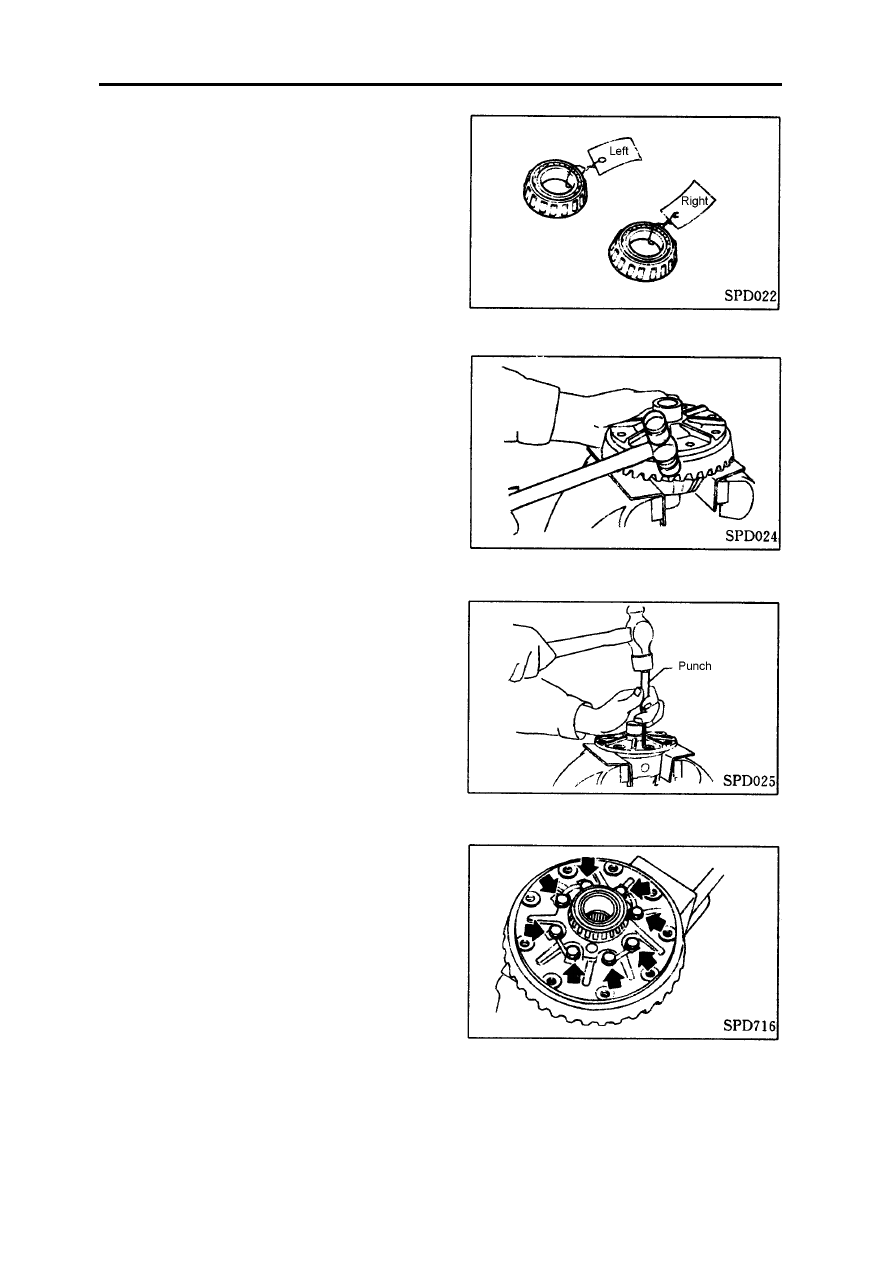

Pay attention not to mistake left and right bering

parts.

2 .Loose bolt of driven gear by tool.

3 .Knock driven gear by soft harmmer, then disassem-

bly the gear from differential housing.

4 .Take off cross locking pin from the side of driven

gear by punch.

5 .Disassembly differential housing and mark on left

and right differential housing.

Profeller Shaft and Differential

PD-17

Check

Driven Gear and Drive Gear

Check whether there are any nicks, cracks or chippings, if there are some obvious damage, must  replace the

gears together.

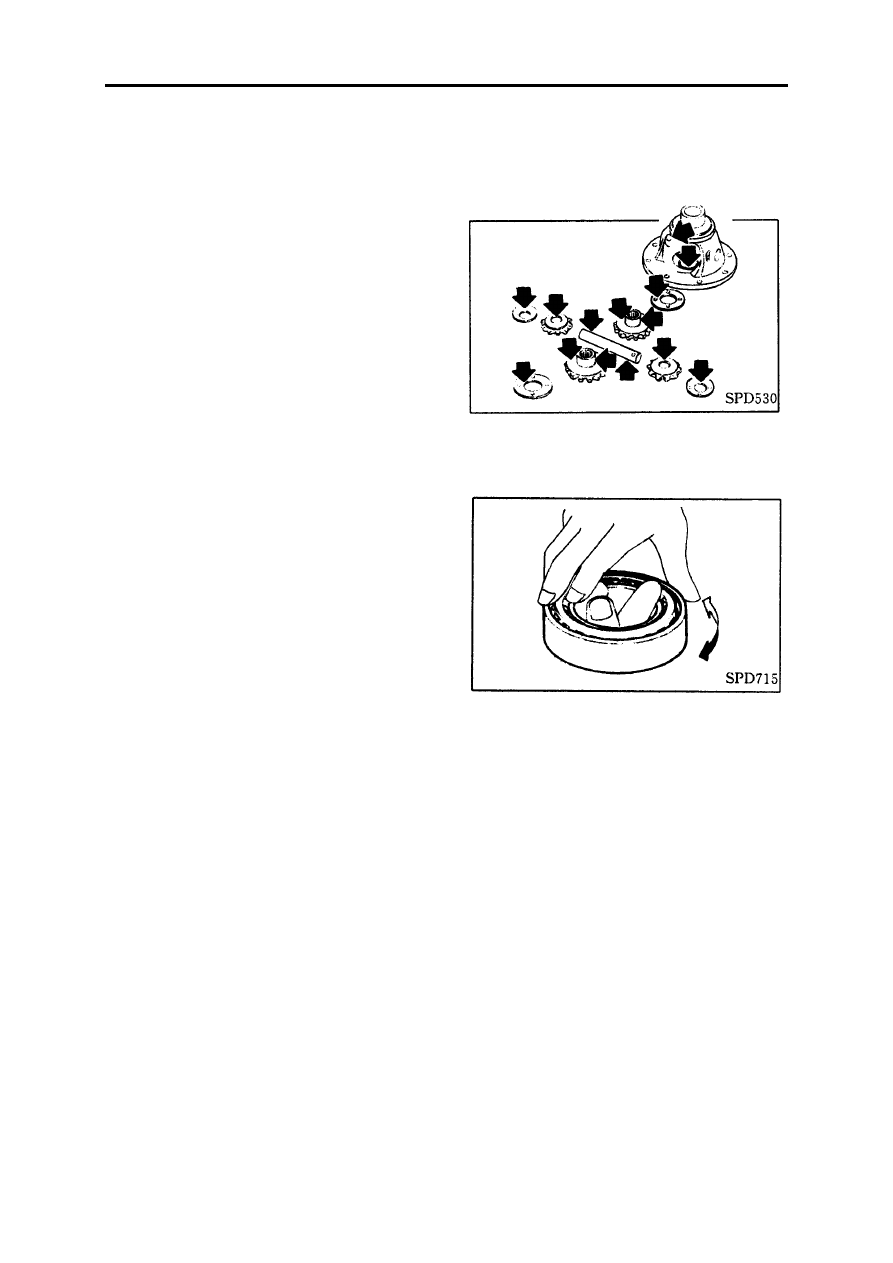

Differntial Housing Ass'y

Check the assembly surface of differential hous-

ing,bearing of half shaft, planetary gear, shaft of planetary
gear and thrust washer.

Bearing

1. Wash bearing completely.

2 .Check the abrasion, scratch,  hole or scall off situa-

tion of bearing. Check the drive agility of conic rolling
bearing. If there are any damage, replace outside track of
bearing and inner taper together.
