Rear Axle & Rear Suspension

RA-9

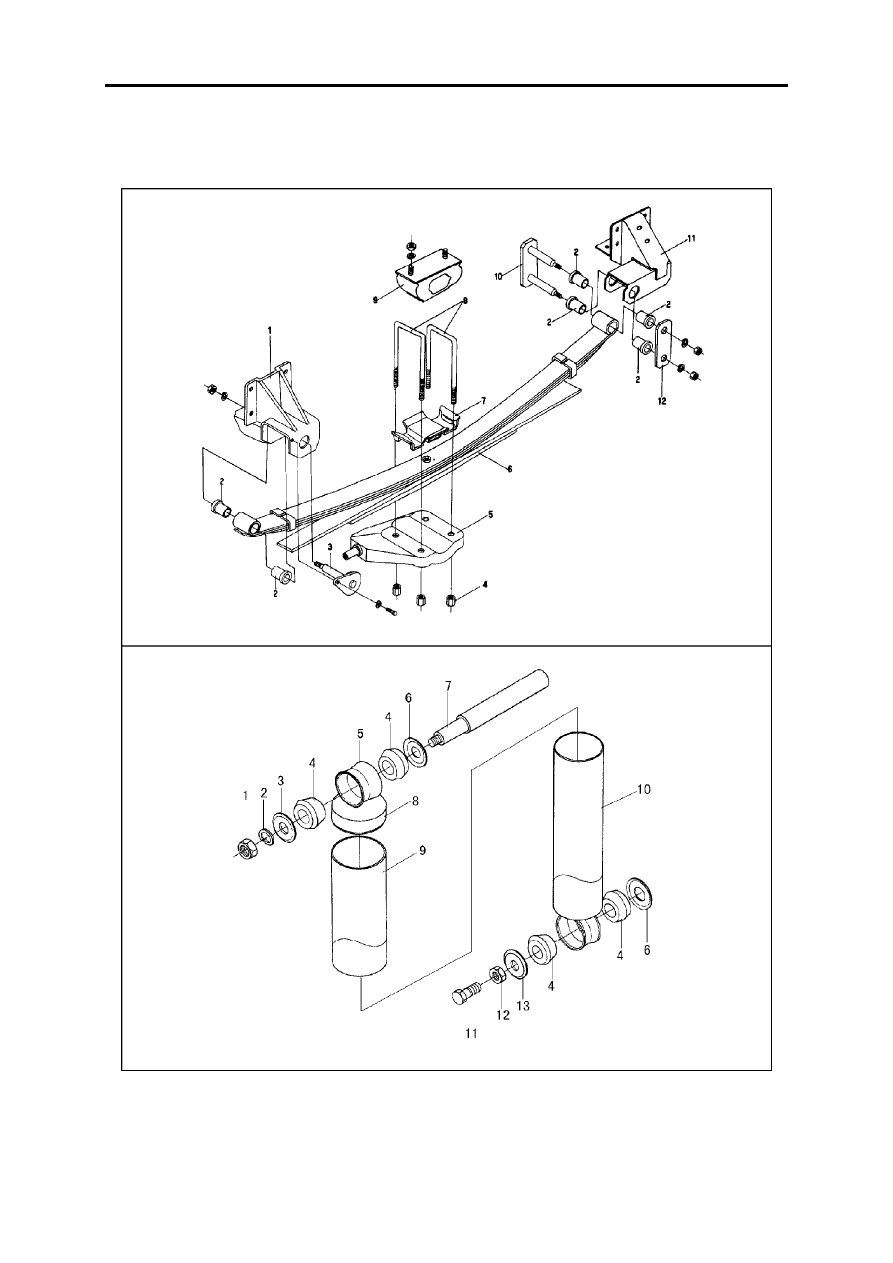

Rear Suspension

Structure Summary

Rear Axle & Rear Suspension

RA-10

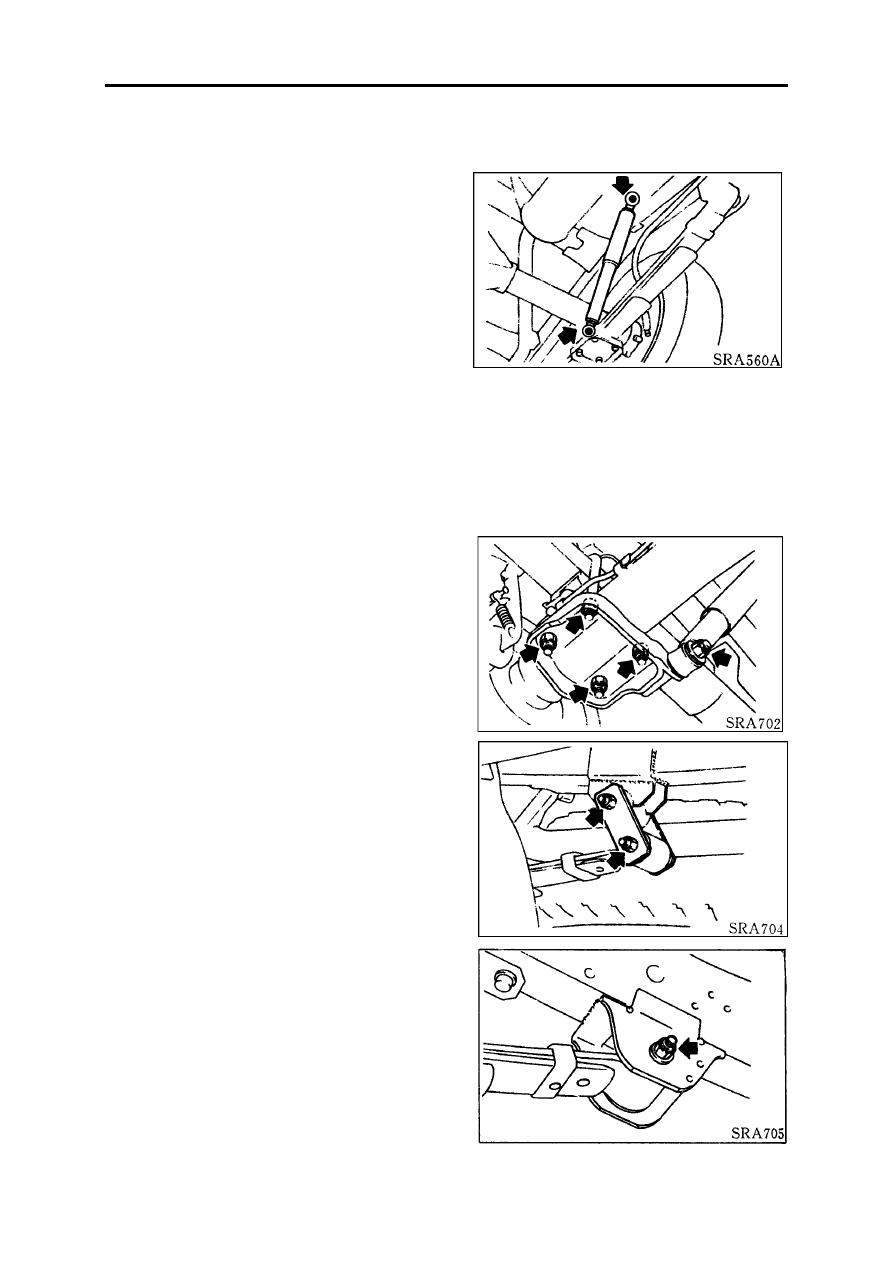

Shock Absorber

Disassembly and assembly

Loose the nut of uper and lower end to disassembly the

shock absorber.

Check

If there are any oil leak, crack or distortion on shock absorber, it has to replace the shock absorber ass'y.

If there are any crack or distortion on rubber sleeve, it has to replace the rubber sleeve

Leaf Spring

Disassembly and assembly

Lift rear part of  vehicle, mount supporting seat.

1.Loose the lower enf of shock absorber and disassem-

bly U type bolt.

2.Disassembly shackle of rear spring.

3.Disassembly  front pin.

Rear Axle & Rear Suspension

RA-11

Check

Check if there are any crack on leaf spring. If there are, replace the spring.

Check if there are any abrasion, crack, distortion or damaged screw thread on front bracket, shackle, U type

bolt and gasket. If there are any, replace the parts when necessary.

Check if there are any distortion or craze on all sleeves, replace them when necessary. Make sure that sleeves

are correctly assemblyed.

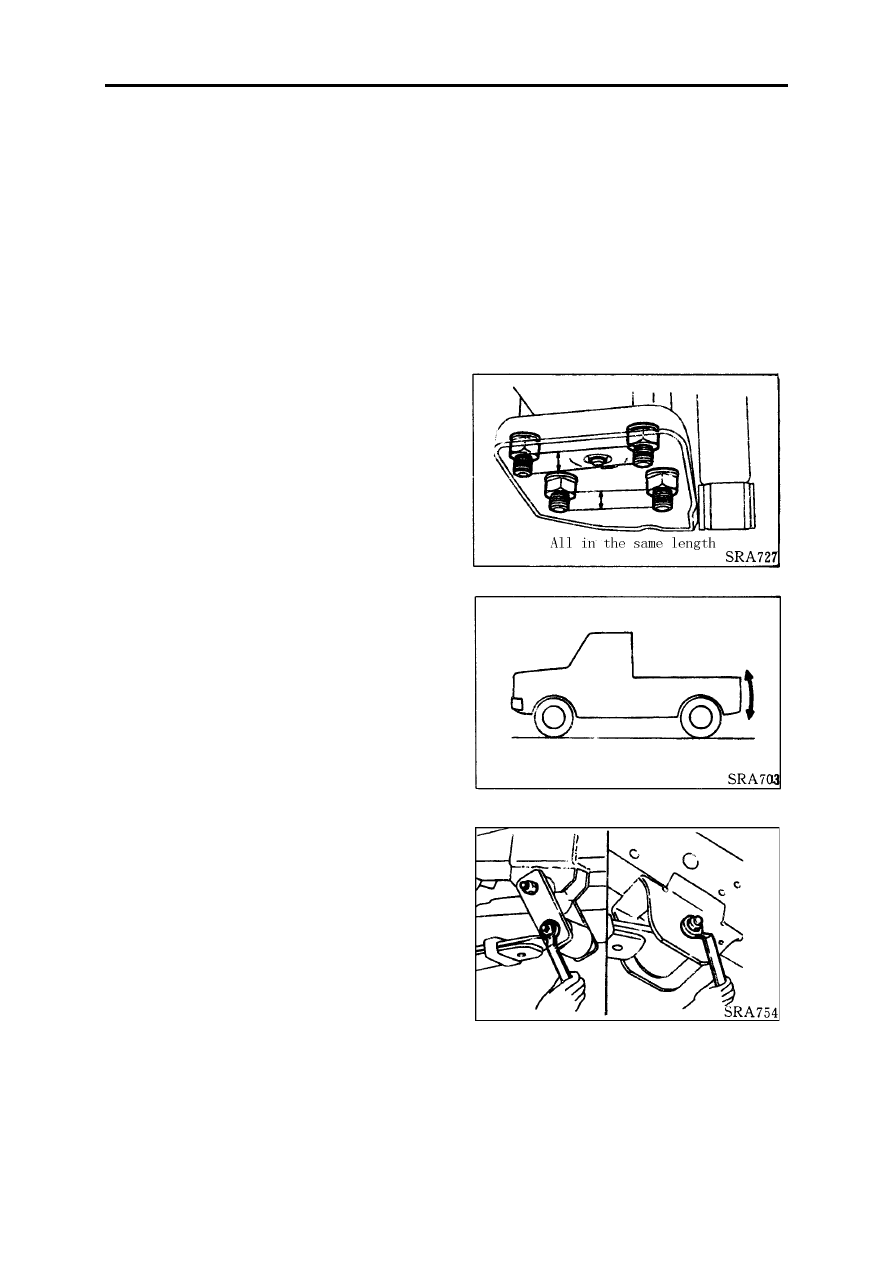

Assembly

1.Wiper suds on rubber sleeve.

2.Assembly shackle and front pin and tighten the nuts by hand.

3.Assembly supporting plate and nut below leaf spring

or axle housing.

4.Tighten U type bolt in diagonal.

Tighten U type bolt to make them all in the same

length on the scew thread part below the suporting plate.

5.Assembly shork absorber and tighten nuts by hand.

6.On non-load condition shake vehicle to eliminate the

damp of leaf spring.

7.Thighten shackle, front pin and nut of shock

absorber.

Rear Axle & Rear Suspension

RA-12

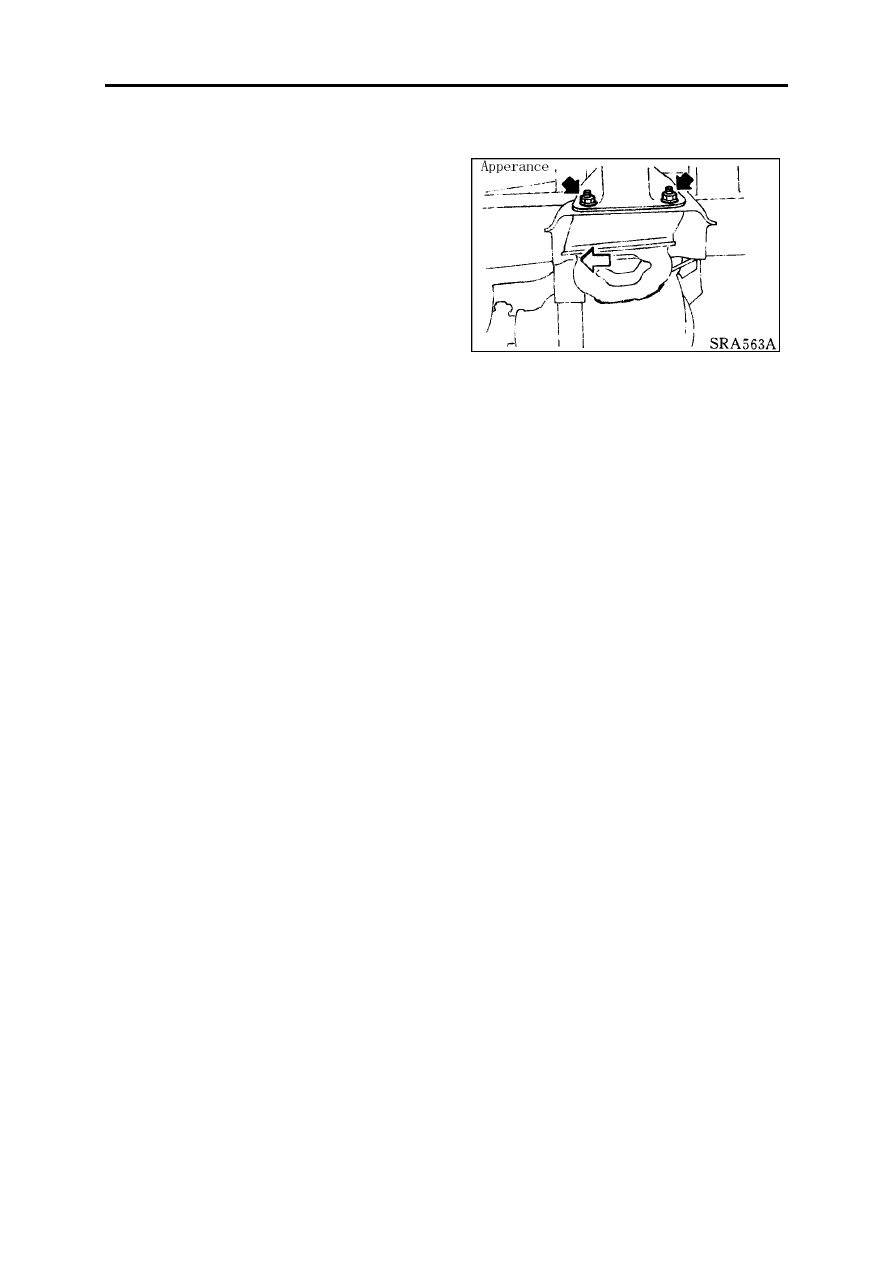

Rubber Cushion Block

Disassembly rubber cushion block

Make sure front mark is on the outside of vehicle as

the picture showed.
