Dongfeng EQ1030T47D-820. Manual - part 19

Rear Axle & Rear Suspension

RA-1

Precaution:

Assemble the rubber parts under the vacuum conditions, tighten them at last.
No load: Full fuel, coolant and oil, equipped with spare tyre, jack, and driving tools.
Use the tools to disassemble and assemble the brake pipes.
Every time the suspension part is moved, the front wheel alignment must be checked, and adjust it if neces-

sary.

Rear Axle & Rear Suspension

RA-2

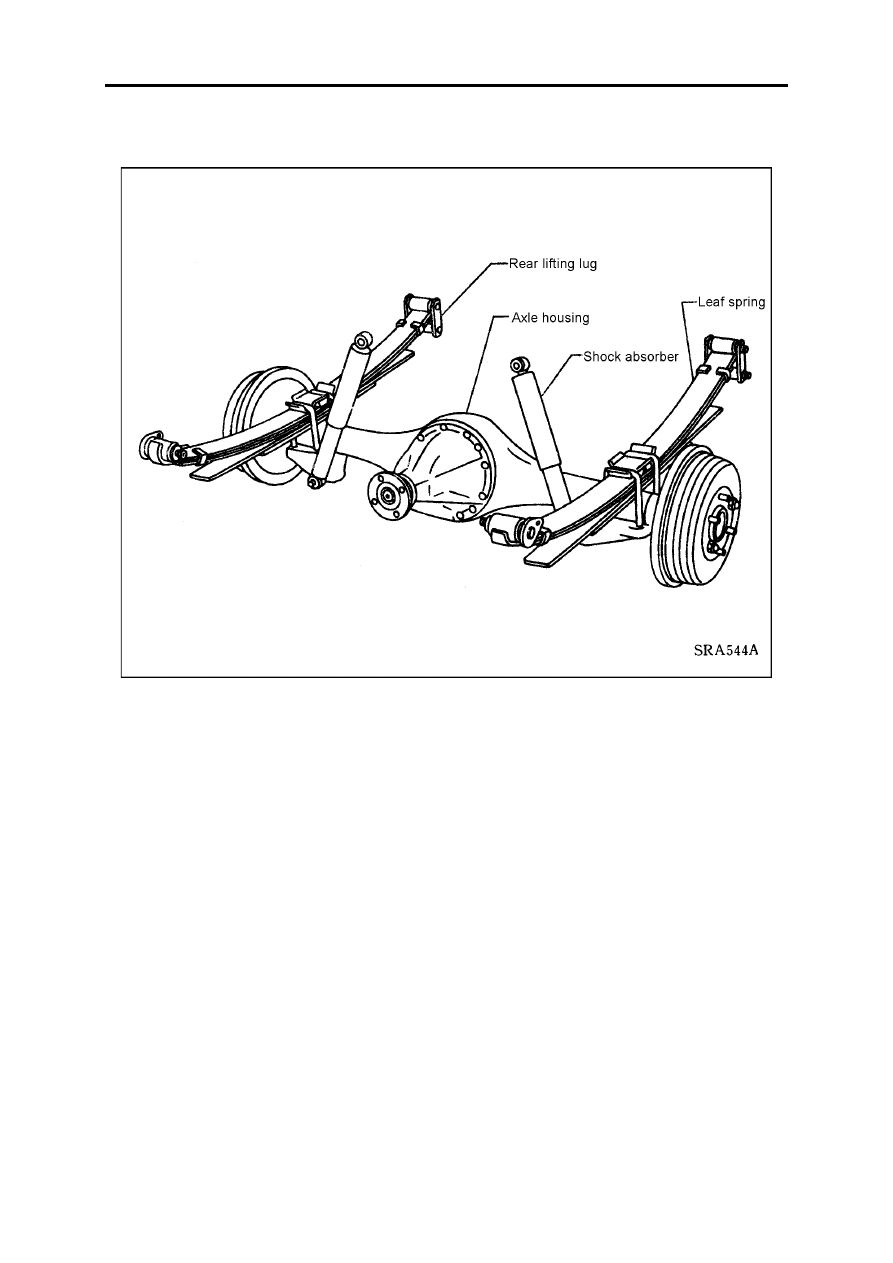

Rear Axle and Rear Suspension

Rear Axle & Rear Suspension

RA-3

Rear axle and rear suspension

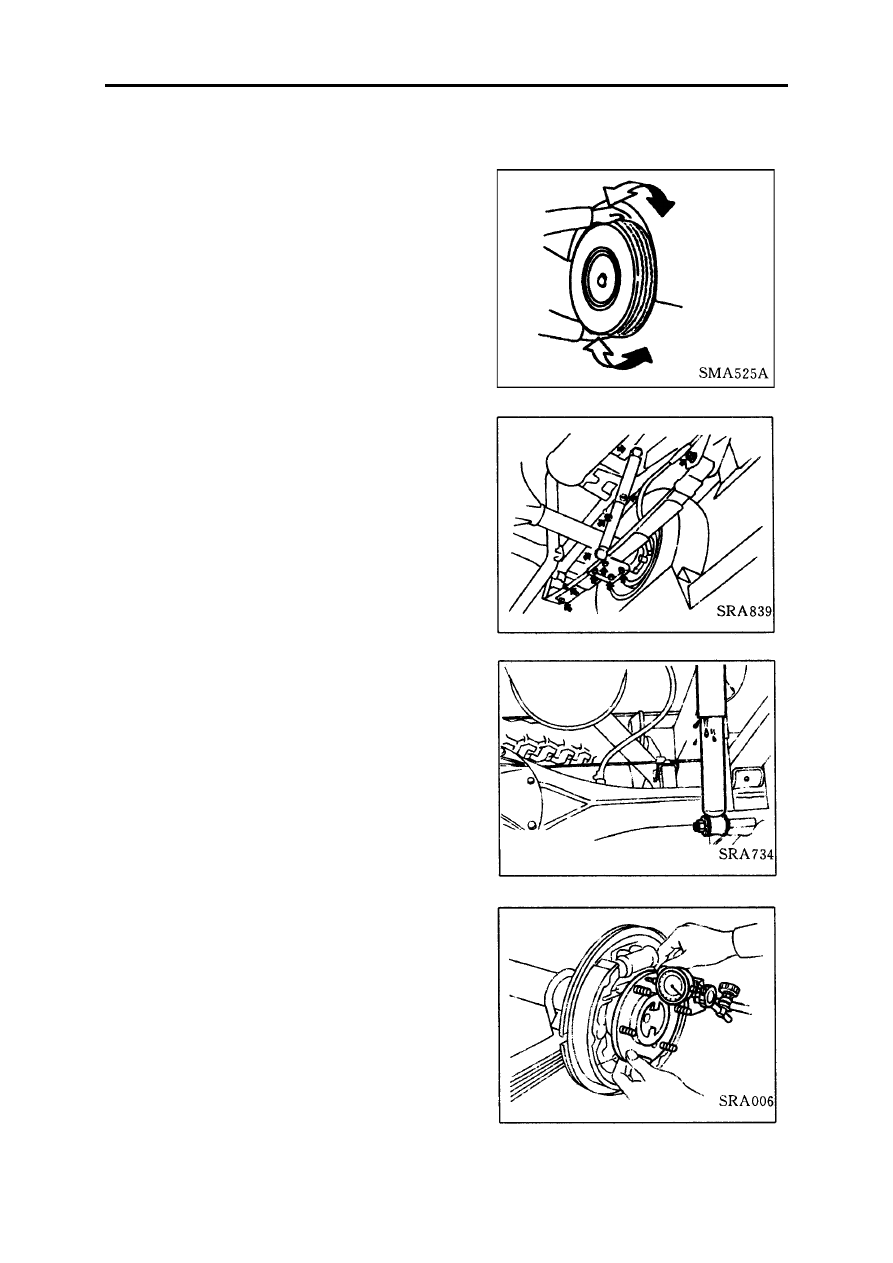

Check rear axle and rear suspension parts for any looseness, wear, or damage.

Turn the left and right wheel to check if it is in normal con-

dition.

Retighten all the bolts and nuts to the required torque.

Tightening torque: aim to the requirement of rear suspen-

sion

Check the shock absorber for leakage or other damage.

Wheel bearing

Axle end clearance:

1.Check the bearing drive to see if it is smooth.

2.Check the axle end clearance.

Rear Axle & Rear Suspension

RA-4

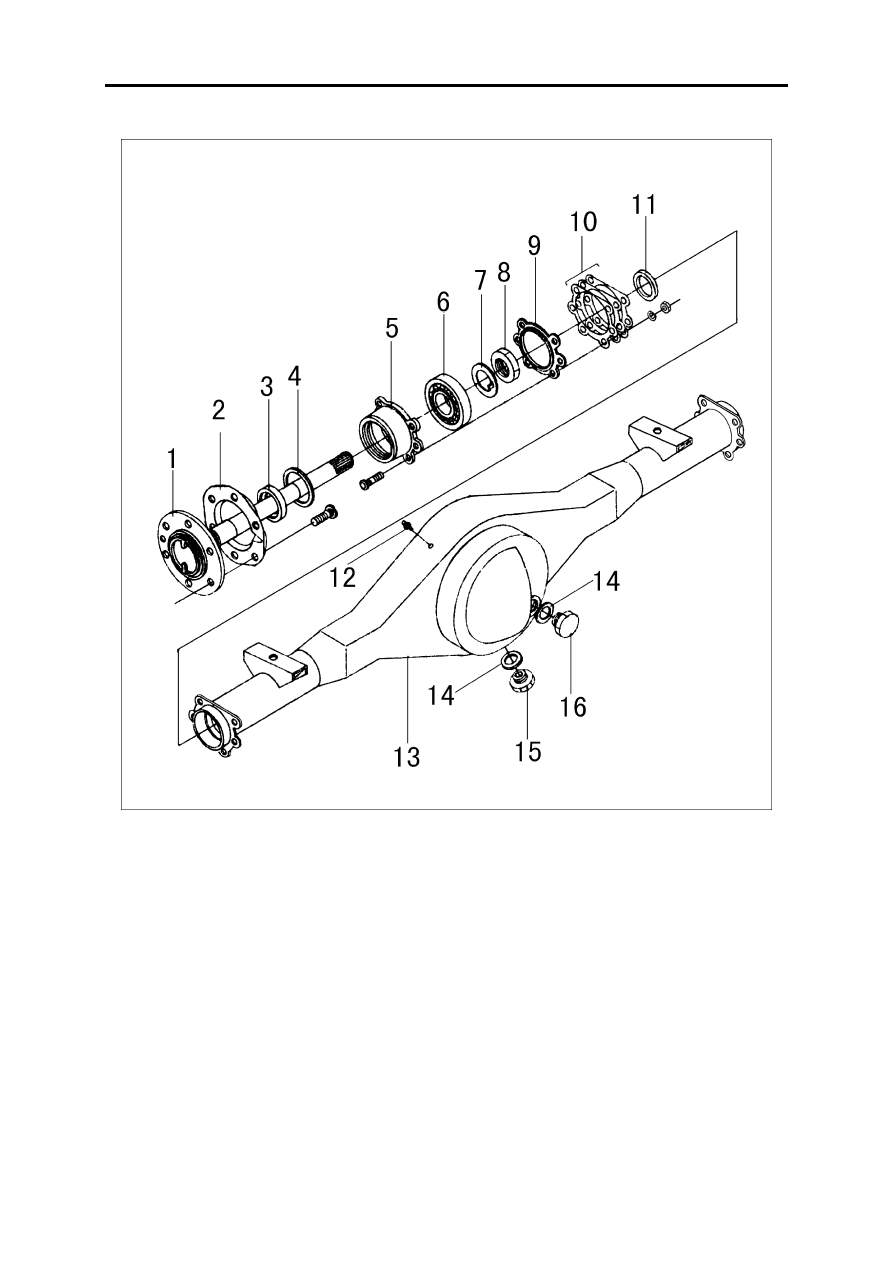

Rear Axle

1.

Rear axle half axle

2.

Dustproof

3.

Half axle outer oil seal seat

4.

Half outer oil seal assy

5.

Half axle bearing seat

6.

Half axle supporting bearing

7.

Lock spacer

8.

Half axle bearing lock nut

9.

Rubber seal gasket assy

10.

Adjusting spacer

11.

Half axle inner oil seal assy

12.

Ventilation plug assy

13.

Rear axle housing assy

14.

Seal washer

15.

Screw plug assy

16.

Scerw plug
