Dongfeng DFA1101GZ5AD6J-907. Manual - part 57





Cab

BF-11

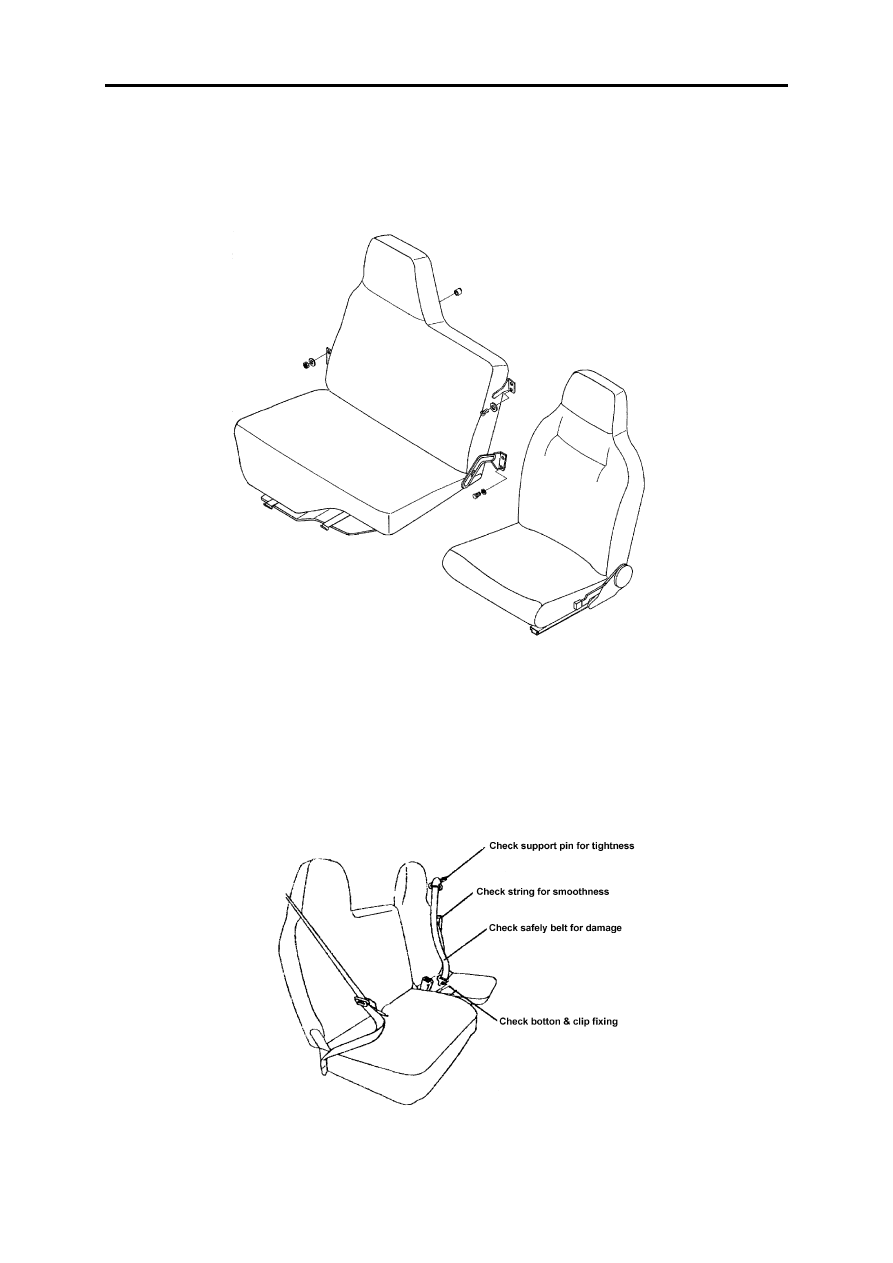

Seat

When assemble or disassemble the seat, it should be maintarined clean and well.

Front seat

Cab Safety Belt

Notes:
If the vehicle in severely dashed in an accident, whatever the nature of the accident is, the belt assembly must

be replaced.

If any part of the belt has quality problems, it must be replaced instead of repairing it.
If there is any cut, looseness or damage on the texture, etc., replace the assembly.
Wine, oil or other material should not be sprayed into the buckle hole lock, so does not the huckle and the

knob.

Cab

BF-12

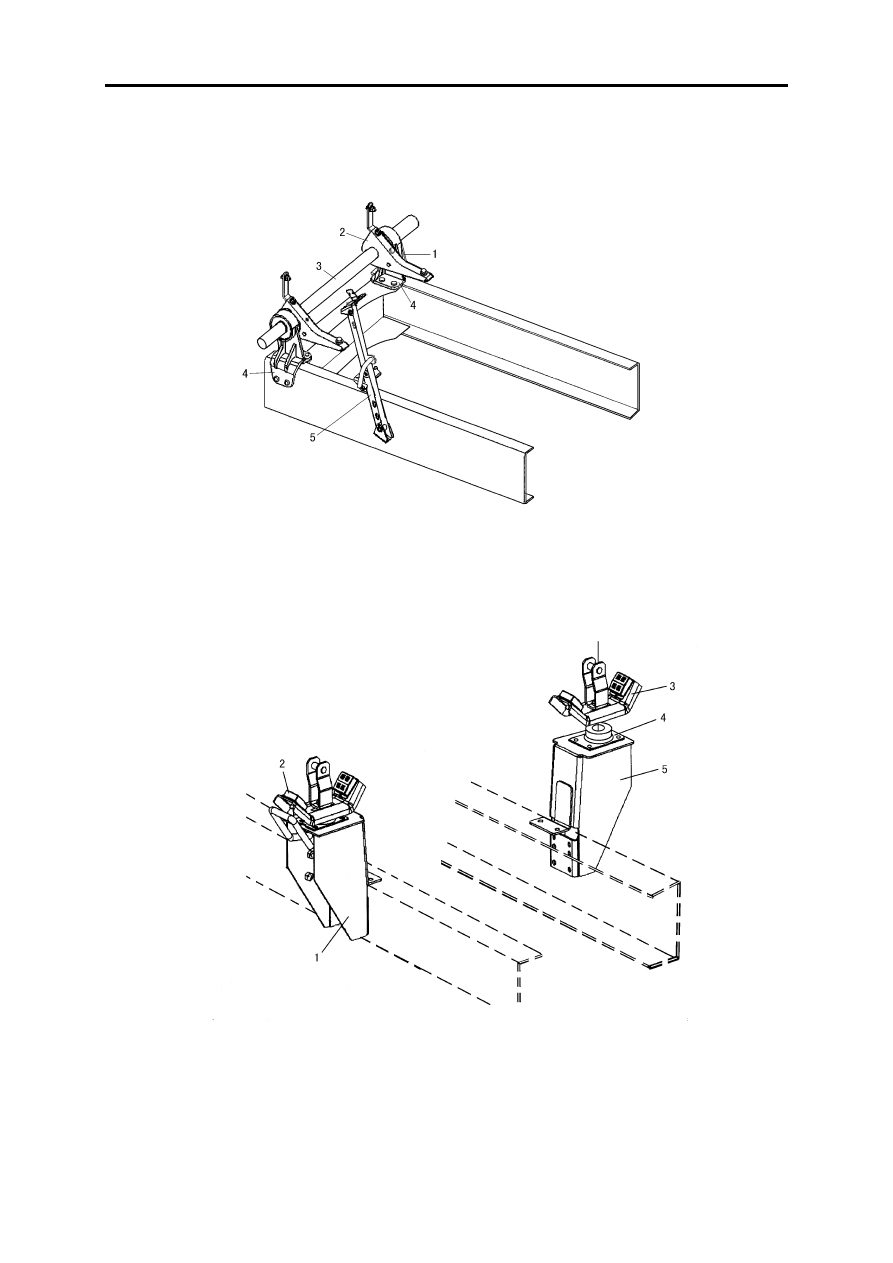

Cab Mounting

Cab front mounting

Cab rear mounting

1.Torsion bar arm assy
2.Tilting bracket assy
3.Torsion bar

4.Left bracket--front mounting
5.Retainer lower assy

1.Left connecting bracket assy--rear mounting
2.Upper cushion assy
3.U-suppot welding assy

4.Rear mounting lower cushion assy
5.Right connecting bracket assy--rear mount-
ing

Cab

BF-13

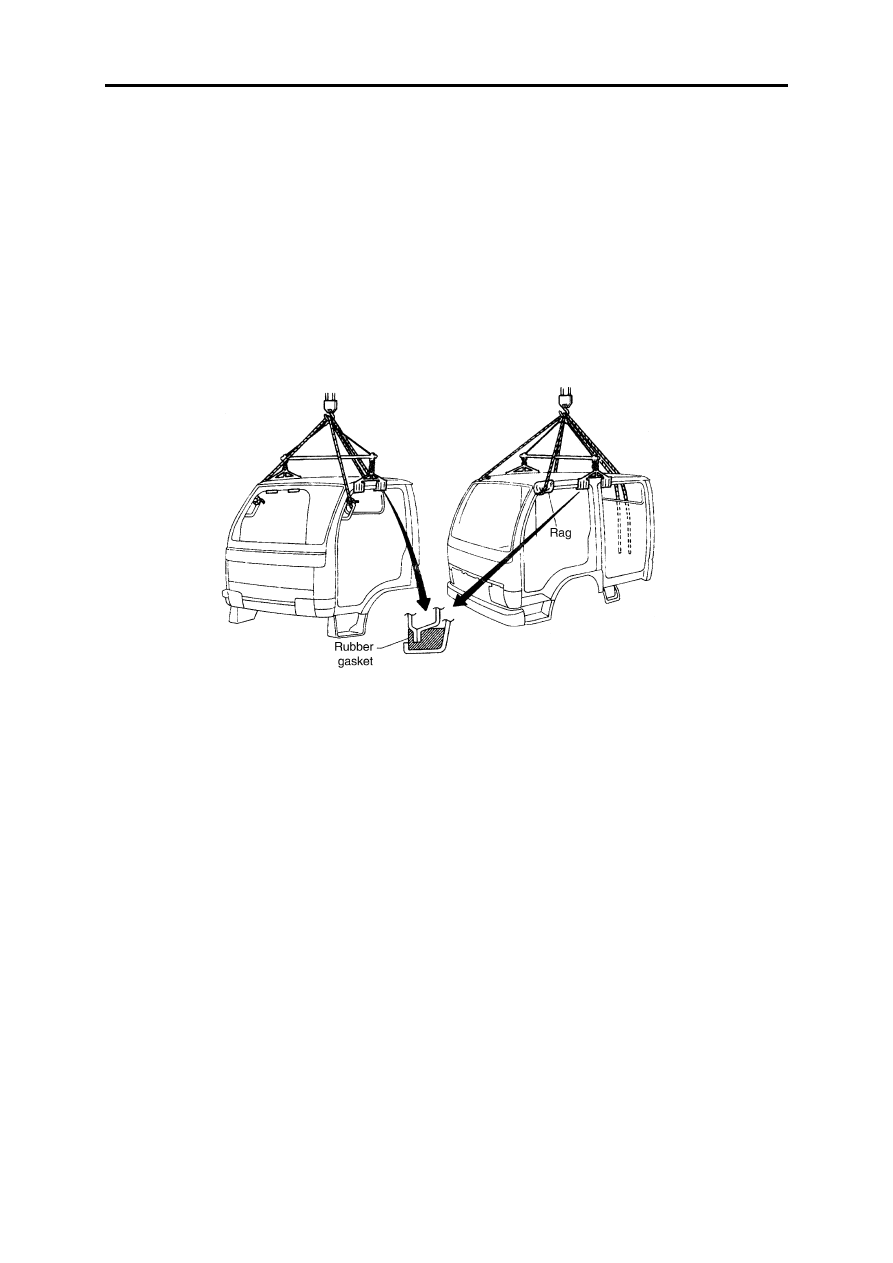

Cab

Cab

The following parts at least should be disassembled in the area of cab engine:

Main electric system and wire harness.

Sparate the engine part from steering transminsion device, brake system and clutch operation system.
The following parts at least should be disassembled in the area of cab:

1.Transmission system and steering control system.

2.Hand brake operation and brake drag wire.

3.Electric system, wire harness and tube

Note:
Different model has different shape of cargo body.

Chassis Frame

BF-14

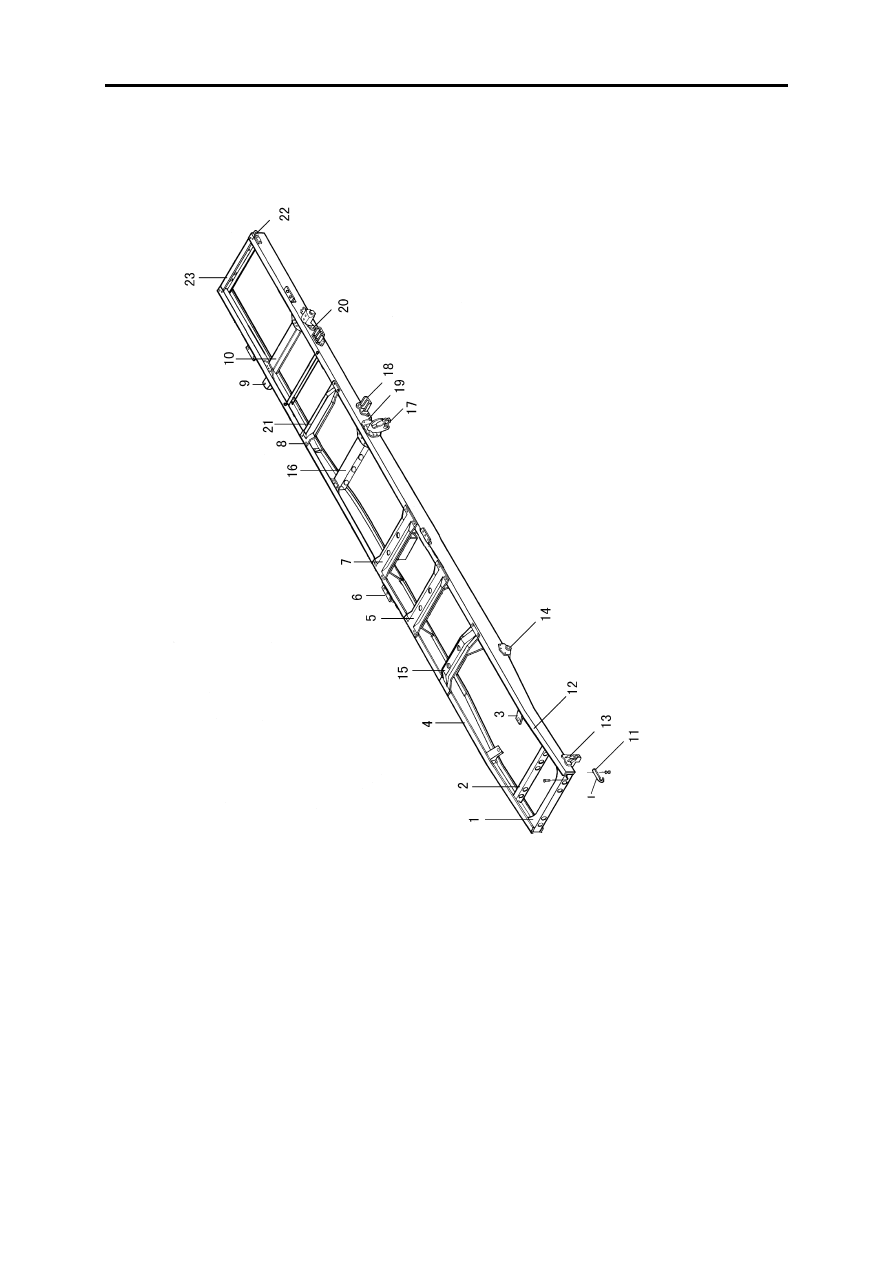

Chassis Frame

Chassis Frame

1.Front cross member assy
2.2nd cross member
3.Right bracket of rear mounting
4.Left side member
5.4th cross member
6.Lower angle iron for fixing chas-
sis frame
7.Propeller midship mounting
cross member
8.Damper cross member

9.Lifting eye end bracket
10.Rear leaf spring cross member
11.Hook bracket
12.Right side member
13.Fixed end bracket
14.Lifting eye end bracket
15.Engine rear mounting cross
member
16.Rear leaf spring cross member
17.Fixed end bracket

18.Sub-spring bracket
19.Stiffening plate--rear bracket of
rear spring
20.Stiffening plate--rear bracket of
front spring
21.Bolt
22.Rear hook set
23.Rear cross member
