Cab

BF-3

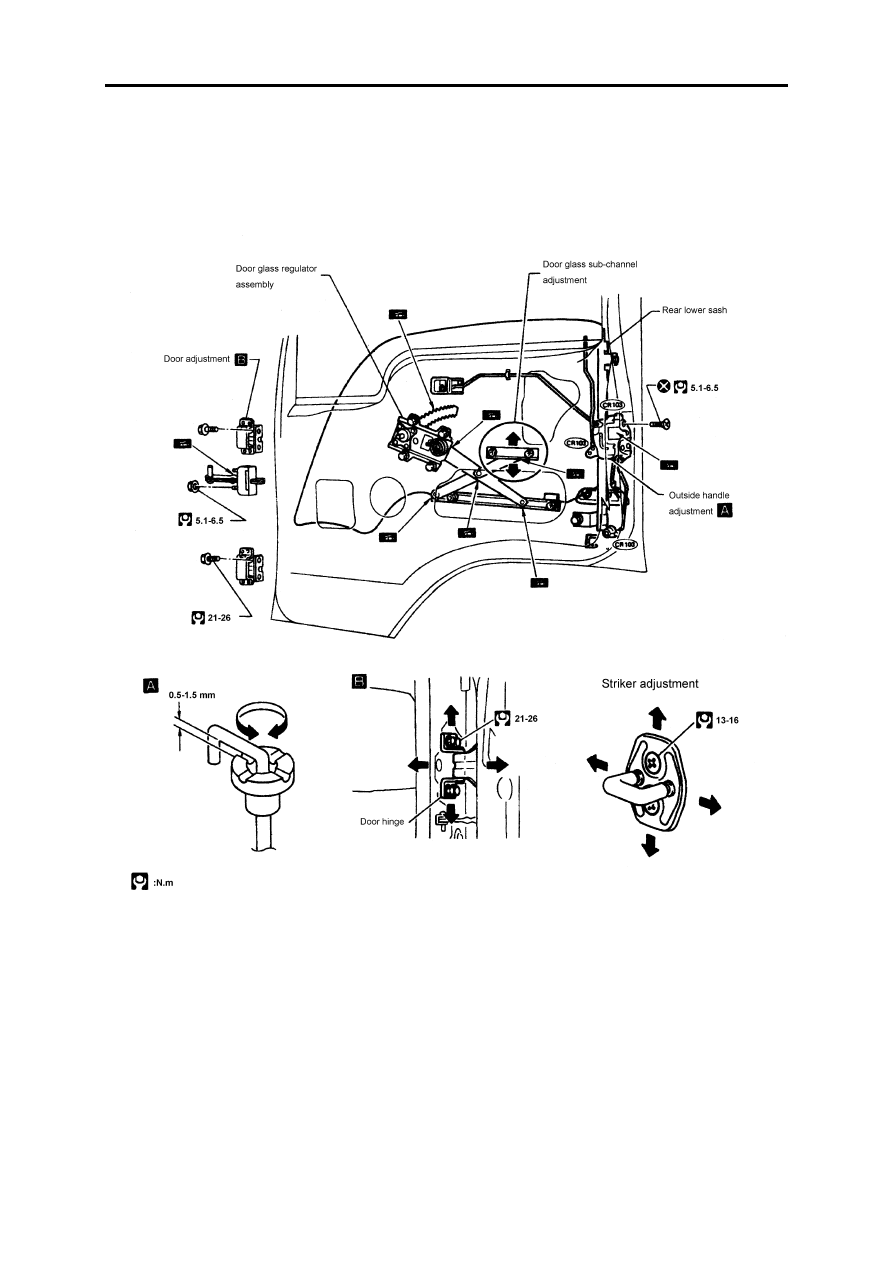

Door

Front Door

When disassembling the front door, it is better to disassemble the cover at  front side first.
Afler adjusting the door or door lock, check the door lock open and lock condit ion
.

Cab

BF-4

Instrument Panel

Caution:

Before disassembling the instrument panel, switch off the power-supply.
Be careful not to scratch pad and other parts.
These parts are made of plactic. Excessive force will damage them.

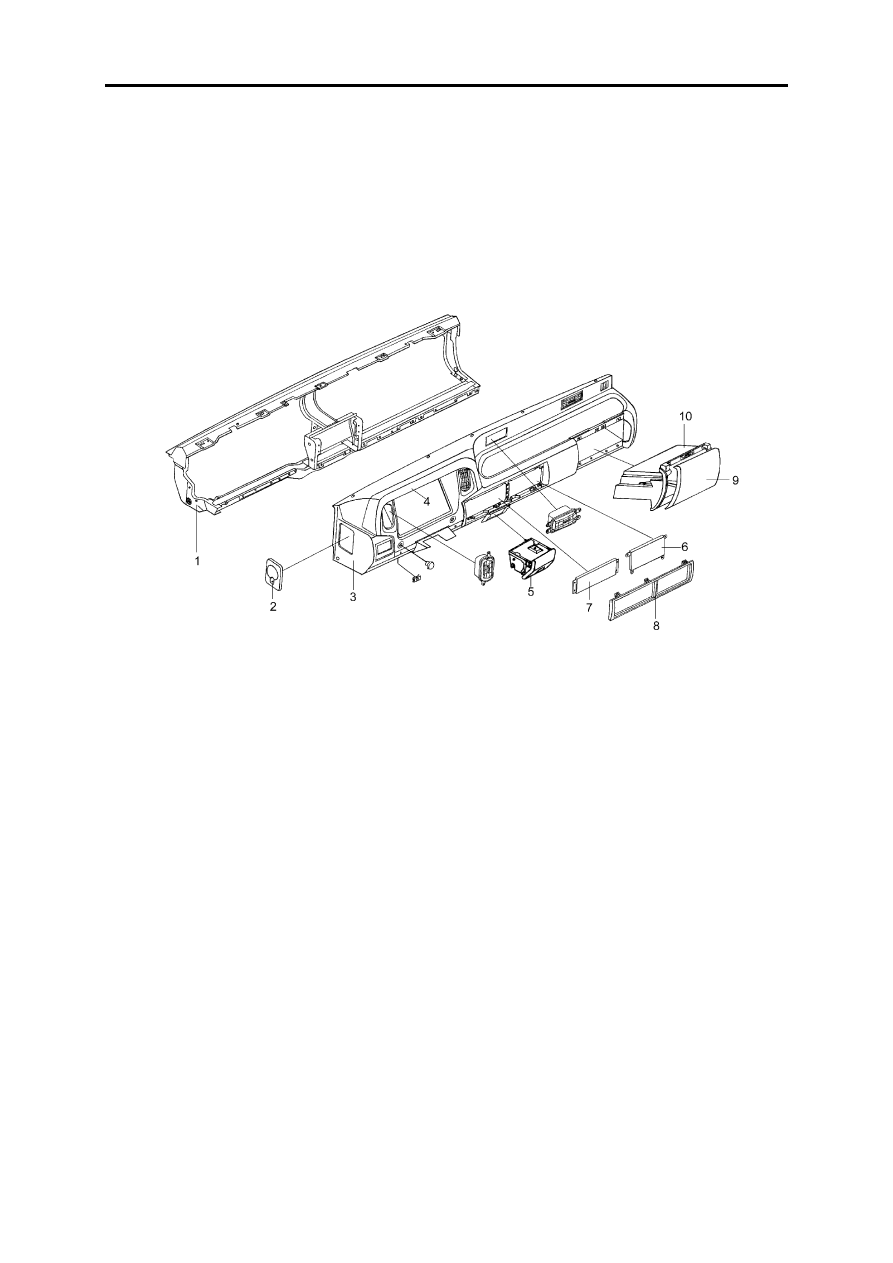

The structune of the instrument panel in shown as below:

•

Cab Internal Trims and External Trims

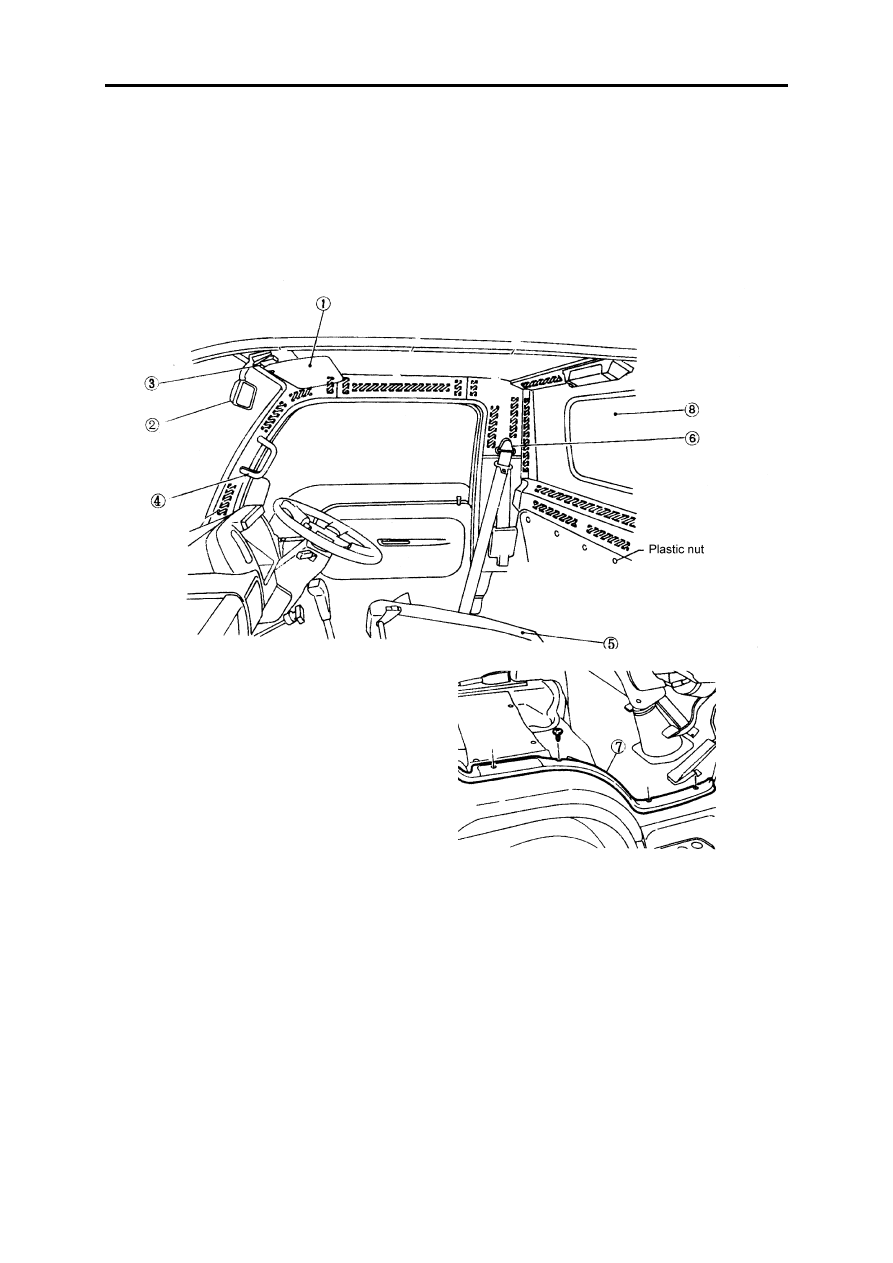

Internal trims

Side ard floor trims-Passenger area

Caution:

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
Disassembly of the side inner trims:

①

Disassemble the sun visor.

②

Disassemble the rearview mirror.

1.Instrument frame welding ass'y.
2.Oil can cap
3.Instrument frame welding ass'y.
4.Instrument panel upper cover ass'y.
5.Ashtray assy.
6.Block cover, Small glove box ass'y.

7.Block cover, warm air control
8.Lower trim grille ass'y.
9.Glove box cover
10.Glove box ass'y.

Cab

BF-5

③

Disassemble the roof lamp ass'y.

④

Disassemble the handrail.

⑤

Disassemble the seats.

⑥

Disassemble the safely belt.

⑦

Disassemble the door guardrail.

⑧

Disassemble the rear window glass.

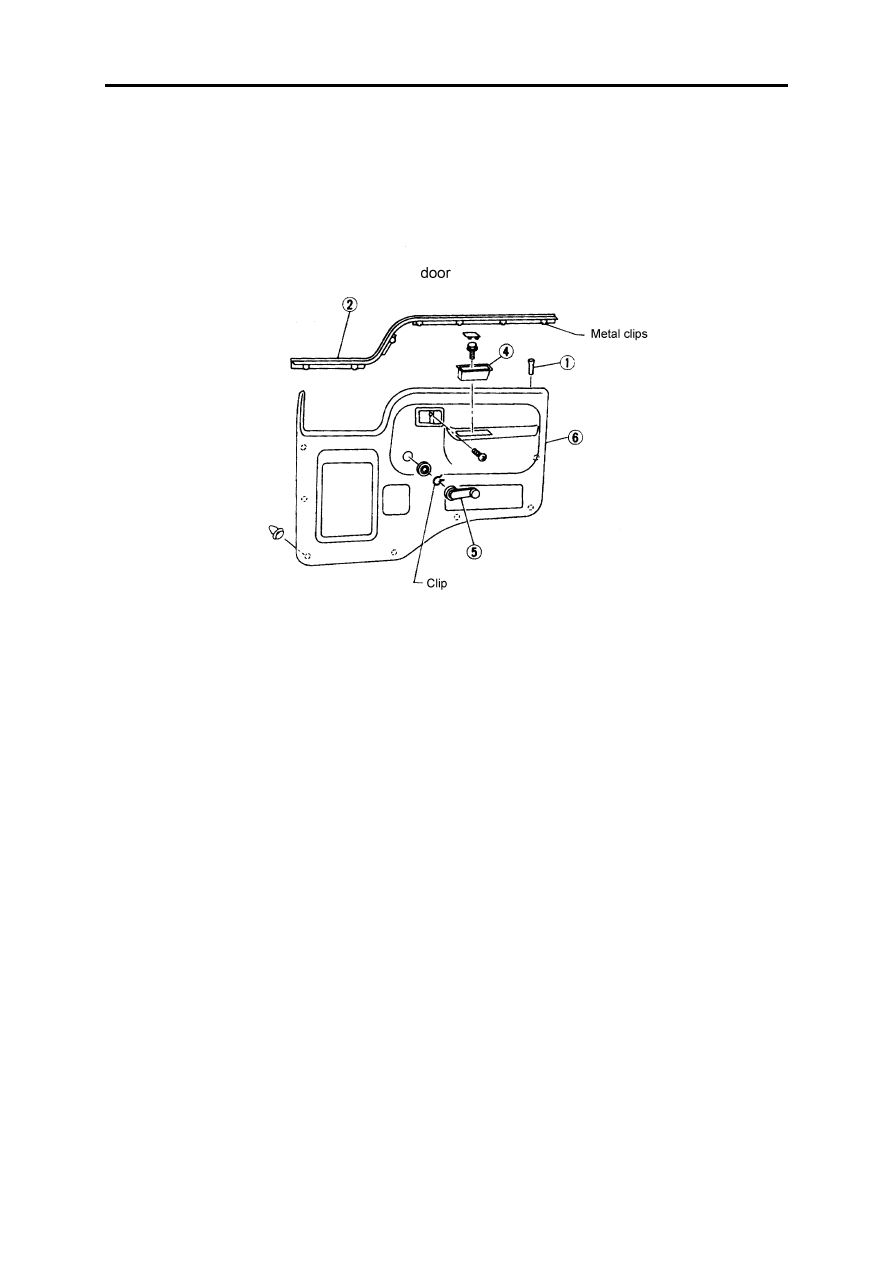

Door trims

Disassembly of the door trims:

①

Disassemble lock knob.

②

Disassemble inside seal.

③

Disassemble inside handle escutcheon rear door).

④

Disassemble pull handle.

⑤

Pull out regulator handle.

Cab

BF-6

⑥

Disassemble inner guard board of door (front door).

⑦

Disassemble inner guard board of door (rear door)

.

Roof trims

Disassembly of the roof trims

Single seater cab

①

Remove part of headlining from corner and gradually peel headlining off.

Double seater cab

①

Disassemble the screw and roof bow.

②

Remove headlining by peeling if off, starting with middle portion
