Brake System

BR-12

Cab

BF

Table of Contents

Clip and Fastener ............................................................................................ BF-1
Cab Front Panel .............................................................................................. BF-2
Door ................................................................................................................ BF-3
Instrument Panel ............................................................................................. BF-4
Cab Internal Trims and External Trims.......................................................... BF-4
Seat ............................................................................................................... BF-11
Cab Mounting ............................................................................................... BF-12
Cab................................................................................................................ BF-13
Chassis Frame............................................................................................... BF-14
Air-conditioner and Heater........................................................................... BF-15
Construction of the Heater............................................................................ BF-18
Air Flowing Direction .................................................................................. BF-19
Check the Leakage of the Refrigerant .......................................................... BF-20
Air-conditioning System............................................................................... BF-22
Schematic Circuit of Air-condition System.................................................. BF-25

Cab

BF-1

Cab

Precautions

When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent

scratches.

Disassemble or assemble the handle device, molding parts, instrument, inner trims and so on carefully not to

soil or damage them.

Apply seal glue on necessary place when assembling.
Be careful not let the glue flow out of the parts when applying.
When replacing the metal parts extarnal plate of the body, be sure to take rust prevention measures.

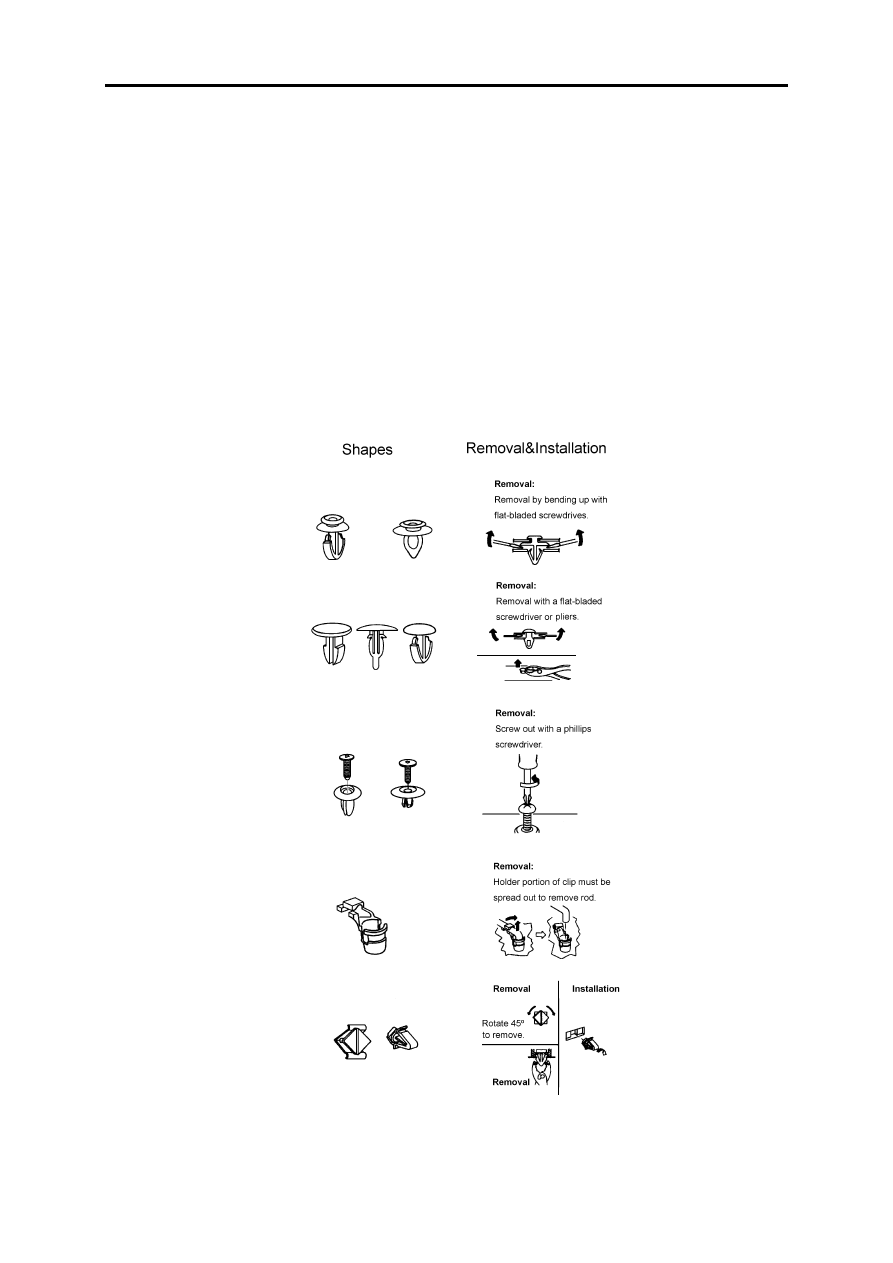

Clip and Fastener

The following codel and pictures and symbols are subiect ot the clip and fastener in the BF section.
The clip and fastener must be replaced if damaged during assembling or disassembling.

Cab

BF-2

Cab Front Panel

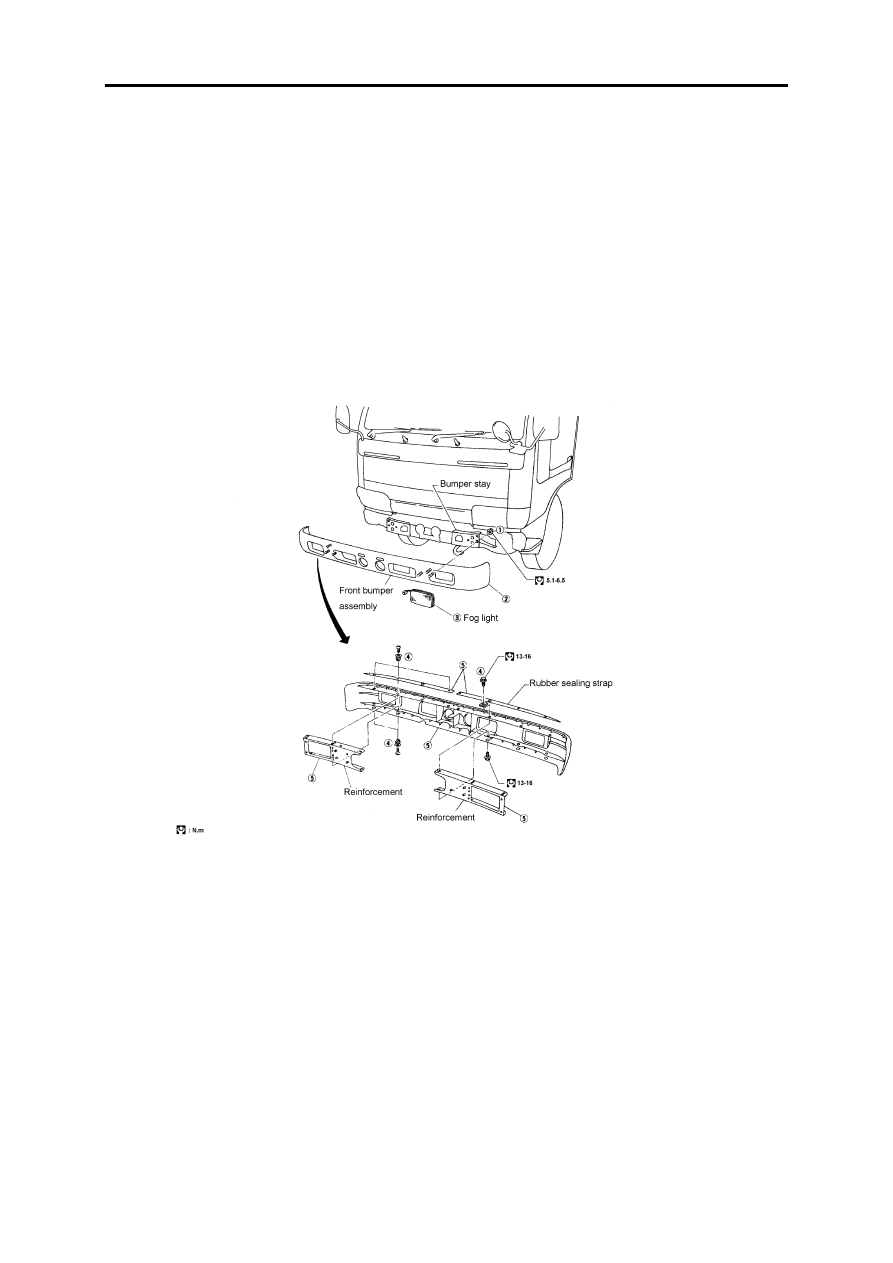

Disassembling the front bumper ass'y:

1.Release off the six fixed nuts from the front bumper (each three on left and right side).

2.Release off the bumper ass'y.

3.Disassemble the connection device for right and left fog light.

4.Disassemble the clip and bolt.

5.Disassemble reinforcement, seal washer and i

6.nstallation board for the lights

.
