General Maintenance

8—4

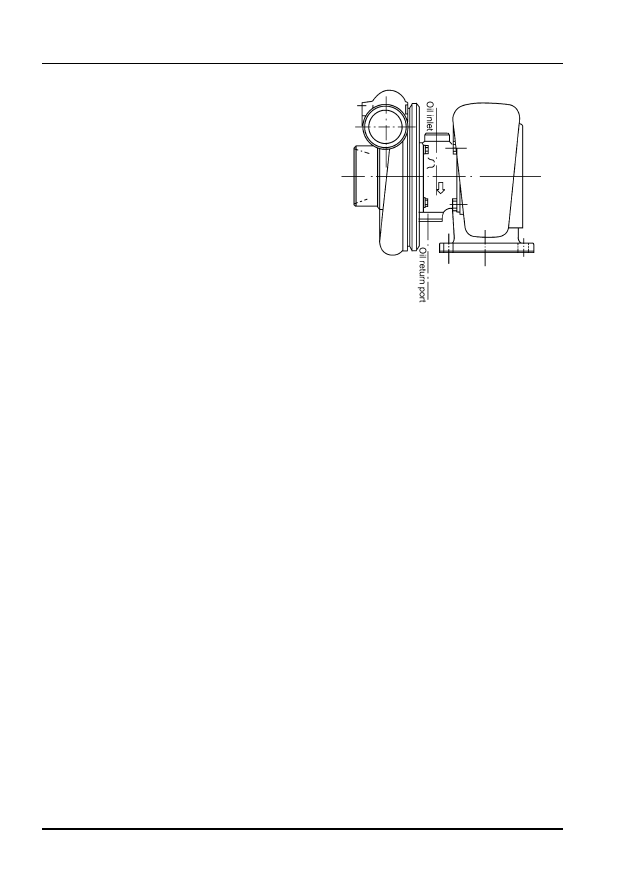

Exhaust GasTurbo Supercharger

The lubricating-oil is  supplied  by

the main pressure oil passage of the
engine, and the return lubricating-oil
will back to the oil pan by the gravity. In
order  to  avoid  the  leakage  of  the
supercharger and assure its normal
operation,  pay  enough  attention  to  the
process  of  the  inlet  and  return
lubricating-oil and assure to their







smoothly process. Do not change the
shape or area of the return lubricating-
oil pipe.

The  opening  and  closing  of  the

exhaust valve of the supercharger is
controlled by the supercharger itself,
therefore, please note:

1.The  users  can  not  loosen  or  tighten
the adjusting nut of the connecting rod
to adjust the opening pressure of the
ehaust valve. Otherwise, it is harmful to
the engine.

2.Do not load or trample the connecting
rod in any case.

3.If you find the inlet pipe is leaky or the
supercharger is abnormal during





driving, stop the vehicle and check
them.  But  do  remember  the  exhaust
valve and sealed pressure chamber
can  not  be  repaired,  and  if  they  are
worn , you have to change the turbine
casing.

Maintenance of the supercharger:
The supercharger belongs to the

high-speed rotating precise



General Maintenance

8—5

mechanism,  therefore, it can not be
disassembled if not necessary. But if
because of the dust or oily dirt that
make the rotor or engine abnormal, you
can have a simple cleaning without
totally disassembling the supercharger,
and the specific operating method is as
follows:

1.Get rid of the dust and oily dirt of the
surface of the supercharger.

2.Remove the supercharger from the
engine but do not carry it by the con-
necting rod.

3.Remove the inlet pipe first then the
exhaust valve adjustment.

4.Remove the compressor casing,





turbing casing and inlet and return oil
flange.

5.Clean the compressor casing, turbing
casing and the surface of the two
impeller.

6.Fill some clean washer liquid from the
inlet and rotate the impeller by hand
until the impeller works well.

7.Assemble and install to the engine.

Note:
Do not hit or knock the impeller vane during

disassembling, assembling and cleaning. If







there is any hit or knock, do not use the rectified
blade again. The cleaning liquid could be







kerosene, gasoline or high quality diesel oil.

General Maintenance

8—6

Air Drier

After 100,000km, check the air tank

for water. If there is, you should replace
the air drier.

Check the Oil Level, and Refill the

Clutch Oil Reservior

The oil reservior of  the  clutch  is

located in the cab. The fluid level in normal
condition is between

MIN and MAX,

if it is

below

MIX

, refill it.

Check  the  pipe  line  before  adding

fluid. Repair it if there is leakage.

Note:
Do not use the different quality or different

brand of fluid.

Never use mineral oil as the clutch fluid.
Be sure to use clean clutch fluid.
Be careful not to get the fluid  on  any

painted surfaces, otherwise  the  paint  will  be
damaged.

Use special care to seal off the clutch fluid,

because the clutch fluid will absorb the moisture
of the air.

Be  extremely  careful  not  to  allow  dirt  or

dust enter the reservior.  Make  sure  that  the
reservior and its surrounding areas are clean
before adding or replacing the clutch fluid.

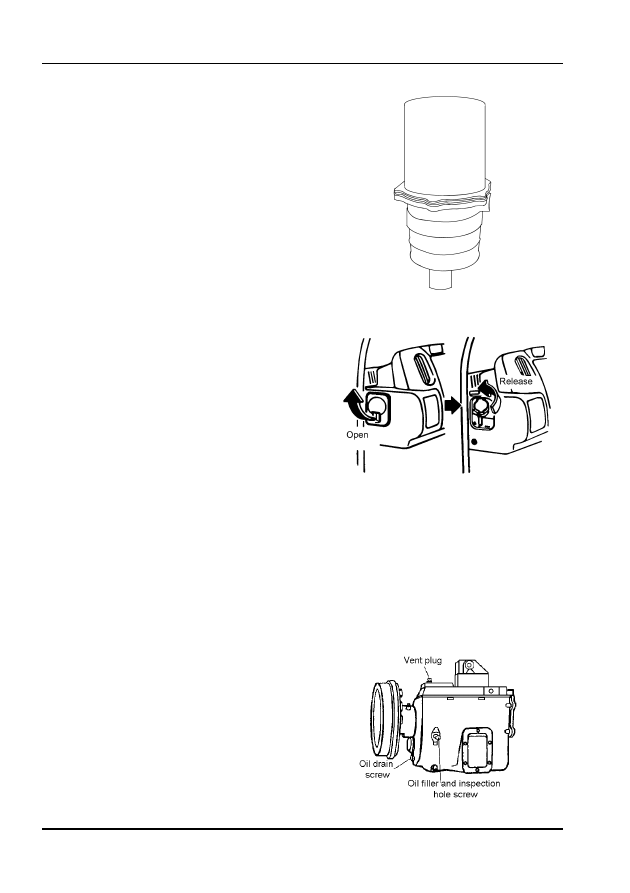

The Transmission Lubricating Oil

Check the oil level of transmission

lubricating oil every 4,000 km.  First
screw off the check plug, if the oil level

General Maintenance

8—7

is below the edge of the plug, add oil.
Then  check the function of vent plug
and clean it.

Replace the transmission



lubricating oil under the truck heated
condition every 24,000 km.  Screw  off
the drain plug first,  drain off the oil in
the transmission. Then clean  the  drain
plug (the magnet on the drain plug
which collects accumulated iron





sediment in the oil) and reassemble,
refill the new lubricating oil through the
check plug hole.

Note:
If the oil level is too low, the   bearing  and

gear will be burnt, and if too high, it will  cause
overheat and oil leakage.

Keep the vent plug fluent.
Be caseful not to allow any dirt  or  dust

enter the gear box.

The Rear Axle Main Reductor

Lubricating Oil

1.Inspection screw
2.Oil drain screw

Check the lubricating oil level of

main reductor every 12,000 km. Screw
off the oil level check plug first, if the oil
level is below the edge of checking
hole,  add oil. Then check  the  function
of drain plug and clean it.

Replace the lubricating oil of  the

main reductor every 24,000 km. Screw
off the drain plug first, drain off the oil,
then  clean the drain plug  and
reassemble it. Refill the new lubricating
oil through the filler hole.

Note:
Fill the lubricating oil  according to  the

requirement.  Do  not  use  the  normal  gear  oil
