Dongfeng DFA1101GZ5AD6J-907. Manual - part 11

Driving Recommendations

6—3

clutch,  as this will greatly affect the
clutch operation and service life.  After
the clutch operation, ensure not to step
on the clutch pedal. When changing the
position of the transmission gear shift
lever, both in shifting to higher gear and
in downshifting,  be sure to use the
double-foot-clutch method for shifting.

Double-foot-clutch Method for

Shifting

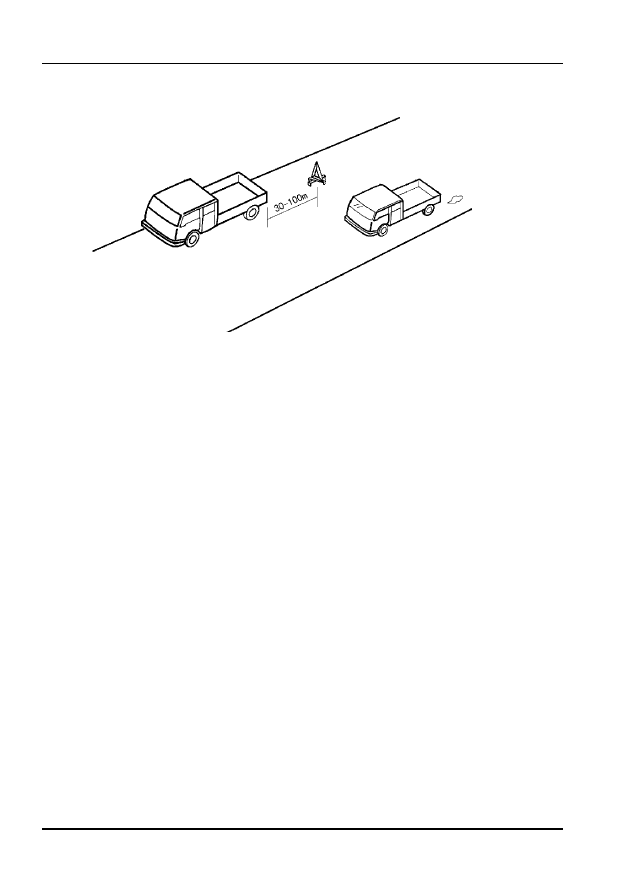

The Use of Warning Triangle

When your vehicle is break-down or

has some problems, first light the warning
light, then put the warning triangle behind
the vehicle nearly 30-100 meters' far. Do
remember to put the red side to the com-
ings.

Driving Recommendations

6—4

Parking

The vehicle should be parked on a

plain place as possible as you can.

Pull up the parking brake lever  to

locked position, and move the transmission
gear shift lever to neutral position. A chock
should be placed behind the  tyre  if  it  is
necessary.

After driving, allow the engine to idle

first until the temperature  of  the  engine
becomes lower,  then  shut  off  the  engine.
Especially after heavy loaded operation or
high speed driving, the temperature of
engine is higher and it is better not to stop
suddenly.

Turn off all switches after stopping the

engine.

Turn the key switch to the LOCK

position then take out of the key.

Lock the door.

Vehicle Inspection

7—1

Vehicle Inspection

Driver's Daily Inspection

Driver's daily inspection on the







vehicle  directly has effects  upon  the
safety of driving.  In  order  to  prevent
problems, to assure driving safety,  and
to know the condition of your truck, the
daily inspection  should be done by
yourself before using the vehicle.

●

 Before Daily Inspection

1.The vehicle should be parked on the
flat ground.

2.The switch key must be set on the
OFF position.

3.The parking brake is applied properly.

4.The transmission gear shift lever







should be in neutral.

●

 First Inspection

Check the abnormalties you





noticed in the previous day.

If the abnormalities were  repaired

during the previous day, check again to
make sure if it was really repaired.

●

 Before Engine Starting

1.Check the driver's seat

The driver's seat should be







adjusted to the  optimum  position  for
safety.

2.Check mirrors

Make sure that all mirrors are clean

and provide clear views of all the sides,

Vehicle Inspection

7—2

rear, front,  left  and  right  (including  the
rearview mirror).

3.Check lock condition of the door

Make sure that all the doors  are

securely locked, and the window glass
lifter is working properly.

4.Check the fluid level of the windshield
washer

Check the fluid level of the









windshield washer and add fluid if
necessary.

5.Check the cooling water level
1） Before adding cooling water, check

the engine and radiator for any sight
of leakage,  please repair it first  if
there is. Fill the cooling fluid into the
filling hole of the radiator until  the
fluid is overflew.

6.Check the seal and function of  the
pressure cover of the filling hole.

Note:
The long-life, antifreezing    and  antirust

coolant is adviced. Forbid to use tap water, well
water, or river water instead of the cooling fluid.
Without using of the coolant fluid, the incrusta-
tion scale will appear in the cooling system, and
result in the overheating of the engine.

Vehicle External Inspection

Before  inspecting,  tilt  the  cab

forward.

1.Check the engine oil level

Check  the  oil  level  by  pulling  out

the oil level stick. If below L mark, you
must fill  the  specified  oil  from  the  oil
