An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage not covered by your
vehicle warranty.

Note: We recommend using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.

Note: Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.

Note: The use of any other fluid may cause
transmission damage.

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Specification

Name

WSS-M2C953-A1

Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil:
Engine oil - SAE 0W-30
XO-0W30-QSP

391

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

E240523

BULB SPECIFICATION CHART

Replacement bulbs are specified in the chart
below. Headlamp bulbs must be marked with
an authorized “D.O.T.” for North America to
make sure they have the proper lamp
performance, light brightness, light pattern,
and safe visibility. The correct bulbs will not
damage the lamp assembly or void the lamp
assembly warranty and will provide quality
bulb illumination time.

392

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Trade name

Function

LED

Headlamp high beam - high series

HID

Headlamp high beam - low series

LED

Headlamp low beam - high series

HID

Headlamp low beam - low series

LED

Side marker lamp - front

LED

Park lamp - front

LED

Signature lamp

LED

Daytime running lamp

LED

Turn lamp - front

LED

Tail and brake lamp

LED

Reverse lamp

LED

Turn lamp - rear

LED

Side marker lamp - rear

LED

License plate lamp

LED

Trunk lamp

393

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Trade name

Function

LED

High-mount brake lamp

LED

Side repeater lamp

LED

Glove compartment lamp

LED

Interior lamp

To replace any bulb, see your authorized dealer.

394

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend

against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•

AM: 530-1710 kHz

•

FM: 87.9-107.9 MHz

Note: Listening to loud audio for long
periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

395

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Audio System

CD and CD Player Information

Note: CD units play commercially pressed
4.7 in (12 cm) audio compact discs only. Due
to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in the
vehicle’s CD player.

Note:  Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD to
become jammed.  You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs.  Ask an
authorized dealer for more information.

Note: Do not use any irregularly shaped
discs or discs with a scratch protection film
attached.

Always handle discs by their edges only.
Clean the disc with an approved CD cleaner
only.  Wipe it from the center of the disc
toward the edge.  Do not clean in a circular
motion.

Do not expose discs to direct sunlight or heat
sources for extended periods.

MP3 and WMA Track and Folder
Structure

Audio systems capable of recognizing and
playing MP3 and WMA individual tracks and
folder structures work as follows:
•

There are two different modes for MP3
and WMA disc playback: MP3 and WMA
track mode (system default) and MP3 and
WMA folder mode.

•

MP3 and WMA track mode ignores any
folder structure on the MP3 and WMA
disc. The player numbers each MP3 and
WMA track on the disc (noted by the MP3
or WMA file extension) from T001 to a
maximum of T255. The maximum number
of playable MP3 and WMA files may be
less depending on the structure of the
CD and exact model of radio present.

•

MP3 and WMA folder mode represents
a folder structure consisting of one level
of folders. The CD player numbers all
MP3 and WMA tracks on the disc (noted
by the MP3 or WMA file extension) and
all folders containing MP3 and WMA files,
from F001 (folder) T001 (track) to F253
T255.

•

Creating discs with only one level of
folders helps with navigation through the
disc files.

If you are burning your own MP3 and WMA
discs, it is important to understand how the
system reads the structures you create. While
various files may be present (files with
extensions other than MP3 and WMA), only
files with the MP3 and WMA extension are
played; other files are ignored by the system.
This enables you to use the same MP3 and
WMA disc for a variety of tasks on your work
computer, home computer and your
in-vehicle system.

396

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Audio System

In track mode, the system displays and plays
the structure as if it were only one level deep
(all MP3 and WMA files play, regardless of
being in a specific folder). In folder mode,
the system only plays the MP3 and WMA files
in the current folder.

AUDIO UNIT

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

E287755

Note: Depending on your vehicle option
package, the controls may look different
from what you see here.

Note:  The touchscreen system controls most
of the audio features.

Adjusting the Volume

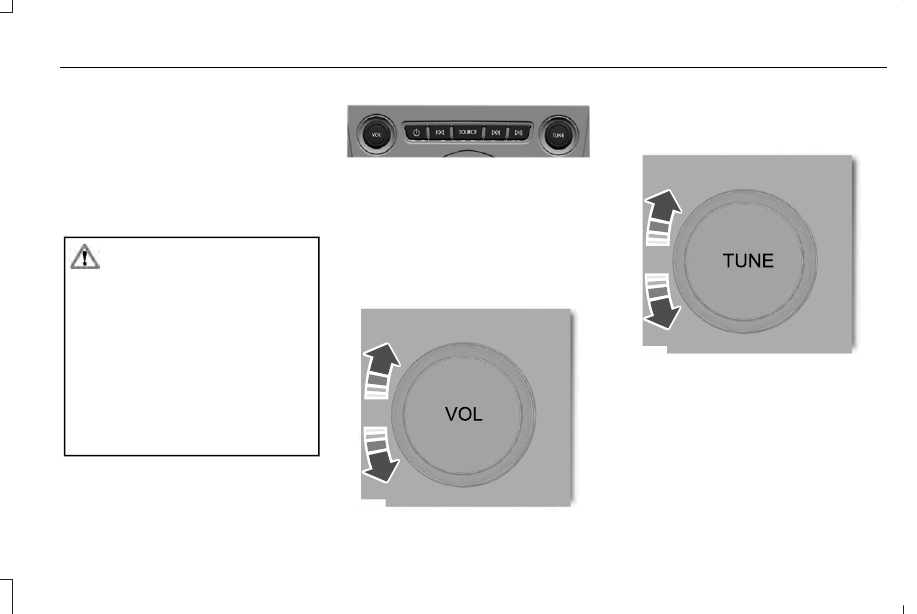

E265373

Turn to adjust the volume.

Changing Radio Stations

E265696

In radio mode, turn to search through the
radio frequency band.

In satellite radio mode, turn to find the
previous or next available satellite radio
station.

397

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Audio System

Ejecting the CD

 (If Equipped)

E265032

Press and release the button to
eject a CD.

Inserting a CD

 (If Equipped)

Insert a CD into the CD slot.

Playing or Pausing Media

 (If Equipped)

Press and release the button to
either play or pause the audio.

Selecting the Audio Modes

E265276

Press and release the button to
access different audio modes, for
example AM, FM and CD.

Switching the Audio Unit On and Off

Press and release the button.

Using Seek, Fast Forward and Reverse

In radio mode, select a frequency band and
press and release either button. The system
stops at the first station it finds in that
direction.

In CD mode, press and release to select the
next or previous track. Press and hold to
move quickly forward or backward through
the current track.

In satellite radio mode, press and release to
select the next or previous satellite radio
station. If you select a specific category, such
as jazz, rock or news, press to find the next
or previous station in the category you select.

USB PORT

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

398

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Audio System

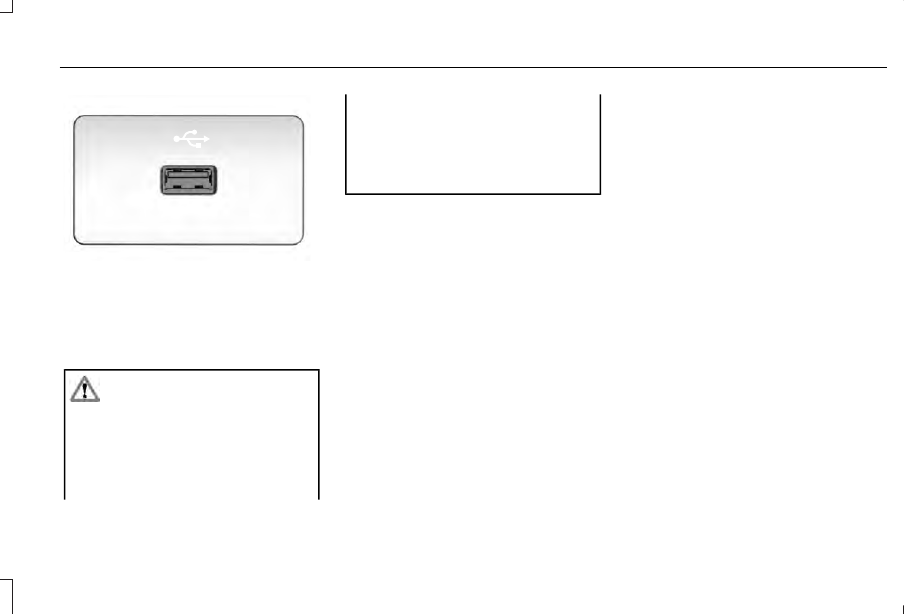

E201595

The USB port allows you to plug in media
playing devices, memory sticks and charge
devices, if supported.

MEDIA HUB

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend

against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

The media hub may be on the instrument
panel or center console.

The media hub may contain one or more of
the following inputs:

See USB Port (page 398).

399

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Audio System

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Getting to Know Your System

The SYNC 3 system allows you to interact
with a variety of features using the
touchscreen and voice commands. By
integrating with your Bluetooth enabled
phone, the touchscreen provides easy
interaction with audio, multimedia, climate
control, navigation, and your phone's SYNC
3 compatible apps.

Using the Touchscreen

To operate the touchscreen, you can simply
touch the item or option that you want to
select. The button changes color when you
select it.

The SYNC 3 layout allows you to quickly
select the feature you wish to use.

400

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

SYNC™ 3

E269856

401

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

SYNC™ 3

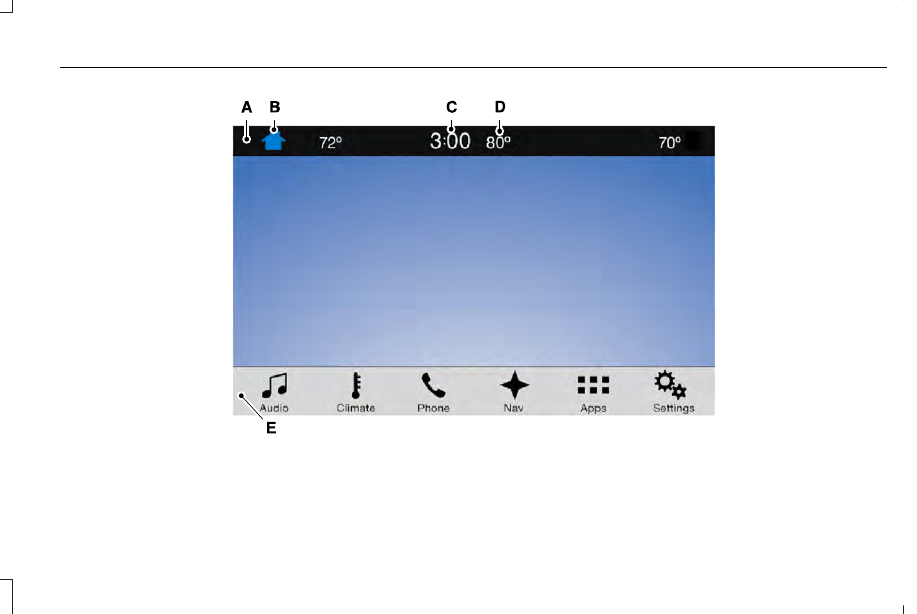

Action and Description

Menu Item

Item

This bar displays icons and messages pertaining to current system activities including climate
settings, voice commands and phone functions such as text messages.

Status Bar

A

This button is available on the main screens. Pressing it takes you to the home screen view.

Home

B

This shows the current time. You can set the clock manually or have it controlled by the vehicle's
GPS location.  See Settings (page 466).

Clock

C

This displays the current outside temperature.

Outside Temperature

D

You can touch any of the buttons on this bar to select a feature.

Feature Bar

E

The touchscreen allows you quick access to
all of your comfort, navigation,
communication and entertainment options.
Using the status and feature bar you can
quickly select the feature you want to use.

Note: Your system is equipped with a feature
that allows you to access and control audio
features for 10 minutes after you switch the
ignition off (and no doors open).

The Status Bar

Additional icons also display in the status bar
depending on market, vehicle options and
current operation. If a feature is not active,
the icon does not display. Certain icons may
move to the left or right depending on what
options are active.

402

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

SYNC™ 3

E270077

i

403

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

SYNC™ 3

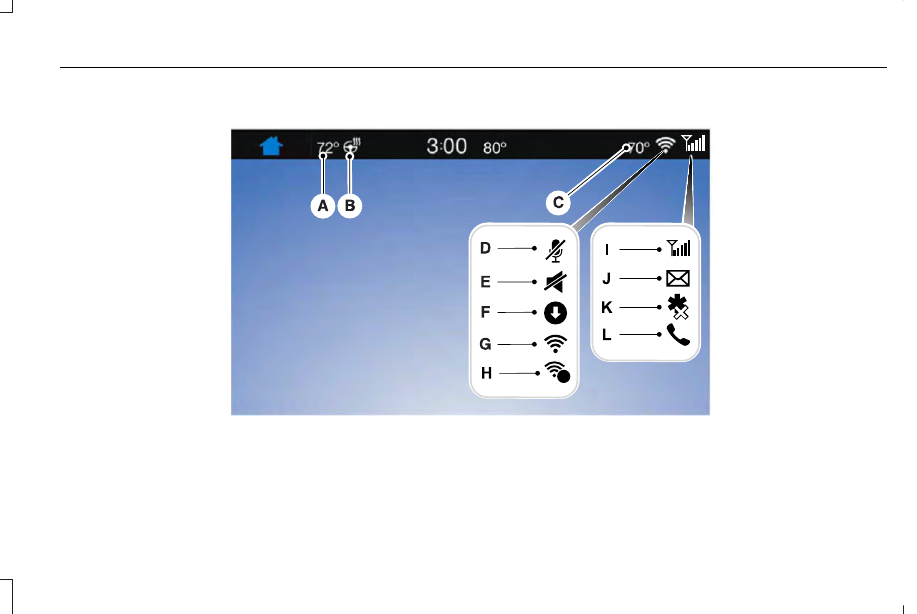

Description

Item

Callout

This shows the temperature the driver selects through the climate control system.

Driver Temperature

A

When you activate the heated steering wheel option on the touch screen, this icon
displays. It only displays when there is not a physical button for the heated steering
wheel.

Heated steering wheel

B

(If equipped)

When the passenger's temperature has been adjusted and is no longer linked to the
driver's temperature, it displays here. If Dual is turned off and the temperatures are
linked, the passenger's temperature does not display.

Passenger Temperature

C

This icon displays when your phone's microphone is muted. A caller cannot hear you.

Microphone Mute

D

This icon displays when the audio system is muted.

Mute

E

This icon appears when SYNC 3 receives a software update. Pressing the icon shows
more details about the new software.

Download

F

This icon appears if a Wi-Fi network is connected.

Wi-Fi

G

An available Wi-Fi network is within range.

Wi-Fi in Range

H

This icon displays the phone signal strength and the roaming signal strength.

Signal Strength

I

This icon displays when you receive a text message on your phone.

Text Message

J

This icon displays when 911 Assist is set to off and your phone is connected to SYNC.

911 Assist Off

K

This icon displays when a phone call is active.

In-Call

L

404

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

SYNC™ 3

Messages may also appear in the status bar
to provide you with notifications. You can

select the message to view the associated
feature.

Feature Bar

Functions

Feature Bar Item

Allows you to control the media playing in your vehicle. You can
control all audio features including AM, FM and satellite radio, CDs,
and media streaming over a Bluetooth device or through a USB
connection.

Audio

Allows you to adjust the temperature, fan speed and airflow within
the vehicle.

Climate

Allows you to make calls, receive calls, and access the phonebook
of your connected device.

Phone

Allows you to see your vehicle's location on a virtual road map, get
driving directions to your destination and find points of interest along
your route.

Navigation

(If equipped)

405

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

SYNC™ 3

Functions

Feature Bar Item

Connect and control SYNC 3 compatible apps running on your iphone
or android device. Also, access built-in additional features such as
SiriusXM Traffic and Travel Link (if equipped).

Apps

If your vehicle is a hybrid, plug-in hybrid, or electric this is also where
your settings and power information is located.

You can customize your system with various settings for the touch-
screen display, feature preferences, and how you want to interact
with your vehicle.

Settings

Cleaning the Touchscreen

You can remove fingerprints with a dry,
clean, soft cloth.

If dirt or fingerprints are still on the screen,
apply a small amount of alcohol to the cloth
and try to clean it again.

Note:  Do not use detergent or any type of
solvent to clean the touchscreen.

Note: Do not pour or spray alcohol onto the
touchscreen.

Using Voice Recognition

Using voice commands allows you to keep
your hands on the wheel and focus on what
is in front of you. The system provides
feedback through audible tones, prompts,
questions and spoken confirmations
depending on the situation and the chosen
level of interaction (voice settings).

The system also asks short questions
(confirmation prompts) when it is not sure of
your request or when there are multiple
possible responses to your request.

When using voice commands, words and
icons may appear in the status bar indicating
the status of the voice command session.
See Using Voice Recognition (page 417).

Accessing and Adjusting Modes
Through Your Vehicle Information
Display

 (If Equipped)

Depending on your vehicle and selected
options you may be able to control some of
the SYNC 3 features on your information
display.

You can make the following adjustments
using the information display SYNC 3 screen:

406

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

SYNC™ 3
