Lincoln MKZ (2019 year). Manual - part 24

Motorcraft part number

Component

SP-537

Spark plugs.

FP-71A

Cabin air filter.

WW-2200 (driver side)

Windshield wiper blade.

WW-1900 (passenger side)

We recommend Motorcraft® replacement parts available at your Lincoln dealer or at fordparts.com for scheduled maintenance. These parts
meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance,
emissions and durability. Your warranty may be void for any damage related to use of other parts.

If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer.  Replace the spark plugs at the appropriate intervals.   See Scheduled Maintenance
(page 509).

375

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

MOTORCRAFT PARTS - 3.0L

Motorcraft part number

Component

FA-1912A

Air filter element

FL-2062

Oil filter

BAGM-94R-H7-800

Battery

SP-542

Spark plugs

FP-71A

Cabin air filter

WW-2200 (driver side)

Windshield wiper blade

WW-1900 (passenger side)

We recommend Motorcraft replacement parts available at your Lincoln dealer or at fordparts.com for scheduled maintenance. These parts
meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance,
emissions and durability. Your warranty may be void for any damage related to use of other parts.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer.  Replace the spark plugs at the appropriate intervals.   See Scheduled Maintenance
(page 509).

376

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

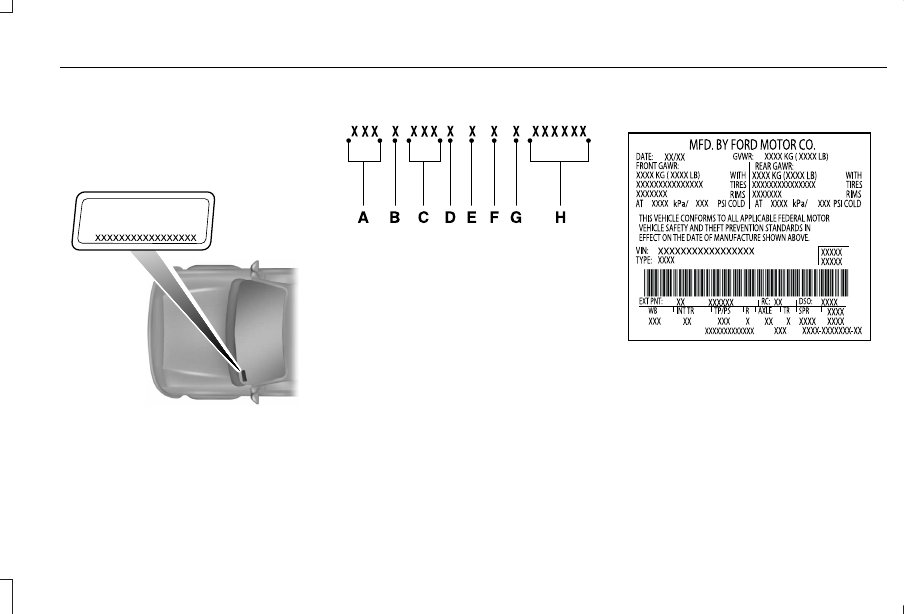

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is located
on the left-hand side of the instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where the
Safety Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post, or
the edge of the door near the door latch,
next to the driver's seating position.

377

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label.  The
following table shows the transmission code
along with the transmission description.

Code

Description

C

Six-speed automatic transmission 6F55

W

Six-speed automatic transmission 6F35

378

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS - 2.0L

Capacities

WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service

the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Item

5.7 qt (5.4 L)

Engine oil (with oil filter).

8.5 qt (8 L)

Engine coolant.

Between MIN/MAX on brake fluid reservoir

Brake fluid.

16.0–20.8 fl oz (473–615 ml)

Rear differential fluid (All Wheel Drive).

15.2 fl oz (450 ml)

1

Power Transfer Unit fluid (All Wheel Drive).

9.0 qt (8.5 L)

2

Automatic transmission fluid.

Fill as required

Windshield washer fluid.

16.5 gal (62.5 L)

Fuel tank (Front Wheel Drive).

18.0 gal (68.1 L)

Fuel tank (All Wheel Drive).

22 oz (0.62 kg)

A/C refrigerant (U.S. and Canada).

379

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Item

24 oz (0.68 kg)

A/C refrigerant (Mexico).

5.24 fl oz (155 ml)

A/C refrigerant compressor oil.

1

Contact an authorized dealer for fluid level checking and filling.

2

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C946-B1

Motor oil (U.S. and Mexico):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil
XO-5W30-QSP

WSS-M2C946-B1

Motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant

380

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Specification

Name

CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear differential fluid (All Wheel Drive) (U.S. and Mexico):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Rear differential fluid (All Wheel Drive) (Canada):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSL-M2C192-A

Power Transfer Unit fluid (All Wheel Drive) (U.S. and Mexico)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Power Transfer Unit fluid (All Wheel Drive) (Canada)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid

381

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Specification

Name

CXT-10-LV12

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSS-M17B21-A

A/C refrigerant (U.S.):
R-1234yf Refrigerant
YN-33-A

WSS-M17B21-A

A/C refrigerant (Canada):
R-1234yf Refrigerant
HS7Z-19B519-BA

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSS-M2C300-A2

A/C refrigerant compressor oil (U.S. and Canada):
Motorcraft® R-1234yf Refrigerant PAG Oil
YN-35

WSH-M1C231-B

A/C refrigerant compressor oil (Mexico):
Motorcraft® PAG Refrigerant Compressor Oil

382

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Specification

Name

YN-12-D

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

--

Lock cylinders (U.S. and Mexico):
Penetrating and Lock Lubricant
XL-1

--

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage, which the vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft motor oil for your
vehicle.  If Motorcraft oil is not available, use
motor oils of the recommended viscosity
grade that meet API SN requirements and
display the API Certification Mark for gasoline
engines.  Do not use oil labeled with API SN
service category unless the label also
displays the API certification mark.

E142732

383

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage not covered by your
vehicle warranty.

Note: We recommend using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.  The
use of any other fluid may cause
transmission damage.

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Specification

Name

WSS-M2C953-A1

Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil:
Engine oil - SAE 0W-30
XO-0W30-QSP

384

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

E240523

CAPACITIES AND SPECIFICATIONS - 3.0L

Capacities

WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service

the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

385

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Capacity

Item

6.0 qt (5.7 L)

Engine oil (with oil filter).

11.4 qt (10.8 L)

Engine coolant (Front Wheel Drive).

11.5 qt (10.9 L)

Engine coolant (All Wheel Drive).

Between MIN/MAX on brake fluid reservoir

Brake fluid.

16.0–20.8 fl oz (473–615 ml)

Rear differential fluid (All Wheel Drive).

15.2 fl oz (450 ml)

1

Power Transfer Unit fluid (All Wheel Drive).

11.6 qt (11 L)

2

Automatic transmission fluid.

Fill as required

Windshield washer fluid.

18.0 gal (68.1 L)

Fuel tank (Front Wheel Drive).

18.0 gal (68.1 L)

Fuel tank (All Wheel Drive).

18 oz (0.51 kg)

A/C refrigerant (U.S. and Canada).

20 oz (0.567 kg)

A/C refrigerant (Mexico).

5.24 fl oz (155 ml)

A/C refrigerant compressor oil.

1

Contact an authorized dealer for fluid level checking and filling.

2

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

386

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Specifications

Materials

Specification

Name

WSS-M2C946-B1

Motor oil (U.S. and Mexico):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil
XO-5W30-QSP

WSS-M2C946-B1

Motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear differential fluid (All Wheel Drive) (U.S. and Mexico):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

387

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Specification

Name

WSP-M2C197-A

Rear differential fluid (All Wheel Drive) (Canada):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSL-M2C192-A

Power Transfer Unit fluid (All Wheel Drive) (U.S. and Mexico)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Power Transfer Unit fluid (All Wheel Drive) (Canada)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
CXT-10-LV12

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

388

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Specification

Name

WSS-M17B21-A

A/C refrigerant (U.S.):
R-1234yf Refrigerant
YN-33-A

WSS-M17B21-A

A/C refrigerant (Canada):
R-1234yf Refrigerant
HS7Z-19B519-BA

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSS-M2C300-A2

A/C refrigerant compressor oil (U.S. and Canada):
Motorcraft® R-1234yf Refrigerant PAG Oil
YN-35

WSH-M1C231-B

A/C refrigerant compressor oil (Mexico):
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

389

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications

Specification

Name

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S. and Mexico):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage, which the vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft motor oil for your
vehicle.  If Motorcraft oil is not available, use
motor oils of the recommended viscosity
grade that meet API SN requirements and
display the API Certification Mark for gasoline
engines.  Do not use oil labeled with API SN
service category unless the label also
displays the API certification mark.

E142732

390

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Capacities and Specifications
