Lincoln MKZ (2019 year). Manual - part 18

E-mail

Fax

Phone

Customer Relationship Center

prcac@ford.com

N/A

+1-800-841-3673

Puerto Rico and U.S. Virgin Islands

ssacrc@ford.com

N/A

N/A

Sub-Saharan Africa

infokr1@ford.com or

infokr@lincoln.com

N/A

+82-02-1600-6003

South Korea

If you buy your vehicle in North America and
then relocate to any of the above locations,
register your vehicle identification number
(VIN) and new address with Ford Global
Trade Services by emailing,
expcso@ford.com.

If you are in another foreign country, contact
the nearest authorized dealer. In the event
your inquiry is unresolved, communicate your
concern with the dealership’s Sales Manager,
Service Manager or Customer Relations
Manager. If you require additional assistance
or clarification, please contact the respective
Customer Relationship Center as previously
listed.

Customers in the U.S. should call
1-800-392-3673.

ORDERING ADDITIONAL OWNER'S
LITERATURE

To order the publications in this portfolio,
contact Helm, Incorporated at:

HELM, INCORPORATED
47911 Halyard Drive
Plymouth, Michigan 48170
Attention: Customer Service

Or to order a free publication catalog, call
toll free: 1-800-782-4356

Monday-Friday 8:00 a.m. - 6:00 p.m. EST

Helm, Incorporated can also be reached by
their website:

www.helminc.com

(Items in this catalog may be purchased by
credit card, check or money order.)

Obtaining a French Owner’s Manual

French Owner’s Manual can be obtained
from your authorized dealer or by contacting
Helm, Incorporated using the contact
information listed previously in this section.

279

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Customer Assistance

REPORTING SAFETY DEFECTS
(U.S. ONLY)

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying Ford
Motor Company.

If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
Ford Motor Company.

To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or write
to:

Administrator

1200 New Jersey Avenue, Southeast

Washington, D.C. 20590

You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.

REPORTING SAFETY DEFECTS
(CANADA ONLY)

If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada and Ford of
Canada.

Transport Canada Contact Information

http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-vehicles.html (English)

Website

http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-automobiles.html (French)

Website

1–800–333–0510

Phone

280

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Customer Assistance

Ford of Canada Contact Information

www.ford.ca

Website

1–800–565-3673

Phone

281

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Customer Assistance

FUSE SPECIFICATION CHART

Power Distribution Box

WARNING: Always disconnect the

battery before servicing high current fuses.

WARNING: To reduce risk of

electrical shock, always replace the cover
to the power distribution box before
reconnecting the battery or refilling fluid
reservoirs.

The power distribution box is in the engine
compartment. It has high-current fuses that
protect your vehicle's main electrical systems
from overloads.

If you disconnect and reconnect the battery,
you need to reset some features.  See
Changing the 12V Battery (page 319).

282

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

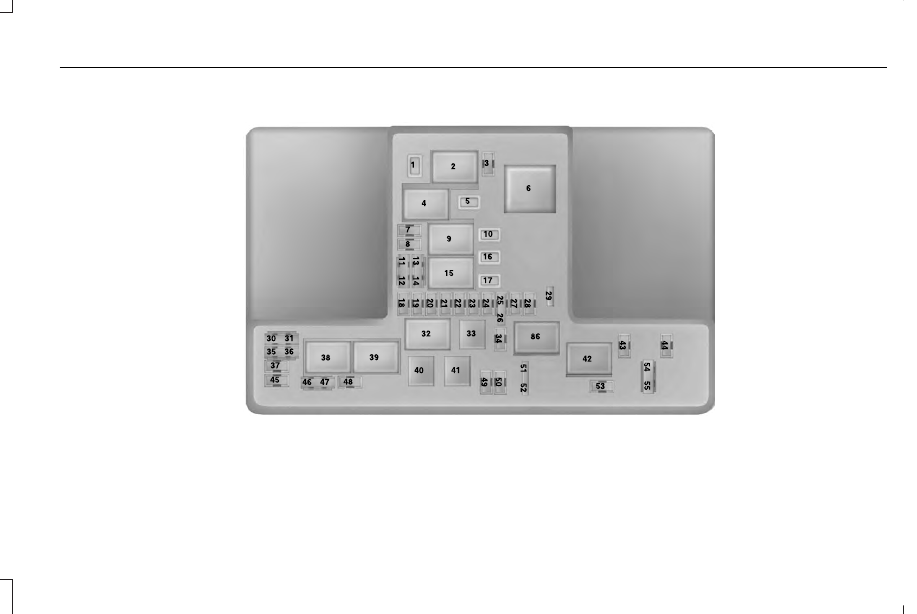

E190797

283

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Moonroof.

30A

1

1

Starter relay.

-

2

Rain sensor.

15A

2

3

Blower motor relay.

-

4

Power point 4 - Back of console.

20A

1

5

Water pump relay.

-

6

Powertrain control module - vehicle power 1.

20A

2

7

Powertrain control module power.

Powertrain control module - vehicle power 2.

20A

2

8

Emissions components.

Powertrain control module relay.

-

9

Power point 1 - driver front.

20A

1

10

Powertrain control module - vehicle power 4.

15A

3

11

Ignition coils.

Powertrain control module - vehicle power 3.

15A

3

12

Non-emissions components.

284

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Vehicle power 5.

10A

2

13

Ignition coils.

Vehicle power 6.

10A

2

14

Ignition coils.

Run-start relay.

-

15

Power point 3 - rear.

20A

1

16

Power point 2 - front.

20A

1

17

Right hand side headlamp ballast.

20A

2

18

Run-start electronic power assist steering.

10A

2

19

Run-start lighting.

10A

2

20

Adaptive cruise control.

Run-start transmission control.

15A

2

21

Transmission oil pump start-stop.

Air conditioner clutch solenoid.

10A

2

22

Run-start: Blind spot information system, Rear view camera,
All-wheel drive (3.0L engine), Heads-up display, shifter.

15A

2

23

Voltage stability module.

285

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

-

24

Run-start anti-lock brake system.

10A

3

25

Run-start powertrain control module.

10A

3

26

Not used.

-

27

Not used.

-

28

MAF (mass air flow).

5A

2

29

Not used.

-

30

Not used.

-

31

Electric fan #1 relay.

-

32

Air conditioner clutch relay.

-

33

Not used.

-

34

Not used.

-

35

Not used.

-

36

Not used.

-

37

Electric fan 2 relay.

-

38

286

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Electric fan coil 2 and 3 relay.

-

39

Horn relay.

-

40

Not used.

-

41

Fuel pump relay coil.

-

42

Not used.

-

43

Left hand side headlamp ballast.

20A

2

44

USB smart charger.

5A

2

45

Not used.

–

46

Not used.

–

47

Not used.

–

48

Keep alive power.

10A

2

49

Horn.

20A

2

50

Not used.

-

51

Not used.

-

52

287

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Multi-contour seats.

10A

2

53

Brake on-off switch.

10A

3

54

Alt sensor.

10A

3

55

Not used.

-

86

1

M Case fuse.

2

Micro 2 fuse.

3

Micro 3 fuse.

Power Distribution Box - Bottom

There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:

288

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

E145983

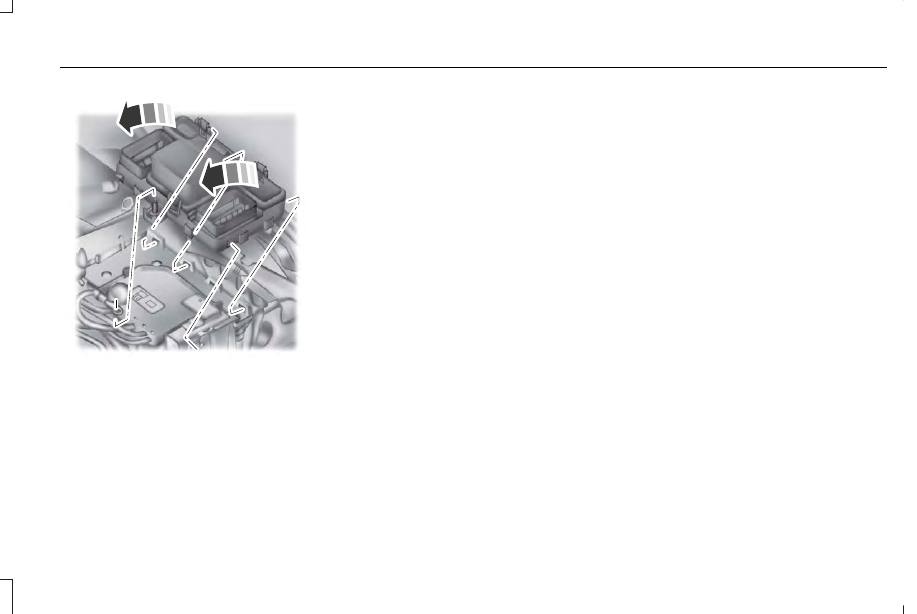

1. Release the two latches, located on both

sides of the fuse box.

2. Raise the inboard side of the fuse box

from the cradle.

3. Move the fuse box toward the center of

the engine compartment.

4. Pivot the outboard side of the fuse box

to access the bottom side.

289

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

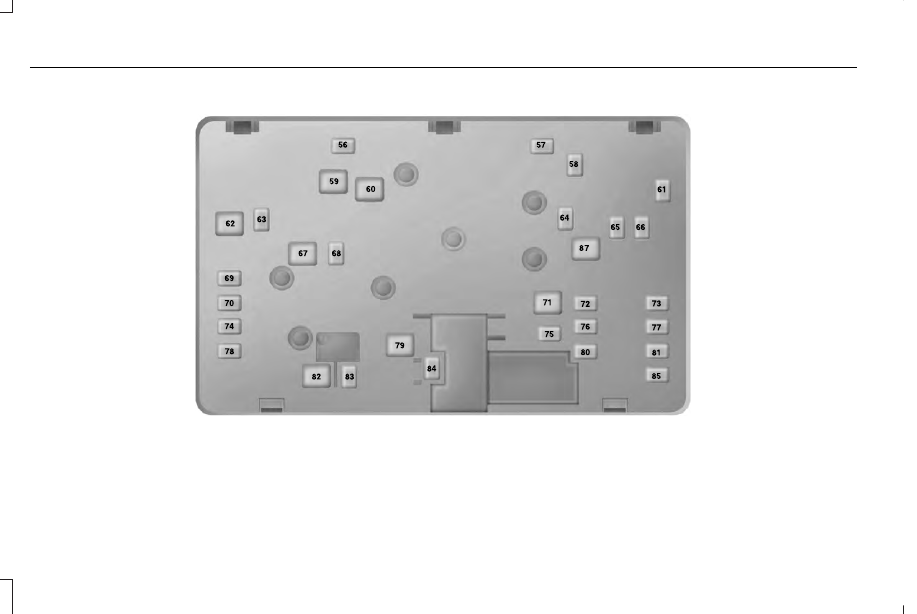

E190798

290

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

-

56

Not used.

-

57

Fuel pump feed.

30A

1

58

Electric fan 3 (2.0L engine).

30A

2

59

Electric fan 3 (3.0L engine).

40A

2

Electric fan 1 (2.0L engine).

30A

2

60

Electric fan 1 (3.0L engine).

40A

2

Not used.

-

61

Body control module 1.

50A

2

62

Electric fan 2 (2.0L engine).

25A

1

63

Electric fan 2 (3.0L engine).

30A

1

All-wheel drive (torque vectoring).

30A

1

64

291

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Front heated seat.

20A

1

65

Not used (spare).

15A

2

66

Body control module 2.

50A

2

67

Heated rear window.

40A

1

68

Anti-lock brake system valves.

30A

1

69

Passenger seat.

30A

1

70

Not used.

-

71

Transmission oil pump.

20A

1

72

Not used (spare).

20A

2

73

Driver seat module.

30A

1

74

Wiper motor 1.

25A

1

75

Power decklid module.

30A

1

76

292

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Front climate controlled seats.

30A

1

77

Not used.

-

78

Blower motor.

40A

2

79

Wiper motor 2.

25A

1

80

Inverter.

40A

1

81

Not used.

–

82

Transmission Range Control Module shifter.

20A

1

83

Starter solenoid.

30A

1

84

Wide open panoramic roof 2.

30A

1

85

Anti-lock brake system pump.

60A

2

87

1

M case fuse.

2

J case fuse.

293

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses

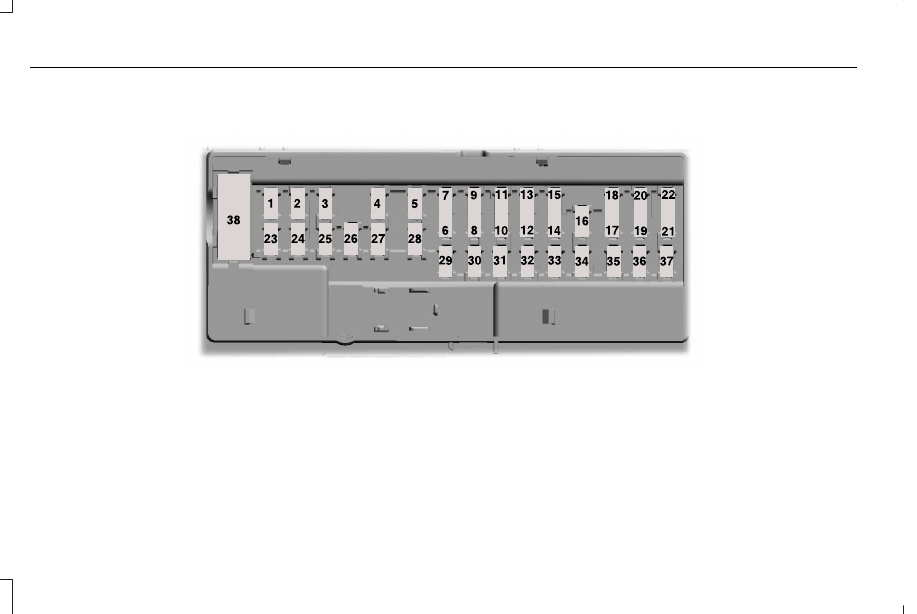

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel
to the left of the steering column.

E145984

294

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Fuses
