If the system detects that your driving
alertness is reduced below a certain
threshold, the system alerts you using a
chime and a message in the information
display.

USING DRIVER ALERT

Switching the System On and Off

Switch the system on or off using the
information display. See General Information
(page 110).

When active, the system monitors your
alertness level based upon your driving
behavior in relation to the lane markings and
other factors.

System Warnings

Note: The system does not issue warnings
below approximately 40 mph (64 km/h).

The warning system has two stages. First,
the system issues a temporary warning that
you need to take a rest. This message only
appears for a short time. If the system
detects further reduction in driving alertness,
it may issue another warning that remains in
the information display for a longer time. You
can press OK on the steering wheel control
to clear the warning.

System Display

When active, the system runs automatically
in the background and only issues a warning
if required. You can view the status at any
time using the information display. See
General Information (page 110).

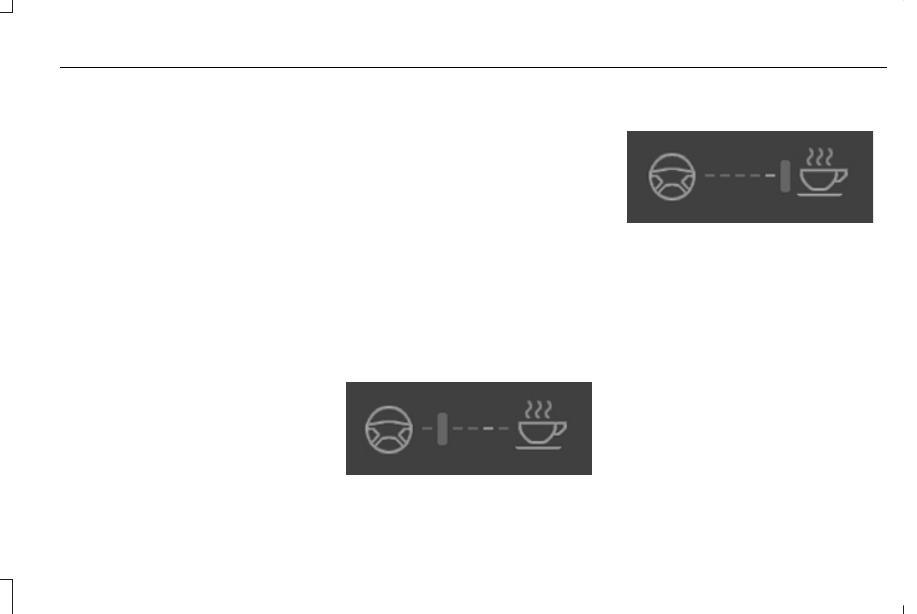

The alertness level is shown by six steps in
a colored bar.

E131358

The current assessment of your alertness is
within a typical range.

E131359

The current assessment of your alertness
indicates that you should rest as soon as
safely possible.

The status bar travels from left to right as the
calculated alertness level decreases. As the
meter approaches the rest icon, the color
turns from green to yellow to red.

The yellow position indicates the first
warning is active and the red position
indicates the second warning is active.

Note: If you have recently received a
warning, you should consider resting, even
if the current assessment is within the typical
range.

231

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

Note: If the camera sensor cannot track the
road lane markings, or if your vehicle speed
drops below approximately 40 mph
(64 km/h), the alertness level changes to
grey for a short time and the information
display informs you that the system is
unavailable.

Resetting the System

You can reset the system by either:

•

Switching the ignition off and on.

•

Stopping the vehicle and then opening
and closing the driver’s door.

LANE KEEPING SYSTEM

 (IF EQUIPPED)

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: Always drive with due

care and attention when using and
operating the controls and features on your
vehicle.

WARNING: In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all limit
sensor performance.

WARNING: The system will not

operate if the sensor cannot track the road
lane markings.

WARNING: The sensor may

incorrectly track lane markings as other
structures or objects. This can result in a
false or missed warning.

WARNING: Large contrasts in outside

lighting can limit sensor performance.

WARNING: The system may not

operate properly if the sensor is blocked.
Keep the windshield free from obstruction.

WARNING: If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING: The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by us.

Note: The system works above 40 mph
(64 km/h).

Note: The system works as long as the
camera can detect one lane marking.

Note: When aid mode is on and the system
detects no steering activity for a short period,
the system alerts you to put your hands on
the steering wheel. The system may detect
a light grip or touch on the steering wheel
as hands off driving.

Note: The system may not function if the
camera is blocked, or if the windshield is
damaged or dirty.

232

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

E249505

When you switch the system on and it
detects an unintentional drift out of your lane
is likely to occur, the system notifies or
assists you to stay in your lane through the
steering system and information display. In
Alert mode, the system provides a warning
by vibrating the steering wheel. In Aid mode,
the system provides steering assistance by
gently counter steering your vehicle back
into the lane.

When the system is functioning in the
combined Alert and Aid mode, the system
first provides steering assistance by gently
counter steering your vehicle back into the
lane, followed by a warning that vibrates the
steering wheel if the vehicle is still out of the
lane markings.

Switching the System On and Off

Note: The system on or off setting is stored
until it is manually changed, unless a MyKey™
is detected. If the system detects a MyKey™,
it defaults to on and the mode is set to alert.

E132099

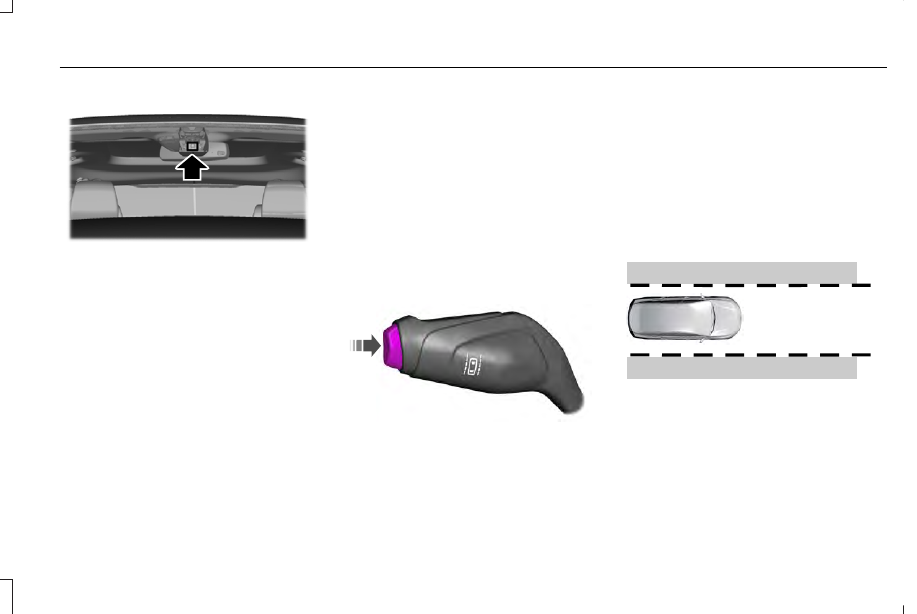

Press the button on the direction indicator
stalk to switch the system on or off.

System Settings

The system has optional setting menus
available. The system stores the last-known
selection for each of these settings. You do
not need to readjust your settings each time
you switch on the system.

Mode: This setting allows you to select which
of the system features you can enable.

E165515

Alert only – Provides a steering wheel
vibration when the system detects an
unintended lane departure.

233

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

E165516

Aid only – Provides steering assistance
toward the lane center when the system
detects an unintended lane departure.

E165517

Alert

A

Aid

B

Alert + Aid – Provides steering assistance
toward the lane center.

If your vehicle continues drifting out of the
lane after the lane keeping aid corrects the
vehicle, the system provides a steering
wheel vibration.

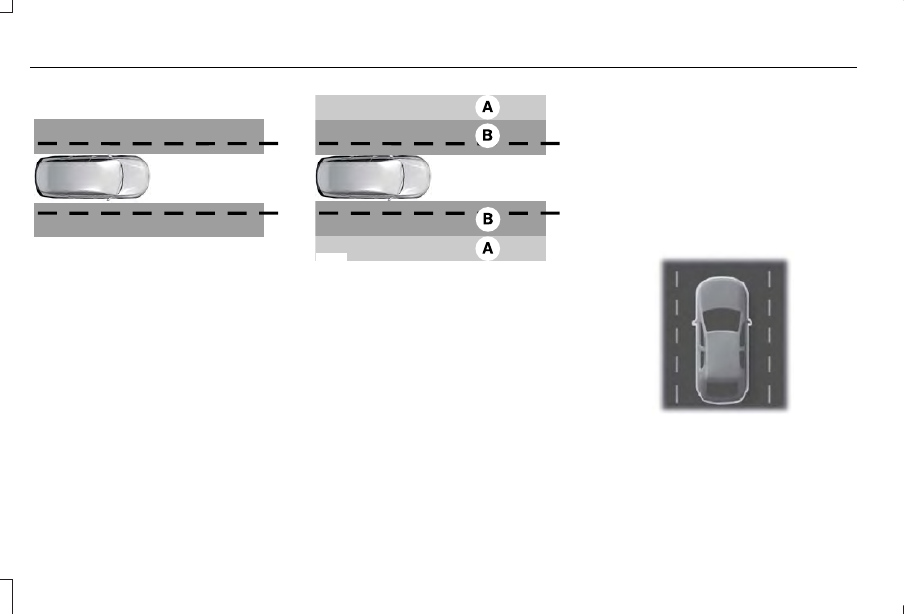

Note: The alert and aid diagrams illustrate
general zone coverage. They do not provide
exact zone parameters.

Intensity: This setting affects the intensity of
the steering wheel vibration used for the alert
and alert + aid modes. This setting does not
affect the aid mode.

•

Low

•

Normal

•

High

System Display

E151660

If you switch the system on in alert mode, an
overhead graphic of a vehicle with lane
markings appears in the information display.

234

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

If you switch the system on in aid or alert and
aid mode, a separate white icon also
appears, or in some vehicles, arrows display
with the lane markings.

When you switch the system off, the lane
marking graphics do not display.

While the system is on, the color of the lane
markings change to indicate the system
status.

Gray: Indicates that the system is temporarily
unable to provide a warning or intervention
on the indicated side. This may be because:

•

Your vehicle is under the activation
speed.

•

The direction indicator is active.

•

Your vehicle is in a dynamic maneuver.

•

The road has no or poor lane markings
in the camera field of view.

•

The camera is obscured or unable to
detect the lane markings due to
environmental, traffic or vehicle
conditions. For example, significant sun
angles, shadows, snow, heavy rain or fog,
following a large vehicle that is blocking
or shadowing the lane, poor headlamp
illumination.

See Troubleshooting for additional
information.

Green: Indicates that the system is available
or ready to provide a warning or intervention,
on the indicated side.

Yellow: Indicates that the system is providing
or has just provided a lane keeping aid
intervention.

Red: Indicates that the system is providing
or has just provided a lane keeping alert
warning.

The system can be temporarily suppressed
at any time by the following:

•

Quick braking.

•

Fast acceleration.

•

Using the direction indicator.

•

Evasive steering maneuver.

•

Driving too close to the lane markings.

Troubleshooting

Why is the feature not available (line markings are gray) when I can see the lane markings on the road?

Your vehicle speed is outside the operational range of the feature.

The sun is shining directly into the camera lens.

A quick intentional lane change has occurred.

235

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

Why is the feature not available (line markings are gray) when I can see the lane markings on the road?

Your vehicle stays too close to the lane markings.

Driving at high speeds in curves.

The last alert warning or aid intervention occurred a short time ago.

Ambiguous lane markings, for example in construction zones.

Rapid transition from light to dark, or from dark to light.

Sudden offset in lane markings.

ABS or AdvanceTrac™ is active.

There is a camera blockage due to dirt, grime, fog, frost or water on the windshield.

You are driving too close to the vehicle in front of you.

Transitioning between no lane markings to lane markings or vice versa.

There is standing water on the road.

Faint lane markings, for example partial yellow lane markings on concrete roads.

Lane width is too narrow or too wide.

The camera has not been calibrated after a windshield replacement.

Driving on tight roads or on uneven roads.

236

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

Why does the vehicle not come back toward the middle of the lane, as expected, in the Aid or Aid + Alert mode?

High cross winds are present.

There is a large road crown.

Rough roads, grooves or shoulder drop-offs.

Heavy uneven loading of the vehicle or improper tire inflation pressure.

The tires have been changed, or the suspension has been modified.

BLIND SPOT INFORMATION
SYSTEM

 (IF EQUIPPED)

WARNING: Do not use the blind spot

information system as a replacement for
using the interior and exterior mirrors or
looking over your shoulder before
changing lanes. The blind spot information
system is not a replacement for careful
driving.

WARNING: The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due care
and attention. Failure to take care may
result in a crash.

A

A

E124788

237

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

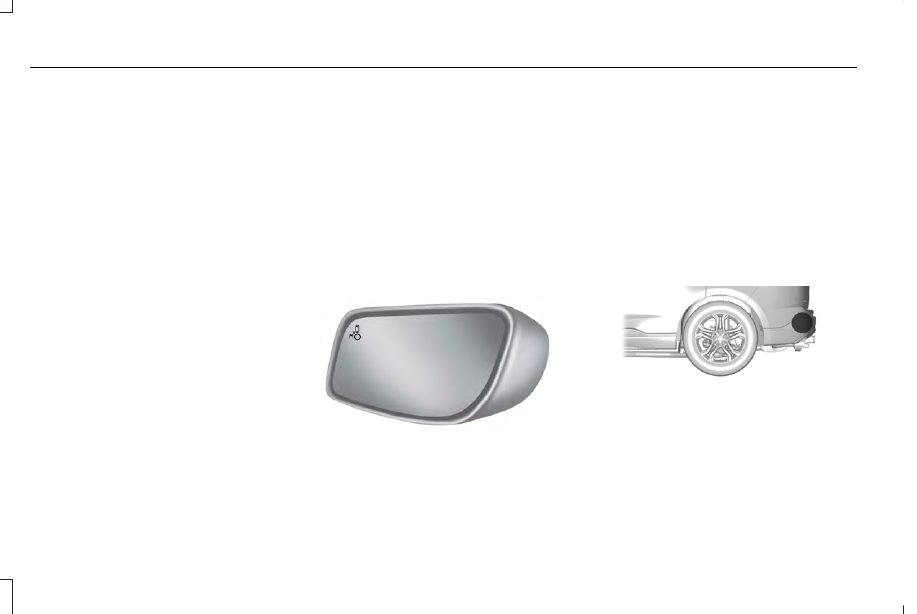

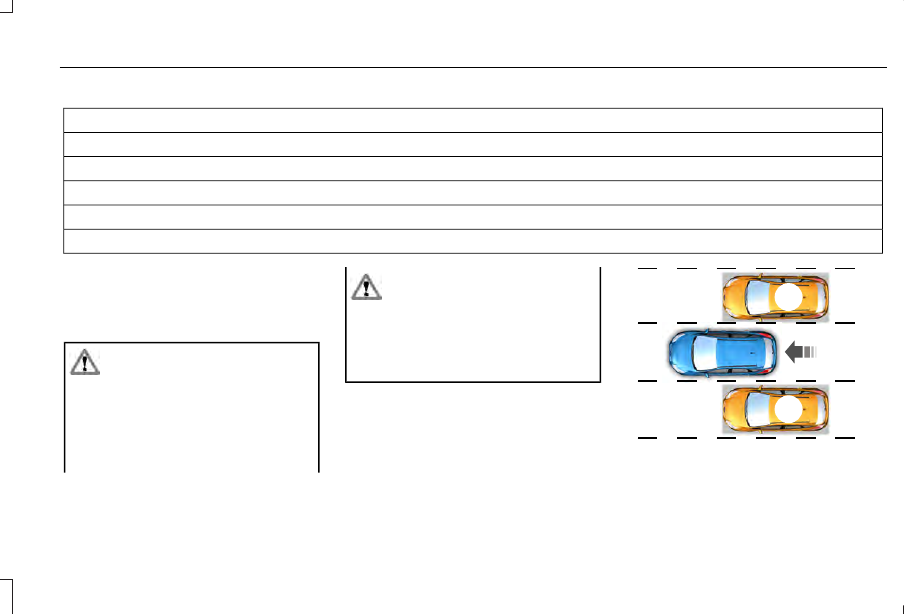

The system is designed to detect vehicles
that may have entered the blind spot zone
(A). The detection area is on both sides of
your vehicle, extending rearward from the
exterior mirrors to approximately 13 ft (4 m)
beyond the rear bumper.

Note: The system does not prevent contact
with other vehicles. It is not designed to
detect parked vehicles, pedestrians, animals
or other infrastructures.

Using the Blind Spot Information
System

Vehicles with Automatic Transmission

The system turns on when all of the following
occur:
•

You start your vehicle.

•

You shift into drive (D).

•

The vehicle speed is greater than 6 mph
(10 km/h).

Note: The system does not operate in park
(P) or reverse (R).

Vehicles with Manual Transmission

The system turns on when all of the following
occur:
•

You start your vehicle.

•

The vehicle speed is greater than 6 mph
(10 km/h).

Note: The system does not operate in
reverse (R).

System Lights and Messages

E142442

When the system detects a vehicle, an alert
indicator illuminates in the exterior mirror on
the side the approaching vehicle is coming
from. If you turn the direction indicator on for
that side of your vehicle, the alert indicator
flashes.

Note: The system may not alert you if a
vehicle quickly passes through the detection
zone.

Blocked Sensors

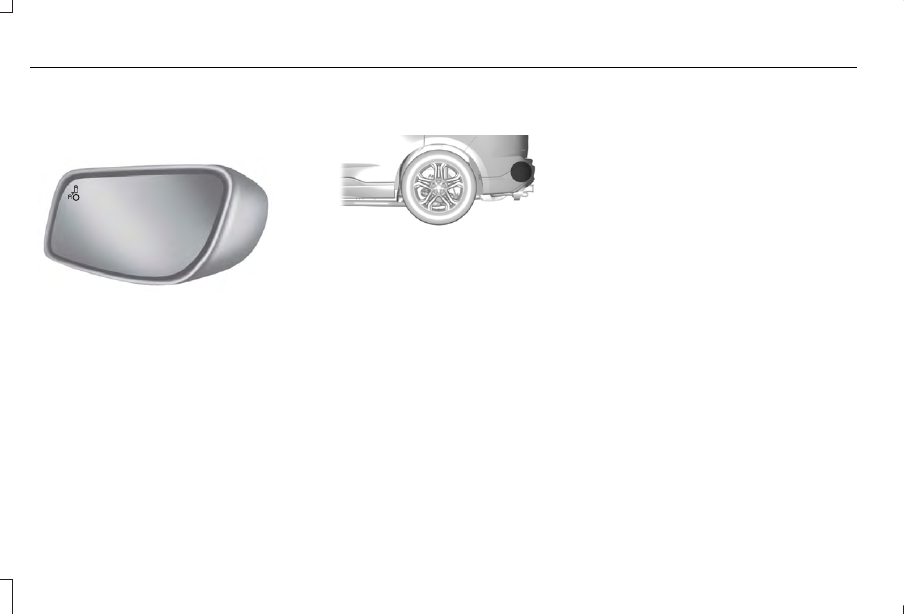

E205199

The sensors are behind the rear bumper on
both sides of your vehicle.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover the sensors with bumper
stickers, repair compound or other objects.

238

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

Note: Blocked sensors could affect system
performance.

If the sensors are blocked, a message may
appear in the information display.  See
Information Messages (page 116).  The alert
indicators remain illuminated but the system
does not alert you.

System Errors

If the system detects a fault, a warning lamp
illuminates and a message displays.  See
Information Messages (page 116).

Switching the System Off and On

You can switch the system off using the
information display.  See General
Information (page 110).  When you switch the
system off, a warning lamp illuminates and
a message displays. When you switch the
system on or off, the alert indicators flash
twice.

Note: The system remembers the last setting
when you start your vehicle.

Note: The system may not correctly operate
when towing a trailer. For vehicles with a
trailer tow module and tow bar approved by
us, the system turns off when you attach a
trailer. For vehicles with an aftermarket
trailer tow module or tow bar, we
recommend that you switch the system off
when you attach a trailer.

To permanently switch the system off,
contact an authorized dealer.

CROSS TRAFFIC ALERT

 (IF EQUIPPED)

WARNING: Do not use the cross

traffic alert system as a replacement for
using the interior and exterior mirrors or
looking over your shoulder before
reversing out of a parking space. The cross
traffic alert system is not a replacement for
careful driving.

WARNING: The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due care
and attention. Failure to take care may
result in a crash.

The system is designed to alert you of
vehicles approaching from the sides when
you shift into reverse (R).

Using the Cross Traffic Alert System

The system is designed to detect vehicles
that approach with a speed up to 37 mph
(60 km/h). Coverage decreases when the
sensors are partially, mostly or fully
obstructed. Slowly reversing helps increase
the coverage area and effectiveness.

The system turns on when you start the
engine and you shift into reverse (R). The
system turns off when you shift out of reverse
(R).

239

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

E142440

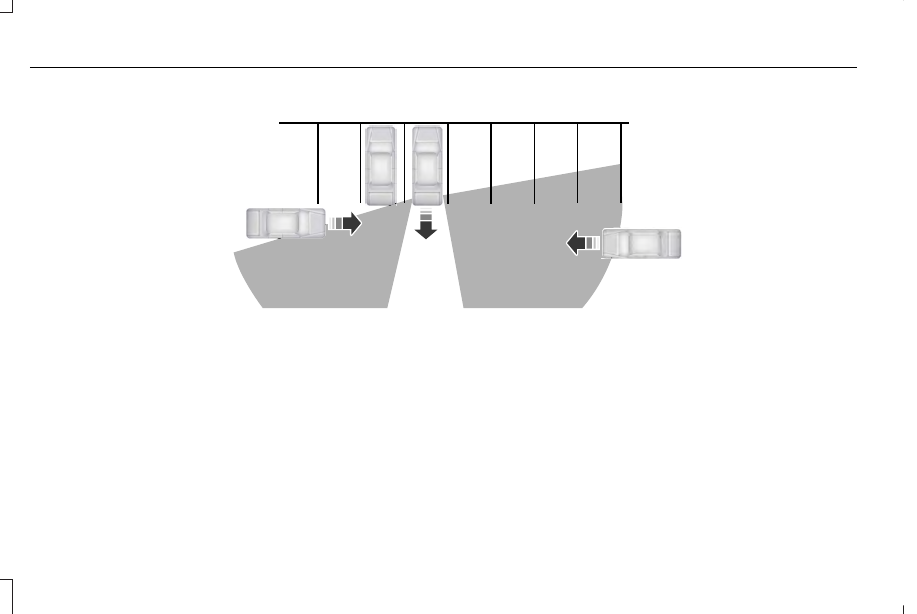

The sensor on the left-hand side is only
partially obstructed and zone coverage on
the right-hand side is maximized.

240

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

E142441

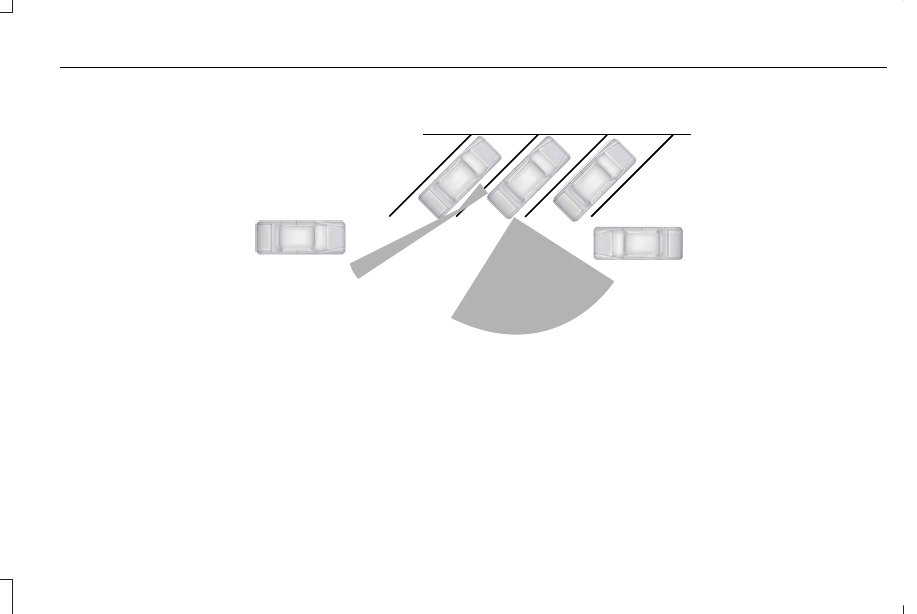

Zone coverage also decreases when parking
at narrow angles. The sensor on the left-hand
side is mostly obstructed and zone coverage
on that side is severely reduced.

241

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

System Lights, Messages and Audible
Alerts

E142442

When the system detects a vehicle, an
indicator illuminates in the exterior mirror on
the side the approaching vehicle is coming
from.  A tone sounds and a message appears
in the information display.

Note: In exceptional conditions, the system
could alert you even when there is nothing
in the detection zone, for example a vehicle
passing in the distance.

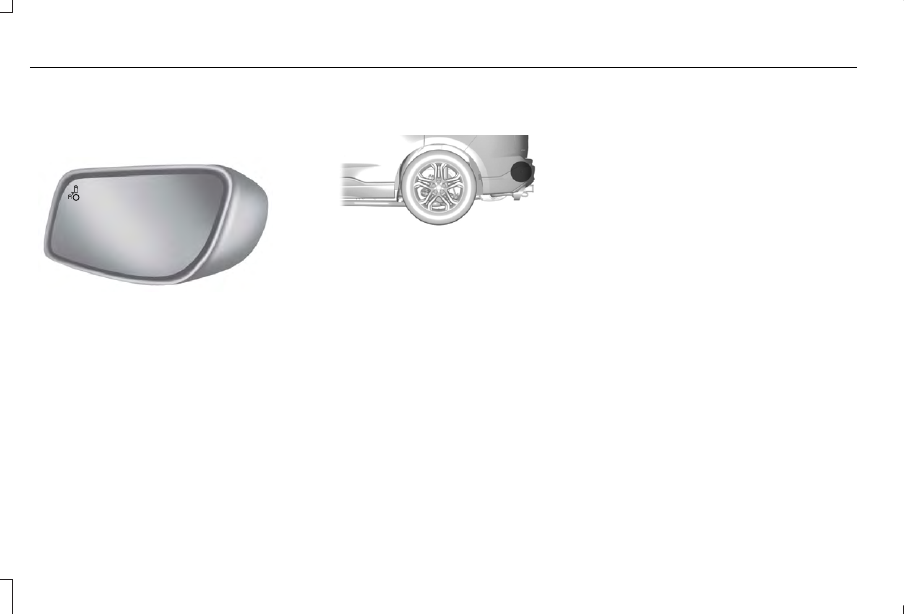

Blocked Sensors

E205199

The sensors are behind the rear bumper on
both sides of your vehicle.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover the sensors with bumper
stickers, repair compound or other objects.

Note: Blocked sensors could affect system
performance.

If the sensors are blocked, a message may
appear in the information display when you
shift into reverse (R).  See Information
Messages (page 116).

System Limitations

The system may not correctly operate when
any of the following occur:
•

The sensors are blocked.

•

Adjacently parked vehicles or objects are
obstructing the sensors.

•

Vehicles approach at speeds greater
than 37 mph (60 km/h).

•

The vehicle speed is greater than 7 mph
(12 km/h).

•

You reverse out of an angled parking
space.

System Errors

If the system detects a fault a message
displays.  See Information Messages (page
116).

Switching the System Off and On

You can temporarily switch the system off
using the information display.  See
Information Messages (page 116).  When you
switch system off, a message displays. See
Information Messages (page 116).

242

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

Note: The system turns on each time you
switch the ignition on and you shift into
reverse (R). If you temporarily switch the
system off, it turns on the next time you
switch the ignition on.

Note: The system may not correctly operate
when towing a trailer. For vehicles with a
trailer tow module and tow bar approved by
us, the system turns off when you attach a
trailer. For vehicles with an aftermarket
trailer tow module or tow bar, we
recommend that you switch the system off
when you attach a trailer.

To permanently switch the system off,
contact an authorized dealer.

STEERING

Electric Power Steering

WARNING: If the system detects an

error, you may not feel a difference in the
steering, however a serious condition may
exist. Have your vehicle checked as soon
as possible. Failure to do so may result in
loss of steering control.

Your vehicle has an electric power steering
system, there is no fluid reservoir, no
maintenance is required.

If your vehicle loses electrical power while
you are driving, electric power steering
assistance is lost. The steering system still
operates and you can steer your vehicle
manually. Manually steering your vehicle
requires more effort.

Extreme continuous steering may increase
the effort required for you to steer your
vehicle, this increased effort prevents
overheating and permanent damage to the
steering system. You do not lose the ability
to steer your vehicle manually. Typical
steering and driving maneuvers allow the
system to cool and return to normal
operation.

Steering Tips

If the steering wanders or pulls, check for:
•

Correct tire pressures.

•

Uneven tire wear.

•

Loose or worn suspension components.

•

Loose or worn steering components.

•

Improper vehicle alignment.

Note: A high crown in the road or high
crosswinds may also make the steering
seem to wander or pull.

243

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

Adaptive Learning

The electronic power steering system
adaptive learning helps correct road
irregularities and improves overall handling
and steering feel. It communicates with the
brake system to help operate advanced
stability control and accident avoidance
systems. Additionally, whenever the battery
is disconnected or a new battery installed,
you must drive your vehicle a short distance
before the system relearns the strategy and
reactivates all systems.

PRE-COLLISION ASSIST

 (IF EQUIPPED)

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: The system does not

detect vehicles that are driving in a
different direction, pedestrians at night,
cyclists or animals. Failure to take care may
result in the loss of control of your vehicle,
serious personal injury or death.

WARNING: The system does not

operate during hard acceleration or
steering. Failure to take care may lead to
a crash or personal injury.

WARNING: The system may fail or

operate with reduced function during cold
and severe weather conditions. Snow, ice,
rain, spray and fog can adversely affect the
system. Keep the front camera and radar
free of snow and ice. Failure to take care
may result in the loss of control of your
vehicle, serious personal injury or death.

WARNING: In situations where the

vehicle camera has limited detection
capability, this may reduce system
performance. These situations include but
are not limited to direct or low sunlight,
vehicles at night without tail lights,
unconventional vehicle types, pedestrians
with complex backgrounds, running
pedestrians, partly obscured pedestrians,
or pedestrians that the system cannot
distinguish from a group. Failure to take
care may result in the loss of control of
your vehicle, serious personal injury or
death.

WARNING: The system cannot help

prevent all crashes. Do not rely on this
system to replace driver judgment and the
need to maintain a safe distance and
speed.

244

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

Using the Pre-Collision Assist System

The Pre-Collision Assist system is active at
speeds above approximately 3 mph (5 km/h)
and pedestrian detection is active at speeds
up to 50 mph (80 km/h).

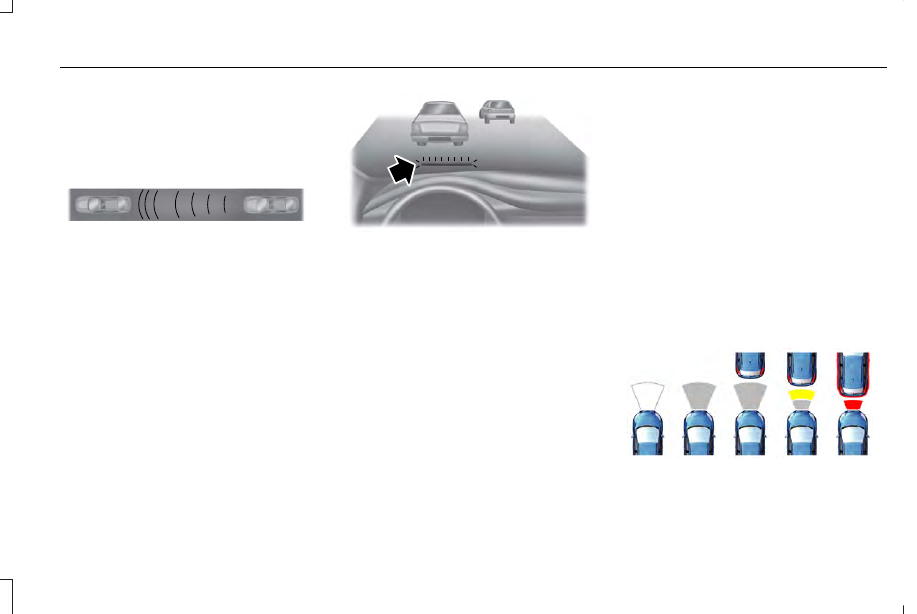

E156130

If your vehicle is rapidly approaching another
stationary vehicle, a vehicle traveling in the
same direction as yours, or a pedestrian
within your driving path, the system is
designed to provide three levels of
functionality:

1. Alert

2. Brake Support

3. Active Braking

E156131

Alert: When active, a flashing visual warning
appears and an audible warning tone
sounds.

Brake Support: The system is designed to
help reduce the impact speed by preparing
the brakes for rapid braking. The system
does not automatically apply the brakes. If
you press the brake pedal, the system could
apply additional braking up to maximum
braking force, even if you lightly press the
brake pedal.

Active Braking: Active braking may activate
if the system determines that a collision is
imminent. The system may help the driver
reduce impact damage or avoid the crash
completely.

Note: If you perceive Pre-Collision Assist
alerts as being too frequent or disturbing,
then you can reduce the alert sensitivity,
though the manufacturer recommends using
the highest sensitivity setting where possible.
Setting lower sensitivity would lead to fewer
and later system warnings.

Distance Indication and Alert

Distance Indication and Alert is a function
that provides a graphical indication of the
time gap to other preceding vehicles
traveling in the same direction. The Distance
Indication and Alert screen in the information
display shows a graphic similar to the one
that follows.

E190004

If the time gap to a preceding vehicle is
small, a red visual indication displays.

245

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids

Note: Distance Indication and Alert
deactivates and the graphics do not display
when adaptive cruise control is active.

Time Gap

Distance Gap

Graphics

Sensitivity

Speed

>0.9sec

>82 ft (25 m)

Grey

Normal

62 mph (100 km/h)

0.6sec — 0.9sec

56–82 ft (17–25 m)

Yellow

Normal

62 mph (100 km/h)

<0.6sec

<56 ft (17 m)

Red

Normal

62 mph (100 km/h)

Adjusting the Pre-Collision Assist
Settings

You can adjust the following settings by
using the information display controls. See
General Information (page 110).
•

You can change Alert and Distance Alert
sensitivity to one of three possible
settings.

•

You can switch Distance Indication and
Alert on or off.

•

If required, you can switch Active Braking
on or off.

Note: Active braking automatically turns on
every time you switch the ignition on.

246

MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing

Driving Aids
