Specification

Name

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

-

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

391

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN requirements and display the API
Certification Mark for gasoline engines.  Do
not use oil labeled with API SN service
category unless the label also displays the
API certification mark.

E142732

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other materials
may result in brake system damage and
possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.  The
use of any other fluid may cause
transmission damage.

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

392

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

Materials

Specification

Name

WSS-M2C953-A1

Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil:
Engine oil - SAE 0W-30
XO-0W30-QSP

E240523

CAPACITIES AND SPECIFICATIONS - 3.7L

393

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air
conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

6.0 qt (5.7 L)

Engine oil (with oil filter)

11.7 qt (11.1 L)

Engine coolant

Between MIN/MAX on brake fluid reservoir

Brake fluid

2.4 pt (1.15L)

Rear differential fluid (All Wheel Drive)

11.8 fl oz (0.35 L)

Power Transfer Unit (PTU) fluid (All Wheel Drive)

11.0 qt (10.4 L) *

Automatic transmission fluid

Fill as required

Windshield washer fluid

18.4 gal (69.5 L)

Fuel tank (Front wheel drive)

18.5 gal (70 L)

Fuel tank (All wheel drive)

24.0 oz (0.68 kg)

A/C refrigerant

5.2 fl oz (155 ml)

A/C refrigerant compressor oil

*Approximate dry fill capacity. Actual amount may vary during fluid changes.

394

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

Specifications

Materials

Specification

Name

WSS-M2C945-A

Recommended motor oil (U.S.):
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP

WSS-M2C945-A

Recommended motor oil (Canada):
Motorcraft® SAE 5W-20 Super Premium Motor Oil
CXO-5W20-LSP12

WSS-M2C945-A

Recommended motor oil (Mexico):
Motorcraft® SAE 5W-20 Synthetic Motor Oil
MXO-5W20-QSP

WSS-M2C945-A

Optional motor oil (U.S. and Mexico):
Motorcraft® SAE 5W-20 Full Synthetic Motor Oil
XO-5W20-QFS

WSS-M2C945-A

Optional motor oil (Canada):
Motorcraft® SAE 5W-20 Synthetic Motor Oil
CXO-5W20-LFS12

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

395

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

Specification

Name

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear differential (All Wheel Drive) fluid (U.S. and Mexico):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Rear differential (All Wheel Drive) fluid (Canada):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (All Wheel Drive):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
CXT-10-LV12

396

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

Specification

Name

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
Motorcraft® R-134a Refrigerant
CYN-16-R

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

397

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

Specification

Name

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

-

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN requirements and display the API
Certification Mark for gasoline engines.  Do
not use oil labeled with API SN service
category unless the label also displays the
API certification mark.

E142732

398

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other materials
may result in brake system damage and
possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.  The
use of any other fluid may cause
transmission damage.

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C947-A

Motorcraft® SAE 0W-20 Premium Synthetic Blend Motor Oil:
Engine oil - SAE 0W-20
XO-0W20-QSP

399

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

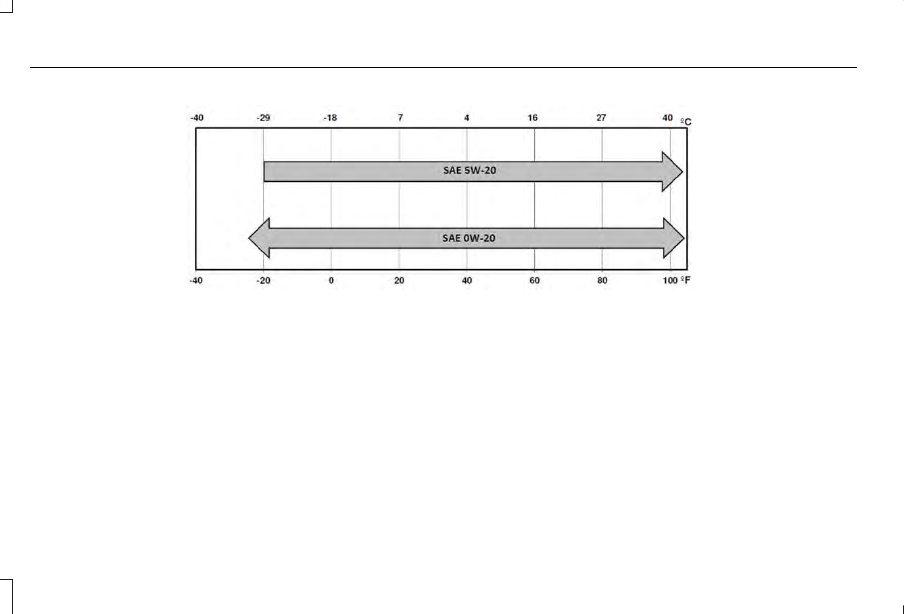

E240522

400

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

GENERAL INFORMATION

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•

AM: 530-1710 kHz

•

FM: 87.9-107.9 MHz

Note: Listening to loud audio for long
periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

CD and CD Player Information

Note: CD units play commercially pressed
4.7 in (12 cm) audio compact discs only. Due
to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players.

Note:  Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD to
become jammed.  You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs.  Ask an
authorized dealer for more information.

Note: Do not use any irregularly shaped
discs or discs with a scratch protection film
attached.

Always handle discs by their edges only.
Clean the disc with an approved CD cleaner
only.  Wipe it from the center of the disc
toward the edge.  Do not clean in a circular
motion.

401

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Audio System

Do not expose discs to direct sunlight or heat
sources for extended periods.

MP3 and WMA Track and Folder
Structure

Audio systems capable of recognizing and
playing MP3 and WMA individual tracks and
folder structures work as follows:
•

There are two different modes for MP3
and WMA disc playback: MP3 and WMA
track mode (system default) and MP3 and
WMA folder mode.

•

MP3 and WMA track mode ignores any
folder structure on the MP3 and WMA
disc. The player numbers each MP3 and
WMA track on the disc (noted by the MP3
or WMA file extension) from T001 to a
maximum of T255. The maximum number
of playable MP3 and WMA files may be
less depending on the structure of the
CD and exact model of radio present.

•

MP3 and WMA folder mode represents
a folder structure consisting of one level
of folders. The CD player numbers all
MP3 and WMA tracks on the disc (noted
by the MP3 or WMA file extension) and
all folders containing MP3 and WMA files,
from F001 (folder) T001 (track) to F253
T255.

•

Creating discs with only one level of
folders helps with navigation through the
disc files.

If you are burning your own MP3 and WMA
discs, it is important to understand how the
system reads the structures you create. While
various files may be present (files with
extensions other than MP3 and WMA), only
files with the MP3 and WMA extension are
played; other files are ignored by the system.
This enables you to use the same MP3 and
WMA disc for a variety of tasks on your work
computer, home computer and your
in-vehicle system.

In track mode, the system displays and plays
the structure as if it were only one level deep
(all MP3 and WMA files play, regardless of
being in a specific folder). In folder mode,
the system only plays the MP3 and WMA files
in the current folder.

AUDIO UNIT

WARNING

Driving while distracted can result in
loss of vehicle control, crash and injury.

We strongly recommend that you use
extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

Note: The touchscreen system controls most
of the audio features.

402

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Audio System

Note: Some features, such as satellite radio,
may not be available in your location. Check
with an authorized dealer.

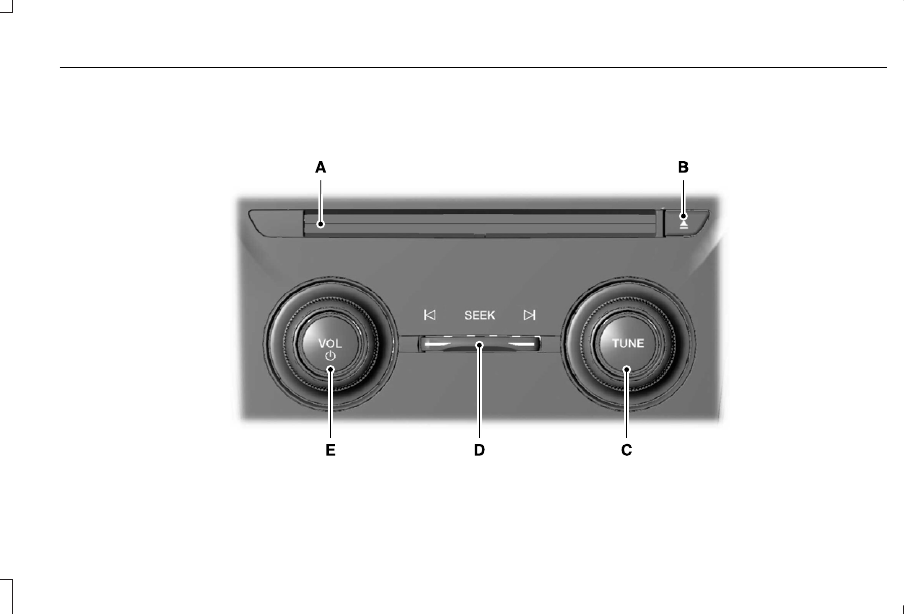

E245593

403

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Audio System

CD slot.

A

CD eject.

B

Tune.

C

Seek, fast forward and reverse.

D

Vol and power.

E

Tune

In radio mode, turn to search through the
radio frequency band. In satellite radio mode,
turn to find the previous or next available
satellite radio station.

Seek, Fast Forward and Reverse

In radio mode, select a frequency band and
press either button. The system stops at the
first station it finds in that direction. In CD
mode, press to select the next or previous
track. Press and hold to move quickly
forward or backward through the current
track. In satellite radio mode, press to select
the next or previous satellite radio station. If
you select a specific category (such as jazz,
rock or news), press to find the next or
previous station in the category you select.

Volume and Power

Turn to adjust the volume.  Press to switch
the system on and off.

USB PORT

WARNING

Driving while distracted can result in
loss of vehicle control, crash and injury.

We strongly recommend that you use
extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

E205592

The USB port allows you to plug in media
playing devices, memory sticks and charge
devices (if supported). See your SYNC
information.

404

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Audio System

GENERAL INFORMATION

WARNING

Driving while distracted can result in
loss of vehicle control, crash and injury.

We strongly recommend that you use
extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

Getting to Know Your System

The SYNC 3 system allows you to interact
with a variety of features using the
touchscreen and voice commands. By
integrating with your Bluetooth-enabled
phone, the touchscreen provides easy
interaction with audio, multimedia, climate
control, navigation, and your phone's SYNC
3 compatible apps.

Using the Touchscreen

To operate the touchscreen, you can simply
touch the item or option that you want to
select. The button changes color when you
select it.

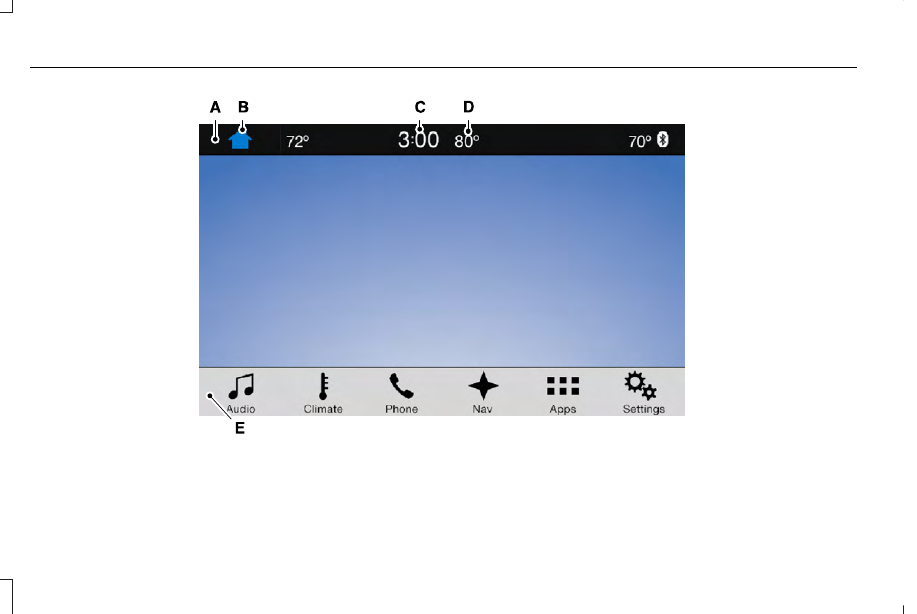

The SYNC 3 layout allows you to quickly
select the feature you wish to use.

405

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

SYNC™ 3

E205444

406

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

SYNC™ 3
