Lincoln MKX (2018 year). Manual - part 24

•

Wet weather driving capability.

•

All-wheel driving capability.

When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•

Towing a trailer.

•

Driving vehicles equipped with a camper
body.

•

Driving vehicles with a load on the cargo
rack.

Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly and
seek service as soon as possible.

Tire Change Procedure

WARNINGS

When one of the front wheels is off the
ground, the transmission alone will not

prevent the vehicle from moving or slipping
off the jack, even if the transmission is in park
(P).

WARNINGS

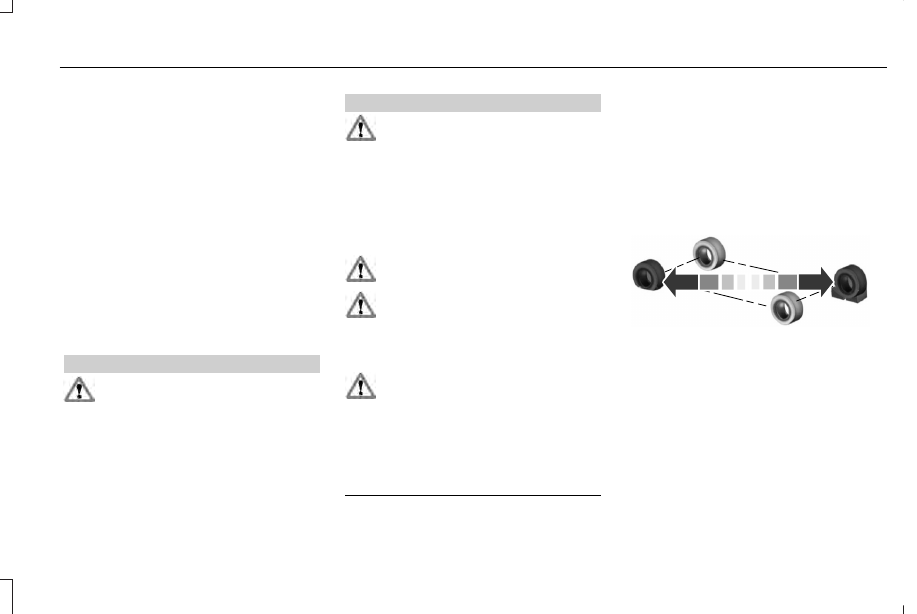

To help prevent your vehicle from
moving when changing a wheel, shift

the transmission into park (P), set the parking
brake and use an appropriate block or wheel
chock to secure the wheel diagonally
opposite to the wheel being changed. For
example, when changing the front left wheel,
place an appropriate block or wheel chock
on the right rear wheel.

Do not get under a vehicle that is only
supported by a vehicle jack.

Do not attempt to change a tire on the
side of the vehicle close to moving

traffic. Pull far enough off the road to avoid
the danger of being hit when operating the
jack or changing the wheel.

Always use the jack provided as
original equipment with your vehicle.

If using a jack other than the one provided,
make sure the jack capacity is adequate for
the vehicle weight, including any vehicle
cargo or modifications. If you are unsure if
the jack capacity is adequate, contact the
authorized dealer.

Note: Passengers should not remain in your
vehicle when the vehicle is being jacked.

1. Park on a level surface, set the parking

brake and activate the hazard flashers.

2. Place the transmission in park (P) and

turn the engine off.

E175447

3. Block both the front and rear of the wheel

diagonally opposite the flat tire. For
example, if the left front tire is flat, block
the right rear wheel.

4. Lift and remove the carpeted load floor

panel to access the mini-spare and jack
kit.

375

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Wheels and Tires

5. Remove the steel winged washer nut

securing the spare tire by turning it
counterclockwise.

6. Remove the spare tire from the spare tire

compartment.

7. Remove plastic wing nut and jack and

lug wrench assembly. Detach lug wrench
from jack by turning the jack hex nut
drive screw counterclockwise.

8. Loosen each wheel lug nut one-half turn

counterclockwise, but do not remove
them until the wheel is raised off the
ground.

E242877

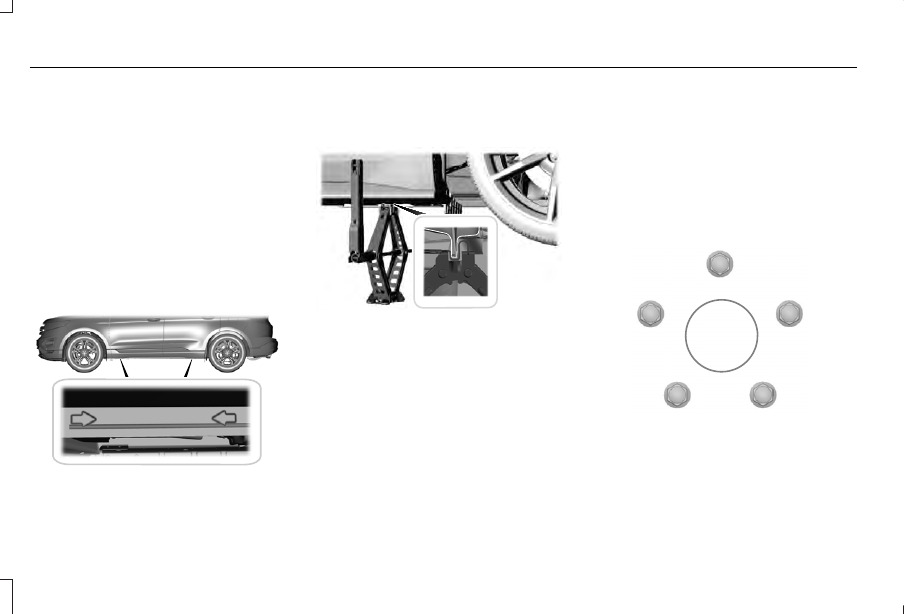

9. The vehicle jacking points are depicted

by arrows on the underside of the vehicle
at the locations shown above.

E201100

10.

Find the arrows embossed on the
vehicle downward flange next to the
tire you are changing. Position the jack
so that the vehicle downward flange
rests in the jack saddle flange between
the arrows, as shown above.  Raise the
vehicle by using the lug wrench to turn
the jack nut clockwise.  Once the flat
tire is raised above the ground, remove
the lug nuts with the lug wrench.

11.

Replace the flat tire with the spare tire,
making sure the valve stem is facing
outward. Reinstall the lug nuts until the
wheel is snug against the hub. Do not
fully tighten the lug nuts until the wheel
has been lowered.

12.

Lower the wheel by turning the jack
handle counterclockwise.

1

2

3

4

5

E75442

13.

Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page 378).

376

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Wheels and Tires

14.

Fold up the wrench/jack handle and
re-attach to the jack. Re-position
jack/wrench assembly into the original
vehicle position and secure with the
plastic wing nut. Make sure the jack is
fastened securely before you drive.

15.

Unblock the wheel.

Stowing the flat tire

You cannot store the full-sized road wheel
in the temporary spare tire well.

1. Find the flat tire retainer strap tucked

inside the jack channel. Lower the
carpeted load floor.

2. Stow the flat tire in the cargo area on the

load floor with the wheel facing up.
Secure the flat tire with the retainer strap
by following the next steps.

E142906

3. Locate the rear left side and right side

cargo tie-down rings. Push the loop end
of the retainer strap through one cargo
tie-down ring. Thread the non-loop end
through the loop.

4. Weave the retainer strap through the

wheel openings.

5. Locate the cargo tie-down in the opposite

rear corner of the cargo area. Thread the
retainer strap though the tie-down and
pull tight.

E143746

377

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Wheels and Tires

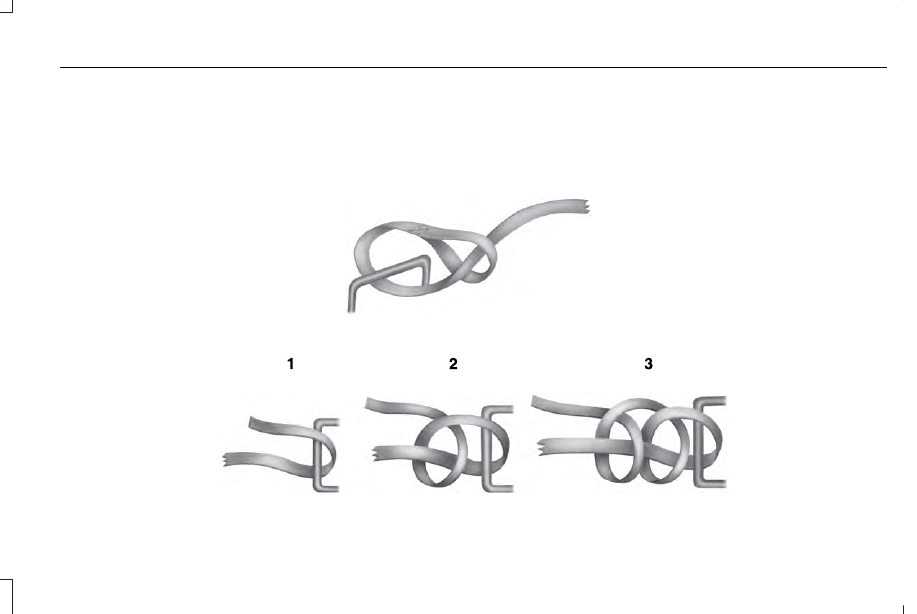

6. Secure the flat tire by tying a 2-half hitch

knot.

TECHNICAL SPECIFICATIONS

Wheel Lug Nut Torque Specifications

WARNING

When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure that any fasteners that attach the rotor to the

hub are secured so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal contact at
the wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting in loss
of control.

 lb.ft (Nm)*

Bolt size

162 lb.ft (220 Nm)

M14 x 1.5

*Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners.

Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance (such as tire rotation, changing a
flat tire, wheel removal).

378

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Wheels and Tires

E145950

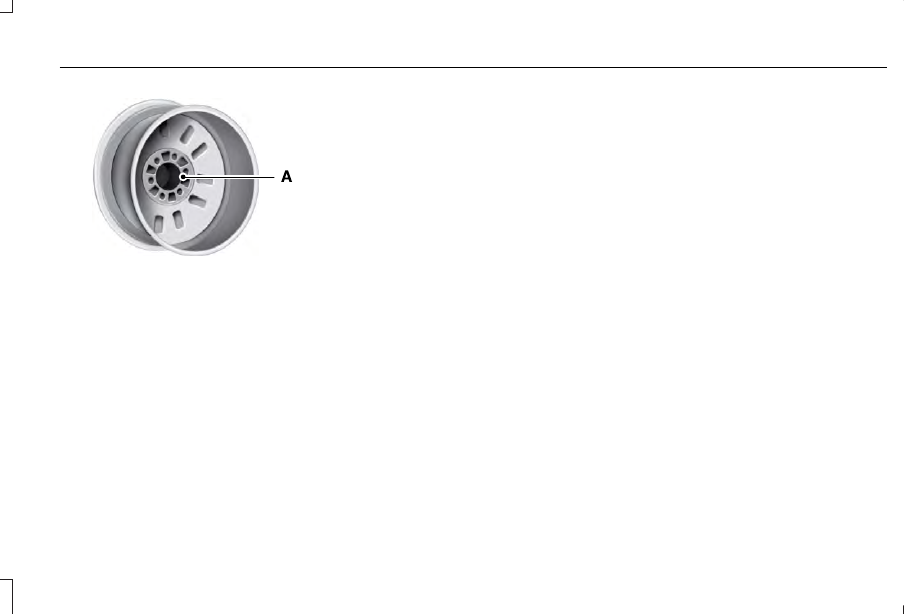

Wheel pilot bore

A

Inspect the wheel pilot hole and mounting
surface prior to installation. Remove any
visible corrosion or loose particles.

379

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Wheels and Tires

ENGINE SPECIFICATIONS - 2.7L

Specification

Measurement

164

Cubic inches

Minimum 87 octane

Required fuel

1-4-2-5-3-6

Firing order

10.0:1

Compression ratio

0.028-0.031 in. (0.7 - 0.8 mm)

Spark plug gap

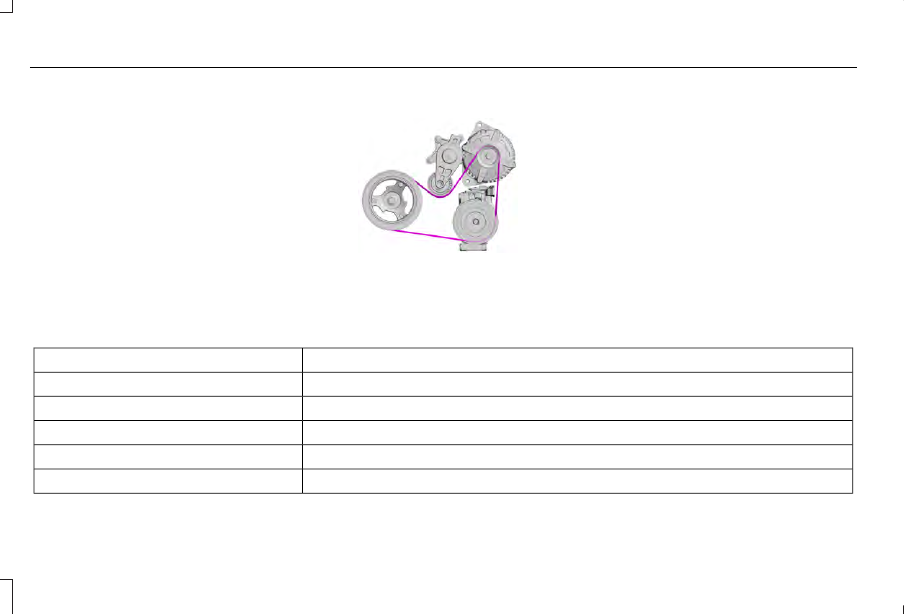

Drivebelt Routing

E191903

380

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.7L

Specification

Measurement

227

Cubic inches

Minimum 87 octane

Required fuel

1-4-2-5-3-6

Firing order

10.5:1

Compression ratio

0.049 - 0.053 in. (1.25 - 1.35 mm)

Spark plug gap

381

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

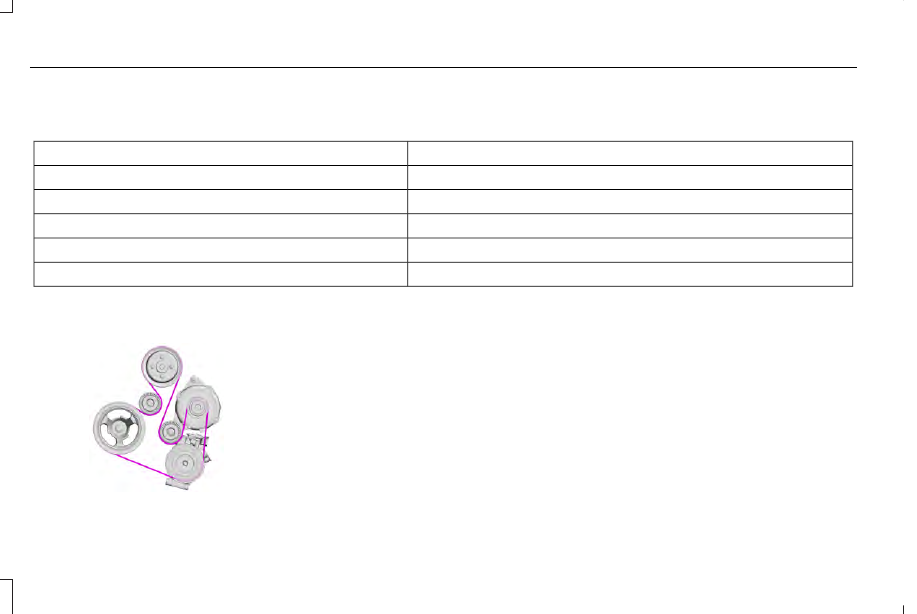

Drivebelt Routing

3.7L engine

E191904

MOTORCRAFT PARTS - 2.7L

2.7L EcoBoost

Component

FA-1912

Air filter element

FL-2062

Oil filter

BXT-94RH7-730

Battery (without start/stop)

BAGM-94RH7-800

Battery (with start/stop)

SP-542

Spark plugs

382

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

2.7L EcoBoost

Component

FP-71

Cabin air filter

WW-2350 (driver side)

Windshield wiper blade

WW-1750 (passenger side)

WW-1106 (rear window)

We recommend Motorcraft® replacement parts available at an authorized dealer or at fordparts.com for scheduled maintenance. These parts
meet or exceed specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and
durability. Your warranty may be void for any damage related to use of other parts.

If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer.  Replace the spark plugs at the appropriate intervals.   See Scheduled Maintenance
(page 517).

383

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

MOTORCRAFT PARTS - 3.7L

3.7L V6 TiVCT

Component

FA-1912

Air filter element

FL-500-S

Oil filter

BAGM-94RH7-800

Battery

SP-520

Spark plugs

FP-71

Cabin air filter

WW-2350 (driver side)

Windshield wiper blade

WW-1750 (passenger side)

WW-1106 (rear window)

We recommend Motorcraft® replacement parts available at your Ford dealer or at fordparts.com for scheduled maintenance. These parts
meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance,
emissions and durability. Your warranty may be void for any damage related to use of other parts.

If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals.  See Scheduled Maintenance
(page 517).

384

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is located
on the left-hand side of the instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

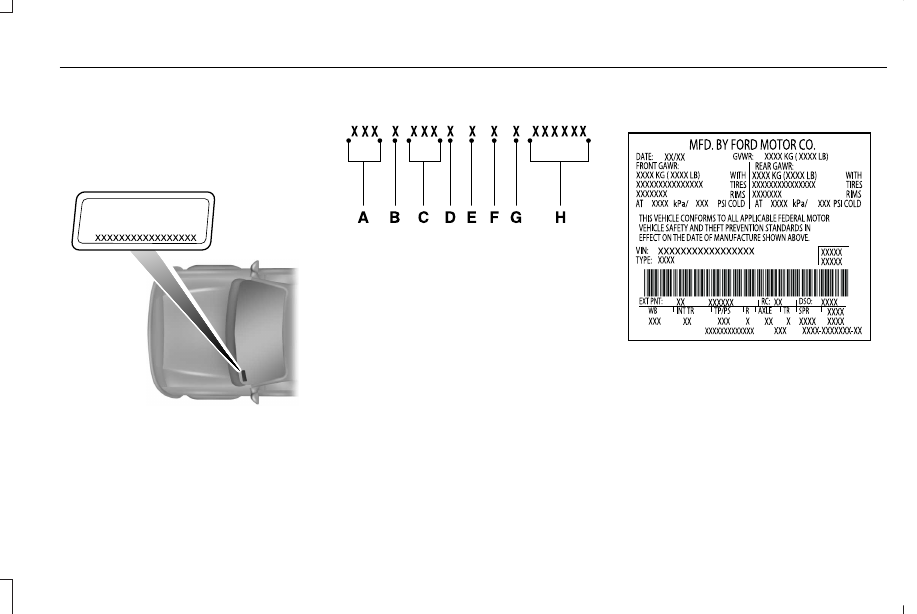

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where the
Safety Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post, or
the edge of the door near the door latch,
next to the driver's seating position.

385

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

TRANSMISSION CODE
DESIGNATION

E167814

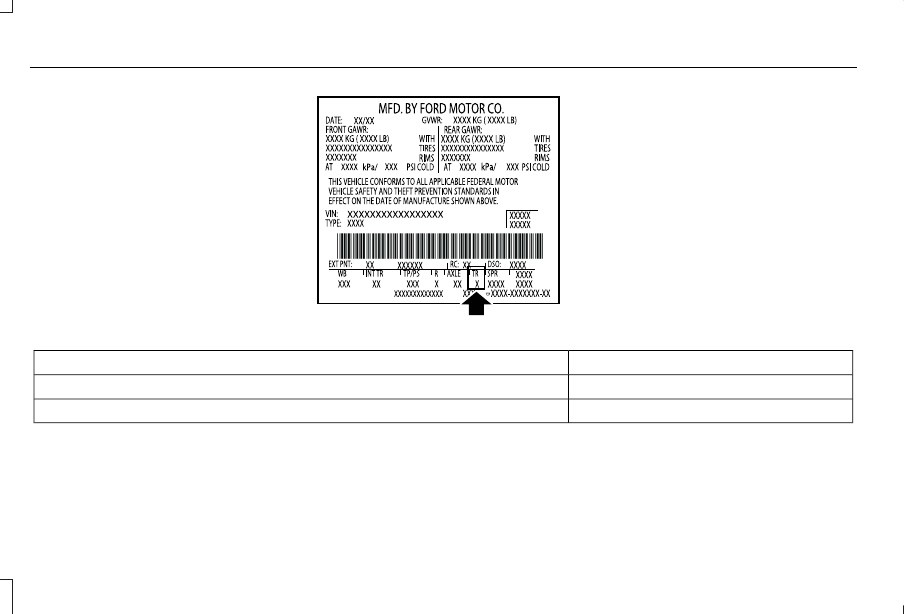

The transmission code is on the Safety
Compliance Certification Label.  The
following table shows the transmission code
along with the transmission description.

Code

Description

C

Six-speed automatic transmission 6F55

J

Six-speed automatic transmission 6F50

386

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS - 2.7L

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air
conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

6.0 qt (5.7 L)

Engine oil (with oil filter)

10.6 qt (10 L)

Engine coolant

Between MIN/MAX on brake fluid reservoir

Brake fluid

2.4 pt (1.15L)

Rear differential fluid (All Wheel Drive)

11.8 fl oz (0.35 L)

Power Transfer Unit (PTU) fluid (All Wheel Drive)

11.0 qt (10.4 L)*

Automatic transmission fluid

Fill as required

Windshield washer fluid

18.4 gal (69.5 L)

Fuel tank (Front Wheel Drive)

18.5 gal (70 L)

Fuel tank (All Wheel Drive)

387

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

Capacity

Item

21 oz (0.595 kg)

A/C refrigerant

5.2 fl oz (155 ml)

A/C refrigerant compressor oil

* Approximate dry fill capacity.  Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C946-A

Recommended motor oil (U.S.):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil
XO-5W30-QSP

WSS-M2C946-A

Recommended motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12

WSS-M2C946-A

Recommended motor oil (Mexico):
Motorcraft® SAE 5W-30 Synthetic Motor Oil
MXO-5W30-QSP

WSS-M2C946-A

Optional motor oil (U.S. and Mexico):
Motorcraft® SAE 5W-30 Full Synthetic Motor Oil
XO-5W30-QFS

388

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

Specification

Name

WSS-M2C946-A

Optional motor oil (Canada):
Motorcraft® SAE 5W-30 Synthetic Motor Oil
CXO-5W30-LFS12

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear differential (All Wheel Drive) fluid (U.S. and Mexico):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Rear differential (All Wheel Drive) fluid (Canada):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (All Wheel Drive):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

389

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications

Specification

Name

WSS-M2C938-A

Automatic transmission fluid (U.S. and Mexico):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
CXT-10-LV12

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
Motorcraft® R-134a Refrigerant
CYN-16-R

WSH-M17B19-A

A/C refrigerant (Mexico):
Motorcraft® R-134a Refrigerant
MYN-19

390

MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, Second Printing

Capacities and Specifications
