FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate)

20 Gallons

76 Liters

Engine Oil with Filter
3.6L Engine (SAE 5W-20, API Certi-
fied).

6 Quarts

5.6 Liters

Cooling System *
3.6L Engine (Mopar Antifreeze/
Engine Coolant 10 Year/150,000 Mile
Formula or equivalent) meeting the
requirements of FCA Material Stan-
dard MS.90032.

13.4 Quarts

12.6 Liters

* Includes heater and coolant recovery bottle filled to MAX level. Add 2.9 Quarts (2.8 Liters) if equipped with a rear
heater.

TECHNICAL SPECIFICATIONS

397

FLUIDS AND LUBRICANTS

Engine

Component

Fluid, Lubricant, Or Genuine Part

Engine Coolant

We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT
(Organic Additive Technology) meeting the requirements of FCA Material Standard
MS.90032.

Engine Oil

We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the requirements
of FCA Material Standard MS-6395 such as Mopar, Pennzoil, and Pennzoil Gold
Semi-Synthetic. Refer to your engine oil filler cap for correct SAE grade.

Engine Oil Filter

We recommend you use Mopar Engine Oil Filters.

Spark Plugs

We recommend you use Mopar Spark Plugs.

Fuel Selection – 3.6L Engine

87 Octane, 0-15% Ethanol.

Fuel Selection – 3.6L Flex
Fuel (E-85) Engine

87 Octane, Up to 85% Ethanol.

398

TECHNICAL SPECIFICATIONS

CAUTION!

• Mixing of engine coolant (antifreeze) other than

specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine dam-
age and may decrease corrosion protection. Organic
Additive Technology (OAT) engine coolant is differ-
ent and should not be mixed with Hybrid Organic
Additive Technology (HOAT) engine coolant (anti-
freeze) or any “globally compatible” coolant (anti-
freeze). If a non-OAT engine coolant (antifreeze) is
introduced into the cooling system in an emergency,
the cooling system will need to be drained, flushed,
and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as pos-
sible.

• Do not use water alone or alcohol-based engine

coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.

• This vehicle has not been designed for use with

propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.

TECHNICAL SPECIFICATIONS

399

Chassis

Component

Fluid, Lubricant, Or Genuine Part

Automatic Transmission

Use only ATF+4 Automatic Transmission Fluid meeting the
requirements of FCA Material Standard MS-9602. Failure to
use ATF+4 fluid may affect the function or performance of
your transmission. We recommend Mopar ATF+4 Fluid.

Brake Master Cylinder

We recommend you use Mopar DOT 3 meeting the require-
ments of FCA Material Standard MS.90039.

Power Steering Reservoir

We recommend you use Mopar Power Steering Fluid +4,
Mopar ATF+4 Automatic Transmission Fluid meeting the
requirements of FCA Material Standard MS-9602.

400

TECHNICAL SPECIFICATIONS

CYBERSECURITY

Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive informa-
tion. This information allows systems and features in your
vehicle to function properly.

Your vehicle may be equipped with certain security fea-
tures to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
Vehicle software technology continues to evolve over time
and FCA US LLC, working with its suppliers, evaluates
and takes appropriate steps as needed. Similar to a com-
puter or other devices, your vehicle may require software
updates to improve the usability and performance of your
systems or to reduce the potential risk of unauthorized and
unlawful access to your vehicle systems.

The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.

WARNING!

• It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be impaired
or a loss of vehicle control could occur that may
result in an accident involving serious injury or
death.

• ONLY insert media (e.g., USB, SD card, or CD) into

your vehicle if it came from a trusted source. Media
of unknown origin could possibly contain malicious
software, and if installed in your vehicle, it may
increase the possibility for vehicle systems to be
breached.

• As always, if you experience unusual vehicle behav-

ior, take your vehicle to your nearest authorized
dealer immediately.

MULTIMEDIA

403

NOTE:
• FCA or your dealer may contact you directly regarding

software updates.

• To help further improve vehicle security and minimize

the potential risk of a security breach, vehicle owners
should:

• Routinely check www.driveuconnect.com/support/

software-update.html (U.S. Residents) or
www.driveuconnect.ca (Canadian Residents) to learn
about available Uconnect software updates.

• Only connect and use trusted media devices (e.g.

personal mobile phones, USBs, CDs).

Privacy of any wireless and wired communications cannot
be assured. Third parties may unlawfully intercept infor-
mation and private communications without your consent.
For further information, refer to “Onboard Diagnostic
System (OBD II) Cybersecurity” in “Getting To Know Your
Instrument Panel”.

RADIO 430/430N CD/DVD/HDD/NAV — IF
EQUIPPED

Refer to your Uconnect Owner’s Manual Supplement for
detailed operating instructions.

Operating Instructions (Voice Command System)
— If Equipped

Refer to “Voice Command” in “Multimedia” for further
details.

Operating Instructions (Uconnect Phone) — If
Equipped

Refer to “Uconnect Phone” in “Multimedia” for further
details.

Accessibility — If Equipped

The accessibility feature announces DVD functions prior to
performing them. For example, when activated, the acces-
sibility feature will announce that the “Play” button was
pressed the first time the “Play” button is pressed, and the
second time the “Play” button is pressed it will perform the
“Play” function. The accessibility feature can be turned on
and off in the settings of the radio.

404

MULTIMEDIA

STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED

The remote sound system controls are located on the rear
surface of the steering wheel, at the three and nine o’clock
positions.

The right-hand rocker switch has a push-button in the
center, and controls the volume and mode of the sound
system. Pushing the top of the rocker switch will increase
the volume. Pushing the bottom of the rocker switch will
decrease the volume. Pushing the center button changes
the operation of the radio from AM to FM, or to CD mode,
depending on which radio is in the vehicle.

The left-hand rocker switch has a push-button in the center.
The function of the left-hand switch is different, depending
on which mode you are in.

The following describes the left-hand rocker switch opera-
tion in each mode.

Radio Operation

Pushing the top of the switch will SEEK up for the next
listenable station, and pushing the bottom of the switch
will SEEK down for the next listenable station.

The button located in the center of the left-hand switch will
tune to the next preset station that you have programmed
in the radio preset push-button.

CD Player

Pushing the top of the switch once will go to the next track
on the CD. Pushing the bottom of the switch once will go
to the beginning of the current track, or to the beginning of
the previous track if it is within one second after the
current track begins to play.

If you push the switch up or down twice it plays the
second track; three times, it will play the third, etc.

The button in the center of the left-hand switch has no
function in this mode.

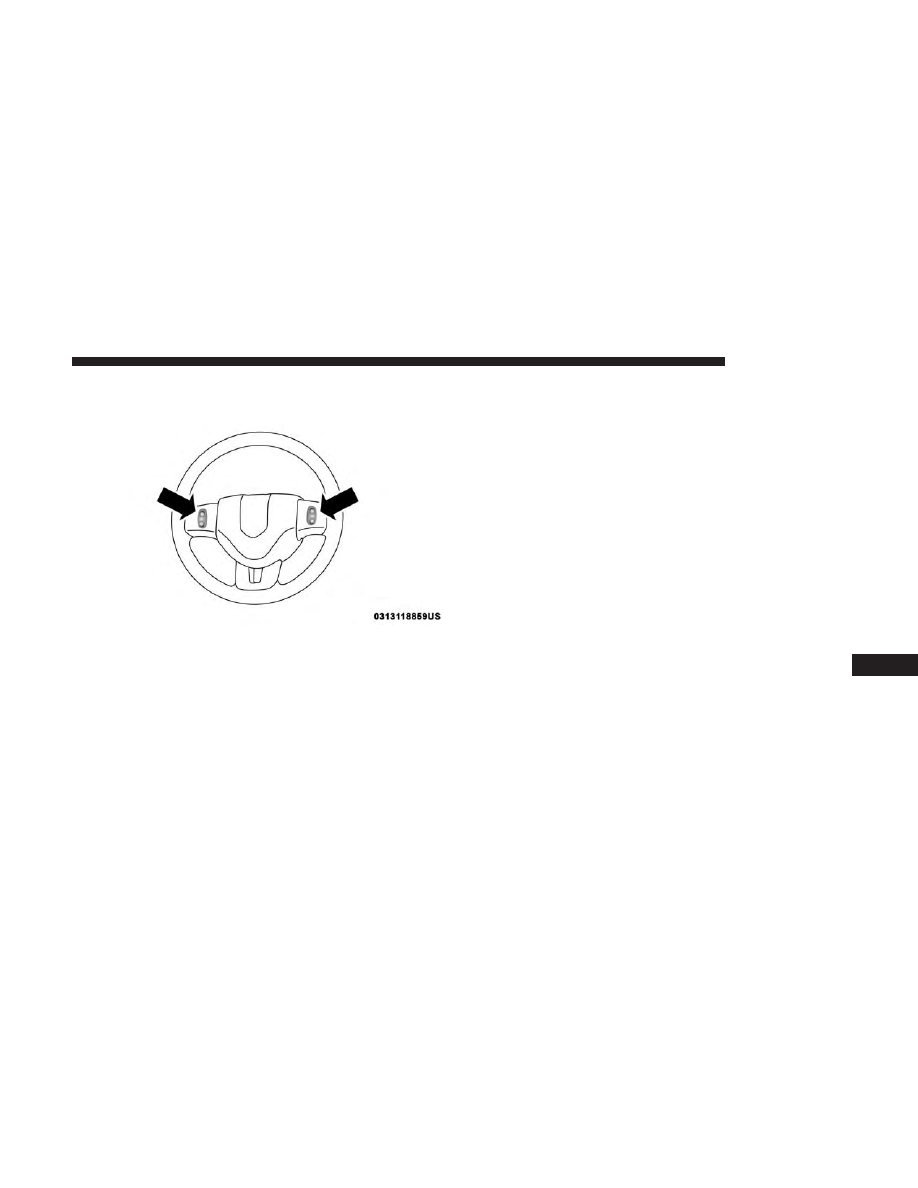

Remote Sound System Controls (Back View Of Steering Wheel)

MULTIMEDIA

405

IPOD/USB/MP3 CONTROL — IF EQUIPPED

This feature allows an iPod or external USB device to be
plugged into the USB port, located in the glove compart-
ment. If equipped, there may also be two USB ports located
on the lower trim piece right behind the driver’s sliding
door that are for charging devices only.

iPod control supports Mini, 4G, Photo, Nano, 5G iPod and
iPhone devices. Some iPod software versions may not fully
support the iPod control features. Please visit Apple’s
website for software updates.

NOTE:
• If the radio has a USB port, refer to the appropriate

Uconnect Owner’s Manual Supplement for iPod or
external USB device support capability.

• Connecting an iPod or consumer electronic audio device

to the AUX port located in the radio faceplate, plays
media, but does not use the iPod / MP3 control feature
to control the connected device.

Connecting The iPod Or External USB Device

Use the connection cable to connect an iPod or external
USB device to the vehicle’s USB connector port which is
located in the glove compartment.

NOTE:

The glove compartment will have a position where

the iPod or consumer electronic audio device cable can be
routed through without damaging the cable when closing
the lid. This allows routing of the cable without damaging
it while closing the lid. If a cut out is not available in the
glove compartment, route the cable away from the lid latch
and in a place that will allow the lid to close without
damaging the cable.

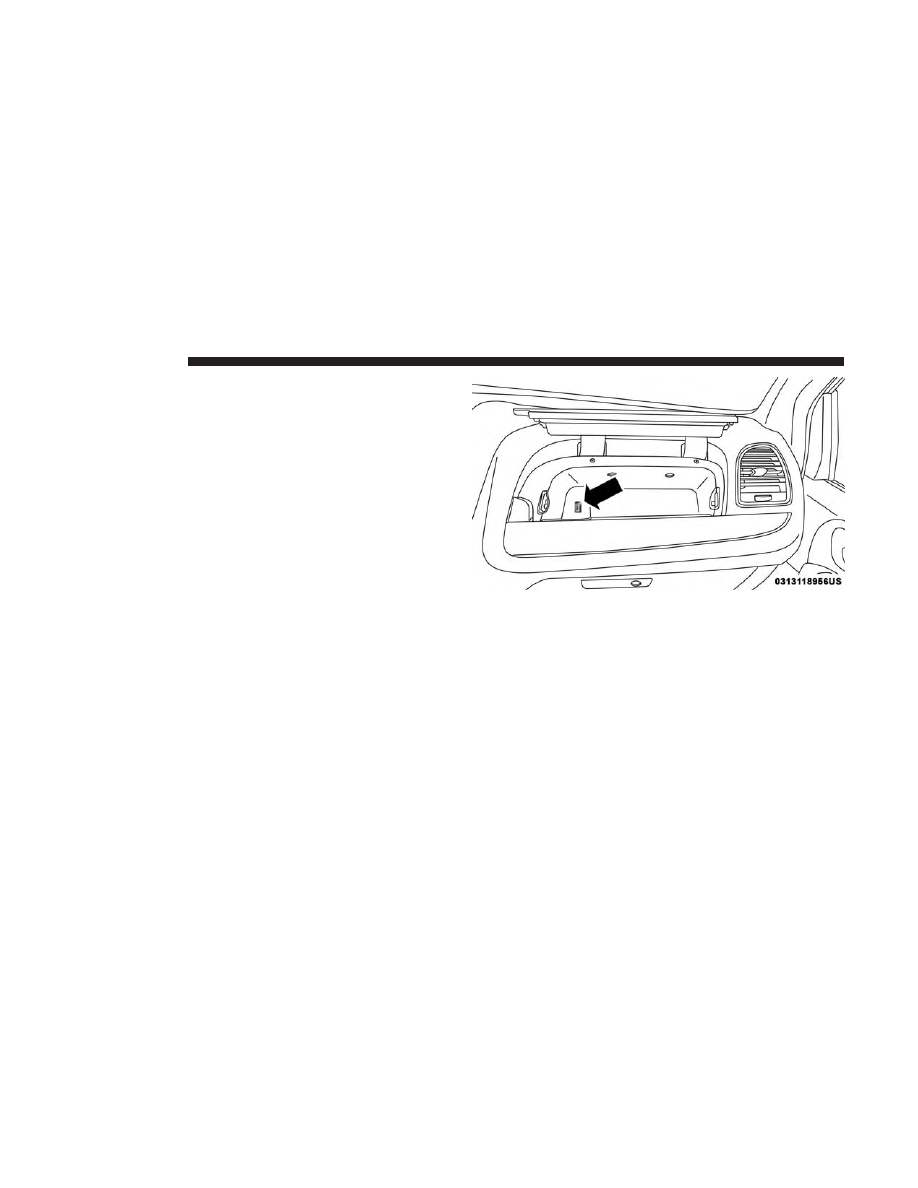

USB Port

406

MULTIMEDIA

Once the audio device is connected and synchronized to
the vehicle’s iPod/USB/MP3 control system (iPod or ex-
ternal USB device may take a few minutes to connect), the
audio device starts charging and is ready for use by
pushing radio buttons, as described below.

NOTE:

If the audio device battery is completely dis-

charged, it may not communicate with the iPod/USB/MP3
control system until a minimum charge is attained. Leav-
ing the audio device connected to the iPod/USB/MP3
control system may charge it to the required level.

Using This Feature

By using an external USB device to connect to the USB port:
• The audio device can be played on the vehicle’s sound

system, providing metadata (artist, track title, album,
etc.) information on the radio display.

• The audio device can be controlled using the radio

buttons to Play, Browse, and List the iPod contents.

• The audio device battery charges when plugged into the

USB connector (if supported by the specific audio de-
vice).

Controlling The iPod Or External USB Device
Using Radio Buttons

To enter the AUX/USB/MP3 control mode and access a
connected audio device, either push the “AUX” button on
the radio faceplate or push the VR button and say

⬙USB⬙ or

⬙Switch to USB.⬙ Once in the AUX/USB/MP3 control
mode, audio tracks (if available from audio device) start
playing over the vehicle’s audio system.

Play Mode

When switched to AUX/USB/MP3 control mode, the iPod
or external USB device automatically starts Play mode. In
Play mode, the following buttons on the radio faceplate
may be used to control the iPod or external USB device and
display data:
• Use the TUNE control knob to select the next or previ-

ous track.

• Turning it clockwise (forward) by one click, while play-

ing a track, skips to the next track or push the VR button
and say

⬙Next Track.⬙

• Turning it counterclockwise (backward) by one click,

will jump to the previous track in the list or push the VR
button and say

⬙Previous Track.⬙

MULTIMEDIA

407

• Jump backward in the current track by pushing and

holding the << RW button. Holding the << RW button
long enough will jump to the beginning of the current
track.

• Jump forward in the current track by pushing and

holding the FF >> button.

• A single push backward << RW or forward FF >> will

jump backward or forward respectively, for five seconds.

• Use the << SEEK and SEEK >> buttons to jump to the

previous or next track. Pushing the SEEK >> button
during play mode will jump to the next track in the list,
or push the VR button and say

⬙Next or Previous Track.⬙

• While a track is playing, push the INFO button to see the

associated metadata (artist, track title, album, etc.) for
that track. Pushing the INFO button again jumps to the
next screen of data for that track. Once all screens have
been viewed, the last INFO button push will go back to
the play mode screen on the radio.

• Pushing the REPEAT button will change the audio

device mode to repeat the current playing track or push
the VR button and say

⬙Repeat ON⬙ or ⬙Repeat Off.⬙

• Push the SCAN button to use AUX/USB/MP3 device

scan mode, which will play the first ten seconds of each
track in the current list and then forward to the next
song. To stop SCAN mode and start playing the desired
track, when it is playing the track, push the SCAN
button again. During Scan mode, pushing the << SEEK
and SEEK >> buttons will select the previous and next
tracks.

• RND button (available on sales code RES radio only):

Pushing this button toggles between Shuffle ON and
Shuffle OFF modes for the iPod or external USB device,
or push the VR button and say

⬙Shuffle ON⬙ or ⬙Shuffle

Off.

⬙ If the RND icon is showing on the radio display,

then the shuffle mode is ON.

List Or Browse Mode

During Play mode, pushing any of the buttons described
below, will bring up List mode. List mode enables scrolling
through the list of menus and tracks on the audio device.

TUNE

control knob: The TUNE control knob functions in

a similar manner as the scroll wheel on the audio device or
external USB device.

408

MULTIMEDIA

• Turning it clockwise (forward) and counterclockwise

(backward) scrolls through the lists, displaying the track
detail on the radio display. Once the track to be played
is highlighted on the radio display, push the TUNE
control knob to select and start playing the track. Turn-
ing the TUNE control knob fast will scroll through the
list faster. During fast scroll, a slight delay in updating
the information on the radio display may be noticeable.

During all List modes, the iPod displays all lists in “wrap-
around” mode. So if the track is at the bottom of the list,
just turn the wheel backward (counterclockwise) to get to
the track faster.

In List mode, the radio PRESET buttons are used as
shortcuts to the following lists on the iPod or external USB
device:
• Preset 1 – Playlists
• Preset 2 – Artists
• Preset 3 – Albums
• Preset 4 – Genres
• Preset 5 – Audiobooks
• Preset 6 – Podcasts

Pushing a PRESET button will display the current list on
the top line and the first item in that list on the second line.

To exit List mode without selecting a track, push the same
PRESET

button again to go back to Play mode.

LIST

button: The LIST button will display the top level

menu of the iPod or external USB device.
• Turn the TUNE control knob to list the top-menu item to

be selected and push the TUNE control knob. This will
display the next sub-menu list item on the audio device,
then follow the same steps to go to the desired track in
that list. Not all iPod or external USB device sub-menu
levels are available on this system.

MUSIC TYPE

button: The MUSIC TYPE button is another

shortcut button to the genre listing on your audio device.

WARNING!

Do not plug in or remove the iPod or external USB
device while driving. Failure to follow this warning
could result in an accident.

MULTIMEDIA

409

CAUTION!

• Leaving the iPod or external USB device (or any

supported device) anywhere in the vehicle in ex-
treme heat or cold can alter the operation or damage
the device. Follow the device manufacturer’s guide-
lines.

• Placing items on the iPod or external USB device, or

connections to the iPod or external USB device in the
vehicle, can cause damage to the device and/or to the
connectors.

Bluetooth Streaming Audio (BTSA)

Music can be streamed from your cellular phone to the
Uconnect phone system.

Refer to the Uconnect Owner’s Manual Supplement for
further information on Bluetooth connectivity.

Controlling BTSA Using Radio Buttons

To enter BTSA mode, push either “AUX” button on the
radio or push the VR

button and say “Bluetooth

Streaming Audio.”

Play Mode

When switched to BTSA mode, some audio devices can
start playing music over the vehicle’s audio system, but
some devices require the music to be initiated on the device
first, then it will get streamed to the Uconnect phone
system. Seven devices can be paired to the Uconnect phone
system, but just one can be selected and played.

Selecting A Different Audio Device

1. Push the Phone

button to begin.

2. After the

⬙Ready⬙ prompt and following the beep, say

⬙Setup⬙, then say ⬙Select Audio Devices.⬙

3. Say the name of the audio device or ask the Uconnect

phone system to list the audio devices.

Next Track

Use the SEEK UP button, or push the VR

button on the

radio and say “Next Track,” to jump to the next music
track on your cellular phone.

Previous Track

Use the SEEK DOWN button, or push the VR

button on

the radio and say “Previous Track,” to jump to the
previous music track on your cellular phone.

410

MULTIMEDIA

Browse

Browsing is not available on a Bluetooth Streaming Audio
(BTSA) device. Only the current song that is playing will
display info.

UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES) — IF EQUIPPED

Your rear seat Video Entertainment System (VES) is de-
signed to give your family years of enjoyment. You can
play your favorite CDs or DVDs, listen to audio over the
wireless headphones, or plug and play a variety of stan-
dard video games or audio devices. Please review this
Owner’s Manual to become familiar with its features and
operation.

NOTE:

The screen is located in the 2nd row overhead

console.

Getting Started
• Screen located in the overhead console: Unfold the

overhead LCD screen(s) by pushing the button on the
overhead console behind the screen(s).

• Cycle the ignition to the ON or ACC position.
• Turn on the Player by pushing the Power button, located

on the far left, or by pushing the button on the Remote
Control.

• When the video screen is open and a DVD is inserted

into the VES player, the screen turns on automatically,
the headphone transmitters turn on and playback be-
gins.

• The system can be controlled by the front seat occupants

using either the touchscreen radio, the DVD, or by the
rear seat occupants using the remote control.

MULTIMEDIA

411

Play Video Games

Connect the video game console to the Auxiliary RCA
input jacks or HDMI port, located on the left side behind
the second row seat.

When connecting an external source to the AUX input, be
sure to follow the standard color coding for the VES jacks:

NOTE:

Certain high-end video game consoles will exceed

the power limit of the vehicle’s Power Inverter. Refer to
“Power Inverter — If Equipped” in “Getting To Know Your
Vehicle” for more information.

Using The Remote Control

1. Push the MODE button on the Remote Control.

2. While looking at the video screen, highlight VES AUX 1,

by either pushing Up/Down/Left/Right buttons or by
repeatedly pushing the MODE button, then push EN-
TER on the Remote Control.

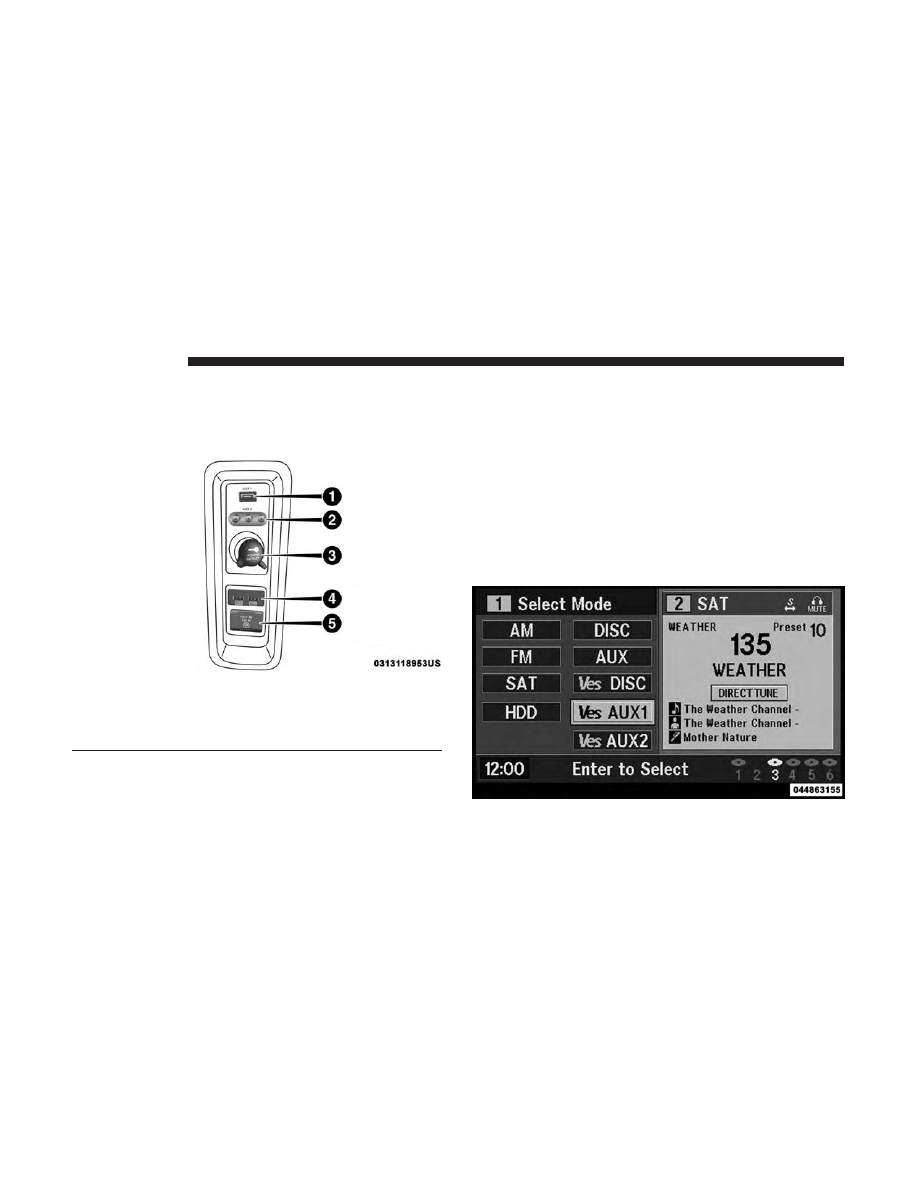

RCA/HDMI/USB Inputs

1 — HDMI Port

4 — USB Ports (Charge Only)

2 — Audio/Video In

5 — Power Inverter

3 — Power Outlet

Select VES AUX1 Mode On The VES Screen

412

MULTIMEDIA

Dodge Grand Caravan (2019 year). Manual - part 25
