• An In-Vehicle Audio message will state “Vehicle device

requires service. Please contact your dealer.”

WARNING!

• Ignoring the Rearview Mirror light could mean you

will not have SOS Call services. If the Rearview
Mirror light is illuminated, have an authorized
dealer service the SOS Call system immediately.

• The Occupant Restraint Control module turns on the

air bag Warning Light on the instrument panel if a
malfunction in any part of the system is detected. If
the Air Bag Warning Light is illuminated, have an
authorized dealer service the Occupant Restraint
Control system immediately.

Even if the SOS Call system is fully functional, factors
beyond FCA US LLC’s control may prevent or stop the SOS
Call system operation. These include, but are not limited
to, the following factors:
• Delayed accessories mode is active.
• The ignition is in the OFF position.
• The vehicle’s electrical systems are not intact.
• The SOS Call system software and/or hardware are

damaged during a crash.

• The vehicle battery loses power or becomes discon-

nected during a vehicle crash.

• LTE (voice/data) or 4G (data) network and/or Global

Positioning Satellite signals are unavailable or ob-
structed.

• Equipment malfunction at the SOS operator facility.
• Operator error by the SOS operator.
• LTE (voice/data) or 4G (data) network congestion.
• Weather.
• Buildings, structures, geographic terrain, or tunnels.

WARNING!

ALWAYS obey traffic laws and pay attention to the
road. ALWAYS drive safely with your hands on the
steering wheel. You have full responsibility and as-
sume all risks related to the use of the Uconnect and
SiriusXM Guardian features and applications in this
vehicle. Only use Uconnect features and SiriusXM
Guardian services when it is safe to do so. Failure to do
so may result in an accident involving serious injury or
death.

IN CASE OF EMERGENCY

285

NOTE:
• Your vehicle may be transmitting data as authorized by

the subscriber.

• Never place anything on or near the vehicle’s LTE

(voice/data) or 4G (data) and GPS antennas. You could
prevent LTE (voice/data) or 4G (data) and GPS signal
reception, which can prevent your vehicle from placing
an emergency call. An operable LTE (voice/data) or 4G
(data) network connection and a GPS signal is required
for the SOS Call system to function properly.

General Information

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

CAUTION!

To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.

BULB REPLACEMENT

Replacement Bulbs

All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.

286

IN CASE OF EMERGENCY

Interior Bulbs

Bulb Number

Rear Courtesy/Reading Lamps

W5W

Rear Compartment (Trunk) Lamp

562

Overhead Console Reading Lamps

578

Visor Vanity Lamps

A6220

Glove Compartment Lamp – If Equipped

194

Door Courtesy

562

Shift Indicator Lamp

JKLE14140

Optional Door Map Pocket/Cupholder

LED (Serviced At Authorized Dealer)

For lighted switches, see your authorized dealer for replacement instructions.

Exterior Bulbs

Bulb Number

Headlamp – High Intensity Discharge (HID)

D3S (Serviced At Authorized Dealer) *

Halogen Headlamp

HIR2LL

Front Park/Turn Lamp

LED (Serviced At Authorized Dealer)

Front Fog Lamp

H11LL

Front Side Marker

LED (Serviced At Authorized Dealer)

Tail Lamp

LED (Serviced At Authorized Dealer)

Stop/Turn Lamp

LED (Serviced At Authorized Dealer)

IN CASE OF EMERGENCY

287

Bulb Number

Rear Side Marker

LED (Serviced At Authorized Dealer)

Backup Lamp

LED (Serviced At Authorized Dealer)

Center High-Mount Stop Lamp (CHMSL)

LED (Serviced At Authorized Dealer)

License

LED (Serviced At Authorized Dealer)

* The headlamps are a type of high-voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of this,
you should not attempt to service a headlamp bulb your-
self. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.

Replacing Exterior Bulbs

Low Beam Headlamp, High Beam Headlamp —
Models With Halogen Headlamps — If Equipped

To replace the passenger side lamps:

1. Open the hood.

2. Remove the trim panel to access the headlamp assembly.

3. Reach behind the passenger headlamp assembly.

NOTE:

The park/turn lamps can also be accessed at this

point.

4. Turn the headlamp access cap counterclockwise to re-

move.

5. Remove bulb by turning it counter clockwise and dis-

connect.

6. Install new bulb by turning it clockwise and reconnect.

7. Reinstall headlamp access cap by turning it clockwise

and then reinstall headlamp cover.

To replace the driver side lamps:

1. Open the hood.

2. Remove the air cleaner filter cover by removing three

fasteners and loosening the clean air inlet clamp and
then rotate cover off to the side.

NOTE:

The cover has an electrical connector that does not

need to be disconnected if the cover is rotated off to the
side.

288

IN CASE OF EMERGENCY

3. Remove one fastener on the lower air box to remove and

access the rear of the headlamp assembly.

4. Reach behind the passenger headlamp assembly.

5. Remove the headlamp cover.

6. Turn the headlamp access cap counterclockwise to re-

move.

7. Remove bulb by turn it counter clockwise and discon-

nect.

8. Install new bulb by turning it clockwise and reconnect.

9. Reinstall headlamp access cap by turning it clockwise

and then reinstall headlamp cover.

10. Reinstall engine air cleaner assembly.

Low Beam Headlamp, High Beam Headlamp —
Models With High Intensity Discharge (HID)
Headlamps — If Equipped

The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of this,
you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.

WARNING!

A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electrocu-
tion if not serviced properly. See your authorized
dealer for service.

NOTE:

On vehicles equipped with HID headlamps, when

the headlamps are turned on, there is a blue hue to the
lamps. This diminishes and becomes more white after
approximately ten seconds, as the system charges.

Front Park/Signature Lamp

The Front Park/Signature function is part of the headlamp
assembly and use LED lamps that are not serviceable
separately. The headlamps must be replaced as an assem-
bly, see your authorized dealer.

Front Turn/DRL Lamp

The Front Turn/DRL function is part of the headlamp
assembly and use LED lamps that are not serviceable
separately. The headlamps must be replaced as an assem-
bly, see your authorized dealer.

IN CASE OF EMERGENCY

289

Front/Rear Side Marker Lamp

The Side Markers use LED lamps that are not serviceable
separately. The Side Markers must be replaced as an
assembly, see your authorized dealer.

Tail/Turn And Stop Lamp

The Tail/Turn and Stop Lamps use LED lamps that are not
serviceable separately. The Tail/Turn and Stop Lamps must
be replaced as an assembly, see your authorized dealer.

Center Tail/Backup Lamp

The Center Tail/Backup Lamp use LED lamps that are not
serviceable separately. The Center Tail/Backup Lamp must
be replaced as an assembly; see your authorized dealer.

Center High Mounted Stop Lamp (CHMSL)

The CHMSL Lamp uses LED sources that are not service-
able separately. The CHMSL Lamp must be replaced as an
assembly; see your authorized dealer.

License Lamp

The License Lamp uses an LED source that is not service-
able separately. The License Lamp must be replaced as an
assembly; see your authorized dealer.

FUSES

WARNING!

• When replacing a blown fuse, always use an appro-

priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Do not
place a fuse inside a circuit breaker cavity or vice
versa. Failure to use proper fuses may result in
serious personal injury, fire and/or property damage.

• Before replacing a fuse, make sure that the ignition is

off and that all the other services are switched off
and/or disengaged.

• If the replaced fuse blows again, contact an autho-

rized dealer.

• If a general protection fuse for safety systems (air

bag system, braking system), power unit systems
(engine system, transmission system) or steering
system blows, contact an authorized dealer.

290

IN CASE OF EMERGENCY

General Information

The fuses protect electrical systems against excessive cur-
rent.

When a device does not work, you must check the fuse
element inside the blade fuse for a break/melt.

Also, please be aware that when using power outlets for
extended periods of time with the engine off may result in
vehicle battery discharge.

Underhood Fuses

The Front Power Distribution Center is located in the
engine compartment. This module contains fuses and
relays. Fuse cavity location and descriptions are printed on
the inside of the power distribution center cover.

Blade Fuses

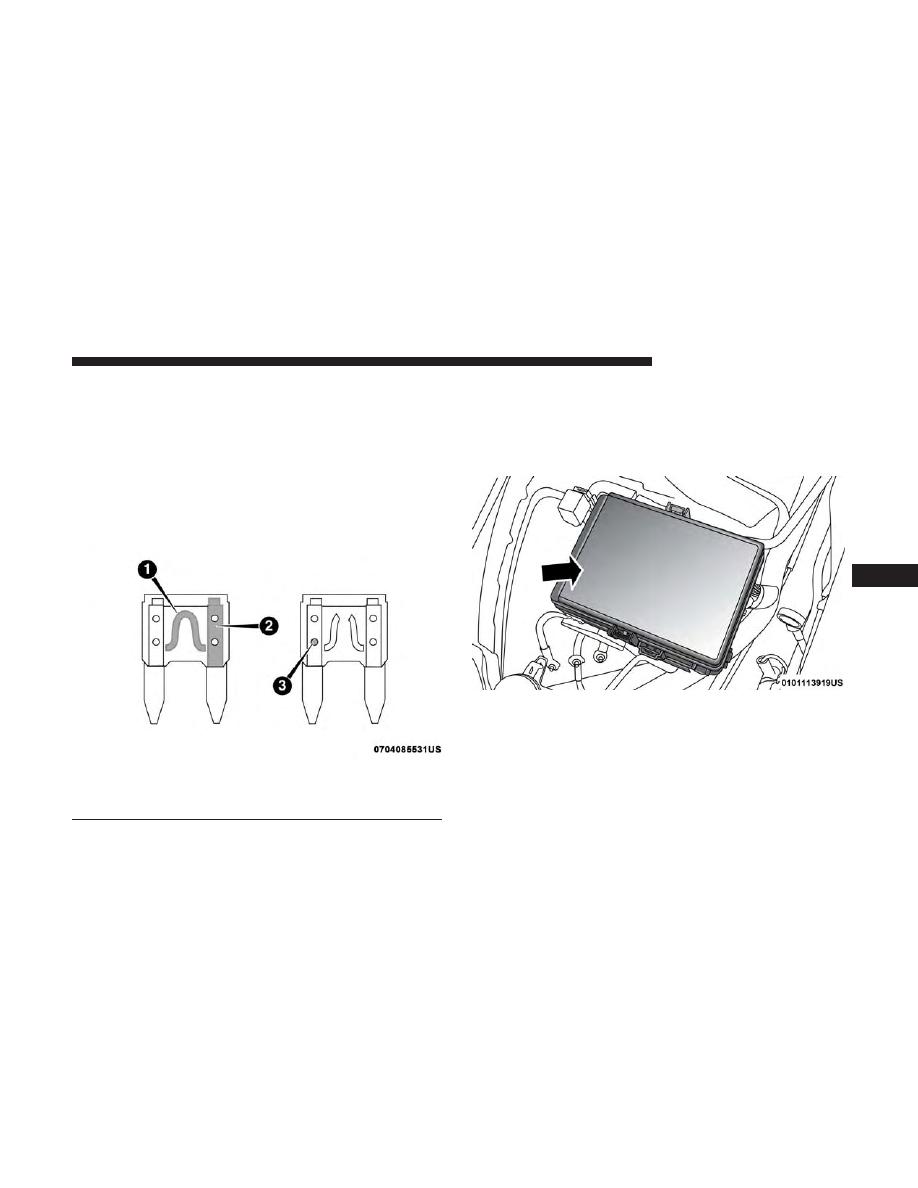

1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element.
3 — Blade fuse with a NOT functional / BAD fuse element (blown fuse).

Front Power Distribution Center

IN CASE OF EMERGENCY

291

CAUTION!

• When installing the power distribution center cover,

it is important to ensure the cover is properly posi-
tioned and fully latched. Failure to do so may allow
water to get into the power distribution center and
possibly result in an electrical system failure.

(Continued)

CAUTION! (Continued)

• When replacing a blown fuse, it is important to use

only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.

Cavity

Cartridge Fuse

Mini-Fuse

Description

–

Fuse – Spare

40 Amp Green

–

Radiator Fan #1 – (Non 6.2L Supercharged)

50 Amp Red

–

Electric Power Steering #1 – If Equipped

30 Amp Pink

–

Starter

40 Amp Green

–

Anti Lock Brake

30 Amp Pink

–

Anti Lock Brake

20 Amp Blue

–

Police Ignition Run / ACC #1

50 Amp Red / 20 Amp

Blue

–

Radiator Fan (6.2L Supercharged) / Police Ignition

Run / ACC # 2

–

20 Amp Yellow

All-Wheel Drive Module – If Equipped

–

10 Amp Red

Intrusion MOD (300) – If Equipped / Under Hood

Lamp – Police

292

IN CASE OF EMERGENCY

Cavity

Cartridge Fuse

Mini-Fuse

Description

–

20 Amp Yellow

Horns

–

10 Amp Red

Air Conditioning Clutch

–

Fuse – Spare

–

Fuse – Spare

–

20 Amp Yellow

Left HID – If Equipped

–

20 Amp Yellow

Right HID – If Equipped

50 Amp Red

–

Radiator Fan – (Non 6.2L Supercharged)

50 Amp Red

–

Electric Power Steering #2 – If Equipped

30 Amp Pink

–

Wiper Motor

30 Amp Pink

20 Amp Blue – Police

–

Headlamp Washers – If Equipped

Police Bat Feed #2

40 Amp Green / 20

Amp Blue – Police

–

Engine Cooling Pump (6.2L Supercharged) / Police

Bat Feed # 3

20 Amp Blue

–

Police Bat Feed # 1

50 Amp Red / 20 Amp

Blue

–

Radiator Fan (6.2L Supercharged) / Police Ignition

Run/ACC Feed # 3

–

Fuse – Spare

–

15 Amp Blue

Transmission Control Module (Challenger / Char-

ger Police) / Electronic Shift Module (Challenger)

–

Fuse – Spare

IN CASE OF EMERGENCY

293

Cavity

Cartridge Fuse

Mini-Fuse

Description

–

25 Amp Clear

Engine Module

–

Fuse – Spare

–

Fuse – Spare

–

25 Amp Clear

Powertrain #1

–

20 Amp Yellow

Powertrain #2

–

10 Amp Red

Anti-Lock Brake Module / Steering Column Lock

Module (300 if equipped)

–

10 Amp Red

Engine Controller / Rad Fan Relays (Charger/300)

/ Electric Power Steering Module (Charger/300) /

5-Speed TCM

–

10 Amp Red

Airbag Module

–

10 Amp Red

EPS (Challenger) / EHPS (Police) / AC Clutch Re-

lay / Vacuum Pump Relay / Rad Fan Relays

(Challenger)

–

10 Amp Red

AWD Module / Front Axle Disconnect – If

Equipped

–

Fuse – Spare

–

Fuse – Spare

–

20 Amp Yellow

Vacuum Pump

–

5 Amp Tan

Adaptive Cruise – If Equipped

–

Fuse – Spare

294

IN CASE OF EMERGENCY

Rear Interior Fuses

There is also a power distribution center located in the
trunk under the spare tire access panel. This center con-
tains fuses and relays. Fuse cavity location and descrip-
tions are printed on the inside of the power distribution
center cover.

CAUTION!

• When installing the power distribution center cover,

(Continued)

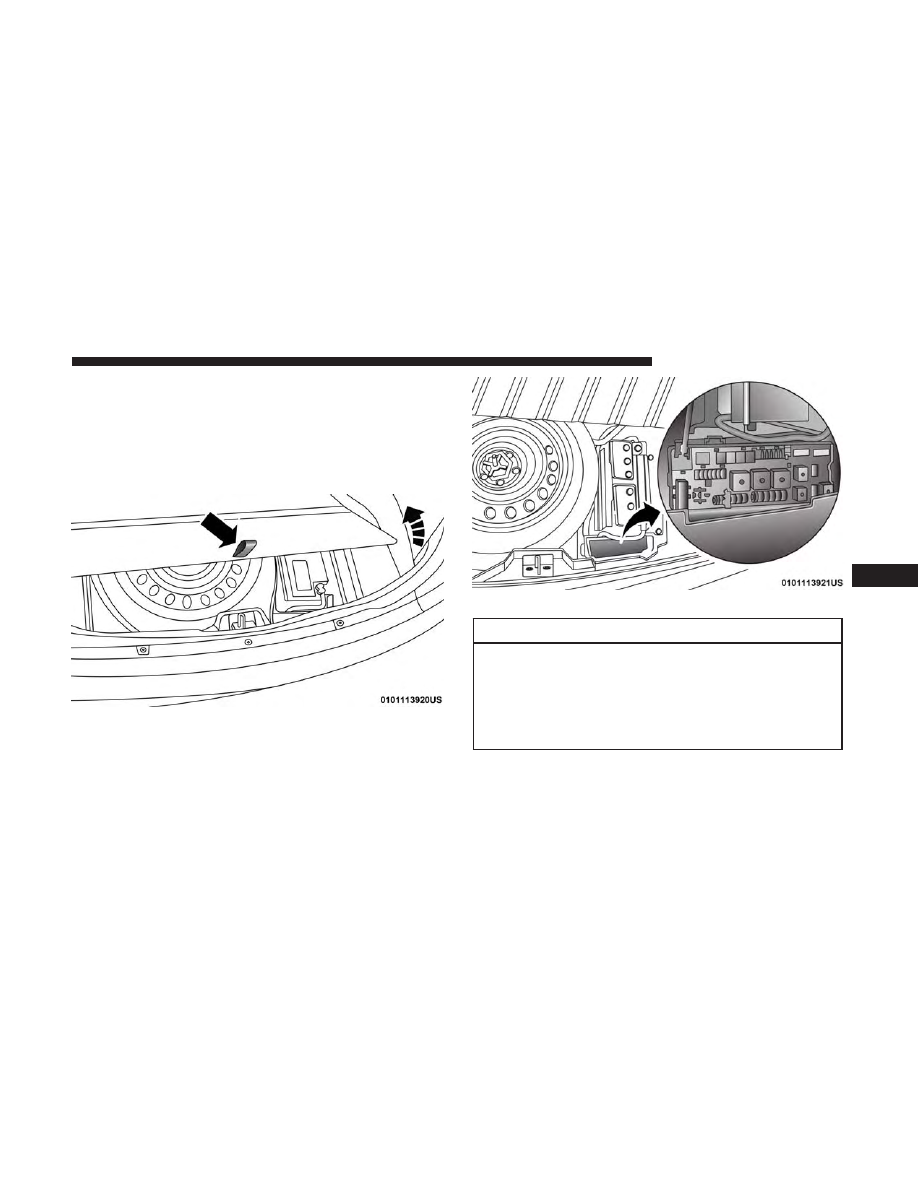

Opening The Access Cover

Rear Power Distribution Center

IN CASE OF EMERGENCY

295

CAUTION! (Continued)

• When replacing a blown fuse, it is important to use

Cavity

Cartridge Fuse

Mini-Fuse

Description

60 Amp Yellow

–

Front PDC Feed #1

–

Fuse – Spare

60 Amp Yellow

–

Front PDC Feed #2

30 Amp Pink

20 Amp Blue – Police

–

Sunroof/Dome Lamp – Police

40 Amp Green

–

Exterior Lighting #1

40 Amp Green

–

Exterior Lighting #2

30 Amp Pink

–

Interior Lighting

40 Amp Green

–

Power Locks

30 Amp Pink

–

Driver Door Control Module

30 Amp Pink

–

Passenger Door Control Module

–

20 Amp Yellow

Dual USB Center Console Rear/
Cigar Lighter IP – If Equipped

296

IN CASE OF EMERGENCY

Cavity

Cartridge Fuse

Mini-Fuse

Description

40 Amp Green

–

HVAC Blower

20 Amp Blue

–

Left Spot Lamp – Police

20 Amp Blue

–

Right Spot Lamp – Police

30 Amp Pink

–

Mod Network Interface – Police

–

Fuse – Spare

–

Fuse – Spare

30 Amp Pink

–

Fuel Pump (Non 6.2L SRT HO)

–

5 Amp Tan

Cyber Gateway Mod

–

10 Amp Red

Fuel Door – If Equipped/
Diagnostic Port

–

10 Amp Red

Integrated Center Stack

–

10 Amp Red

Tire Pressure Monitor

–

15 Amp Blue

Cygnus Transmission Module
(Charger/300) / Electronic Shift
Module (Charger/300)

–

25 Amp Clear

Amplifier – If Equipped

–

25 Amp Breaker

Power Seats – If Equipped

–

15 Amp Blue

HVAC Module/Cluster

–

15 Amp Blue

Ignition Switch/RF Hub
Module/Steering Column Lock

IN CASE OF EMERGENCY

297

Cavity

Cartridge Fuse

Mini-Fuse

Description

(300) – If Equipped

–

10 Amp Red

Steering Column Module/Clock
(300)

–

5 Amp Tan

Battery Sensor

–

15 Amp Blue

Electronic Exhaust Valve – If
Equipped

–

20 Amp Yellow

Radio

–

20 Amp Yellow

Power Outlet Inside Arm Rest/
Console Media Hub

30 Amp Pink

–

Fuel Pump (6.2L SRT HO – If
Equipped)

30 Amp Pink

–

Fuel Pump (6.2L SRT HO – If
Equipped)

30 Amp Pink

–

Rear Defrost

–

20 Amp Yellow

Comfort Seat And Steering
Wheel Module (Heated Steering
Wheel/RR Heated Seats)

–

10 Amp Red

Park Assist / Blind Spot / Rear
View Camera

298

IN CASE OF EMERGENCY

Cavity

Cartridge Fuse

Mini-Fuse

Description

–

15 Amp Blue

Cluster / Rearview Mirror /
Compass (Charger/300) / Hu-
midity Sensor / Forward Facing
Camera (Lane Departure) / Cy-
ber Gateway

–

Fuse – Spare

–

10 Amp Red

Adaptive Front Lighting / Day
Time Running Lamps – If
Equipped

–

20 Amp Yellow

Active Suspension – (6.4L / 6.2L)

–

Fuse – Spare

–

Fuse – Spare

–

20 Amp Yellow

Front Heated / Vented Seats – If
Equipped

–

10 Amp Red

Heated Cupholders/Rear Heated
Seat Switches – If Equipped

–

10 Amp Red

HVAC Module/In Vehicle Tem-
perature Sensor

–

Fuse – Spare

–

Fuse – Spare

–

Fuse – Spare

IN CASE OF EMERGENCY

299

Cavity

Cartridge Fuse

Mini-Fuse

Description

–

Fuse – Spare

–

10 Amp Red

Airbag Module

–

20 Amp Yellow

Adjustable Pedals – Police

–

Fuse – Spare

–

Fuse – Spare

–

Fuse – Spare

–

Fuse – Spare

–

25 Amp Breaker

Rear Windows (Charger/300)

–

10 Amp Red

Airbag Module

–

Fuse – Spare

–

10 Amp Red

Rain and Light Sensor / Sunroof
/ Inside RR View Mirror / Po-
lice Run Acc Relay

–

10 Amp Red

Dual USB Power Outlet – R/A
Sense (Charger/300) Rear Sun-
shade (Charger/300) RR USB
Timer

–

Fuse – Spare

–

Fuse – Spare

300

IN CASE OF EMERGENCY

Dodge Challenger (2019 year). Manual - part 18
