OFF-ROAD DRIVING TIPS
Care should be taken when attempting to climb steep
hills or driving diagonally across a hill or slope. If natural
obstacles force you to travel diagonally up or down a hill,
choose a mild angle and keep as little side tilt as possible.
Keep the vehicle moving and make turns slowly and
cautiously.

If you must back down a hill, back straight down using
REVERSE gear. Never back down in NEUTRAL or diago-
nally across the hill.

When driving over sand, mud, and other soft terrain,
shift to low gear and drive steadily. Apply the accelerator
slowly to avoid spinning the wheels.

Do not reduce the tire pressures for this type of driving.

After Driving Off-Road
Off-road operation puts more stress on your vehicle than
does most on-road driving. After going off-road, it is

always a good idea to check for damage. That way you
can get any problems taken care of right away and have
your vehicle ready when you need it.

• Completely inspect the underbody of your vehicle.

Check tires, body structure, steering, suspension, and
exhaust system for damage.

• Inspect the radiator for mud and debris and clean as

required.

• Check threaded fasteners for looseness, particularly on

the chassis, drivetrain components, steering, and sus-
pension. Retighten them, if required, and torque to the
values specified in the Service Manual.

• Check for accumulations of plants or brush. These

things could be a fire hazard. They might hide damage
to fuel lines, brake hoses, axle pinion seals, and
propeller shafts.

268

STARTING AND OPERATING

• After extended operation in mud, sand, water, or

similar dirty conditions, have the radiator, fan, brake
rotors, wheels, brake linings, and axle yokes inspected
and cleaned as soon as possible.

WARNING!

Abrasive material in any part of the brakes may cause
excessive wear or unpredictable braking. You might
not have full braking power when you need it to
prevent a collision. If you have been operating your
vehicle in dirty conditions, get your brakes checked
and cleaned as necessary.

• If you experience unusual vibration after driving in

mud, slush or similar conditions, check the wheels for
impacted material. Impacted material can cause a
wheel imbalance and freeing the wheels of it will
correct the situation.

POWER STEERING
The standard power steering system will give you good
vehicle response and increased ease of maneuverability
in tight spaces. The system will provide mechanical
steering capability if power assist is lost.

If for some reason the power assist is interrupted, it will
still be possible to steer your vehicle. Under these condi-
tions, you will observe a substantial increase in steering
effort, especially at very low vehicle speeds and during
parking maneuvers.

NOTE:

• Increased noise levels at the end of the steering wheel

travel are considered normal and do not indicate that
there is a problem with the power steering system.

• Upon initial start-up in cold weather, the power steer-

ing pump may make noise for a short amount of time.
This is due to the cold, thick fluid in the steering

STARTING AND OPERATING

269

system. This noise should be considered normal, and it
does not in any way damage the steering system.

WARNING!

Continued operation with reduced power steering
assist could pose a safety risk to yourself and others.
Service should be obtained as soon as possible.

CAUTION!

Prolonged operation of the steering system at the end
of the steering wheel travel will increase the steering
fluid temperature and it should be avoided when
possible. Damage to the power steering pump may
occur.

Power Steering Fluid Check
Checking the power steering fluid level at a defined
service interval is not required. The fluid should only be

checked if a leak is suspected, abnormal noises are
apparent, and/or the system is not functioning as antici-
pated. Coordinate inspection efforts through an autho-
rized dealer.

CAUTION!

Do not use chemical flushes in your power steering
system as the chemicals can damage your power
steering components. Such damage is not covered by
the New Vehicle Limited Warranty.

WARNING!

Fluid level should be checked on a level surface and
with the engine off to prevent injury from moving
parts and to ensure accurate fluid level reading. Do
not overfill. Use only manufacturer’s recommended
power steering fluid.

270

STARTING AND OPERATING

If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further
information.

PARKING BRAKE
Before leaving the vehicle, make sure that the parking
brake is fully applied and place the shift lever in the
PARK position.

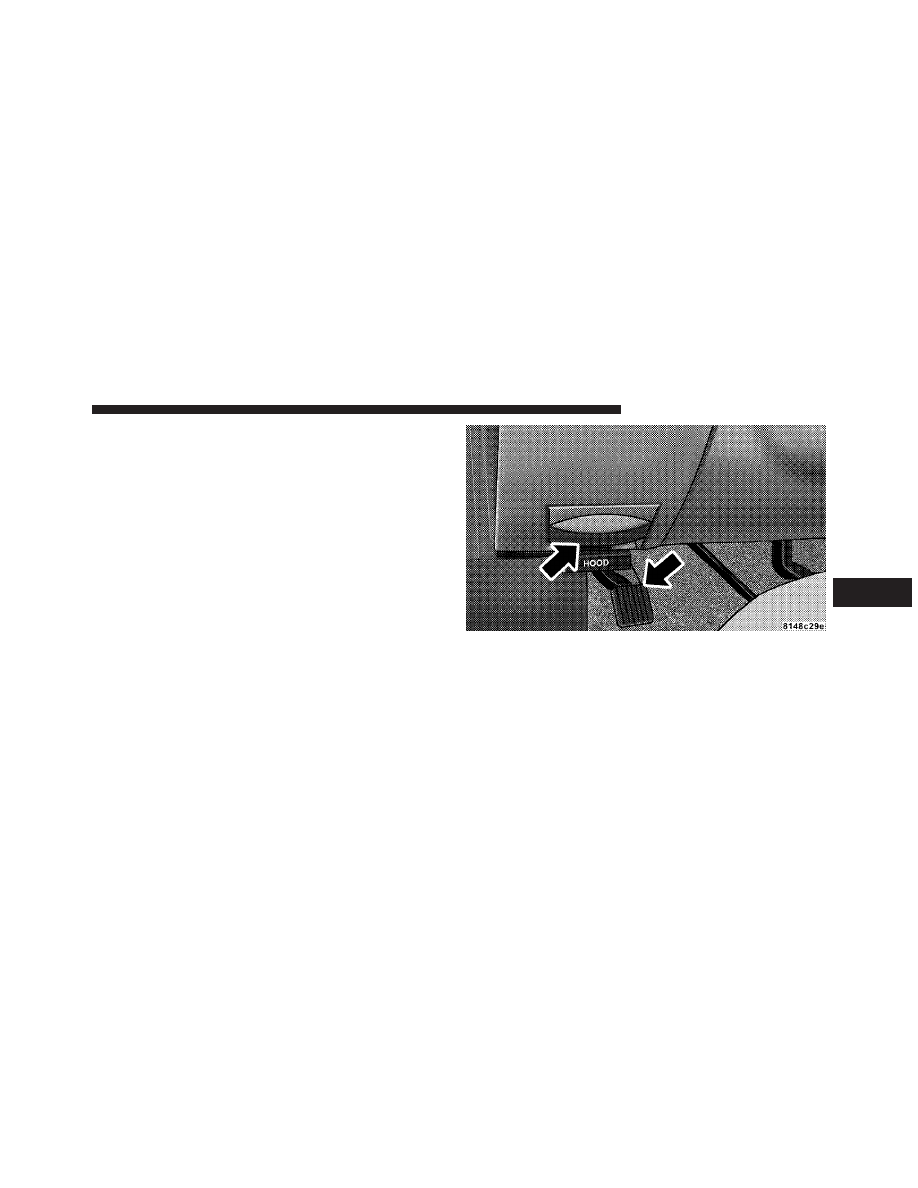

The foot operated parking brake is located below the
lower left corner of the instrument panel. To apply the
park brake, firmly push the park brake pedal fully. To
release the parking brake, pull the parking brake release
handle.

When the parking brake is applied with the ignition
switch ON, the “Brake Warning Light” in the instrument
cluster will illuminate.

NOTE:

The “Brake Warning Light” only shows that the

parking brake is applied. It does not show the degree of
brake application.

Parking Brake

STARTING AND OPERATING

271

When parking on a hill, it is important to turn the front
wheels toward the curb on a downhill grade and away
from the curb on an uphill grade. Apply the parking
brake before placing the shift lever in PARK, otherwise
the load on the transmission locking mechanism may
make it difficult to move the shift lever out of PARK.

The parking brake should always be applied whenever
the driver is not in the vehicle.

WARNING!

• Never use the PARK position of the transmission

as a substitute for the parking brake. Always
apply the parking brake fully when parked to
guard against vehicle movement and possible in-
jury or damage.

(Continued)

WARNING! (Continued)

• Never leave children alone in a vehicle. Leaving

unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured.

• Do not leave the key in the ignition. A child could

operate power windows, other controls, or move
the vehicle.

• Be sure the parking brake is fully disengaged

before driving; failure to do so can lead to brake
failure and a collision.

• Always fully apply the parking brake when leav-

ing your vehicle, or it may roll and cause damage
or injury. Also be certain to leave the transmission
in PARK. Failure to do so may allow the vehicle to
roll and cause damage or injury.

272

STARTING AND OPERATING

CAUTION!

If the “Brake Warning Light” remains on with the
parking brake released, a brake system malfunction
is indicated. Have the brake system serviced by an
authorized dealer immediately.

BRAKE SYSTEM
In the event power assist is lost for any reason (for
example, repeated brake applications with the engine
off), the brakes will still function. The effort required to
brake the vehicle will be significantly more than that
required with the power system operating.

If either the front or rear hydraulic system loses normal
capability, the remaining system will still function with
some loss of braking effectiveness. This will be evident by
increased pedal travel during application, greater pedal

force required to slow or stop, and activation of the
“Brake Warning Light” and the “ABS Warning Light”
during brake use.

Four-Wheel Anti-Lock Brake System (ABS)
The Four-Wheel ABS is designed to aid the driver in
maintaining vehicle control under adverse braking con-
ditions. The system operates with a separate computer to
modulate hydraulic pressure, to prevent wheel lock-up
and help avoid skidding on slippery surfaces.

The system’s pump motor runs during an ABS stop to
provide regulated hydraulic pressure. The pump motor
makes a low humming noise during operation, which is
normal.

The ABS includes an amber “ABS Warning Light.” When
the light is illuminated, the ABS is not functioning. The
system reverts to standard non-anti-lock brakes. Turning
the ignition OFF and ON again may reset the ABS if the
fault detected was only momentary.

STARTING AND OPERATING

273

WARNING!

Pumping of the Anti-Lock Brakes will diminish their
effectiveness and may lead to a collision. Pumping
makes the stopping distance longer. Just press firmly
on your brake pedal when you need to slow down or
stop.

WARNING!

• The Anti-Lock Brake System (ABS) cannot prevent

the natural laws of physics from acting on the
vehicle, nor can it increase braking or steering
efficiency beyond that afforded by the condition
of the vehicle brakes and tires or the traction
afforded.

(Continued)

WARNING! (Continued)

• The ABS cannot prevent collisions, including

those resulting from excessive speed in turns,
following another vehicle too closely, or hydro-
planing.

• The capabilities of an ABS-equipped vehicle must

never be exploited in a reckless or dangerous
manner, which could jeopardize the user’s safety
or the safety of others.

When you are in a severe braking condition involving
use of the ABS, you will experience some pedal drop as
the vehicle comes to a stop. This is the result of the
system reverting to the base brake system.

Engagement of the ABS may be accompanied by a
pulsing sensation. You may also hear a clicking noise.
These occurrences are normal, and indicate that the
system is functioning properly.

274

STARTING AND OPERATING

TIRE SAFETY INFORMATION

Tire Markings

NOTE:

• P (Passenger) - Metric tire sizing is based on U.S.

design standards. P-Metric tires have the letter “P”
molded into the sidewall preceding the size designa-
tion. Example: P215/65R15 95H.

• European-Metric tire sizing is based on European

design standards. Tires designed to this standard have
the tire size molded into the sidewall beginning with
the section width. The letter

⬙P⬙ is absent from this tire

size designation. Example: 215/65R15 96H.

• LT (Light Truck) - Metric tire sizing is based on U.S.

design standards. The size designation for LT-Metric
tires is the same as for P-Metric tires except for the
letters “LT” that are molded into the sidewall preced-
ing the size designation. Example: LT235/85R16.

• Temporary spare tires are high-pressure compact

spares designed for temporary emergency use only.

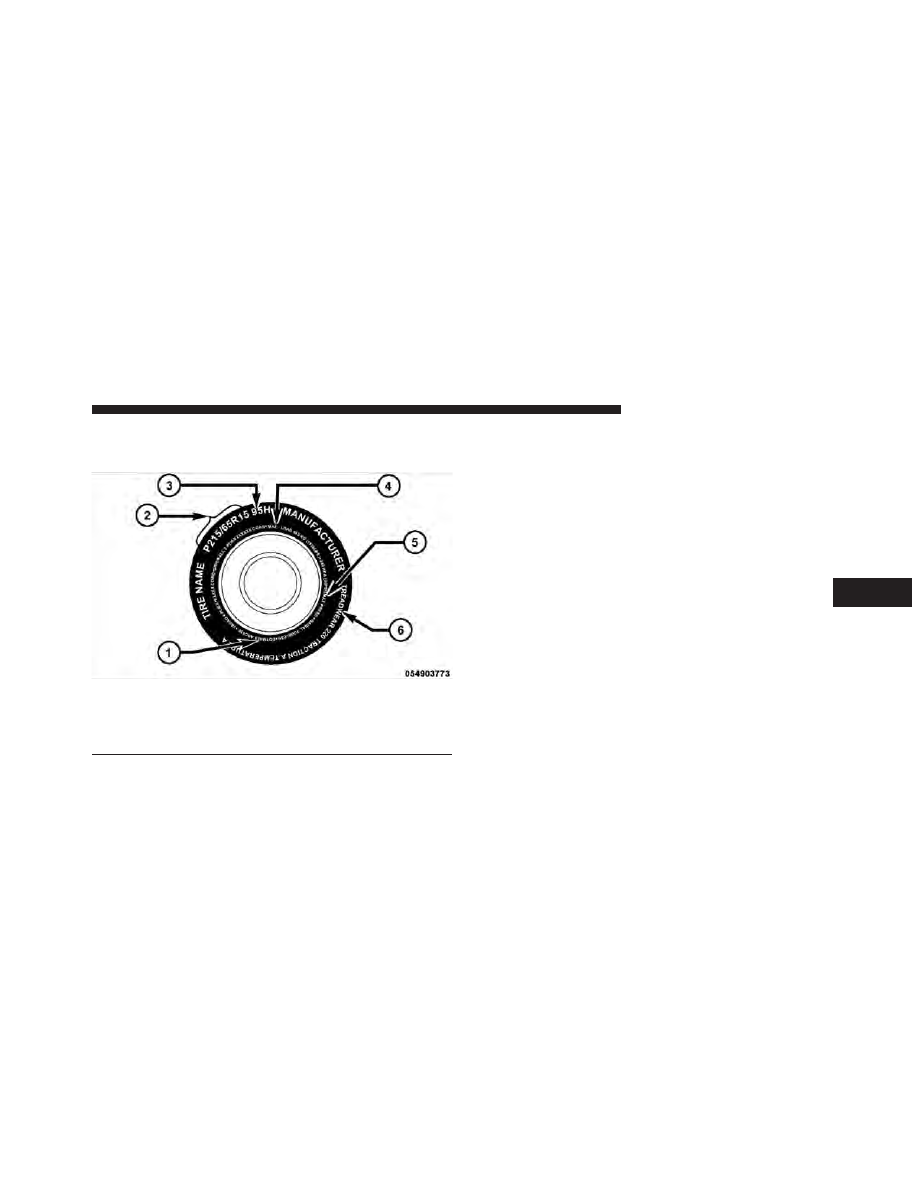

1 — U.S. DOT Safety Stan-

dards Code (TIN)

4 — Maximum Load

2 — Size Designation

5 — Maximum Pressure

3 — Service Description

6 — Treadwear, Traction and

Temperature Grades

STARTING AND OPERATING

275

Tires designed to this standard have the letter “T”
molded into the sidewall preceding the size designa-
tion. Example: T145/80D18 103M.

• High flotation tire sizing is based on U.S. design

standards and it begins with the tire diameter molded
into the sidewall. Example: 31x10.5 R15 LT.

Tire Sizing Chart

EXAMPLE:

Size Designation:

= Passenger car tire size based on U.S. design standards

ⴖ....blank....ⴖ = Passenger car tire based on European design standards
LT

= Light truck tire based on U.S. design standards

= Temporary spare tire

= Overall diameter in inches (in)

215

= Section width in millimeters (mm)

= Aspect ratio in percent (%)

— Ratio of section height to section width of tire

10.5

= Section width in inches (in)

= Construction code

—

⬙R⬙ means radial construction

—

⬙D⬙ means diagonal or bias construction

= Rim diameter in inches (in)

276

STARTING AND OPERATING

EXAMPLE:

Service Description:

= Load Index

— A numerical code associated with the maximum load a tire can carry

= Speed Symbol

— A symbol indicating the range of speeds at which a tire can carry a load corresponding
to its load index under certain operating conditions
— The maximum speed corresponding to the speed symbol should only be achieved under
specified operating conditions (i.e., tire pressure, vehicle loading, road conditions, and
posted speed limits)

Load Identification:

ⴖ....blank....ⴖ = Absence of any text on the sidewall of the tire indicates a Standard Load (SL) tire
Extra Load (XL)

= Extra load (or reinforced) tire

Light Load

= Light load tire

C, D, E

= Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load

— Maximum load indicates the maximum load this tire is designed to carry

Maximum Pressure

— Maximum pressure indicates the maximum permissible cold tire inflation pressure for

this tire

STARTING AND OPERATING

277

Tire Identification Number (TIN)
The TIN may be found on one or both sides of the tire,
however, the date code may only be on one side. Tires
with white sidewalls will have the full TIN, including the
date code, located on the white sidewall side of the tire.

Look for the TIN on the outboard side of black sidewall
tires as mounted on the vehicle. If the TIN is not found on
the outboard side, then you will find it on the inboard
side of the tire.

EXAMPLE:

DOT MA L9 ABCD 0301

DOT

= Department of Transportation

— This symbol certifies that the tire is in compliance with the U.S. Department of Transportation tire
safety standards and is approved for highway use

= Code representing the tire manufacturing location (two digits)

= Code representing the tire size (two digits)

ABCD

= Code used by the tire manufacturer (one to four digits)

= Number representing the week in which the tire was manufactured (two digits)

—03 means the 3rd week.

= Number representing the year in which the tire was manufactured (two digits)

—01 means the year 2001
— Prior to July 2000, tire manufacturers were only required to have one number to represent the
year in which the tire was manufactured. Example: 031 could represent the 3rd week of 1981 or 1991

278

STARTING AND OPERATING

Tire Terminology And Definitions

Term

Definition

B-Pillar

The vehicle B-Pillar is a structural member of the body located
between the front and rear door (of a four-door vehicle) running
from the sill to the roof.

Cold Tire Pressure

Cold tire inflation pressure is defined as the tire pressure after the
vehicle has not been driven for at least 3 hours, or driven less
than 1 mile (1.6 km) after sitting for a three hour period. Inflation
pressure is measured in units of PSI (pounds per square inch) or
KPa (kilopascals).

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold
tire inflation pressure for this tire. The max inflation pressure is
molded into the sidewall.

Recommended Inflation Pressure

Vehicle manufacturer’s recommended tire inflation pressure as
shown on the tire placard.

Tire Placard

A paper label permanently attached to the vehicle showing the
vehicle’s loading capacity, the original equipment tire size and the
recommended inflation pressure.

STARTING AND OPERATING

279

Tire Loading And Tire Pressure

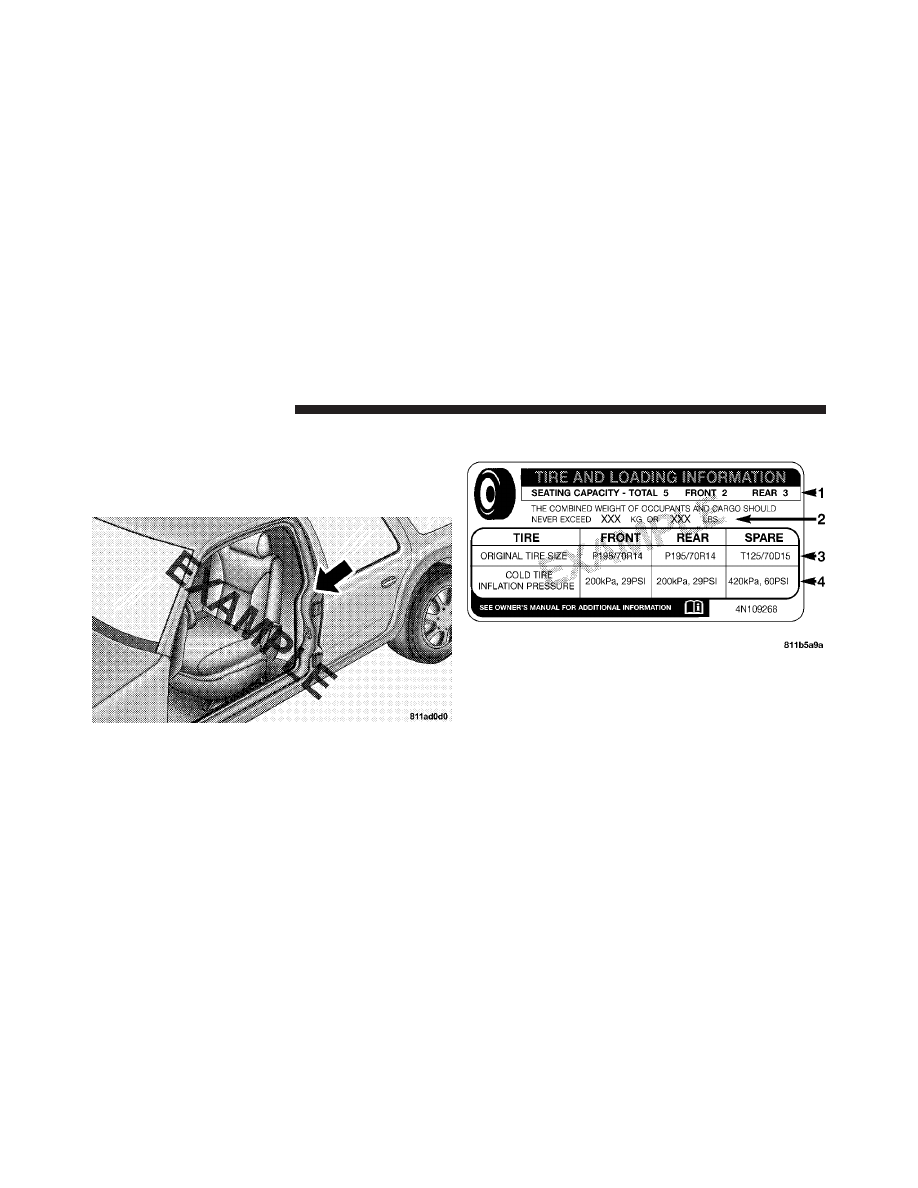

Tire Placard Location

NOTE:

The proper cold tire inflation pressure is listed

on the driver’s side B-Pillar.

Tire And Loading Information Placard

Tire Placard Location

Tire and Loading Information Placard

280

STARTING AND OPERATING

This placard tells you important information about
the:
1) number of people that can be carried in the vehicle
2) total weight your vehicle can carry
3) tire size designed for your vehicle
4) cold tire inflation pressures for the front, rear, and
spare tires.

Loading
The vehicle maximum load on the tire must not exceed
the load carrying capacity of the tire on your vehicle. You
will not exceed the tire’s load carrying capacity if you
adhere to the loading conditions, tire size, and cold tire
inflation pressures specified on the Tire and Loading
Information placard and in the “Vehicle Loading” section
of this manual.

NOTE:

Under a maximum loaded vehicle condition,

gross axle weight ratings (GAWRs) for the front and rear

axles must not be exceeded. For further information on
GAWRs, vehicle loading, and trailer towing, refer to
“Vehicle Loading” in this section.

To determine the maximum loading conditions of your
vehicle, locate the statement “The combined weight of
occupants and cargo should never exceed XXX lbs or
XXX kg” on the Tire and Loading Information placard.
The combined weight of occupants, cargo/luggage and
trailer tongue weight (if applicable) should never exceed
the weight referenced here.

Steps For Determining Correct Load Limit

1. Locate the statement “The combined weight of occu-
pants and cargo should never exceed XXX lbs or XXX kg”
on your vehicle’s placard.

2. Determine the combined weight of the driver and
passengers that will be riding in your vehicle.

STARTING AND OPERATING

281

3. Subtract the combined weight of the driver and pas-
sengers from XXX lbs or XXX kg.

4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if “XXX”
amount equals 1,400 lbs (635 kg) and there will be five
150 lb (68 kg) passengers in your vehicle, the amount of
available cargo and luggage load capacity is 650 lbs
(295 kg) (since 5 x 150 = 750, and 1400 – 750 = 650 lbs
[295 kg]).

5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not safely
exceed the available cargo and luggage load capacity
calculated in Step 4.

6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.

NOTE:

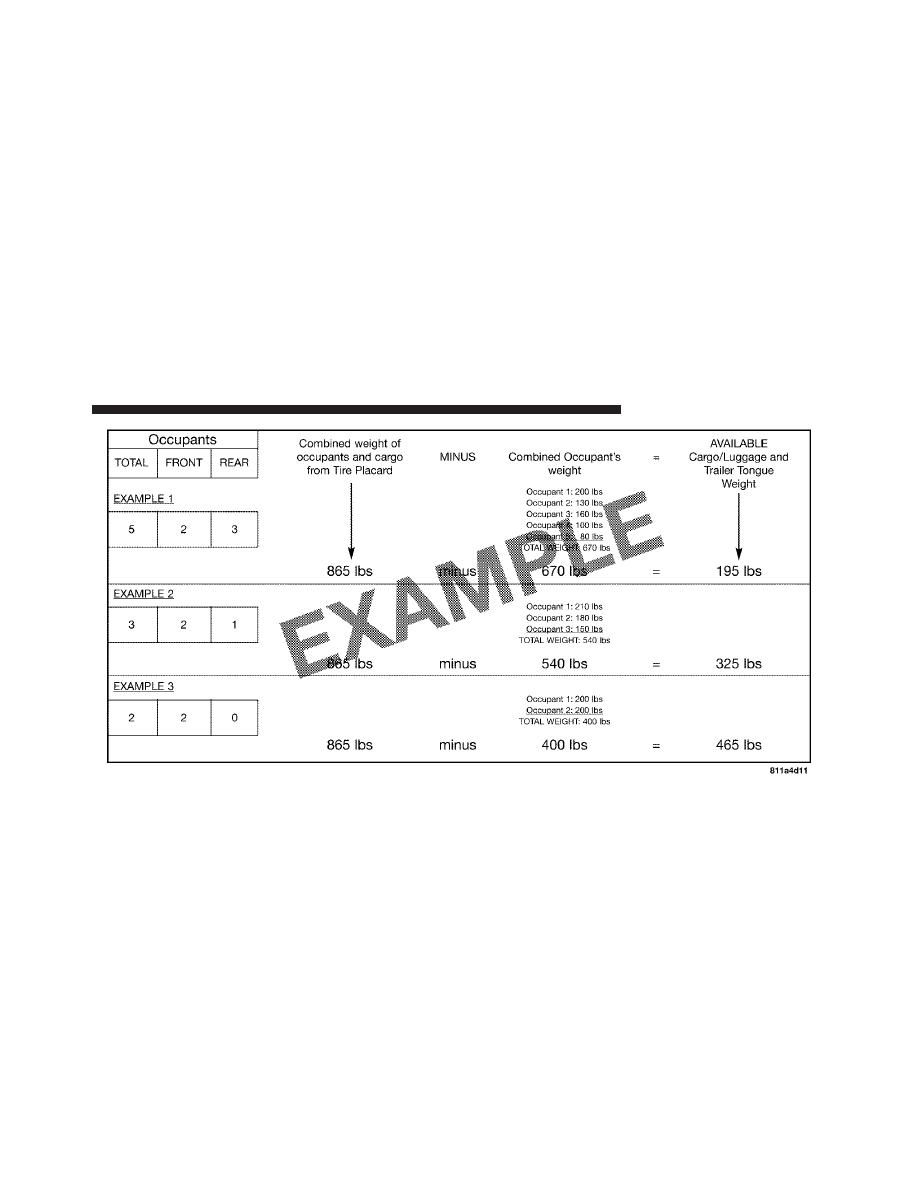

• The following table shows examples on how to calcu-

late total load, cargo/luggage, and towing capacities
of your vehicle with varying seating configurations
and number and size of occupants. This table is for
illustration purposes only and may not be accurate for
the seating and load carry capacity of your vehicle.

• For the following example, the combined weight of

occupants and cargo should never exceed 865 lbs
(392 kg).

282

STARTING AND OPERATING

Dodge Dakota (2011 year). Manual - part 17
