Fig.

1

1

FRONT

ENGINE

8W - 91 - 18

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

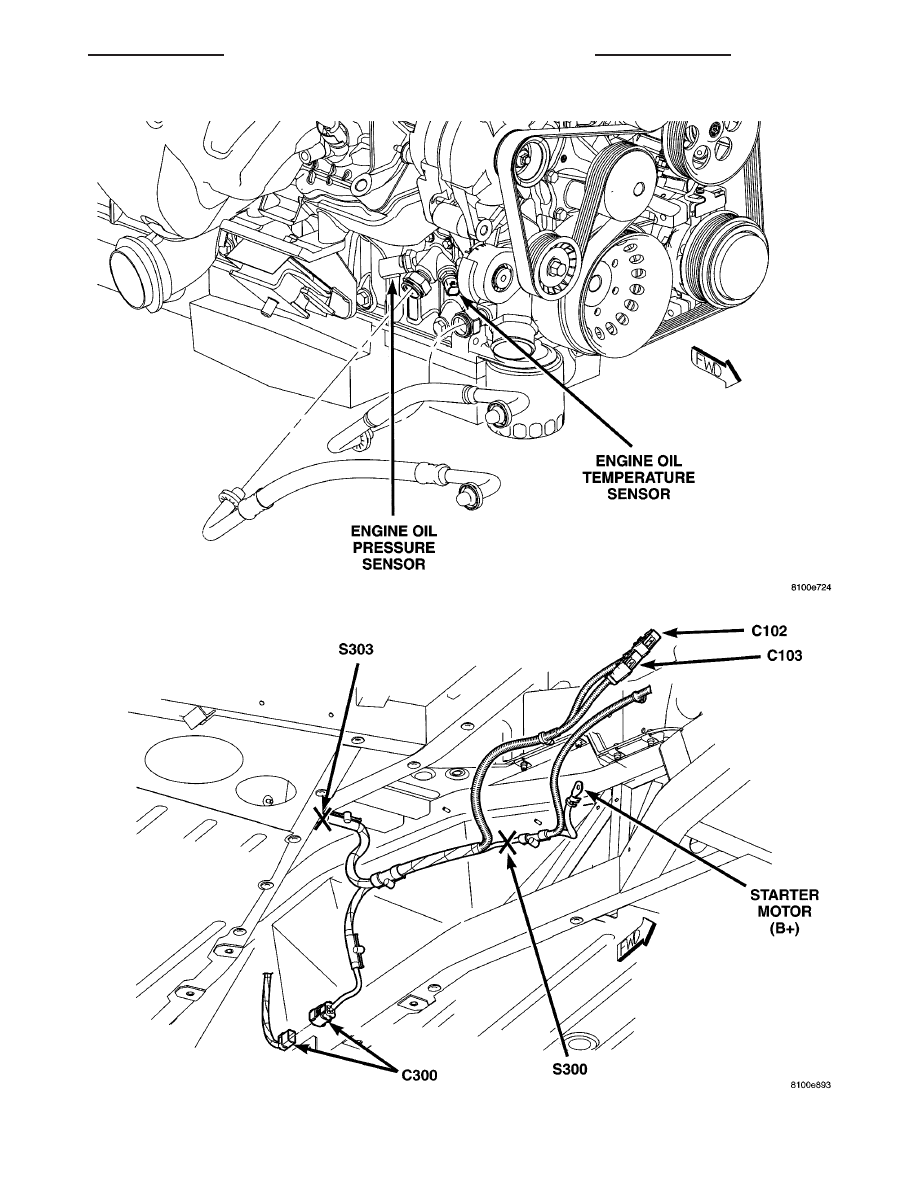

Fig. 12 RIGHT FRONT ENGINE

Fig. 13 REAR ENGINE COMPARTMENT

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 19

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

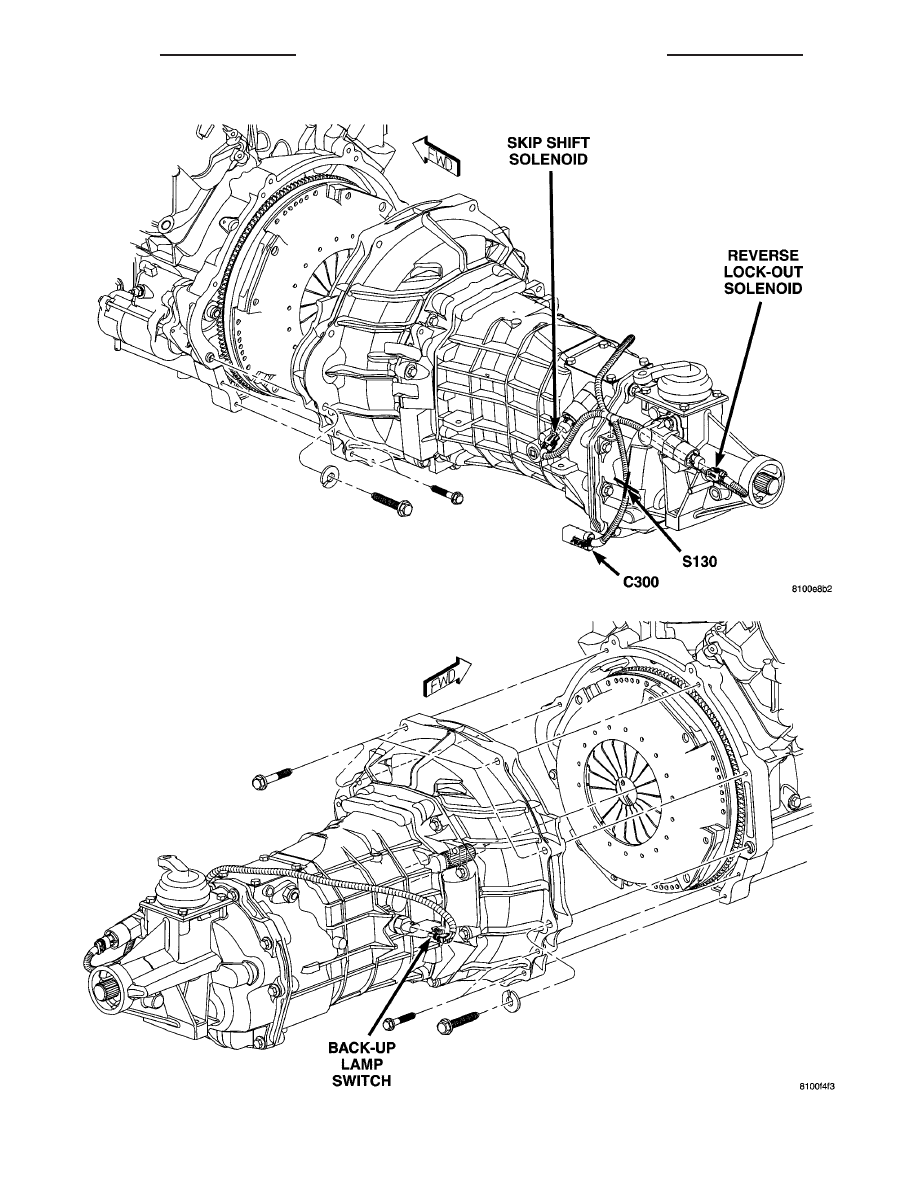

Fig. 14 LEFT REAR TRANSMISSION

Fig. 15 RIGHT TRANSMISSION

8W - 91 - 20

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

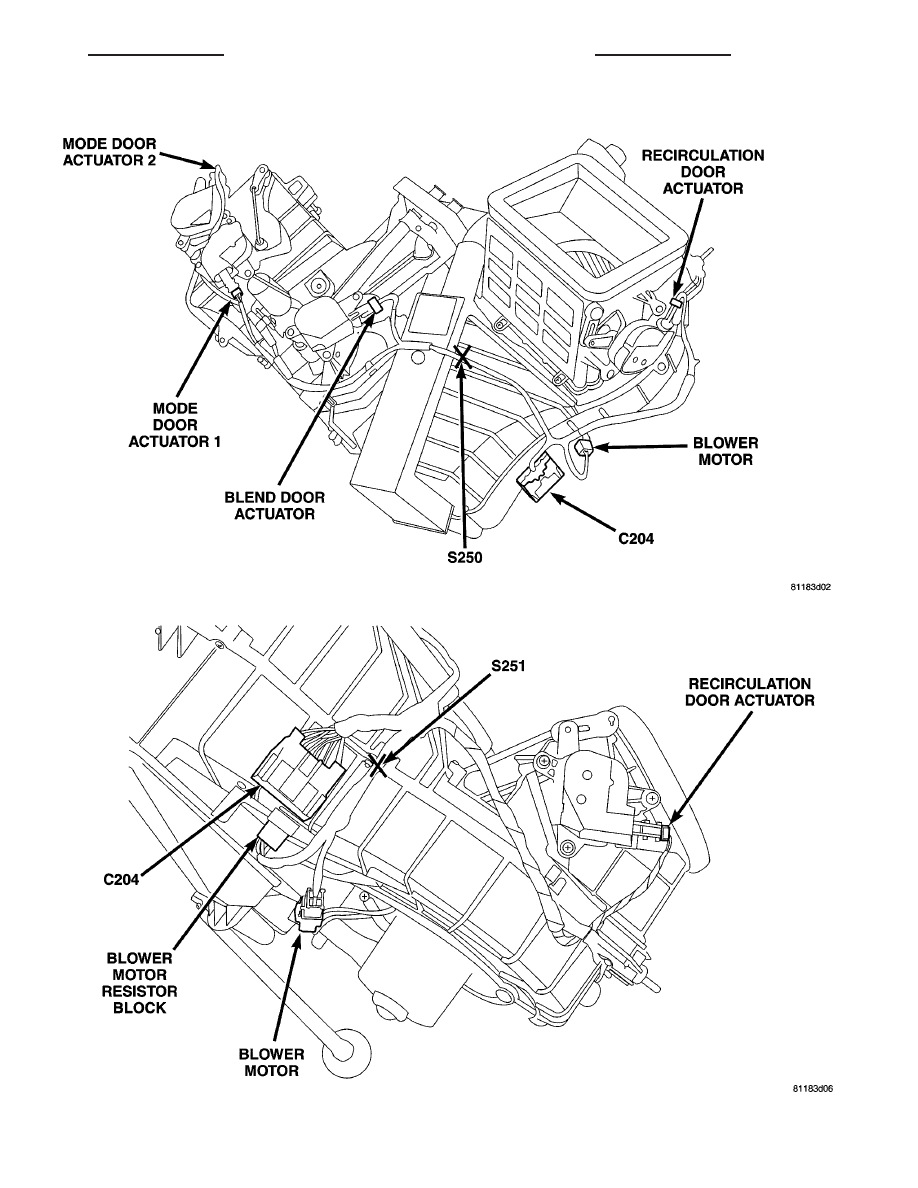

Fig. 16 HVAC TOP

Fig. 17 HVAC SIDE

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 21

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
