Dodge Viper SRT-10 (ZB). Manual - part 159

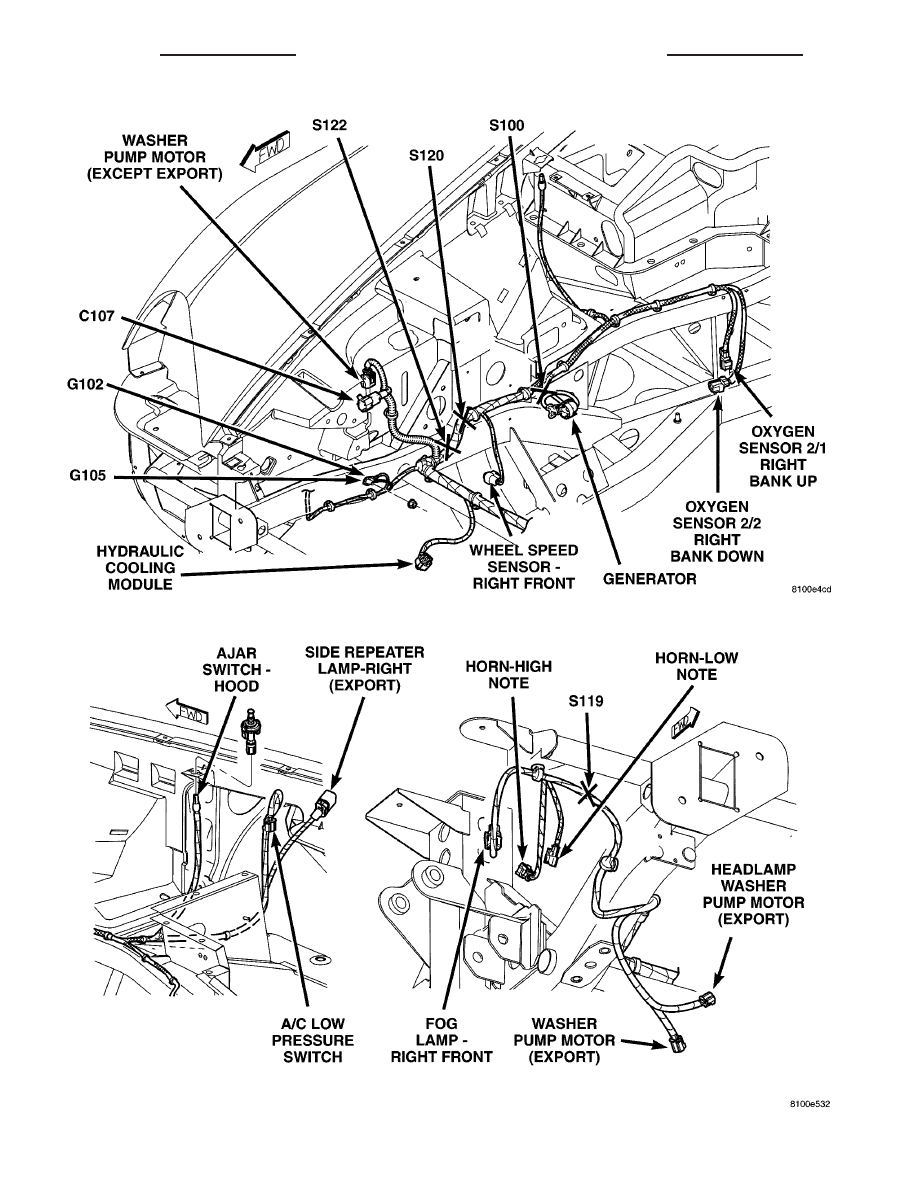

Fig. 4 RIGHT ENGINE COMPARTMENT

Fig. 5 RIGHT FRONT ENGINE COMPARTMENT

8W - 91 - 14

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

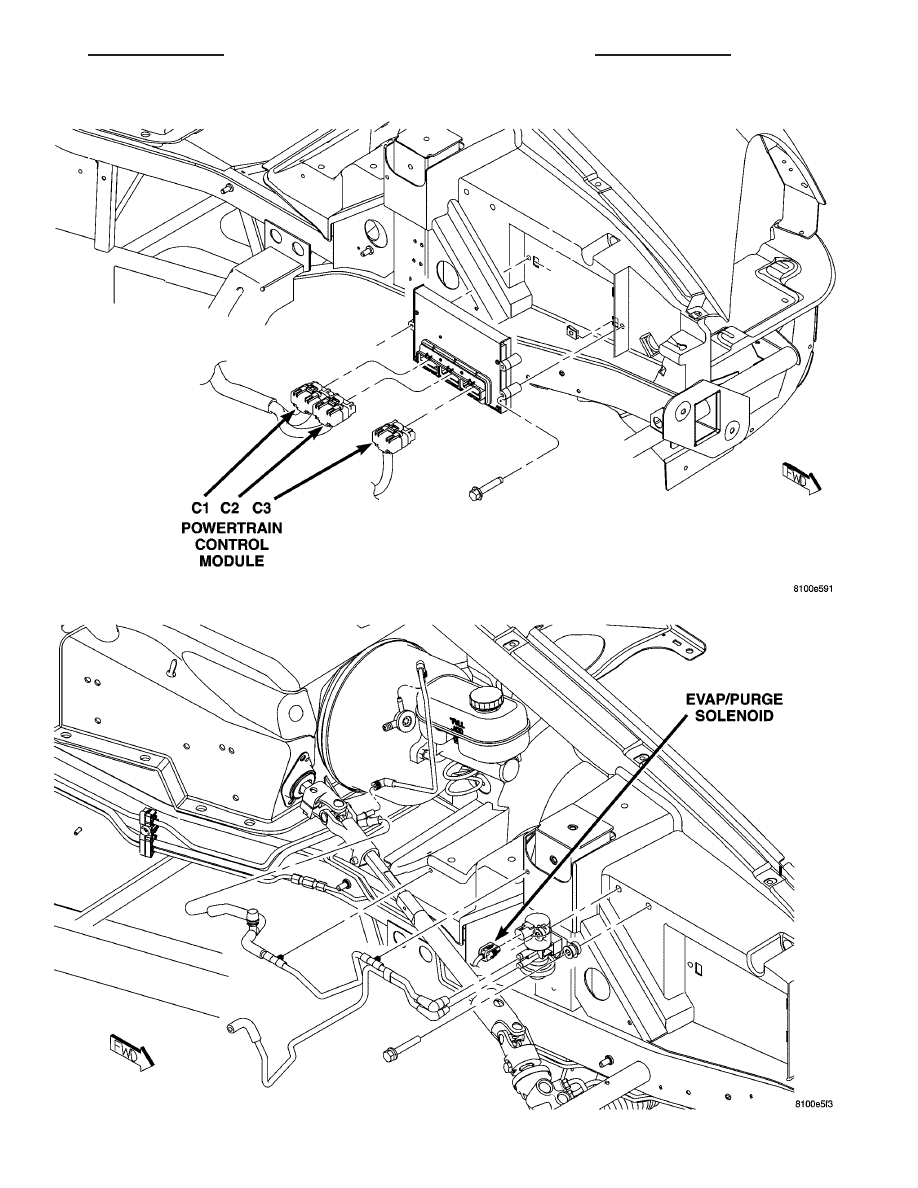

Fig. 6 POWERTRAIN CONTROL MODULE

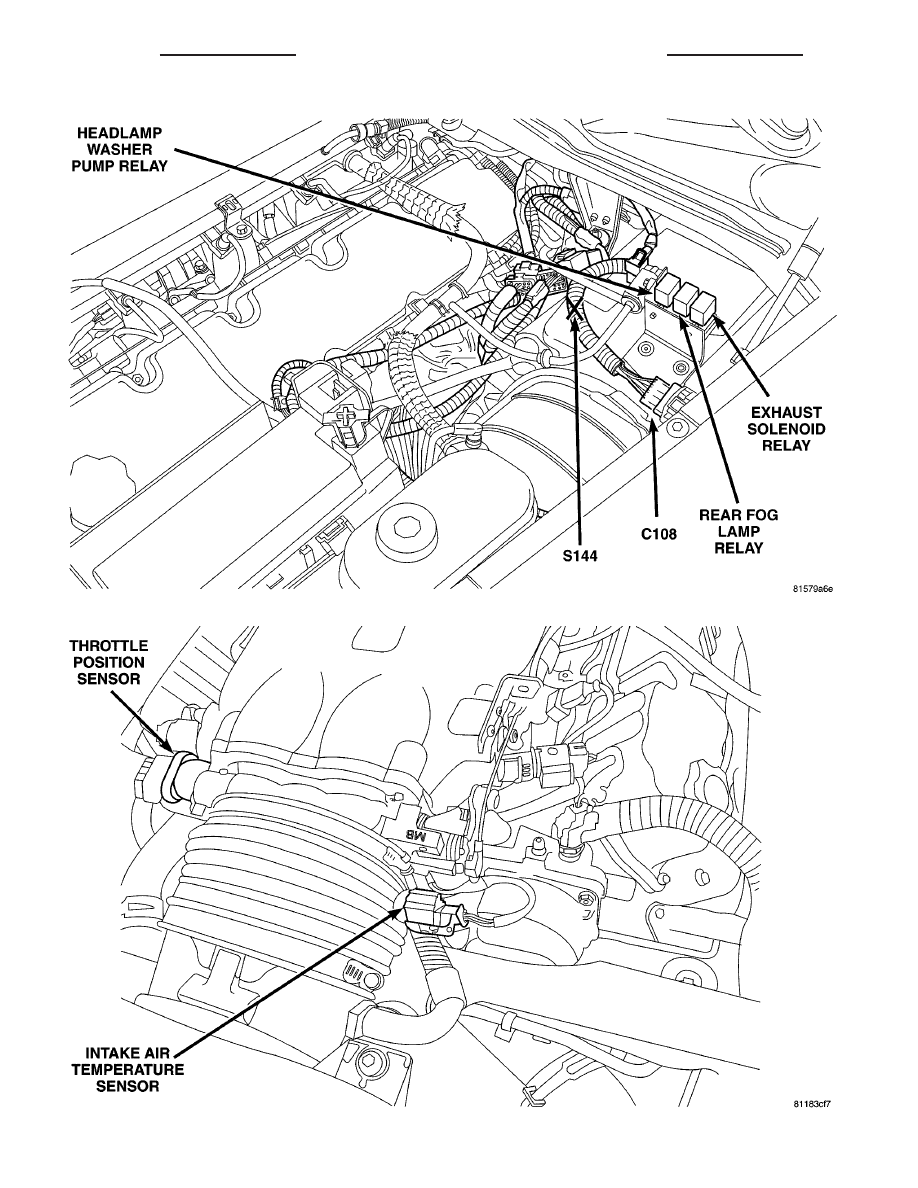

Fig. 7 LEFT REAR ENGINE COMPARTMENT

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 15

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 8 LEFT FRONT ENGINE COMPARTMENT (EXPORT)

Fig. 9 LEFT FRONT ENGINE

8W - 91 - 16

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZB

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

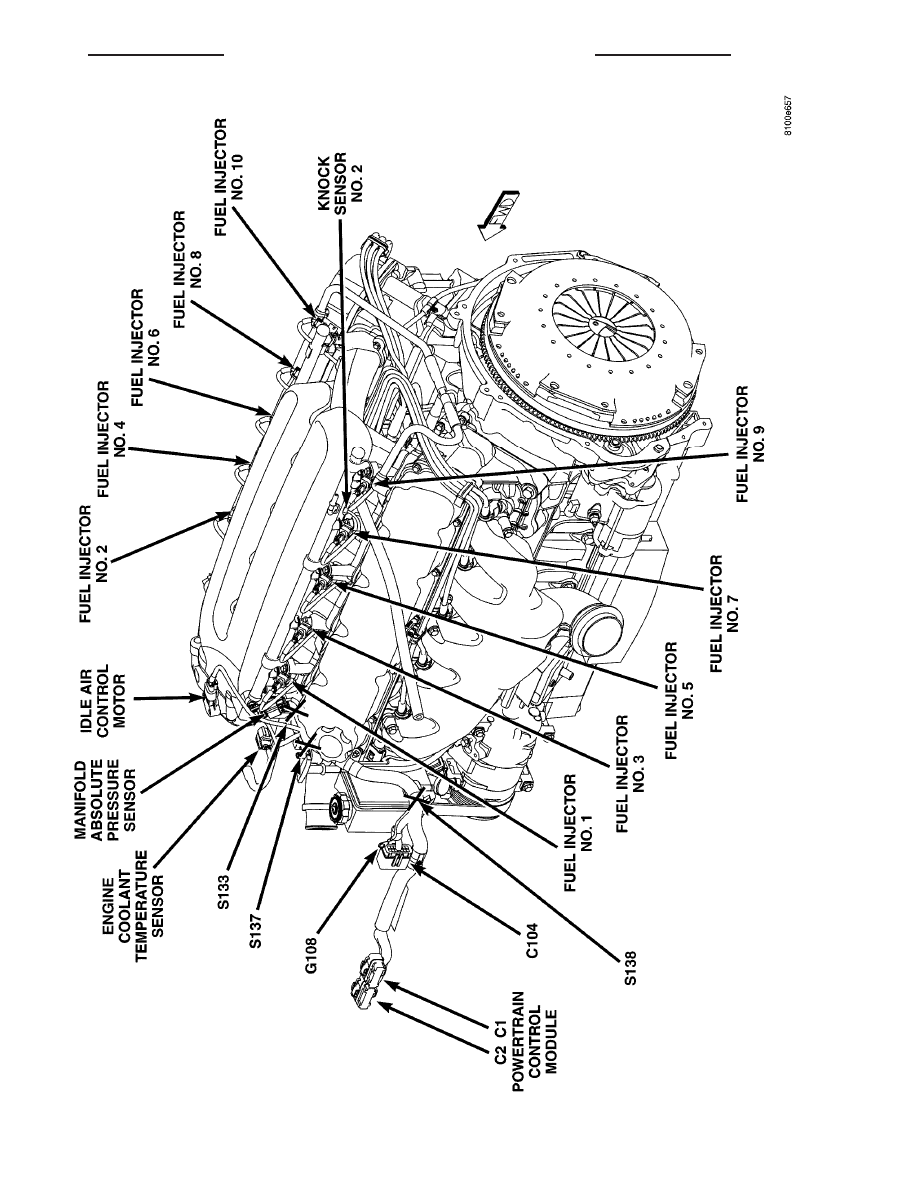

Fig.

10

LEFT

REAR

ENGINE

ZB

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 17

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
